ETX-35P

15" powered 3‑way loudspeaker

  • 15-inch LF SMX woofer
  • 6.5-inch MF driver
  • 1.25-inch HF titanium compression driver
  • 2000 W Class-D power amplifier with integrated FIR-Drive DSP
  • 136 dB peak SPL

Specifications

Frequency Response (-3 dB) 48 Hz - 20 kHz¹
Frequency Range (-10 dB) 38 Hz - 20 kHz¹
Maximum SPL 136 dB peak²

Coverage (H x V) 60° x 40°
Power Rating 2000 W
LF Transducer SMX2151 380 mm (15 in)
MB Transducer EVS-6C 6.5-in mid-bass driver
HF Transducer DH3-B 1.25-in titanium compression driver
Crossover Frequency 700 Hz, 2900 Hz
Connectors (2) XLR/TRS combo jack and (1) XLR link output
Enclosure 18 mm, 13-ply birch plywood with EVCoat
Grille 16AWG steel with powdercoat
Suspension (8) M10 suspension points
Dimensions (H x W x D) 1023 mm x 469 mm x 426 mm (40 in x 18 in x 17 in)
Net Weight 38.2 kg (84.2 lb)
Shipping Weight 42.8 kg (94.4 lb)
Power Consumption 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadbandpink noise at maximum output.
³ Current rating is 1/8 power.

Downloads

Name Language Size Date
Portable speakers catalog 2020 EMEA ES 6.76MB 05.12.2020
ProSound Loudspeakers and Electronics Catalog EN 15.43MB 04.02.2019
Portable speakers catalog 2020 EMEA EN 9.22MB 01.21.2020
Portable speakers catalog 2020 EMEA PL 6.77MB 05.12.2020
Portable speakers catalog 2020 EMEA FR 6.76MB 05.12.2020
Portable speakers catalog 2020 EMEA EL 6.78MB 05.12.2020
Portable speakers catalog 2020 EMEA DE 6.76MB 05.12.2020
Portable speakers catalog 2020 NA EN 10.63MB 05.22.2020
Name Size Date
Environmental Compliance Document 148KB 10.03.2017
Name Size Date
ETX 35P SIMPLIFIED CAD Drawing ZIP 108KB 04.27.2018
Name Size Date
ETX ZIP 414KB 01.24.2018
Name Language Size Date
ETX35P Data Sheet EN 583KB 07.10.2014
Name Language Size Date
ETX Powered Loudspeakers Manual ES 7.76MB 05.31.2016
Enceintes amplifiées ETX Guide FR 8.29MB 05.31.2016
ETX Powered Loudspeaker Hardware Accessory Manual EN 4.76MB 09.12.2014
ETX Powered Loudspeakers Manual PT 7.78MB 05.31.2016
ETX Powered Loudspeakers User Manual EN 7.6MB 05.31.2016
ETX Powered Loudspeakers 설치 매뉴얼 KO 7.91MB 05.31.2016
ETX パワードスピーカー マニュアル JA 7.99MB 05.31.2016
ETX 说明书 ZH 8.14MB 05.27.2016
ETX-Aktivlautsprecher Benutzerhandbuch DE 7.77MB 05.31.2016
Name Size Date

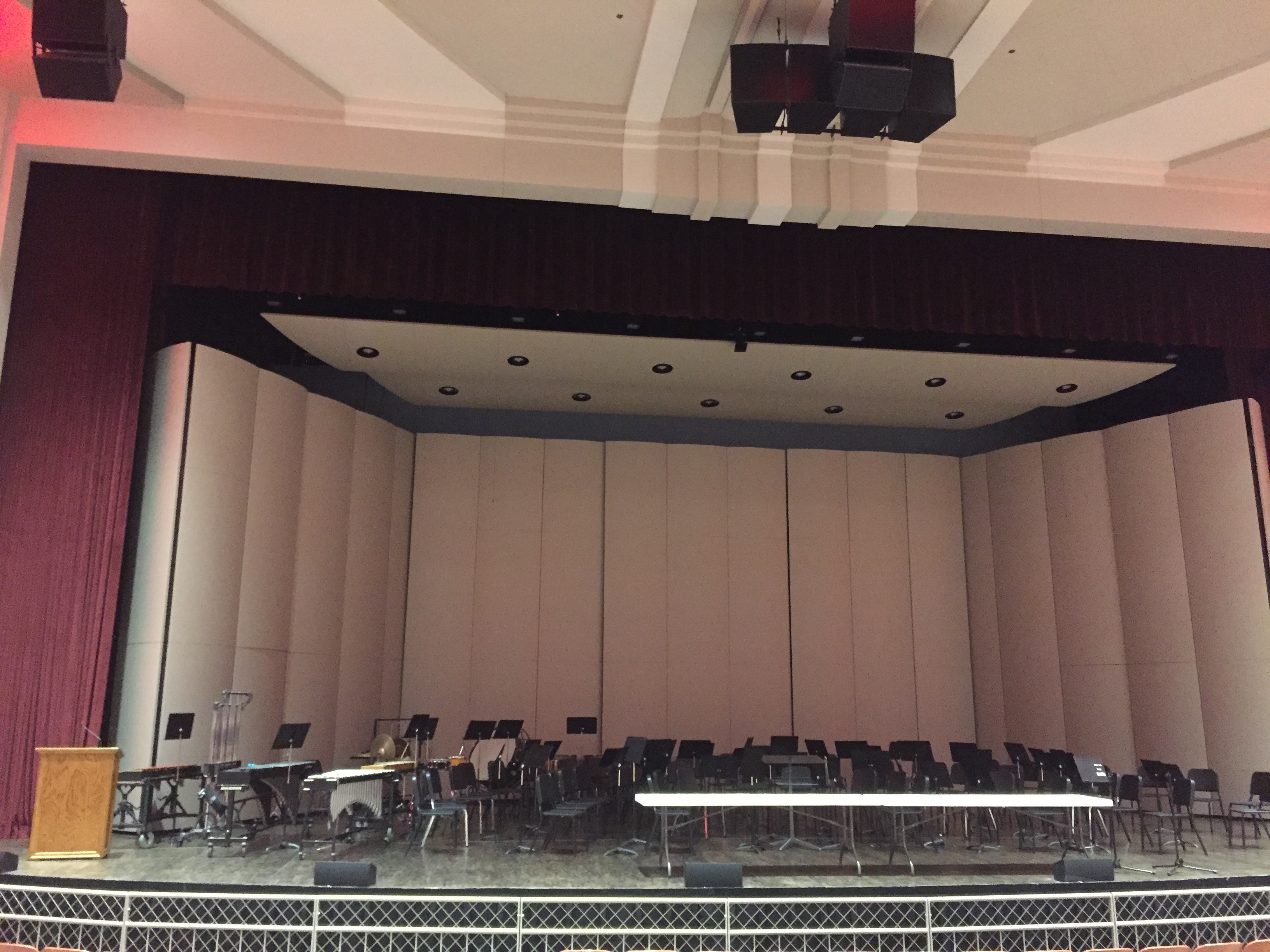

Knowlton Auditorium Austin MN 03 1.53MB 05.17.2016
