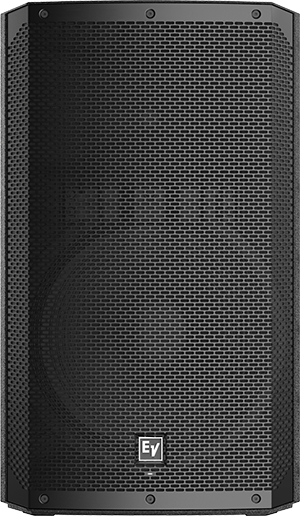

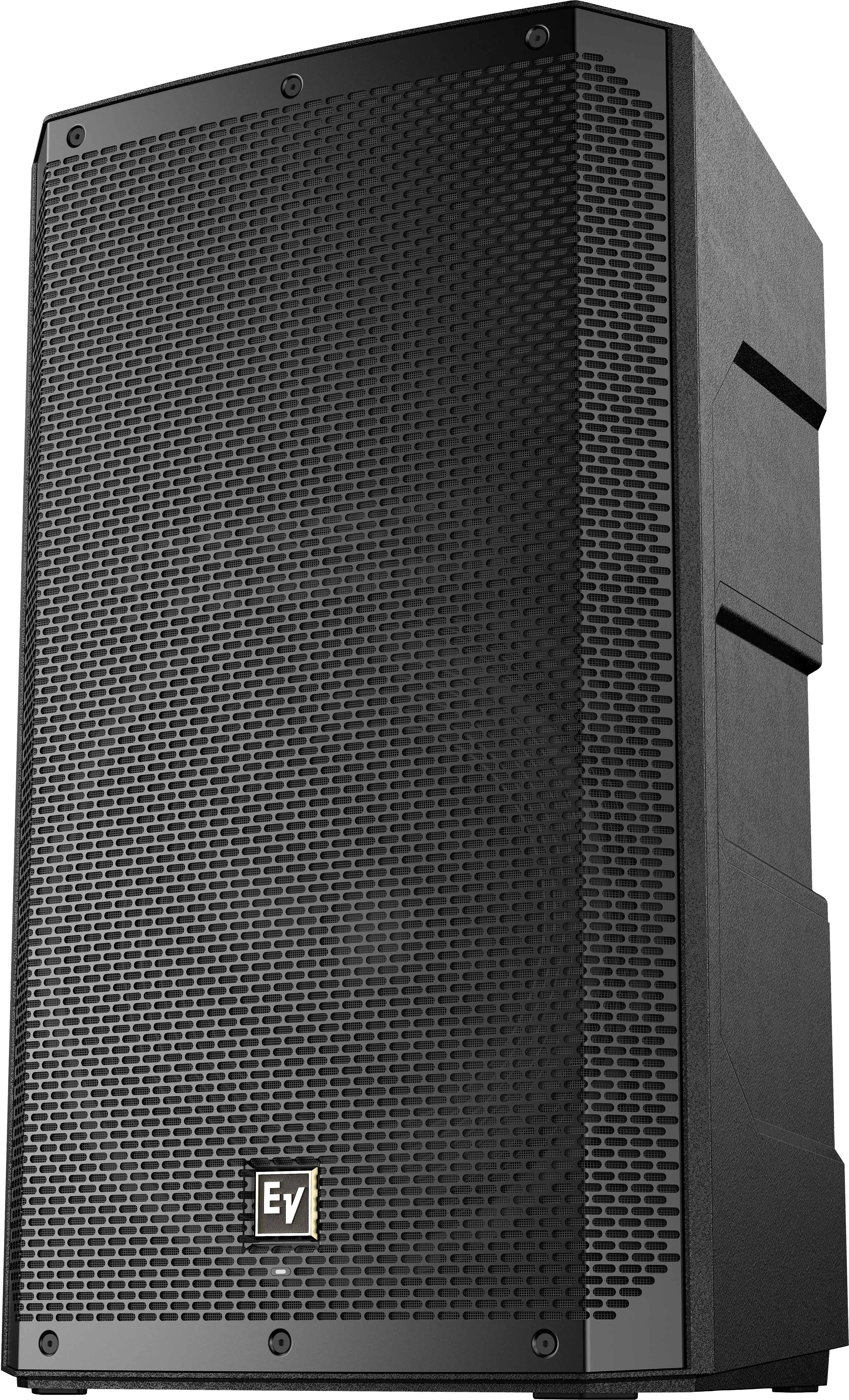

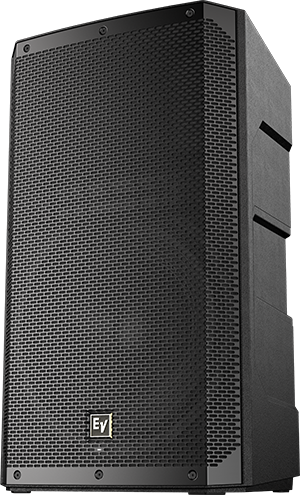

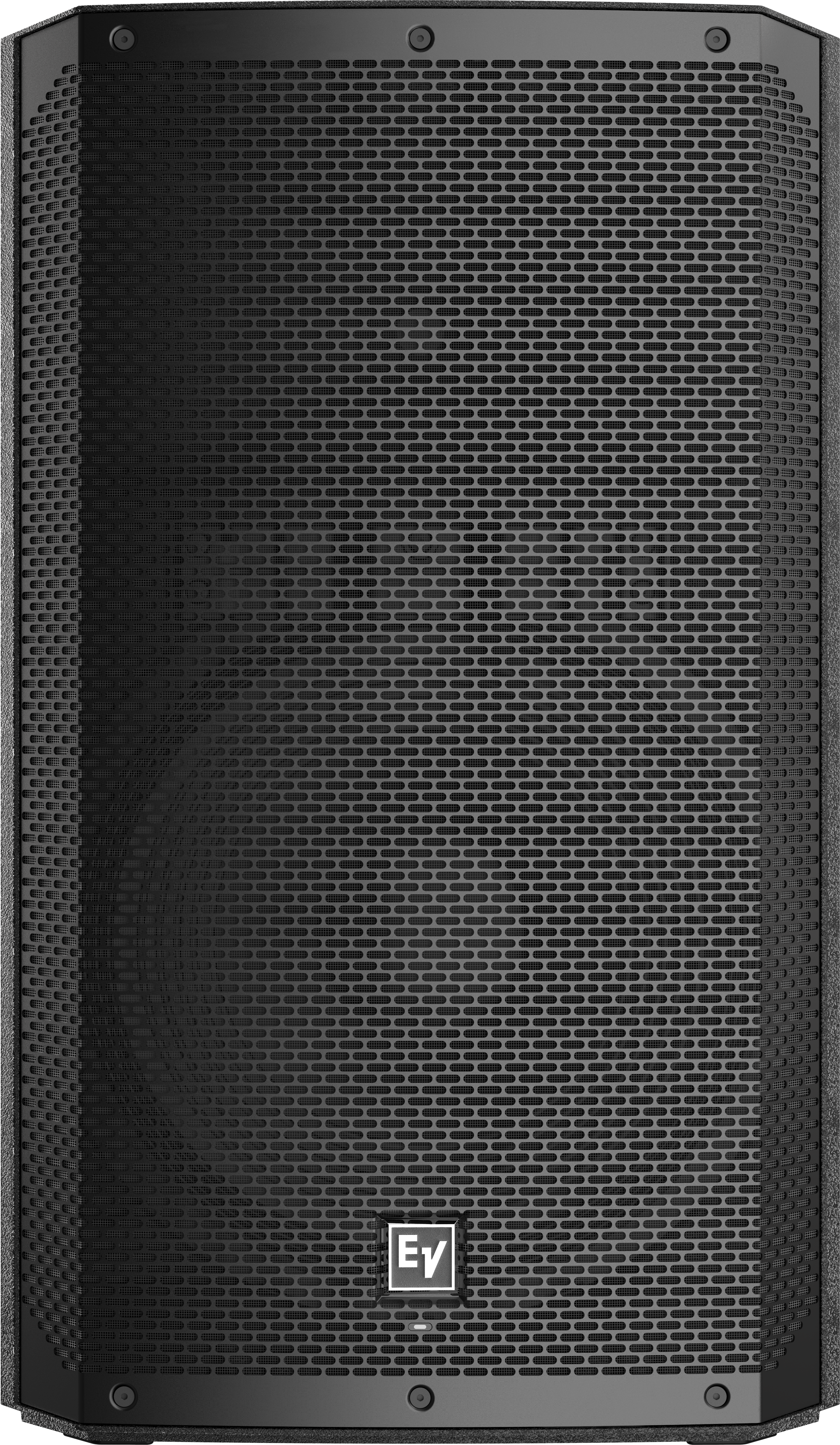

ELX200-15P

15英寸两分频有源扬声器

Specifications

Suspension(3) M10 suspension points
HF TransducerDH-1L 1-inch titanium compression driver
Speaker TypeFull-Range
Woofer Size15
Powered or PassivePowered
Frequency Response (-3 dB)¹55 Hz – 16 k

Frequency Range (-10 dB)¹48 Hz – 19 kHz
Max. SPL/1m (calc)²132
Coverage (Nominal -6 dB) H90
Coverage (Nominal -6 dB) V60
LF TransducerEVS-15M 381 mm (15 in)
Power Rating1200
Crossover Frequency1600

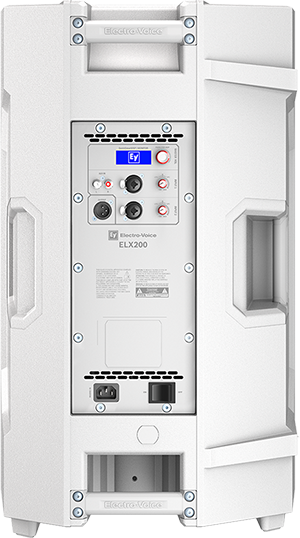

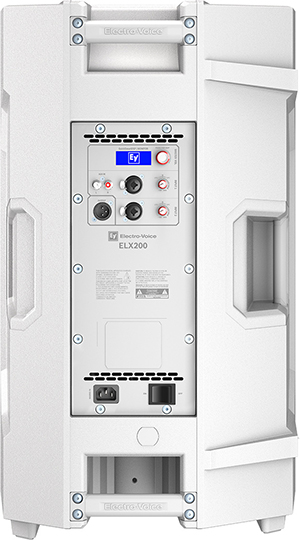

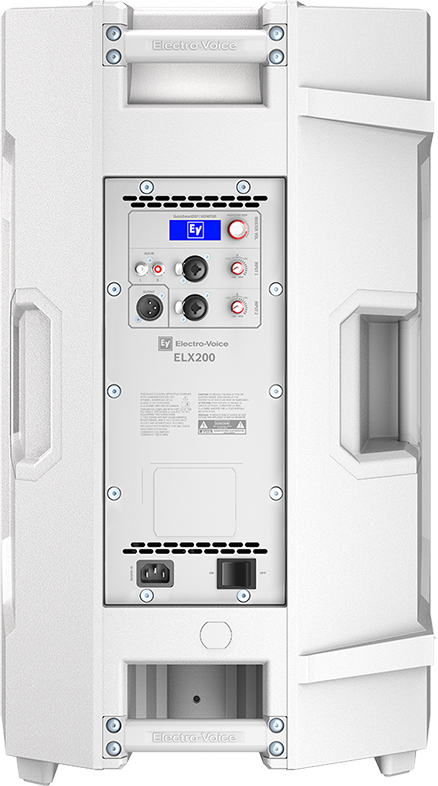

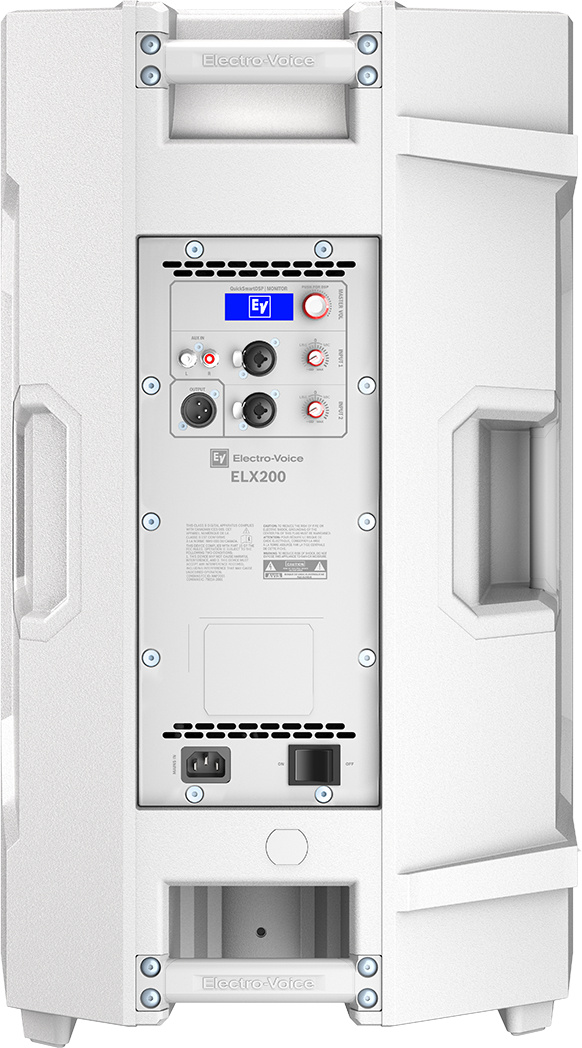

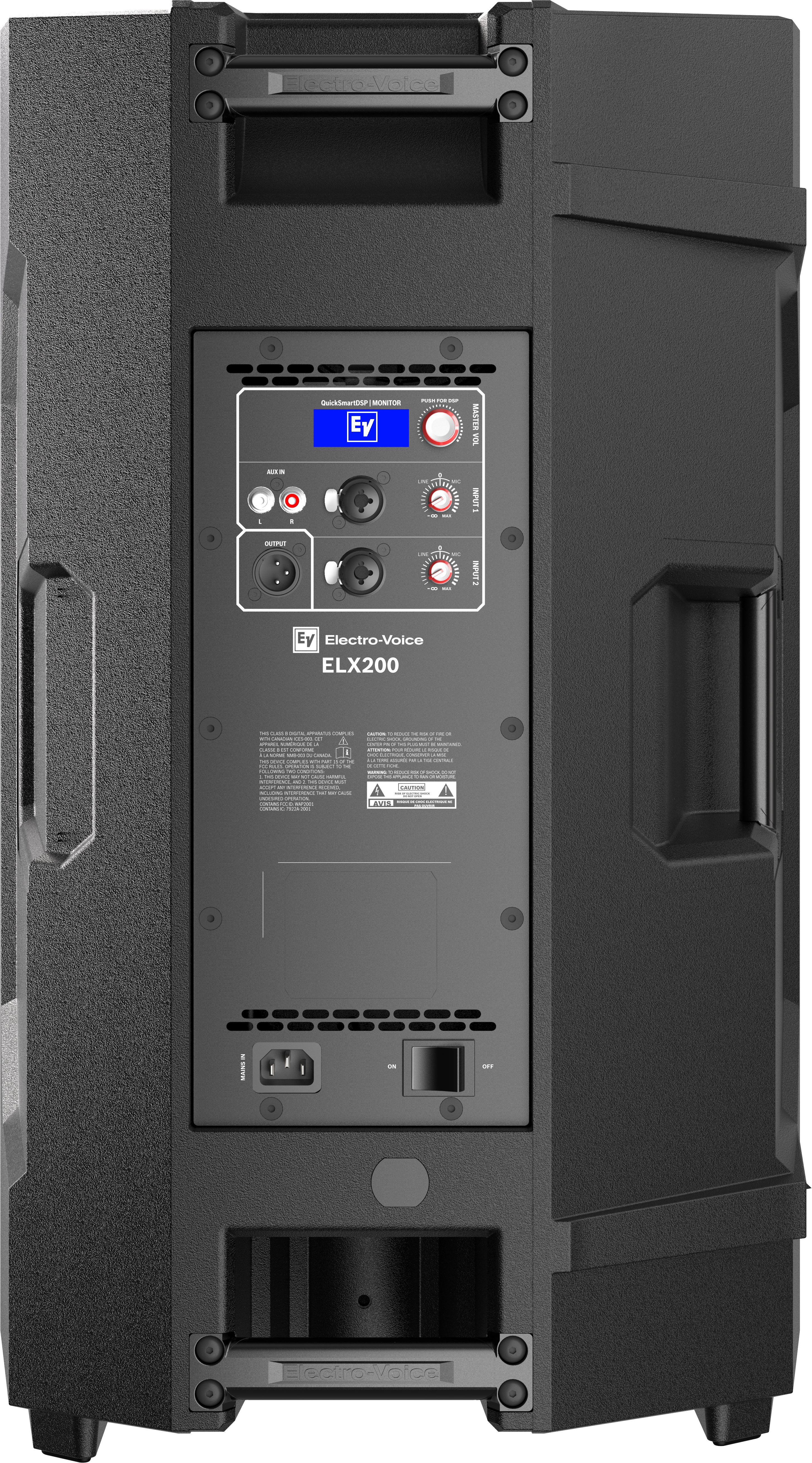

Connector Type(1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Enclosure MaterialPolypropylene Composite
Grille18 AWG steel with powdercoat

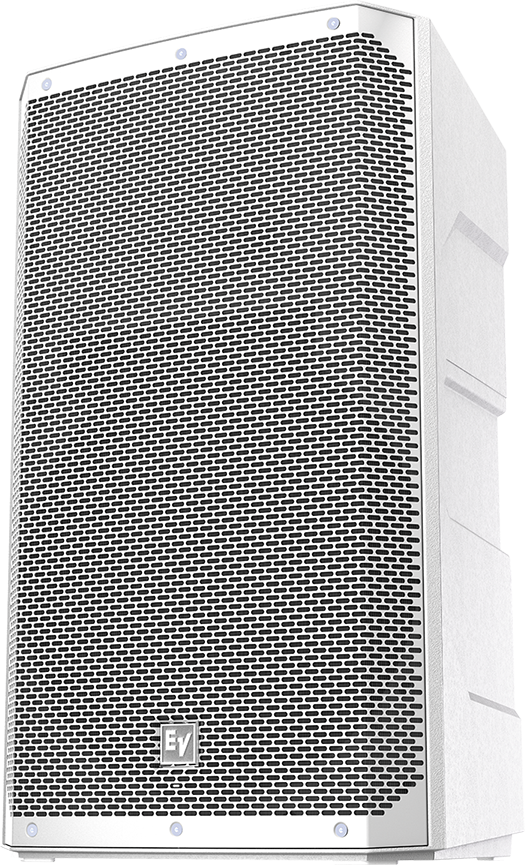

Available ColorBlack or White
Height710
Width423
Depth384
Weight Net18.9
Shipping Weight21.8
Power Consumption³100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A
FamilyELX200
