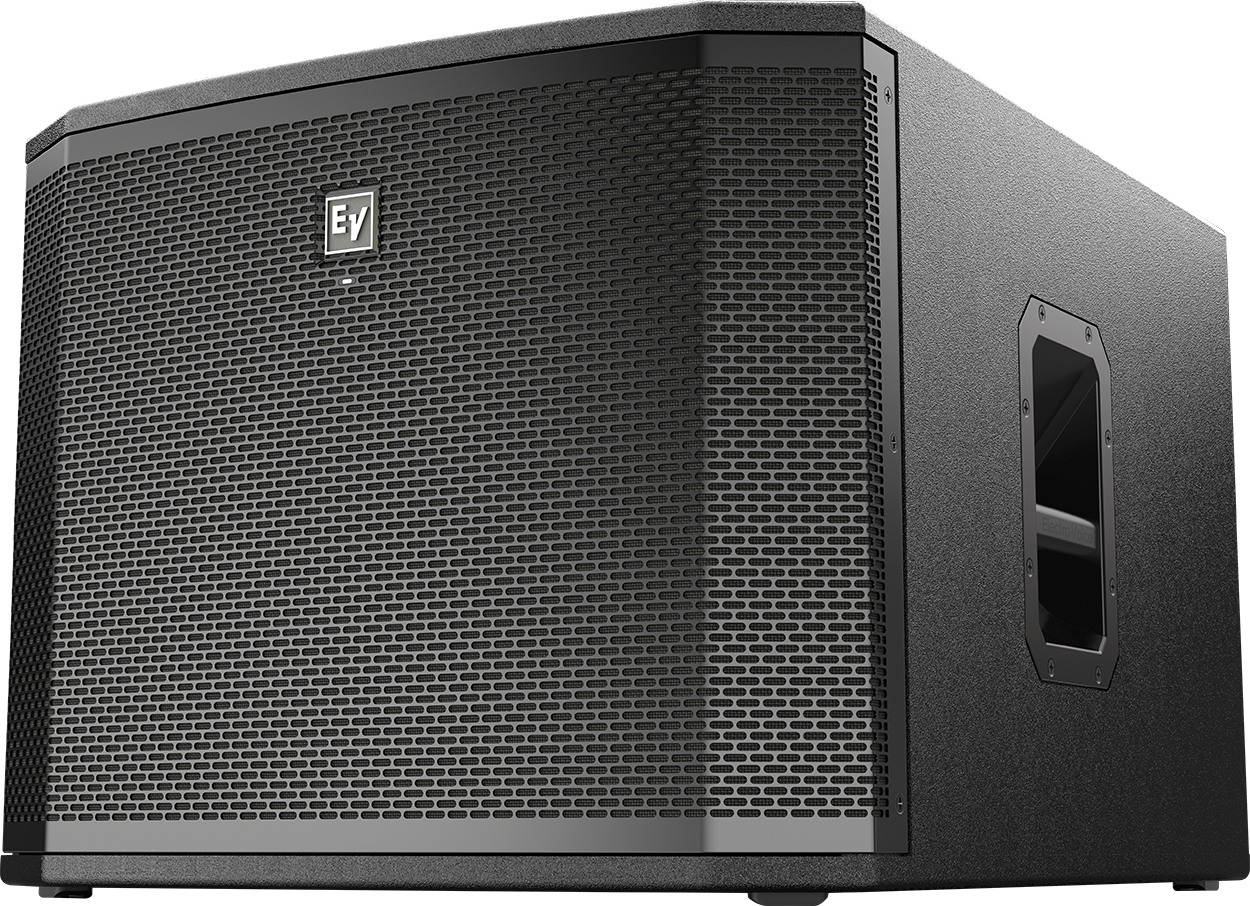

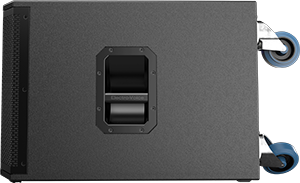

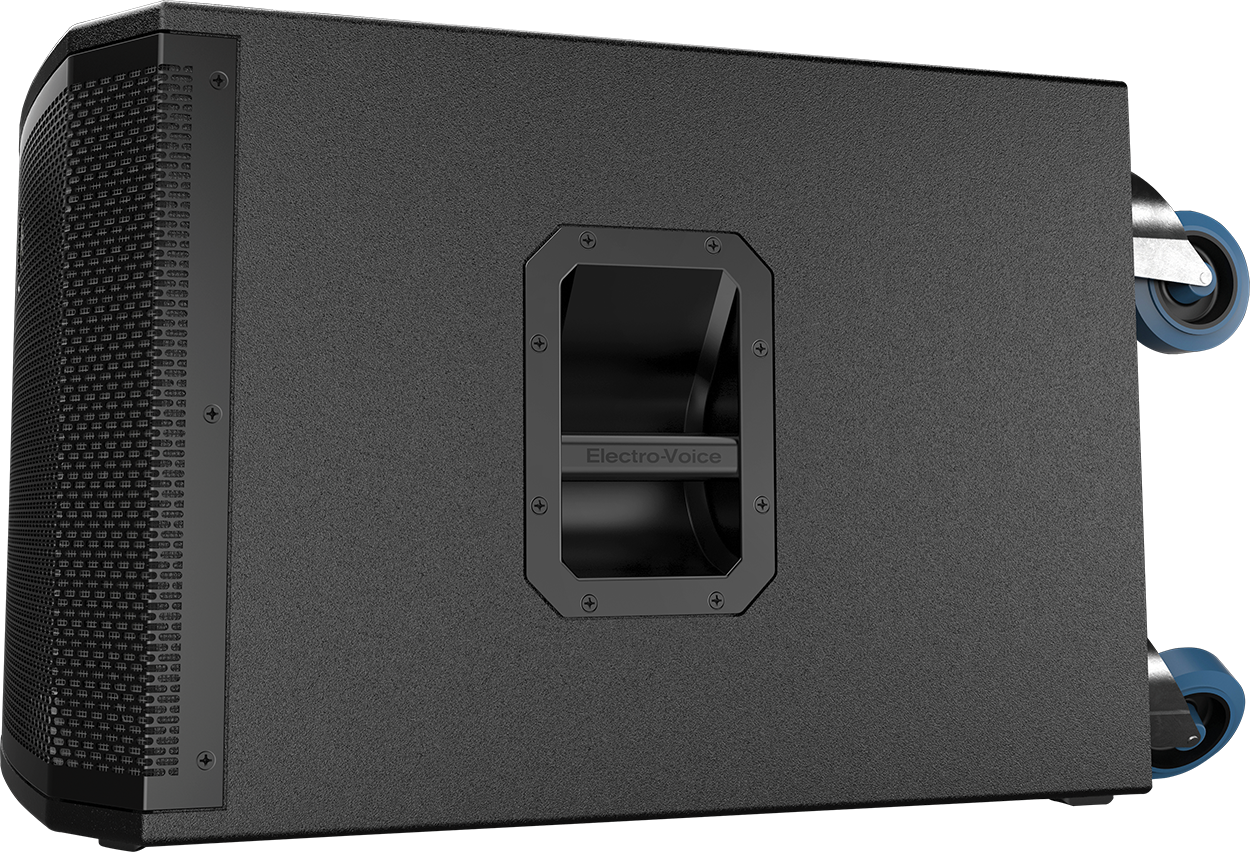

ETX-15SP
15”两分频有源低音单元
- 15英寸DVX低音单元，增强低频冲击
- 集成FIR驱动器DSP的1800W D类功率放大器
- 135 dB峰值声压级
- 专用DSP可在整个工作带宽内提供真正的心形指向性能

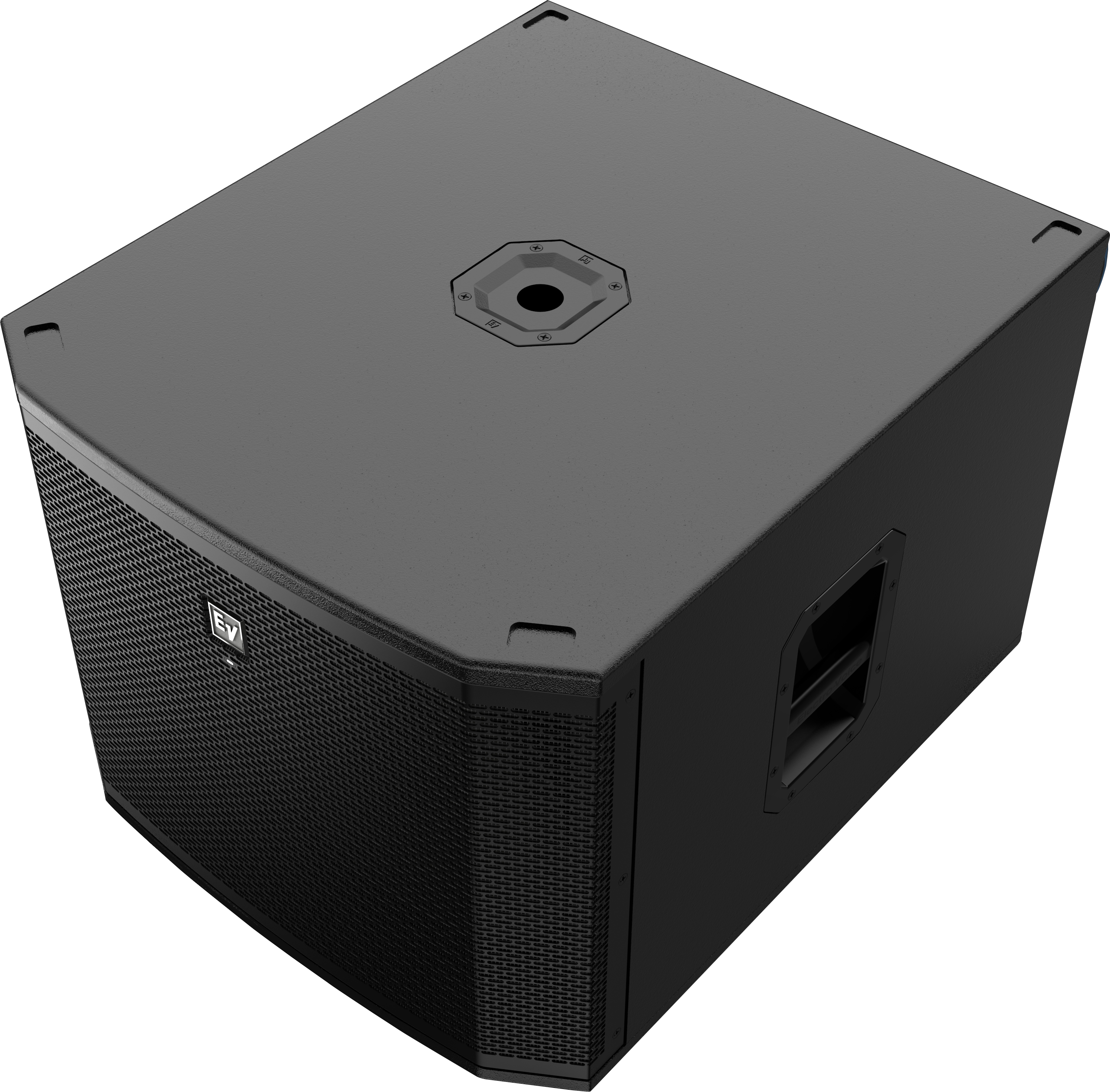

- 多功能支架安装座（插入式或螺纹式），适用于ETX所有型号

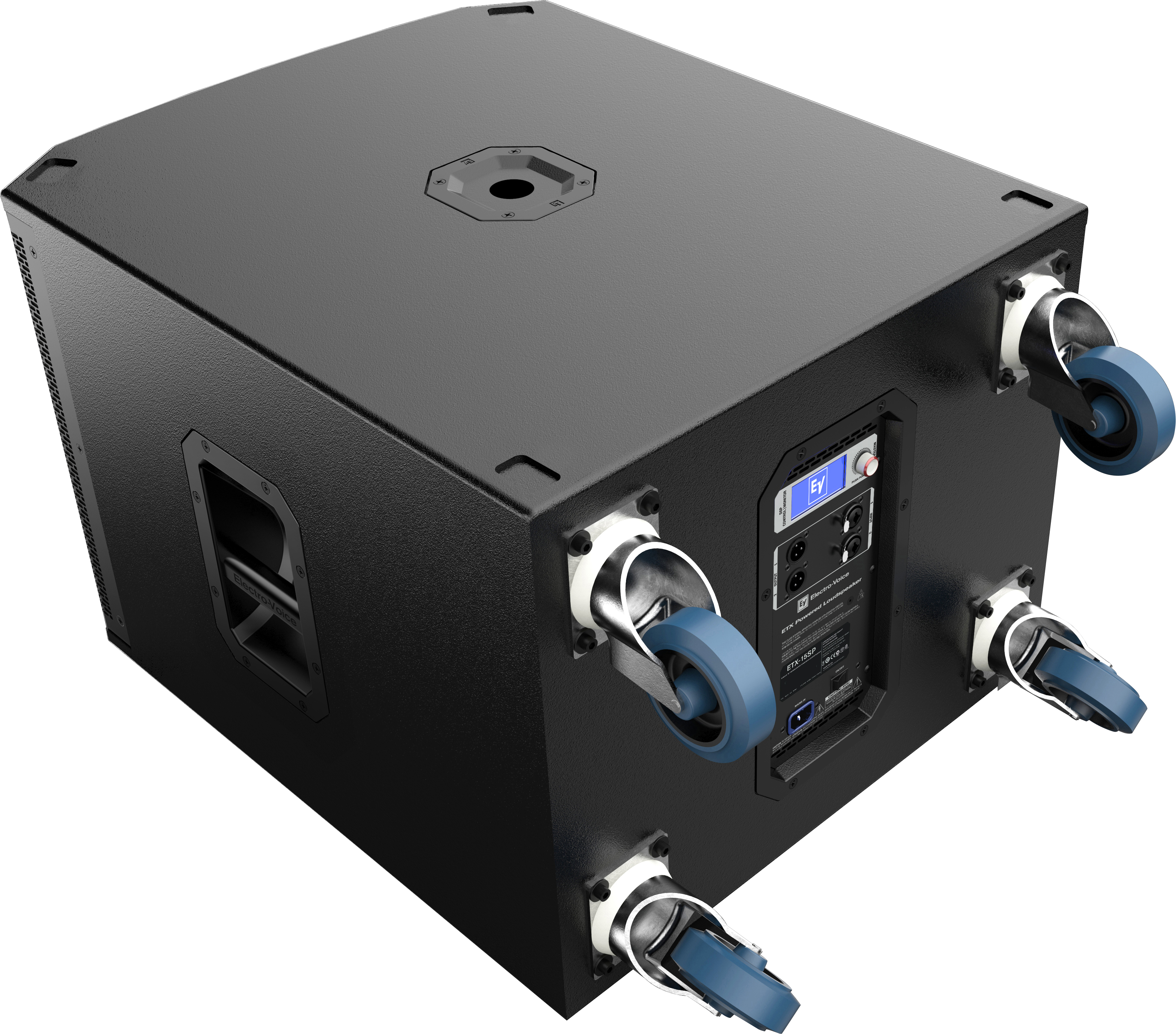

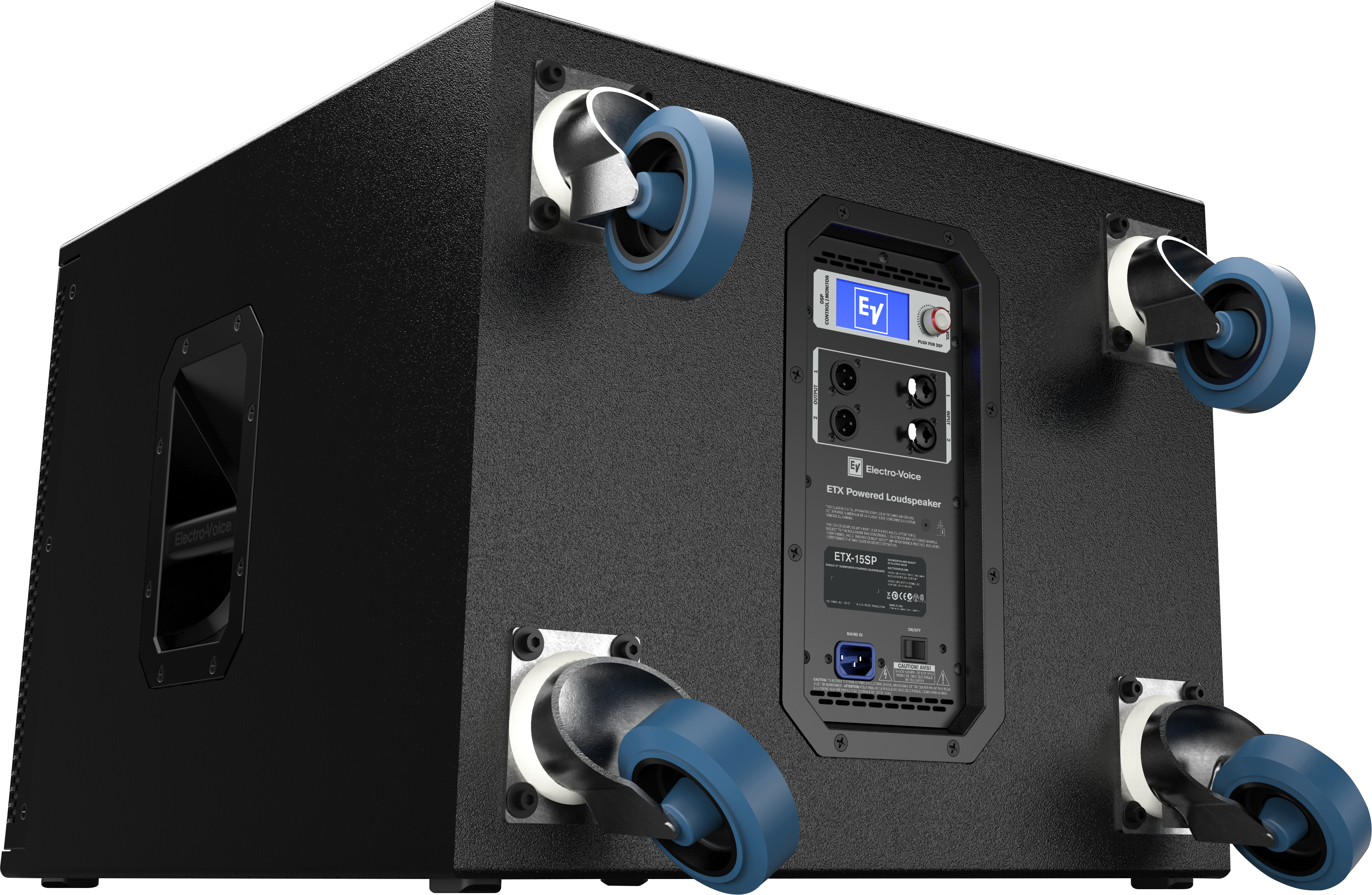

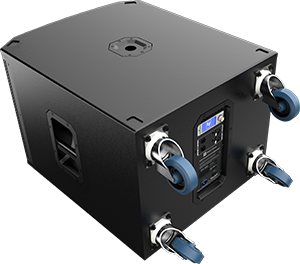

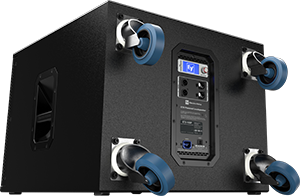

- 可拆卸脚轮
Specifications
| Speaker Type | Subwoofer |
| Woofer Size | 15 |
| Powered or Passive | Powered |
产品规格 |
|
| Frequency Range (-10 dB)¹ | 32 Hz – 180 Hz |
| LF Transducer | DVX3159A 380 mm (15 in) |
| Power Rating | 1800 |
| Connector Type | (2) XLR/TRS Combo Jack and (2) XLR link Output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Height | 471 |
| Width | 576 |
| Depth | 825 |
| Weight Net | 41.7 |
| Frequency Response (-3 dB) | 37 Hz – 150 Hz |
| Shipping Weight | 46.8 |
| Family | ETX |
| Maximum SPL | 134 dB peak |
| Low Pass Frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
