Sx portable passive loudspeakers
- 轻便耐用的复合箱体
- 卓越保真的双通道集成功放
- 话筒和线路输入
- 1.25"" DH3压缩驱动器
- DL低频单元
- 全面的安装吊挂配件
- 音箱罩可选

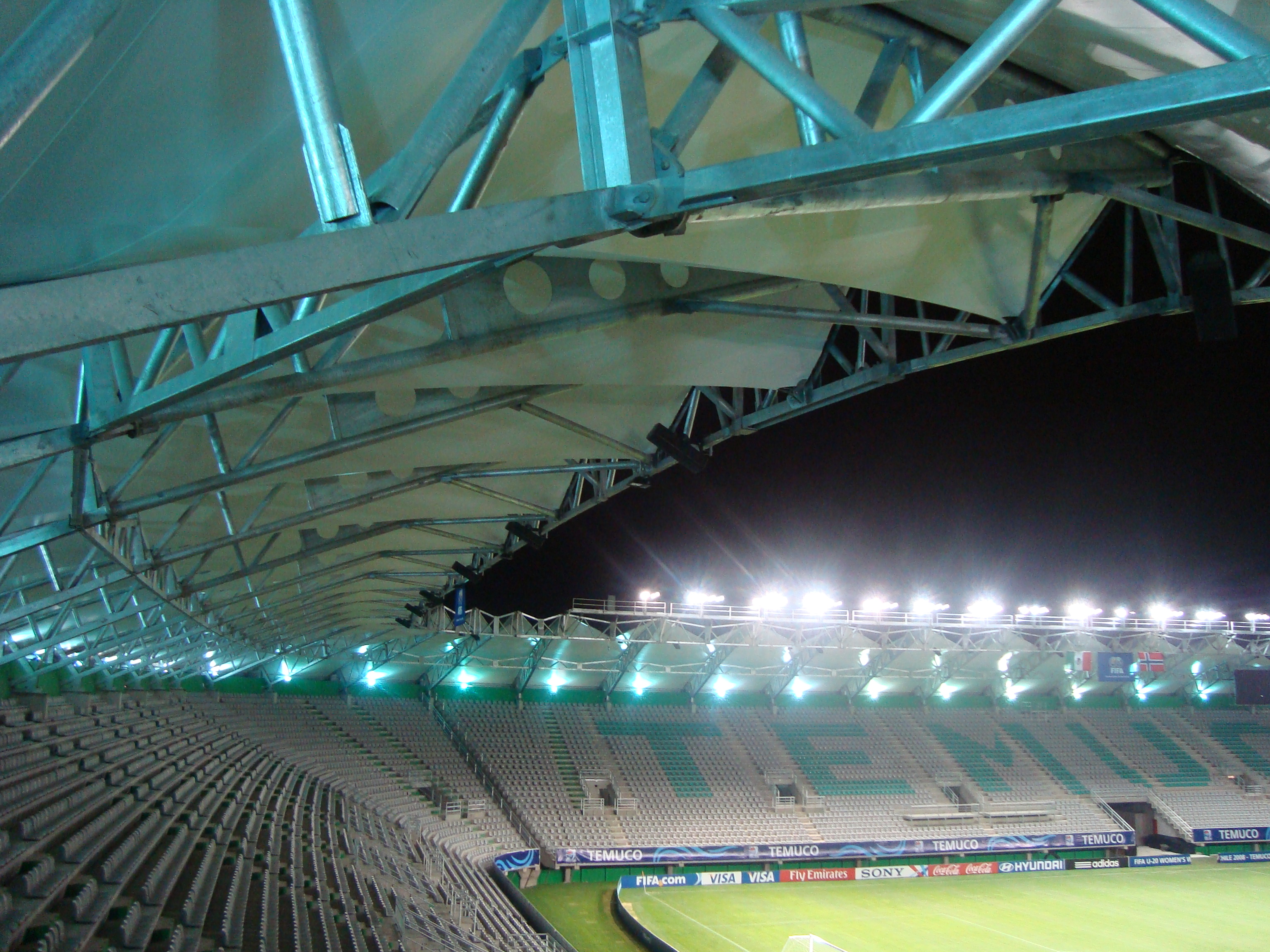

SX系列作为广为流行的扬声器之一，为各个场合提供EV众所周知的经过巡回验证的性能和稳定性。扬声器的结构和轻便的箱体使其适合多功能的应用，包括商业音响、专业音乐、俱
乐部、演出和体育场馆。现场演出中，SX系列可以胜任诸如主扩、侧场补声、延时补声以及舞台返送等各种角色；
固定安装时，简便的安装、多种环境适用的版本提供灵活的系统结构，不论是室内，还是户外。高功率、宽覆盖以及平滑、一致的频率响应，SX系列扬声器为您提供简便、
可靠、耐用的解决方案。
Now available in black and white.
产品
 |
 |
 |
 |
 |
 | |
Sx300PI |

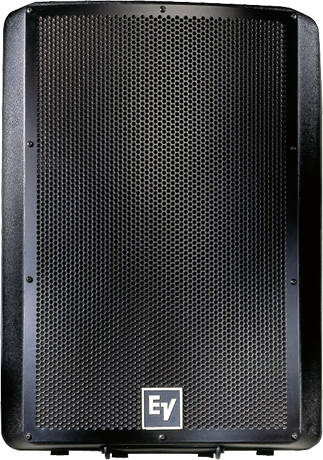

Sx300PIX |
Sx100+ |
Sx300E |
Sb122 |
Sx600 | |
| 频响范围（- 10分贝） | 50 - 20000 | 50 - 20000 | 60 - 25000 | 50 - 20000 | 70 - 16000 | |
| 绝缘材料 | Yes | Yes | No | No | Yes | |
| 悬吊安装 | Yes | Yes | Yes | Yes | Yes | |
| 最小阻抗 | 5 | 5 | 5.6 | 5 | 3.5 | |
| 标称阻抗（无源） | 8 | 8 | 8 | 8 | 4 | |
| 高频传感器 | 1.25-inch DH3/2010A | 1.25-inch DH3/2010A | 1.25-inch DH3/2010A | 1.25-inch DH3/2010A | 2-inch DH2T | |
| 扬声器类型 | Full-Range, Two-Way | Full-Range, Mid-High, Two-Way | Full-Range, Mid-High, Two-Way | Full-Range, Mid-High, Two-Way | Subwoofer | Full-Range, Two-Way |
| 低音尺寸 | 12 | 12 | 12 | 12 | 12 | 12 |
| 中频传感器 | ND12A | |||||
| 有源或无源 | Passive | Passive | Passive | Passive | ||
| Frequency Range (-10 dB)¹ | 43Hz - 200Hz | |||||
| Max. SPL/1m (calc)² | 131/123 () | 131/123 () | 127 | 131/123 () | 139 | |
| 覆盖率（标称- 6分贝）H | 65 () | 65 () | 65 () | 65 () | 65 | |
| 低频传感器 | 12-inch DL12BFH | 12-inch DL12BFH | 12-inch | 12-inch DL12BFH | EVS12SB, 12 in (305mm) | One 12-inch DL12BFH (LF), one 12-inch ND12 (MB) |
| 覆盖率（标称- 6分贝）V | 65 () | 65 () | 65 () | 65 () | 65 | |
| 系统功率处理（连续/曲目/峰值） | 300//1200 | 300//1200 () | 200//800 () | 300/1200 () | 600//2400 () | |
| 额定功率 | 300 | 300 | 800 | 2400 | ||
| 分频频率 | 1500 | 1500 | 1500 | 1500 | 80Hz - 160 | 1800 |
| 连接器型号 | (2) Neutrik Speakon NL4 | |||||
| 外壳材料 | Polypropylene Composite | Polypropylene Composite | Copolymer Composite | Copolymer Composite | Composite | High Density Polymer (Composite) |
| 可选颜色 | Black or white | Black or white | Black or white | Black or white | 黑色 | |
| 灵敏度1 W/1 m | 99 | 99 | 98 | 99 | 99 | 105 |
| 高度 | 586 | 586 | 586 | 586 | 586 | 1163 |
| 宽度 | 429 | 429 | 429 | 429 | 429 | 429 |
| 推荐高通频率 | 40 | 90 @Q=1.6 | ||||
| 内置分频频率 | Yes | Yes | Yes | Yes | Yes | |
| 深度 | 312 | 312 | 312 | 312 | 312 | 312 |
| 净重 | 17.7 | 17.7 | 14.5 | 17.7 | 15 | 36.3 |
| 响应频率 (-3 dB) | 52Hz - 145Hz | |||||
| 装船重量 | 16.5 | |||||
| 家族 | Sx | Sx | Sx | Sx | Sx | |
| 输入连接 | 2 four-pin Speakon | 2 four-pin Speakon | Parallel Neutrik® NL4 | 2 four-pin Speakon | SJO cable/gland nut | |
| 变压器 | Yes | |||||
| 指向性指数 | 11.1 () | 11.1 () | 11.1 () | 11.1 () | 11.3 | |
| 底盘尺寸 | 304.8 | 304.8 | 304.8 | 304.8 | 304.8 | |
| 轴向灵敏度(SPL, 1 W @ 1 m) | 99 | 99 | 98 | 99 | 105 | |
| 无源功率 | 2400 | |||||
| 阻抗 | 8 | |||||
| 功率（连续/峰值） | 400/1600 | |||||
| 最大声压级 | 131 | |||||
| 更多 | 更多 | 更多 | 更多 | 更多 | 更多 |
