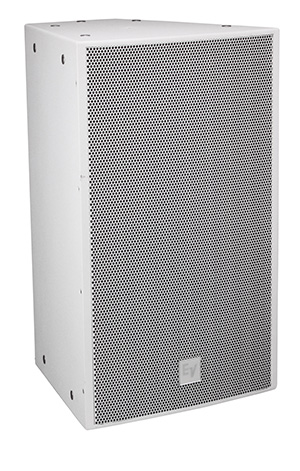

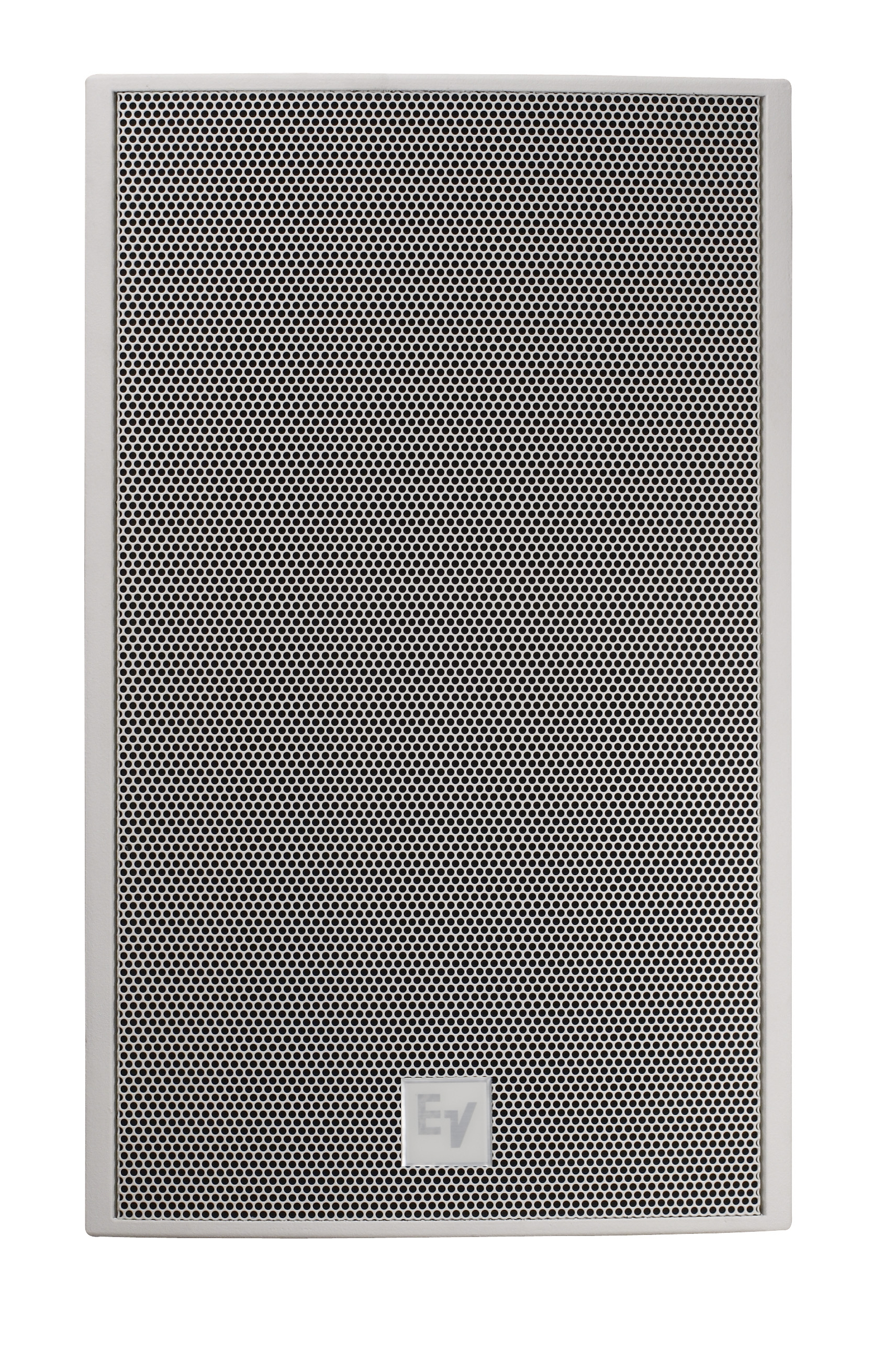

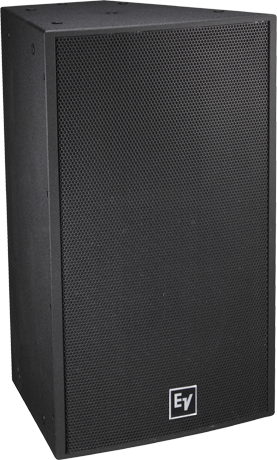

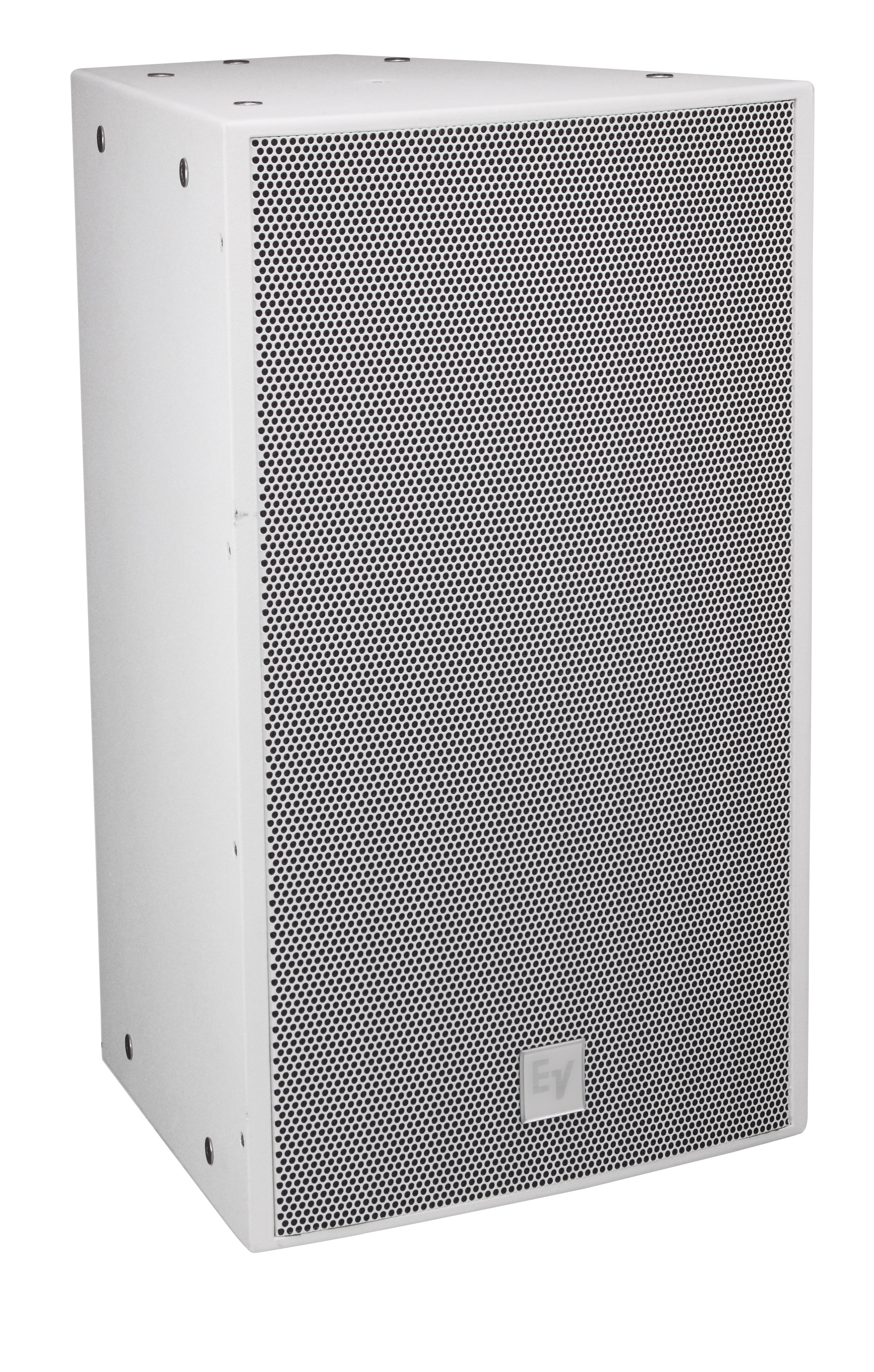

EVF-1152S 96

Arrayable point-source 15" loudspeaker

Summary & Images Specs Where to buy Downloads & Support

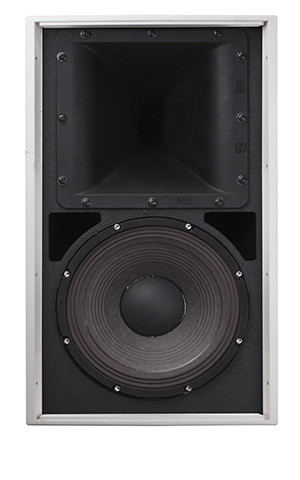

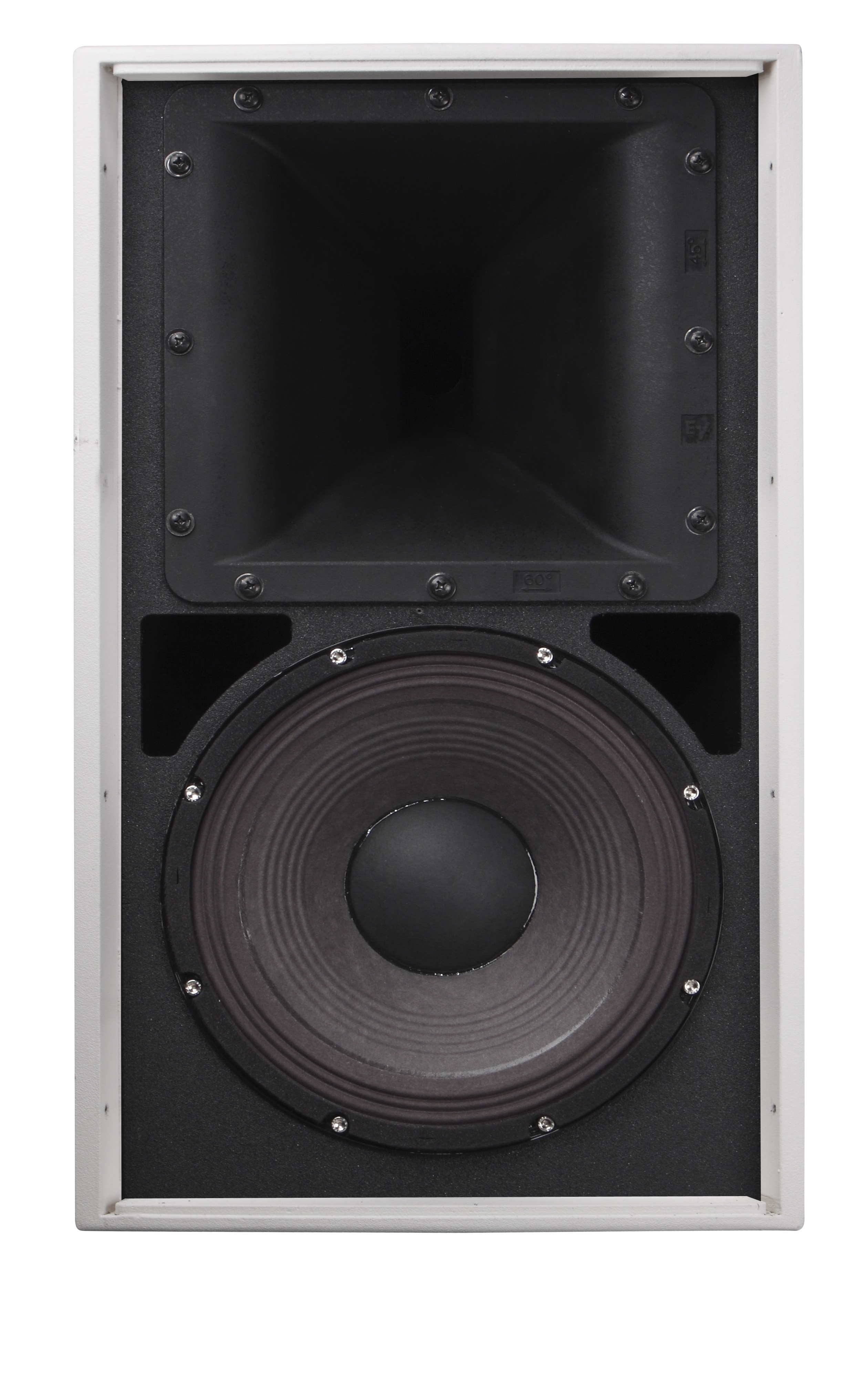

  • 2-inch ND2B titanium HF compression driver
  • Rotatable Constant-directivity waveguide
  • Six available patterns with coverage from 40º to 90º
  • 101 dB sensitivity, 134 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • 4th-order crossover with HF protection
  • Trapezoidal 13-ply plywood enclosure in three finishes: EVCoat, PI, and fiberglass (FG)

Every EVF trapezoidal enclosure is constructed out of weather-resistant plywood, and coated with EVCoat for maximum protection from the elements. EVF‘s unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF‘s innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Specifications

Frequency Range (-10 dB) 41 Hz – 18 kHz
Suspension 22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)
Weatherized No

Minimum Impedance
Nominal Impedance (Passive)
HF Transducer 2" ND2B diaphragm compression driver
Speaker Type Full-Range, Two-Way
Frequency Response (-3 dB)¹ 70 Hz – 14 Hz
Max. SPL/1m (calc)² 134dB
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 60°
LF Transducer 15" SMX2151 driver
System Power Handling (Continuous/Program/Peak) 500 , 1000 , 2000 Watts
Crossover Frequency 1450Hz
Enclosure Material 13-ply weather-resistant birch
Grille Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind
Sensitivity 1 W/1 m 101dB
Height 30.26" (768.6mm)
Width 18.5" (469.8mm)
Recommended High-Pass Frequency 45Hz
Depth 18.37" (466.6mm)
Weight Net 70.77lbs (32.1kg)
Net Weight 70.9 lb (32.1 kg)
Dimensions (H x W x D) 30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm
Input Connections Euroblock; PI and FG versions include dual-gland-nut input-panel cover
Available Coverage Patterns (Nominal -6 dB) HxV 90 x 60°
Environmental Specs Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
Internal Passive Crossover Frequency 1450Hz
Passive Power Handling 2000W peak
