ND96-RC3

Wireless head with ND96 capsule

  • Thread-on microphone head for Electro-Voice and other brand's wireless handheld transmitters
  • Excellent acoustic control on very loud stages: exceptionally high gain before feedback
  • Large diaphragm dynamic capsule creates a rich and detailed frequency response
  • Vocal presence emphasis switch selects between alternate sonic signatures
  • Shock-mounted capsule minimizes handling noise

The Electro-Voice ND96-RC3 is a robust, high performance, dynamic cardioid thread-on vocal microphone head for wireless handheld transmitters. This microphone head electrically and mechanically adapts to Electro-Voice (and many other brands) wireless handheld transmitters that use the common 3-contact rings, 1.25” diameter by 28-thread pitch coupling convention. The floating captured ID collar will spin freely until screwing the head on tightly. It will remain locked in place when fully tightened. This allows the desired orientation of the branding to the transmitter.

Designed for excellent acoustic control on very loud stages, the ND96-RC3 special structural and acoustical designs create performance characteristics allowing the microphone’s gain before feedback in a mi to be

significantly louder than most microphones.

The microphone head's dynamic capsule contains a large Mylar diaphragm, which delivers a rich and detailed frequency response by combining its large surface area for tonal balance with its low-mass high velocity material for exceptionally fast transient response.

The microphone head features a selectable vocal presence tuning that can be engaged to reduce certain low-mid frequency areas and emphasize key upper midrange vocal presence areas to increase intelligibility in high-energy reinforcement (see charts). The microphone head features an innovative capsule shock-mount system consisting of a 4-point suspension around the circumference of the capsule combined with a tuned pneumatic pump at the capsule base, offering superior handling noise reduction to eliminate mechanical vibrations and noise in the mix.

The Memraflex grille is made of a durable tight-mesh grille wire that withstands extraordinarily rough treatment. Your microphone head remains protected and looking good gig-after-gig, year-after-year. For additional protection, the capsule contains a hydrophobic cloth membrane, which prevents moisture and debris from reaching the diaphragm. The capsule uses a humbucking coil that attenuates AC hum and electromagnetic interference. Use the ND dynamic mics with confidence near speaker cabinets and EMF generating equipment racks.

Specifications

Element type Dynamic neodymium magnet structure
Frequency response, close 30 Hz-15 kHz
Frequency response, far 140 Hz-15 kHz
Polar pattern Supercardioid

Sensitivity, open circuitvoltage @ 1 kHz in flatposition 4.7 mV/Pascal (-46.5 dBV/Pa)
Sensitivity, open circuitvoltage @ 1 kHz in vocalpresence position 3.2 mV/Pascal (-50 dBV/Pa)
Maximum SPL 136.5 dB SPL (1% THD)
Impedance 1000 ohms
Power requirements 4-8 VDC
Polarity Positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
Electrical contact 3-Ring/3-Pin
Threaded coupling 1.25" diameter
28 UN-2A thread pitch
Finish Black polyurethane paint
Materials Aluminum, steel, steel wire grillescreen
Dimensions, length diameter 3.3 in. (83.5 mm)2.0 in. (50.5 mm)
Net weight 6.8 oz (193 g)
Shipping weight 8.7 oz (247 g)

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Microphone Catalog 2020 EN 10.97MB Jul 3, 2020
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Nd Series Vocal And Instrument Microphones, EC Declaration of Conformity 523KB Apr 19, 2019
Name Language Size Date
ND96-RC3 Engineering Data Sheet EN 10.64MB Mar 19, 2019
ND96-RC3 Engineering Data Sheet DE 5.35MB Apr 20, 2020
ND96-RC3 Engineering Data Sheet ES 5.46MB Dec 17, 2018
ND96-RC3 Engineering Data Sheet FR 5.43MB Dec 17, 2018
ND96-RC3 Engineering Data Sheet KO 5.57MB Dec 17, 2018
ND96-RC3 Engineering Data Sheet TH 5.43MB Dec 17, 2018
ND96-RC3 Engineering Data Sheet ZH 5.51MB Dec 17, 2018
ND96-RC3 Engineering Data Sheet JA 5.5MB Jan 16, 2019
Name Language Size Date
RE3 Flyer EN 1.68MB Feb 7, 2019
Name Language Size Date
RE3 UHF Wireless Installation manual EN 3.25MB Dec 20, 2018
RE3 UHF Wireless Installation manual DE 4MB Jun 16, 2020

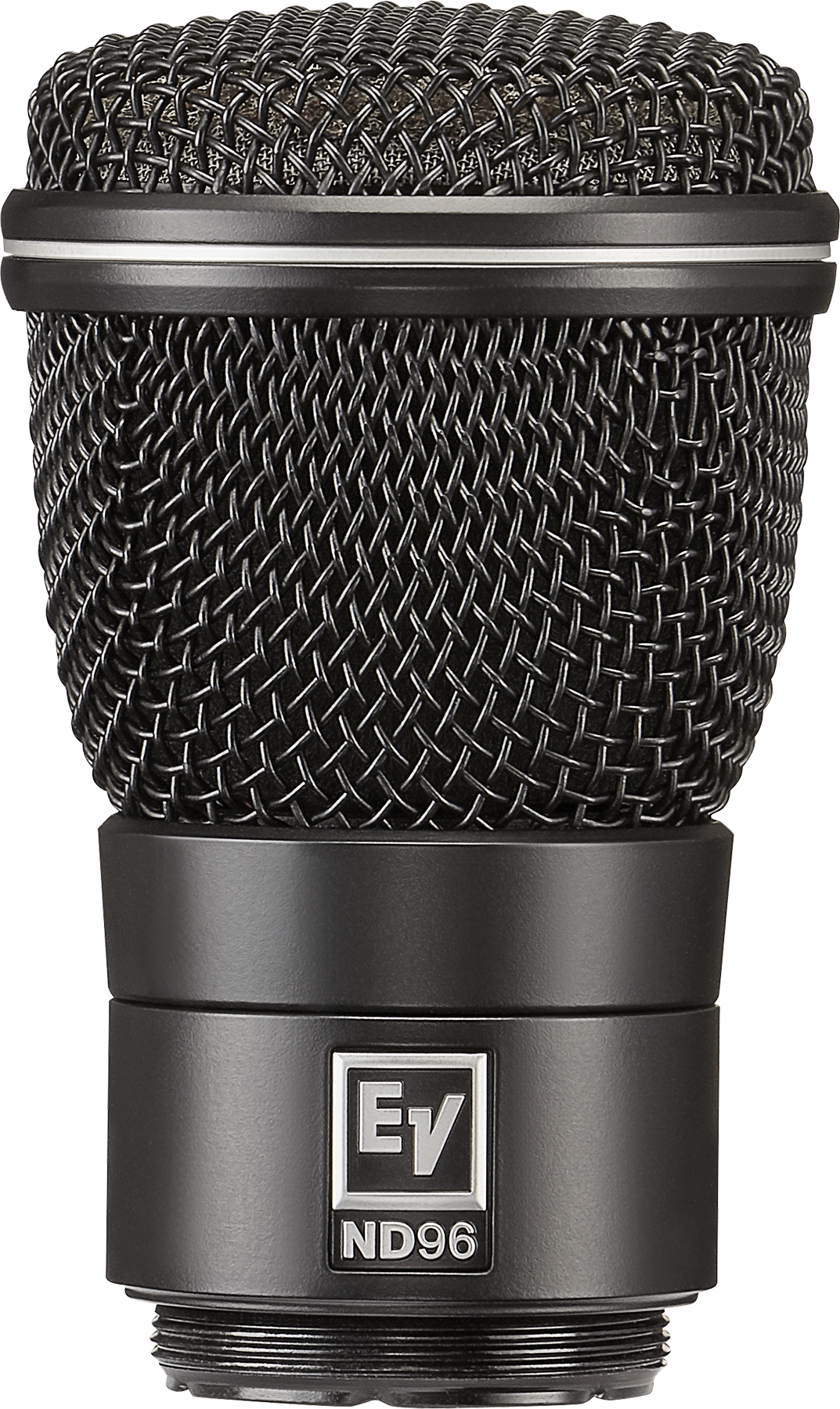

EV RE ND Microphones ND96-RC3 fr-1800px

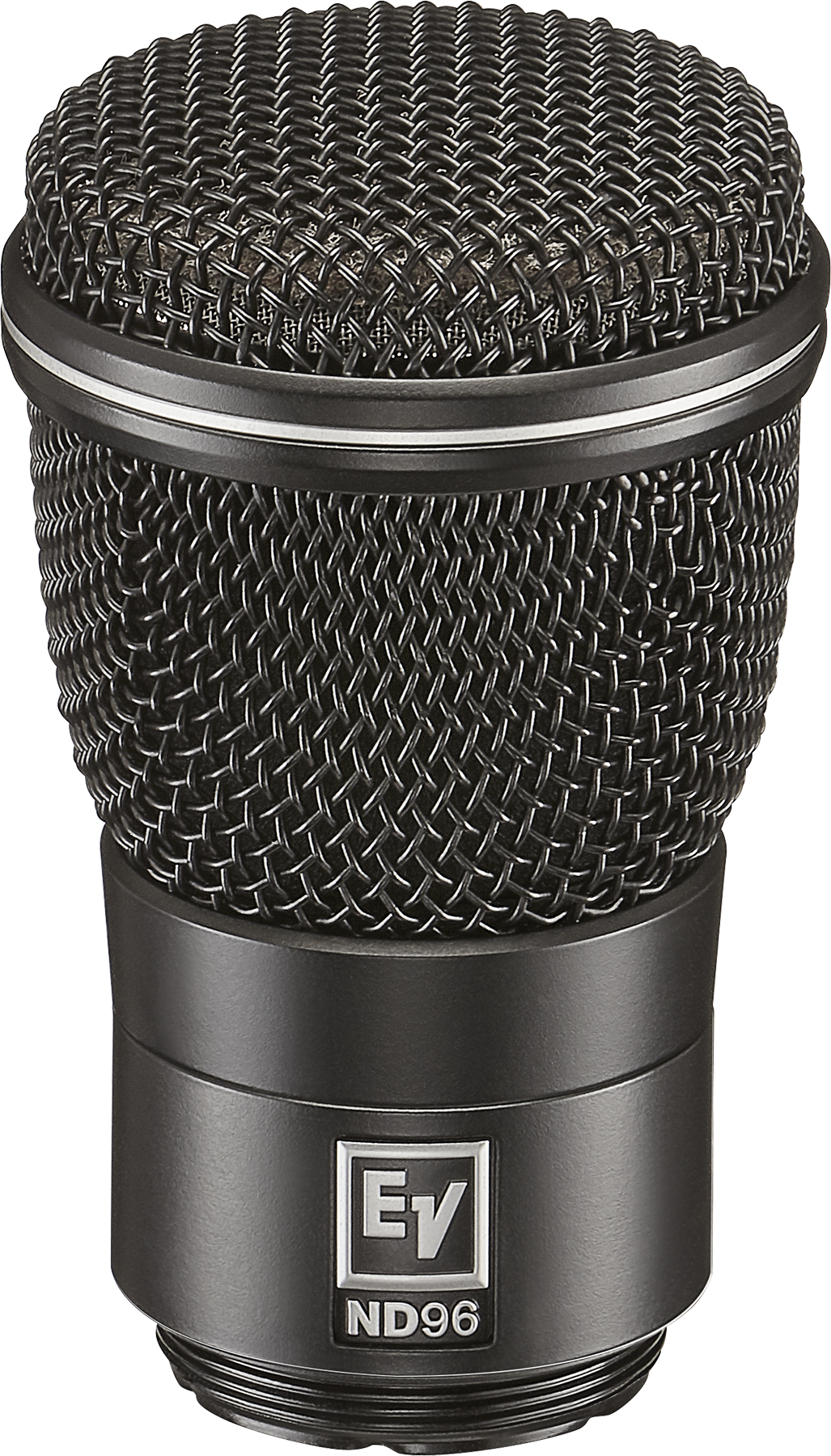

EV RE ND Microphones ND96-RC3 cv1-1800px

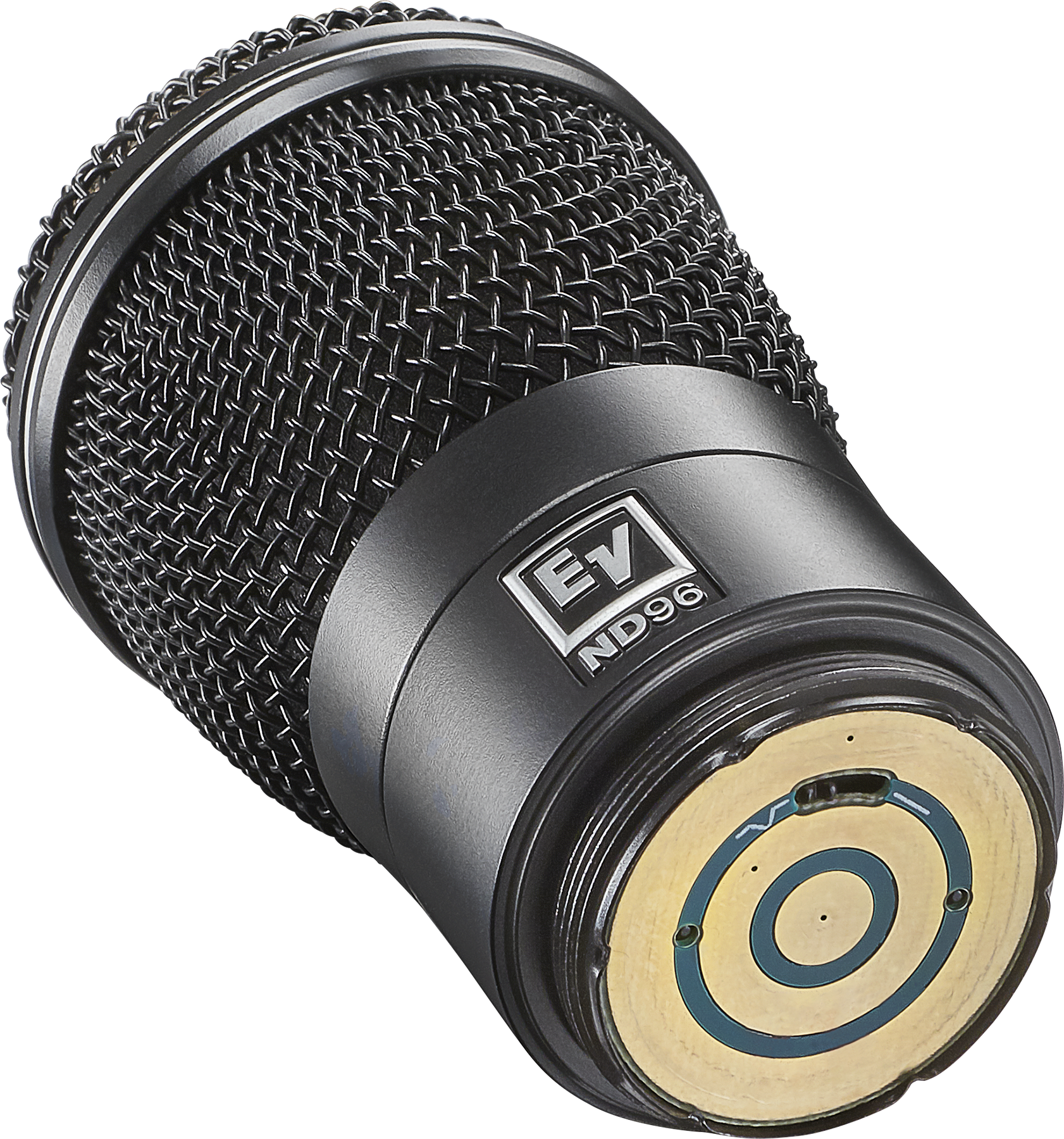

EV RE ND Microphones ND96-RC3 Connection-1800px
