RE3-HHT
Handheld transmitter
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Common threaded coupling allows microphone head interchangeable
The RE3-HHT is a lightweight, yet robust UHF handheld transmitter body. It is ideally-suited for professional performance and presentation applications. Due to its commonly-used 1.25” diameter, 28 UN-2A thread pitch microphone head coupling, it accepts mic heads using this common coupling convention. Although primarily intended to accept the ND and RE Series heads developed for RE3 listed in the accessories section of this data sheet, the RE3-HHT will adapt other microphone heads using the 1.25” diameter, 28 UN-2A thread pitch coupling scheme.

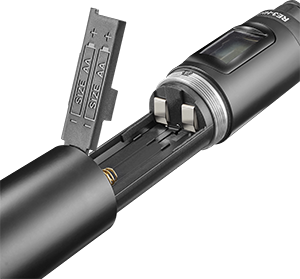

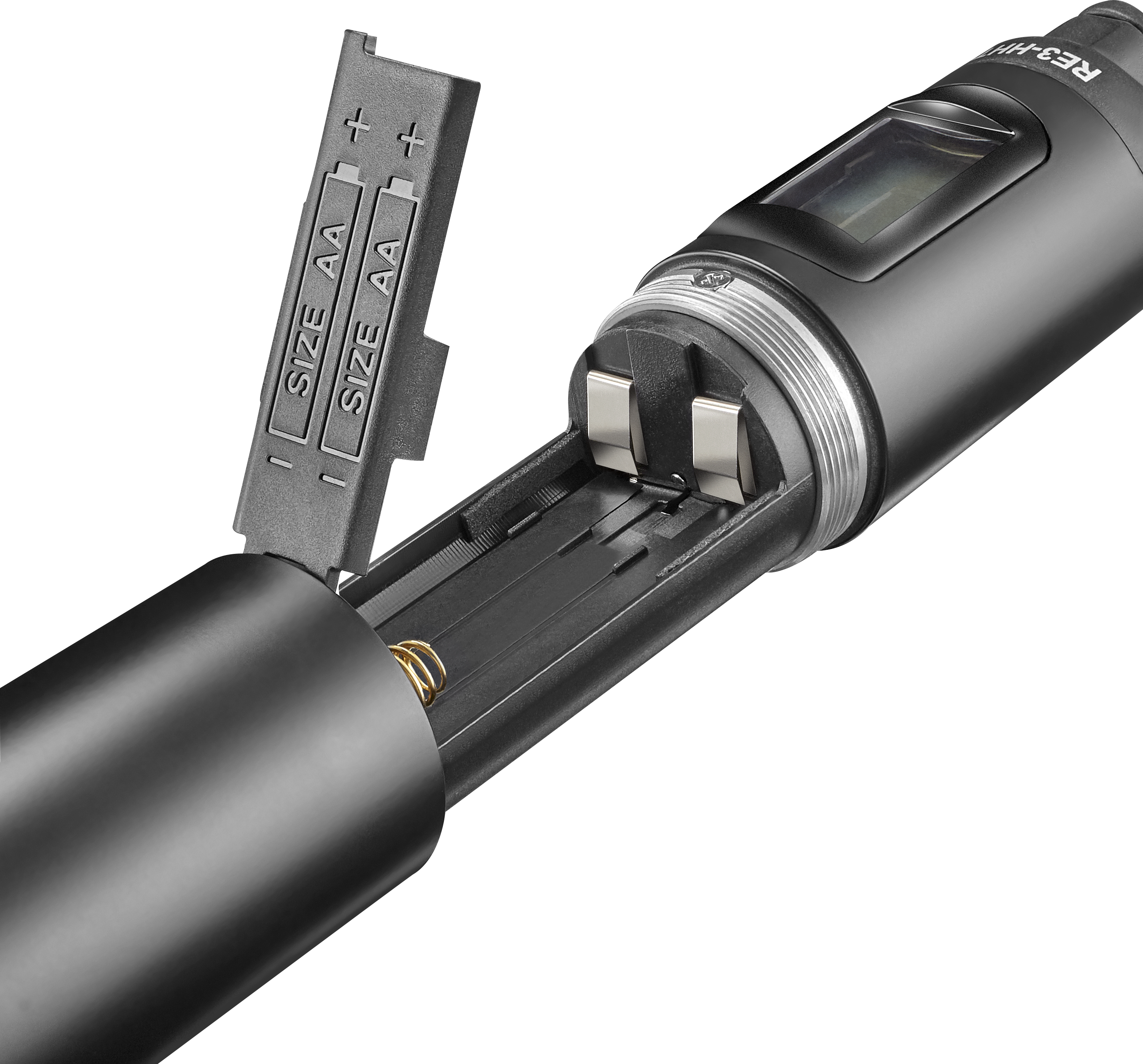

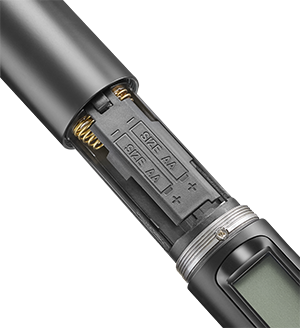

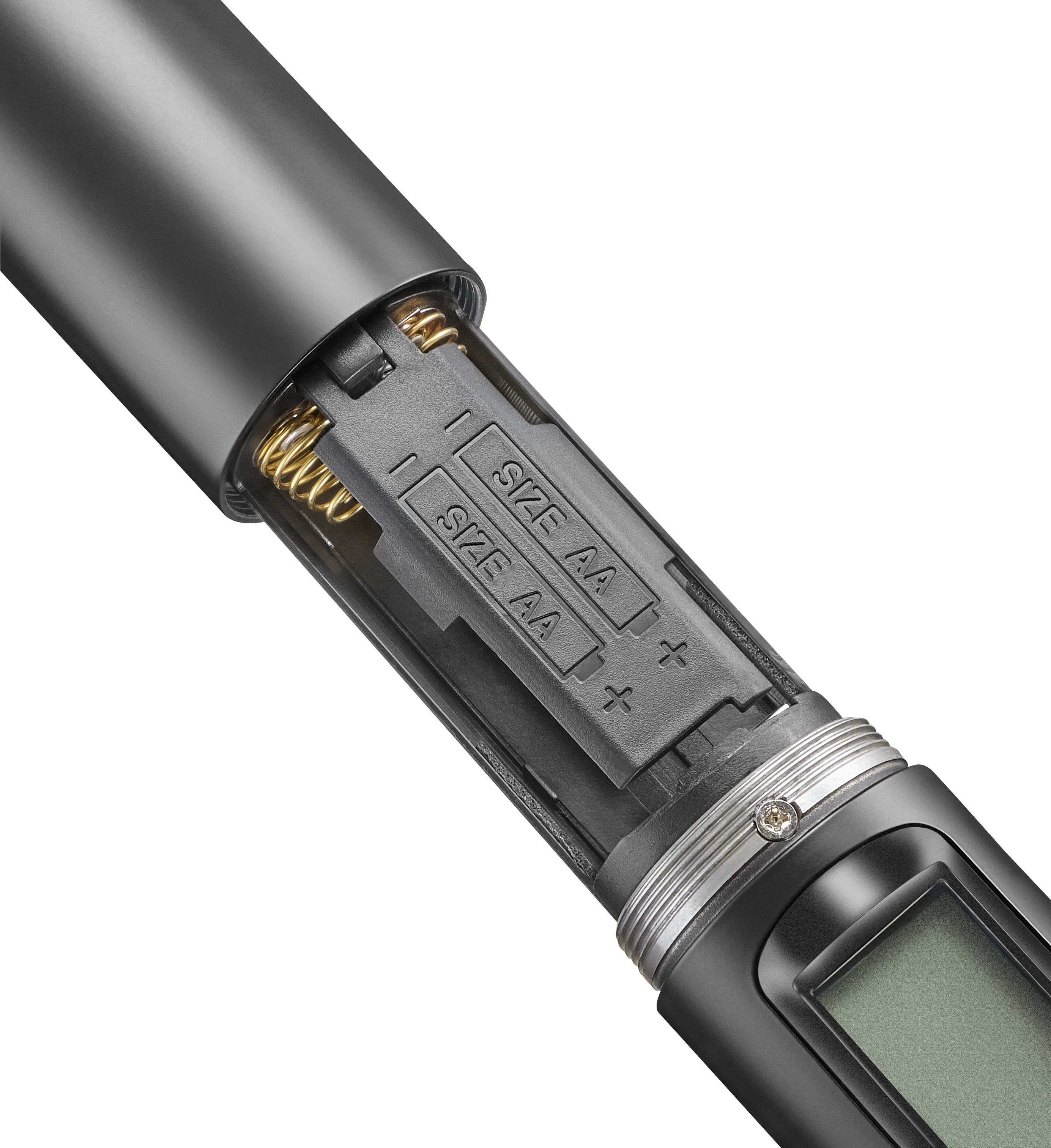

The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells.
The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data.
The selectable output power (band specific) assists in overcoming the challenges of both long, or short, transmission ranges.
The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference.
The threaded coupling makes attaching and interchanging a variety of heads simple and convenient.
Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.
Specifications
| Frequency Oscillation Mode | Phase-locked loop (PLL) |
| Sync Frequency | Ultrasonic |
| Display By | LCD + LED |
Specifications | |

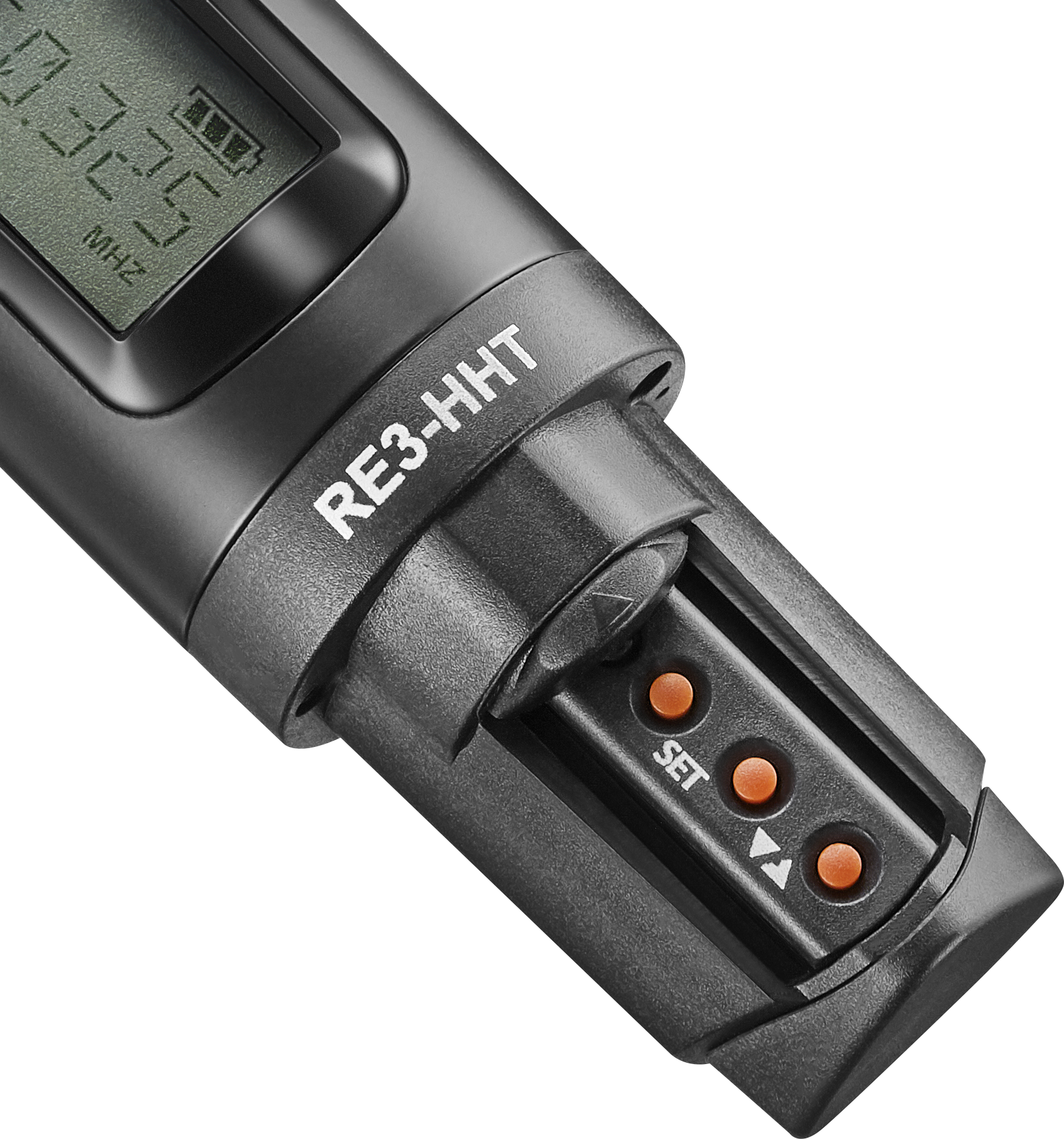

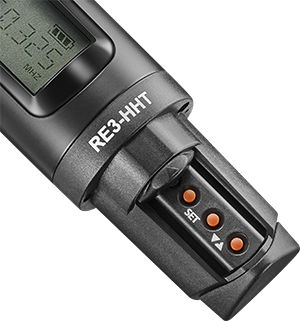

| Function Controls | Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock. |
| RF Stability | <±10kHz@Fc |
| Modulation Frequency Shift | Wideband FM ±48kHz deviation |
| Harmonic Radiation | <-50dBc |
| Battery | 2 x AA alkaline battery or NiMH rechargeable battery |
| Charging Contacts | Yes |
| Microphone Coupling | 1.25” diameter, 28 UN-2A thread pitch |
| Microphone Electrical Contact | 3-ring/3-pin |
| Finish | Black polyurethane paint |
| Dimensions (without head) | Height: 7.52 inch (191mm) |
| Width at threaded end | 1.46 inch (37mm) |
| Width at control cover | 0.856 inch (22mm) |
| Net Weight: (without head) | 12.2oz [346 grams] |
| Gross Weight (without head) | 16.9oz [480 grams] |
