RE3-BPCL

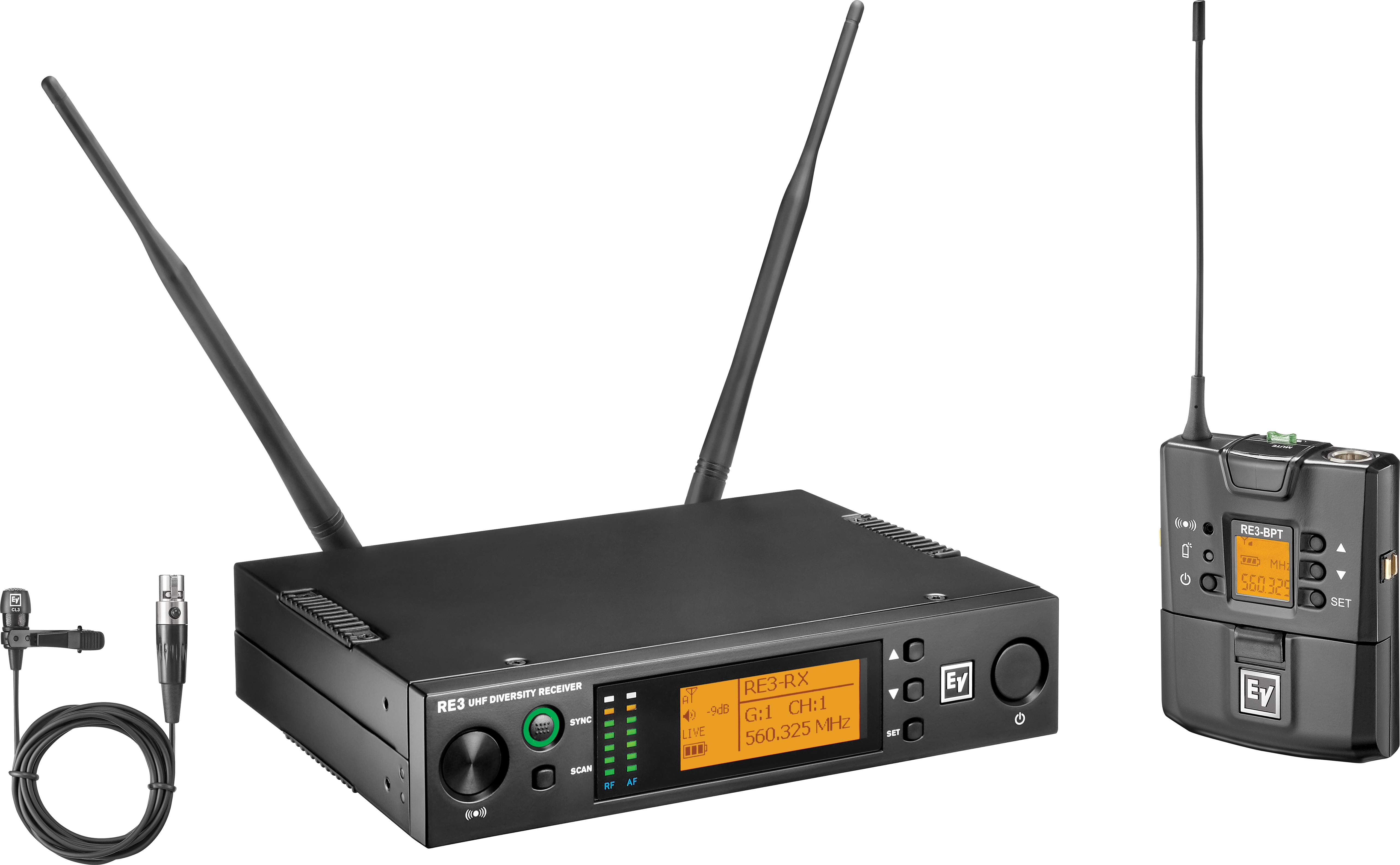

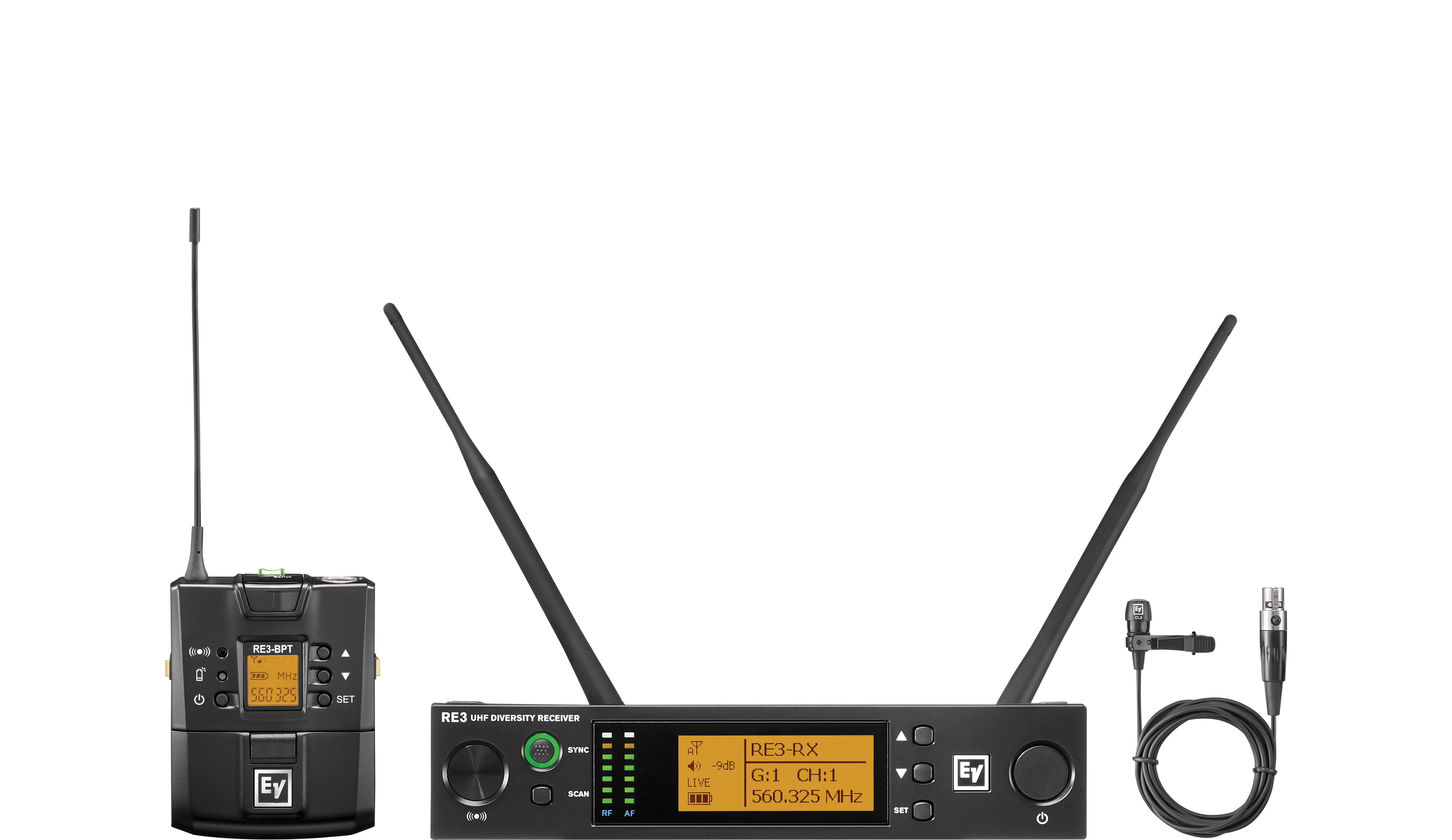

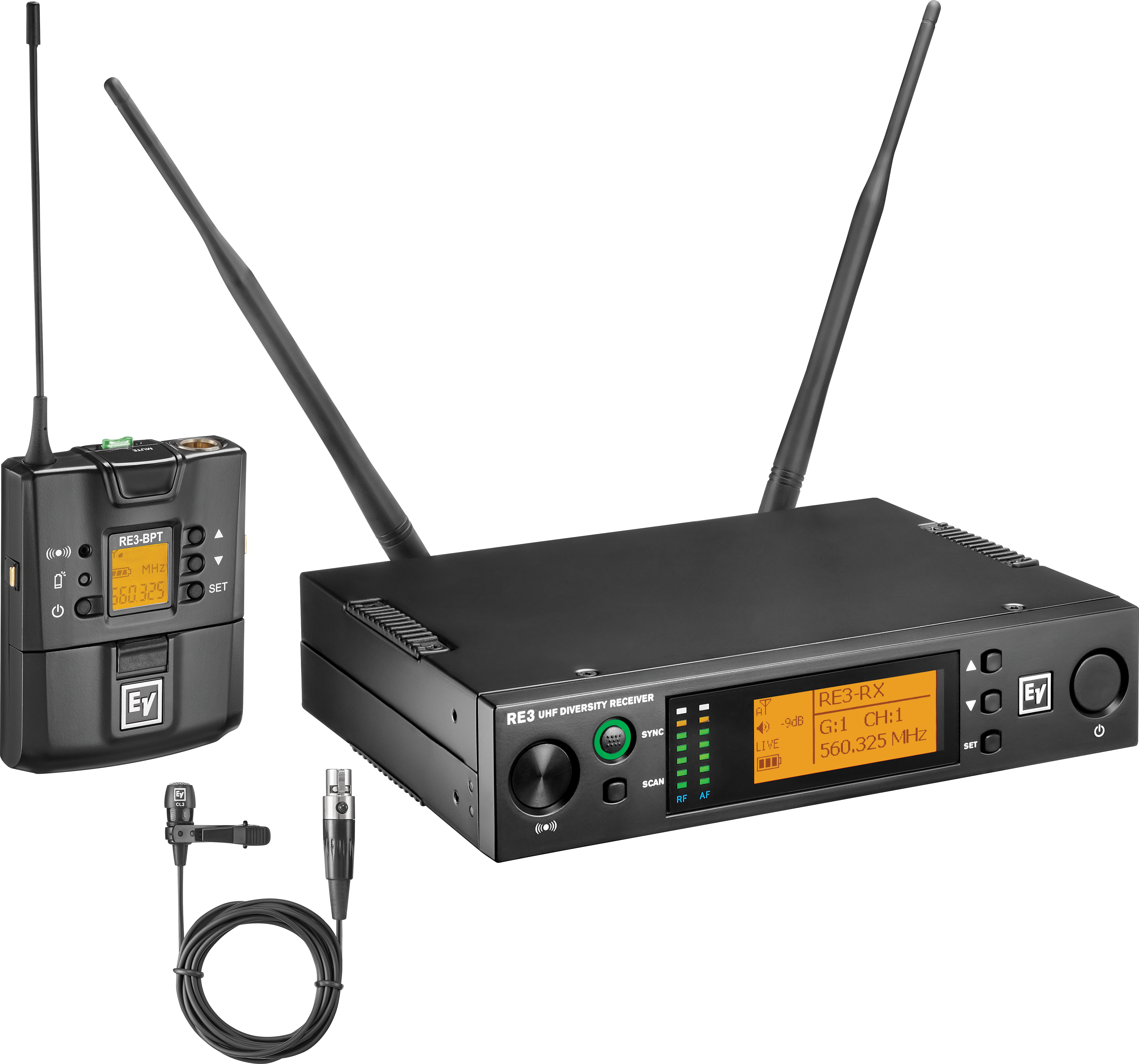

UHF wireless set featuring CL3 cardioid lavalier microphone
Bodypack UHF wireless set featuring CL3 cardioid lavalier microphone for voice performance and presentations. The CL3 a robust, general-purpose lavalier microphone. It is ideal for presentation and public speaking where its full and accurate sonic characteristics, coupled with its feedback-rejecting cardioid polar pattern deliver a clear and intelligible voice.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.
Components of the set:
CL3 Cardioid Lavalier Microphone
- Ideal for general sound reinforcement and presentations
- Cardioid polar pattern rejects ambient sounds and increases gain before feedback
- Delivers full and accurate sound
- Wide dynamic range and frequency response
- Clothing clip holds microphone securely and attaches easily to garments
- Learn more
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Unique magnetic latch and lock for easy access to batteries
- Learn more
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
- Learn more
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
BAND DETAILS | |||||
Band name | 5L | 5H | 6M | 8M | T |
Bandwidth limits (MHz) | 488 – 524 | 560 – 596 | 653 – 663 | 823 – 832 863 – 865 | 803 - 806 |
Tuning bandwidth | 36 MHz | 36 MHz | 10 MHz | 11 MHz | 3 MHz |
Selectable frequencies | 1440 | 1440 | 400 | 440 | 120 |
Transmit output power (mW) | 10 and 50 | 10 and 50 | 10 and 20 | 10 | 10 and 50 |
Coverage | Global | Global | Global | Select Europe | Thailand only |
