RE3-BPHW

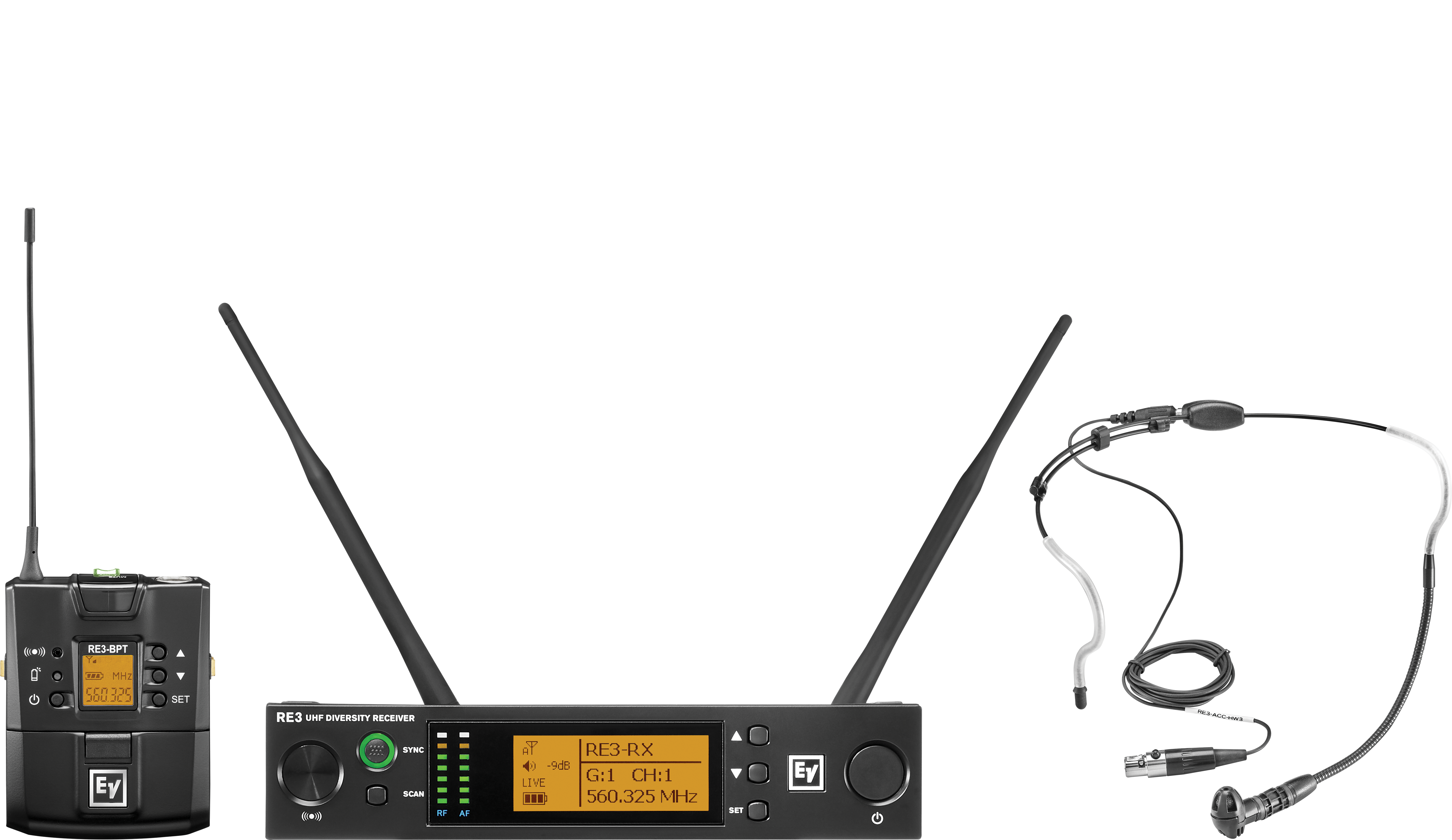

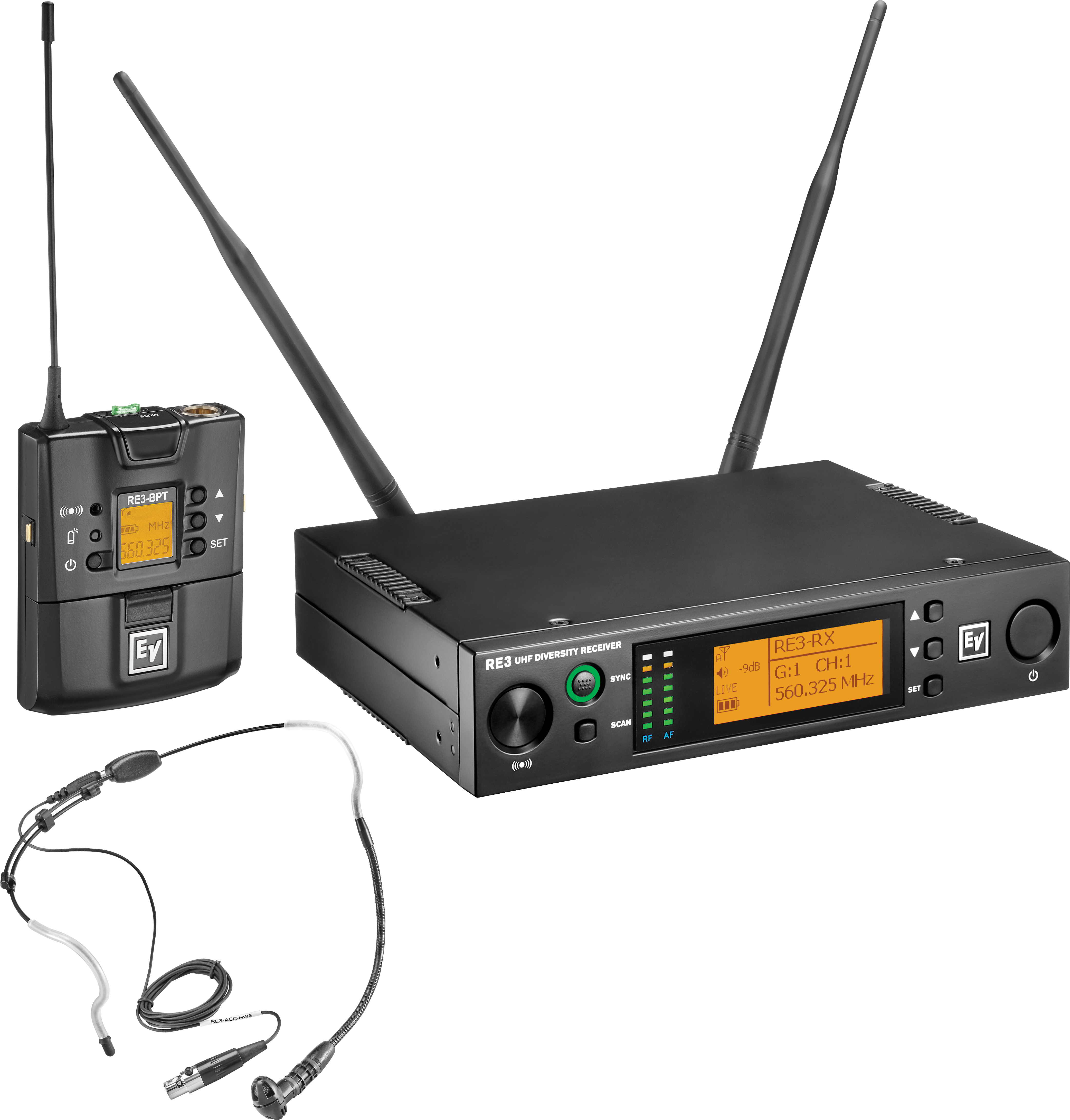

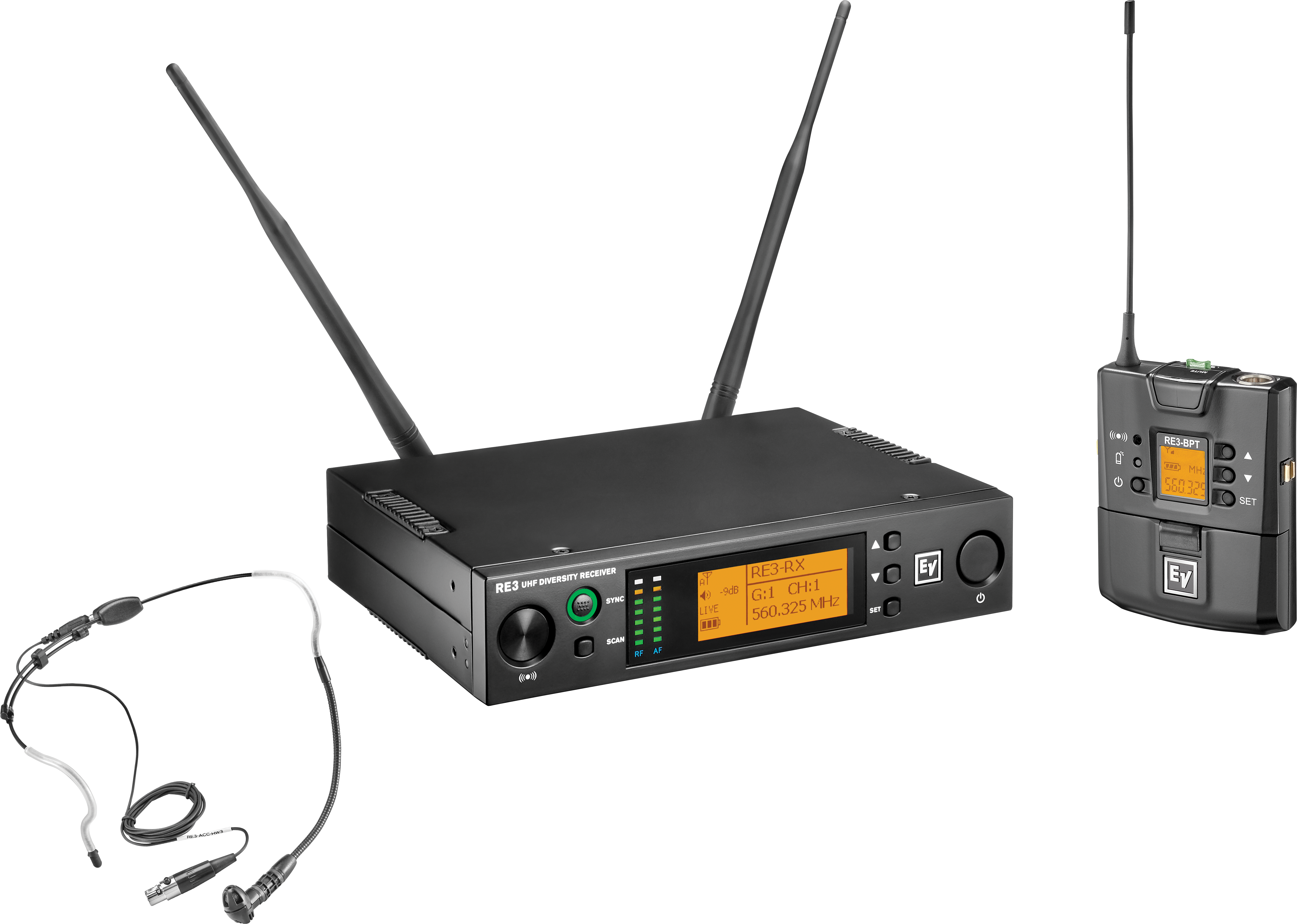

UHF wireless set containing the HW3 supercardioid headworn microphone

Bodypack UHF wireless set containing the HW3 supercardioid headworn microphone voice performance, presentations, and athletic instruction. The HW3’s sound is crisp and natural, and the supercardioid polar pattern provides superb acoustic isolation and gain before feedback, making it an ideal microphone even in high SPL sound reinforcement applications.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

Components of the set:

Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity

BAND DETAILS
Band name5L5H6M8MT
Bandwidth limits (MHz)488 – 524560 – 596653 – 663823 – 832
863 – 865
803 - 806
Tuning bandwidth36 MHz36 MHz10 MHz11 MHz3 MHz
Selectable frequencies14401440400440120
Transmit output power (mW)10 and 5010 and 5010 and 201010 and 50
CoverageGlobalGlobalGlobalSelect EuropeThailand only
