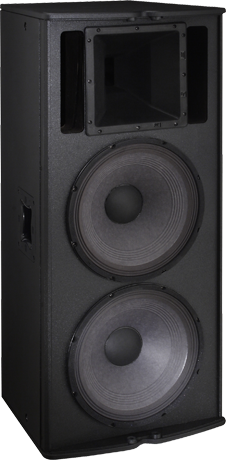

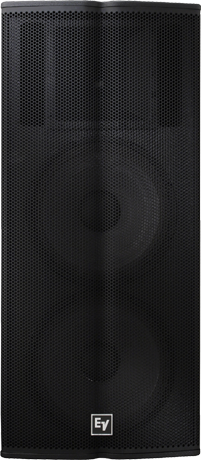

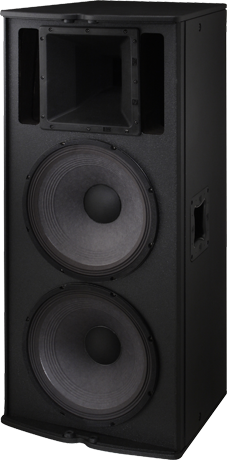

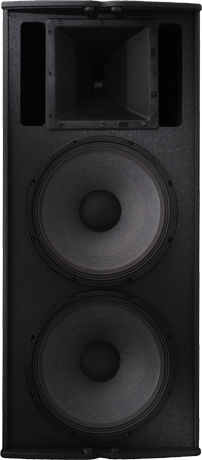

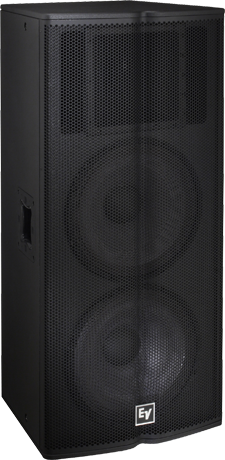

TX2152
Dual 15" 2‑way passive full‑range loudspeaker
- Very high SPL with smooth response
- Ideal as mains for small-to-medium clubs
- Excellent pattern control for medium throw use
- Dual SMX2151 woofers with fully symmetric drive
- 2-inch ND2 neodymium HF compression driver
- Rotatable Constant-directivity 60º x 40º horn
- Advanced 6th-order crossover with HF protection
- 103 dB sensitivity, 139 dB maximum SPL
- Power handling: 1000 W continuous, 4000 W peak
- Internally braced trapezoidal plywood/MDF enclosure

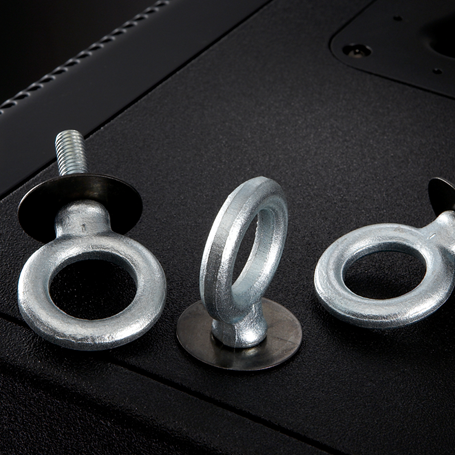

- Six 3/8-inch threaded suspension points
- Black EVCoat finish
Specifications
| Frequency Range (-10 dB) | 50 - 18000kHz |
| Suspension | (6) 3/8-inch threaded inserts |
| Flying | Yes |
Specifications |
|
| Minimum Impedance | 3.1Ω |
| Nominal Impedance (Passive) | 4Ω |
| HF Transducer | 2-inch ND2 |
| Speaker Type | Full-Range |
| Woofer Size | 15inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 55 - 13000Hz |
| Max. SPL/1m (calc)² | 139dB |
| Coverage (Nominal -6 dB) H | 60° |
| Coverage (Nominal -6 dB) V | 40° |
| LF Transducer | Two 15-inch SMX2151 |
| Power Rating | 4000W |
| System Power Handling (Continuous/Program/Peak) | 1000//4000Watts |
| Rotatable Horn | Yes |
| Crossover Frequency | 1750Hz |
| Enclosure Material | Plywood and MDF with EVCOAT |
| Available Color | Black |
| Sensitivity 1 W/1 m | 103dB |
| Height | 45.43" (1154mm) |
| Recommended High-Pass Frequency | 40Hz |
| Width | 20" (508mm) |
| Depth | 18.54" (471mm) |
| Internal Crossover | Yes |
| Weight Net | 94.36lbs (42.8kg) |
| Family | Tour X |
| Input Connections | Parallel Neutrik® NL4 |
