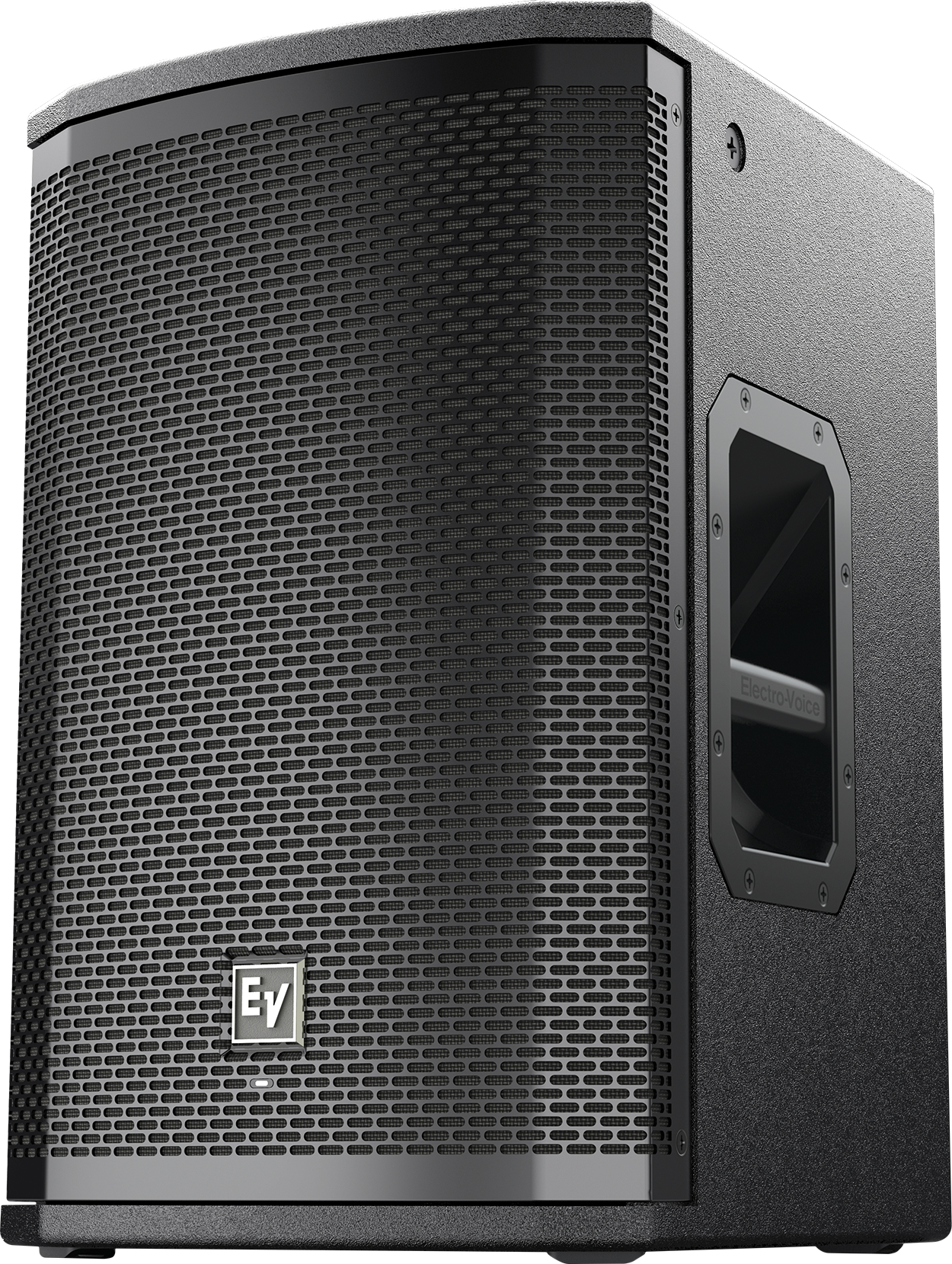

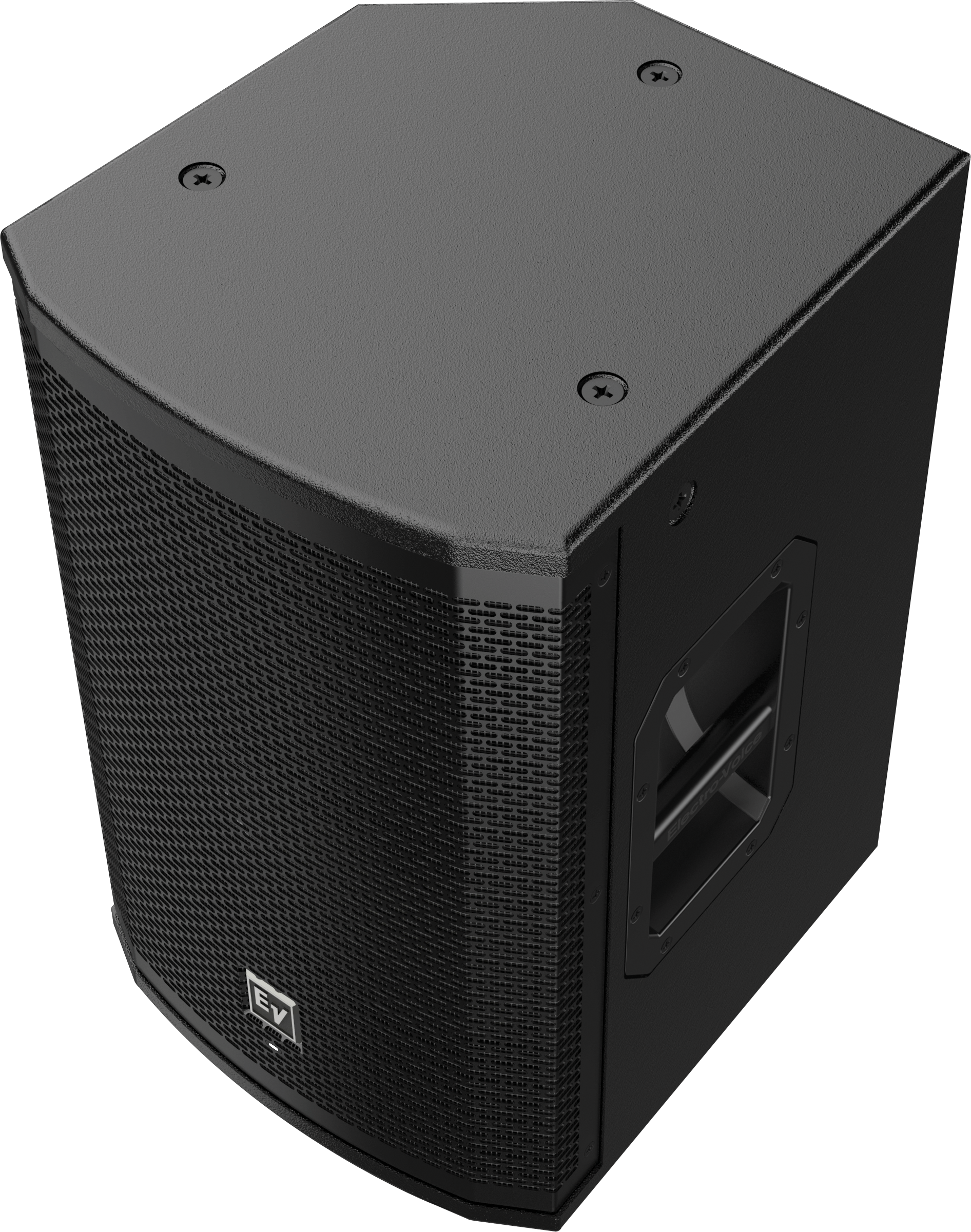

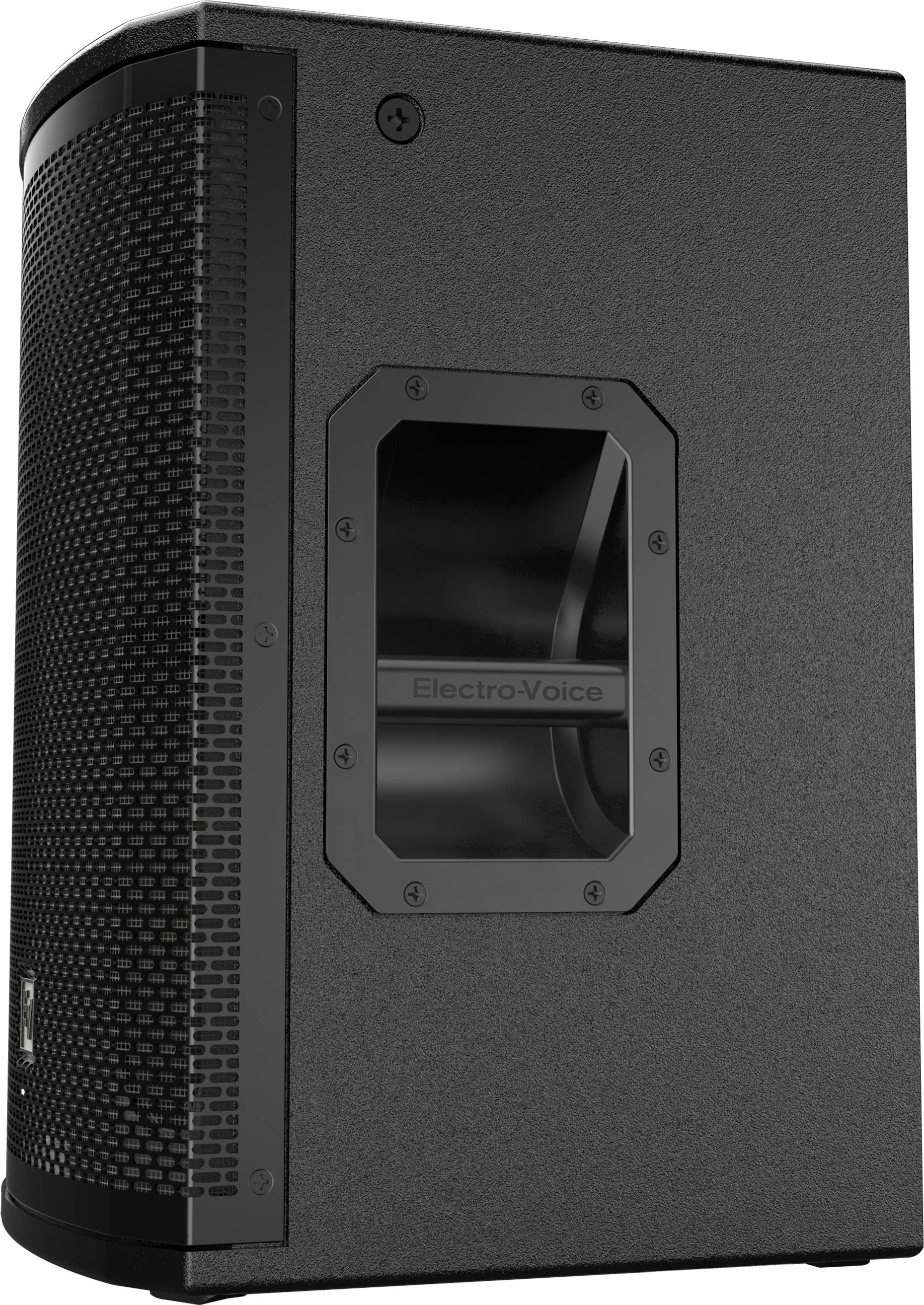

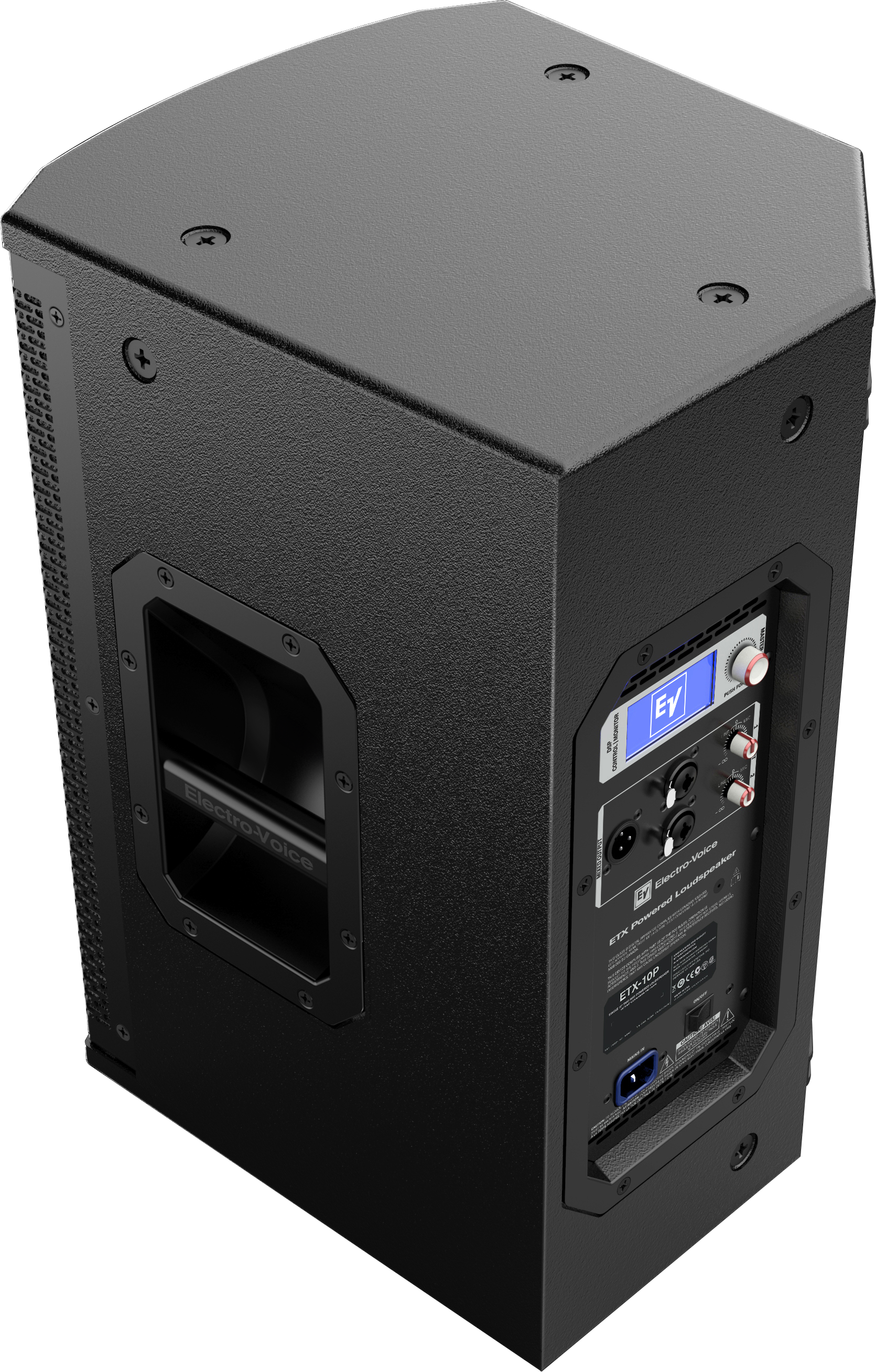

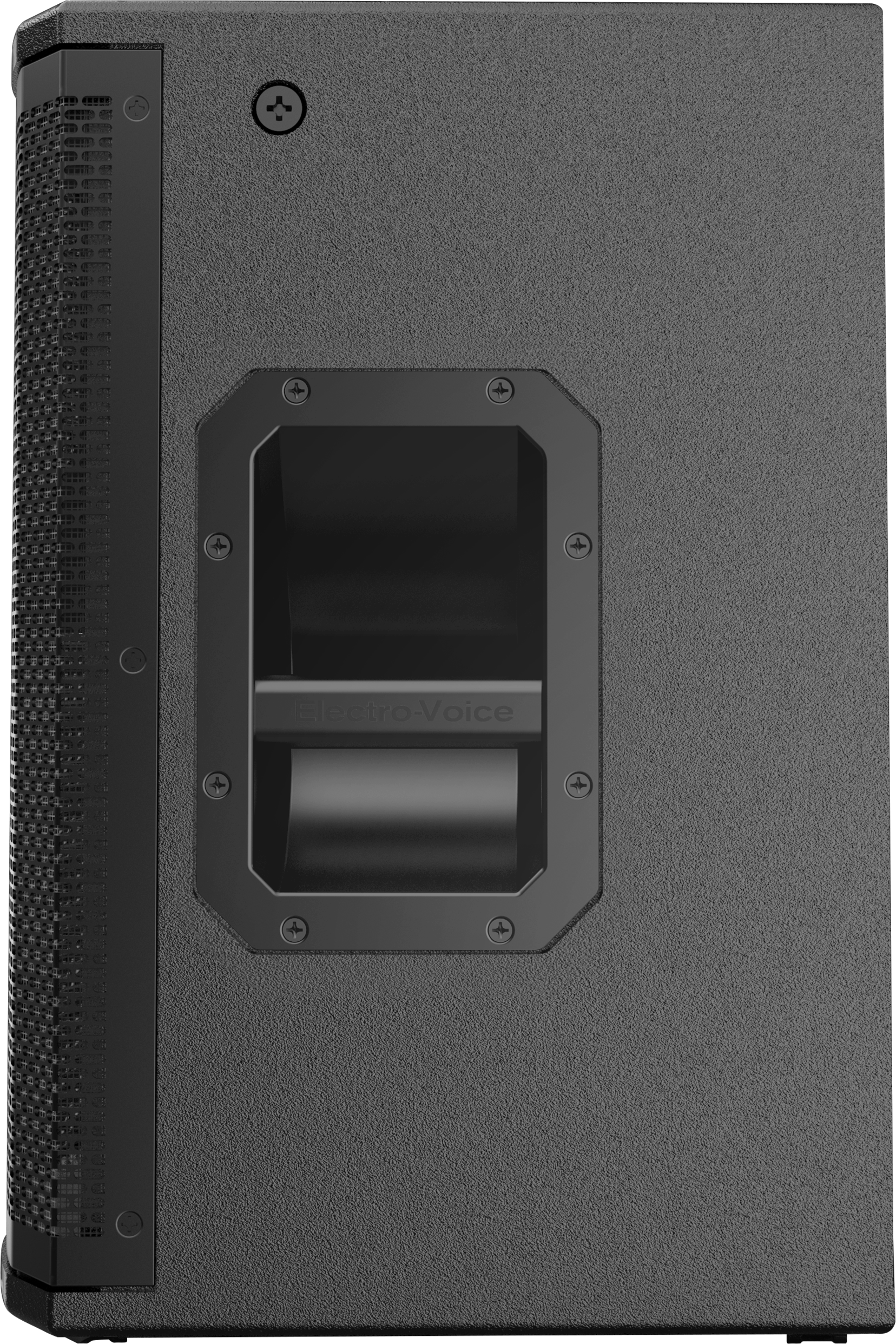

ETX-10P
10" powered loudspeaker
- 10-inch LF SMX woofer
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 134 dB peak SPL
Specifications
| Frequency Response (-3 dB) | 85 Hz - 20 kHz¹ |
| Frequency Range (-10 dB) | 65 Hz - 20 kHz¹ |
| Maximum SPL | 134 dB peak² |
Specifications | |
| Coverage (H x V) | 90° x 60° |
| Power Rating | 2000 W |
| LF Transducer | SMX2100 254 mm (10 in) |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Crossover Frequency | 1700 Hz |

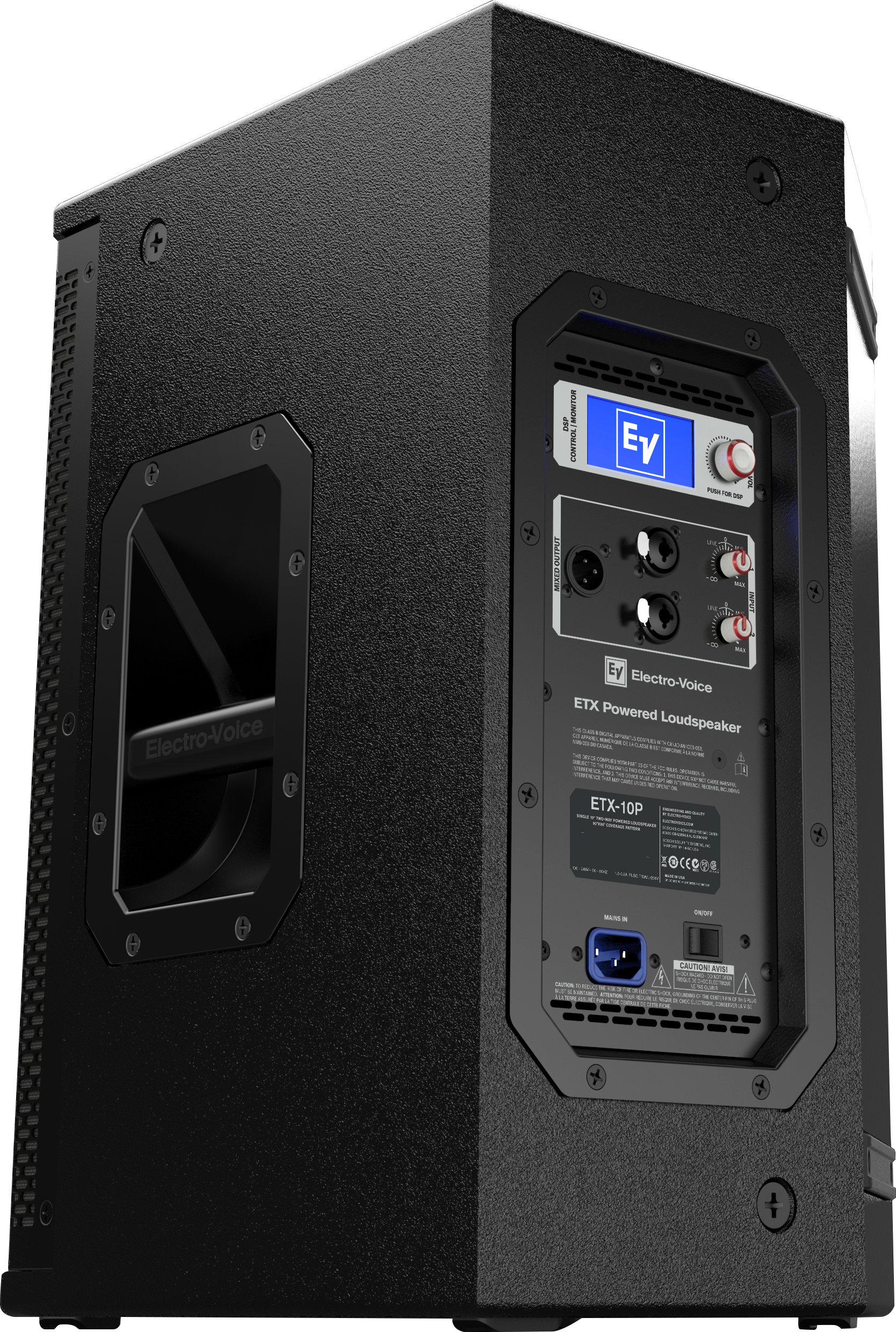

| Connectors | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure | 18mm Plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |

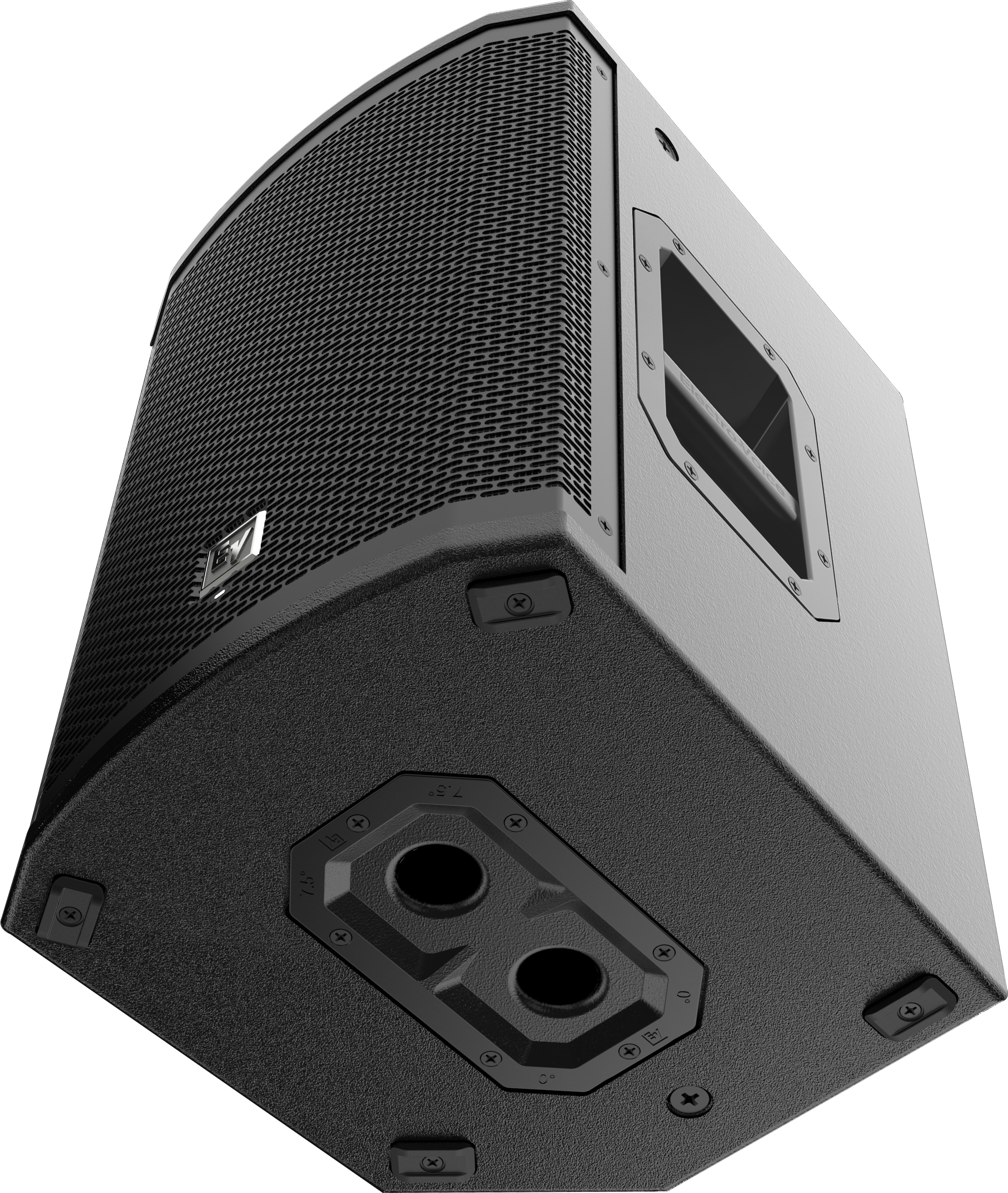

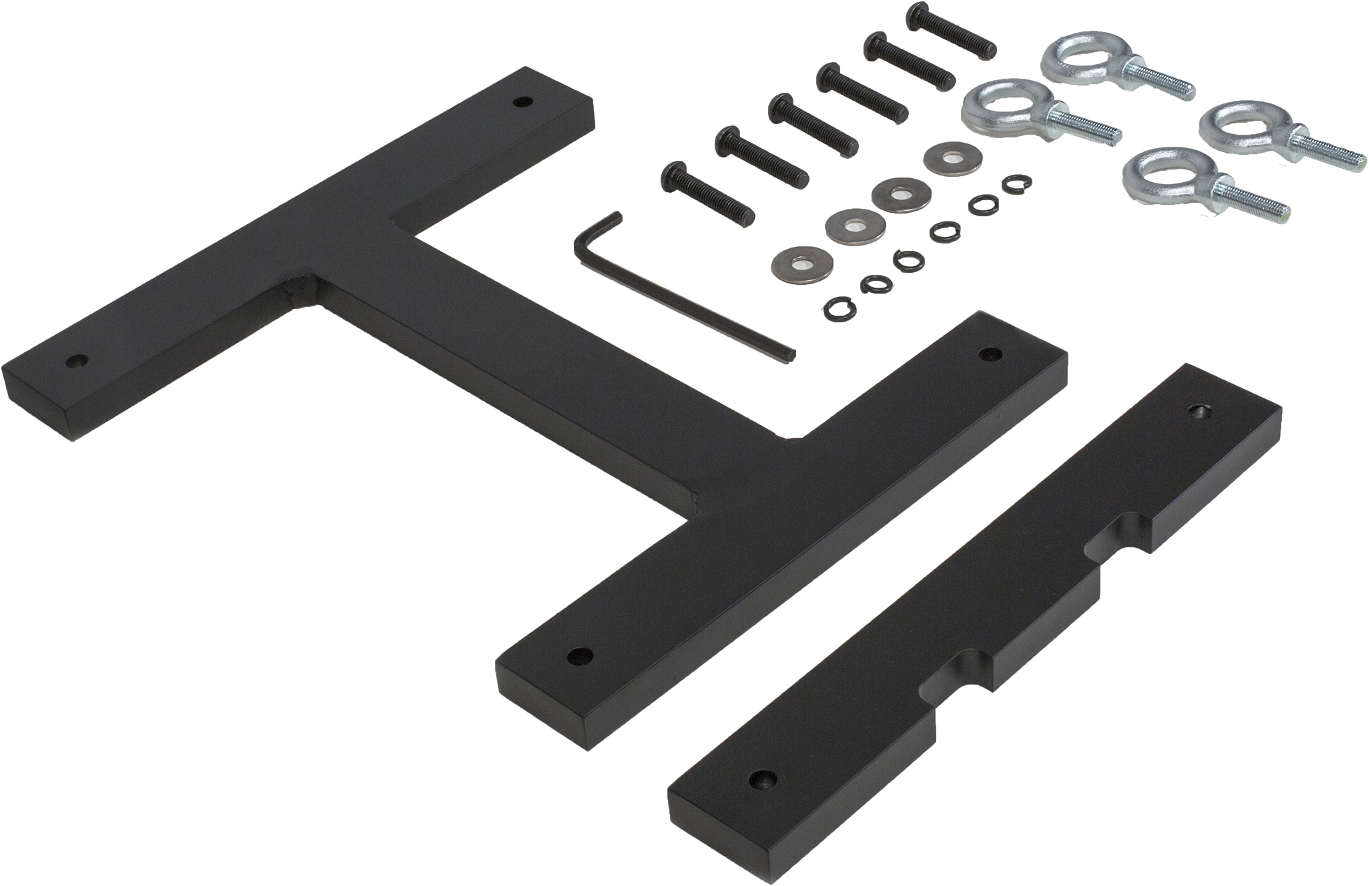

| Suspension | (8) M10 suspension points |
| Dimensions (H x W x D) | 526 mm x 330 mm x 365 mm (21 in x 13 in x 14 in) |
| Net Weight | 20.3 kg (44.8 lb) |
| Shipping Weight | 22.9 kg (50.5 lb) |
| Power Consumption | 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³ |
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
