ETX-10P
10”两分频有源扬声器
- 10英寸SMX低频单元
- 1.25英寸高频钛压缩驱动器
- 2000W D类功放，带一体式FIR驱动的DSP
- 134 dB峰值声压级
Specifications

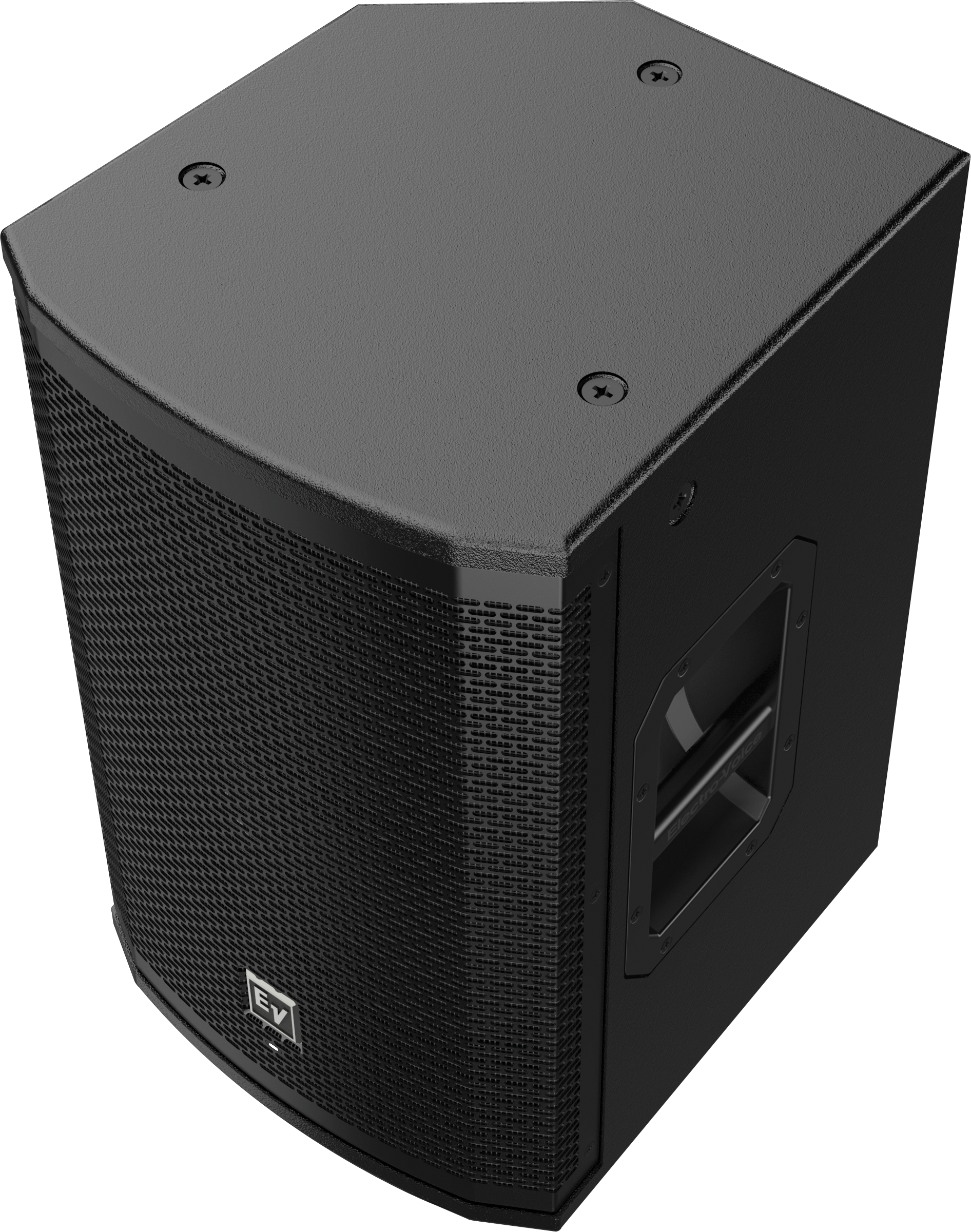

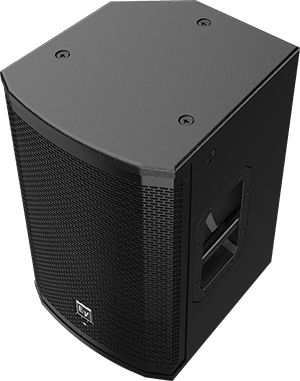

| Suspension | (8) M10 suspension points |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Speaker Type | Full-Range, two-way |
产品规格 |
|
| Woofer Size | 10 |
| Powered or Passive | Powered |
| Frequency Range (-10 dB)¹ | 65 Hz – 20 kHz (Full space measurement using the music DSP preset and 150 Hz low pass.) |
| Max. SPL/1m (calc)² | 134 |
| Coverage (Nominal -6 dB) H | 90 |
| Coverage (Nominal -6 dB) V | 60 |
| LF Transducer | SMX2100 254 mm (10 in) |
| Power Rating | 2000 |
| Crossover Frequency | 1700 |
| Connector Type | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Height | 526 |
| Width | 330 |
| Depth | 365 |
| Weight Net | 20.3 |
| Frequency Response (-3 dB) | 85 Hz – 20 kHz (Full space measurement using the music DSP preset and 150 Hz low pass.) |
| Shipping Weight | 22.9 |
| Power Consumption³ | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A (Current rating is 1/8 power.) |
| Family | ETX |
| Maximum SPL | 134 peak (Maximum SPL is measured at 1 m using broadband pink noise at maximum output.) |
Videos
ETX Loudspeaker Overview
ETX Powered Loudspeakers Overview
In Search of Excellent Audio & Video
Where to Buy
下载
Technical Documentations
Certification/Regulatory
| Name | Language & Download |
|---|---|
| Etx Series Loudspeakers, EC Declaration of Conformity | EN |
| Etx Series, Cb: 162507-70003440, Certificate No. Ca16314Csa Certificate | EN |
| Etx Series, Iec Cb: S37063-00-00Tj, Certificate No. De4-0859 Certificate | EN |
| Etx-Series, Cb: 162507-70003440(70153321), Certificate No. Ca20478Csa Certificate | EN |
| Etx-Series, Safety, Certificate No. 162507-70003439 Certificate | EN |
| Etx-Series, Safety, Certificate No. 162507-70003440 Certificate | EN |
Engineering Data Sheet
| Name | Language & Download |
|---|---|
| ETX10P Data Sheet | EN |
Manual
Service Policies
| Name | Language & Download |
|---|---|
| Warranty conditions for Electro-Voice products in North America | EN |
White Paper
| Name | Language & Download |
|---|---|
| Audio 101 - Basic Audio Terminology | EN |
| Audio 101 - Loudspeaker Basics | EN |
| Cardioid Subwoofer Arrays Settings | EN |
| EASE Data Explanation | EN |
| FIR Drive Technology | EN |
| PA Bible 11: Portable Sound Systems for the Small Club | EN |
| The EV PA Bible | EN |
| The PA Bible Chapter Zero | EN |
| Thermal Energy Management & Protection Limiter Technology | EN |
Marketing Materials
Catalog
| Name | Language & Download |
|---|---|
| Portable speakers catalog 2024 NA | Download |

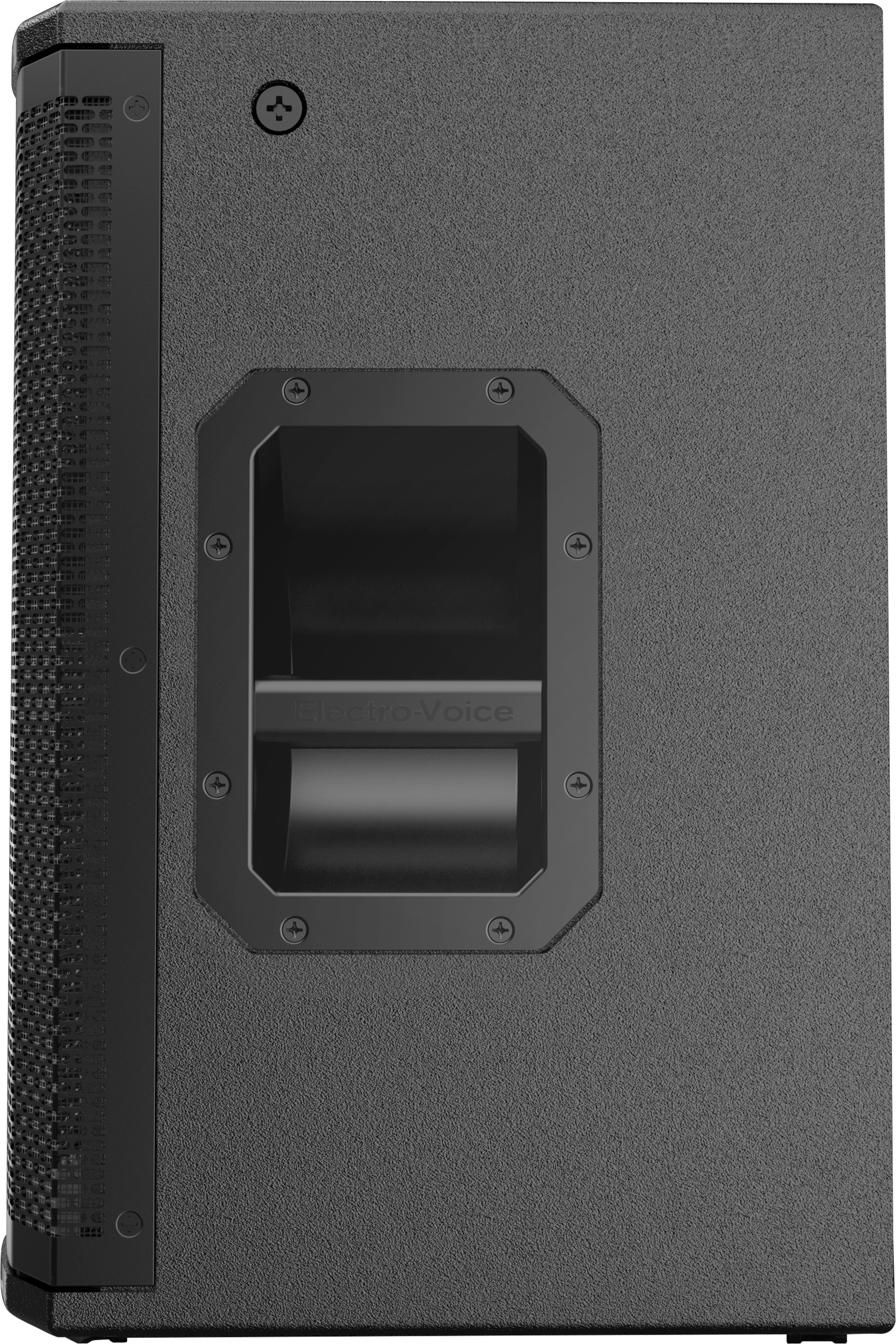

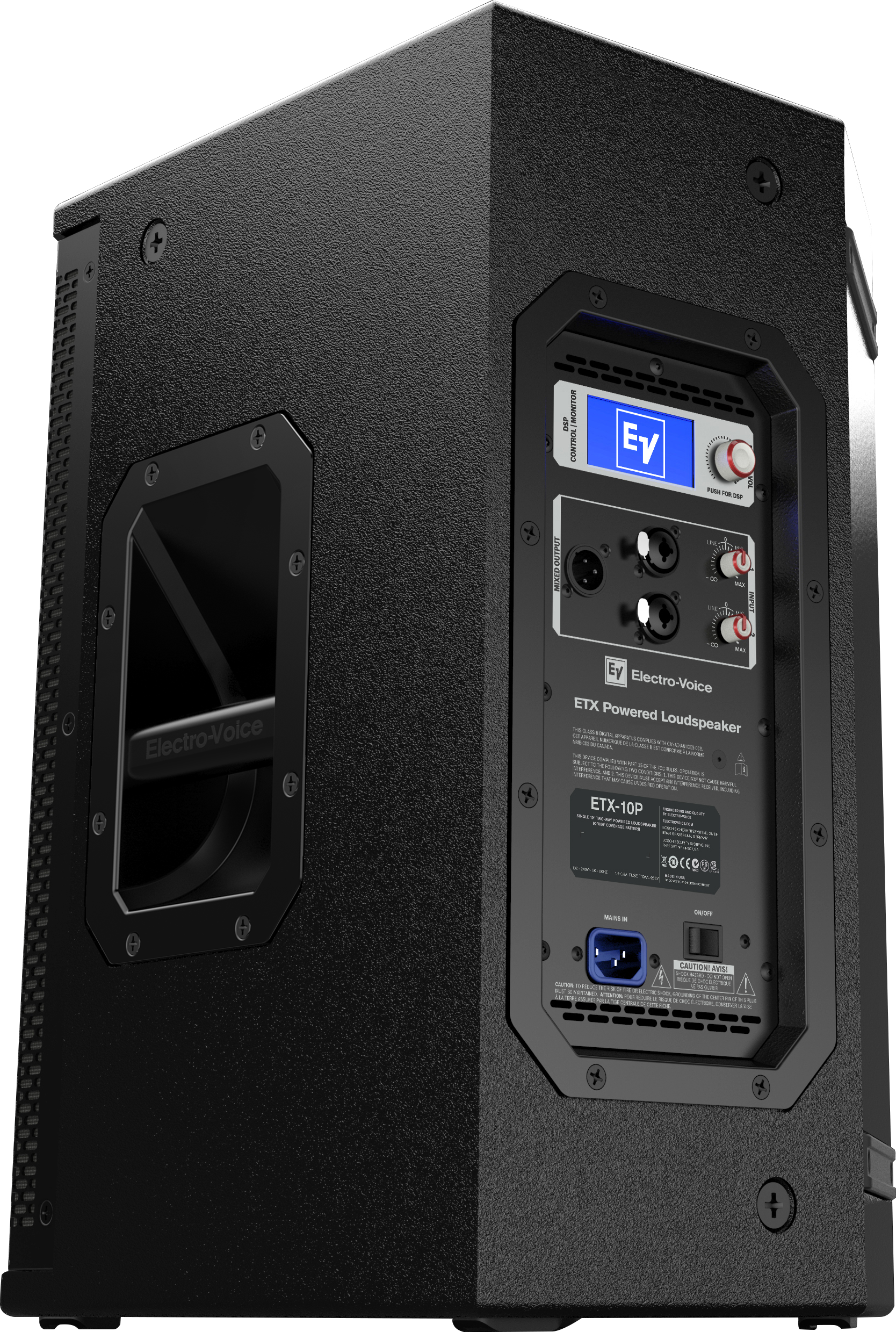

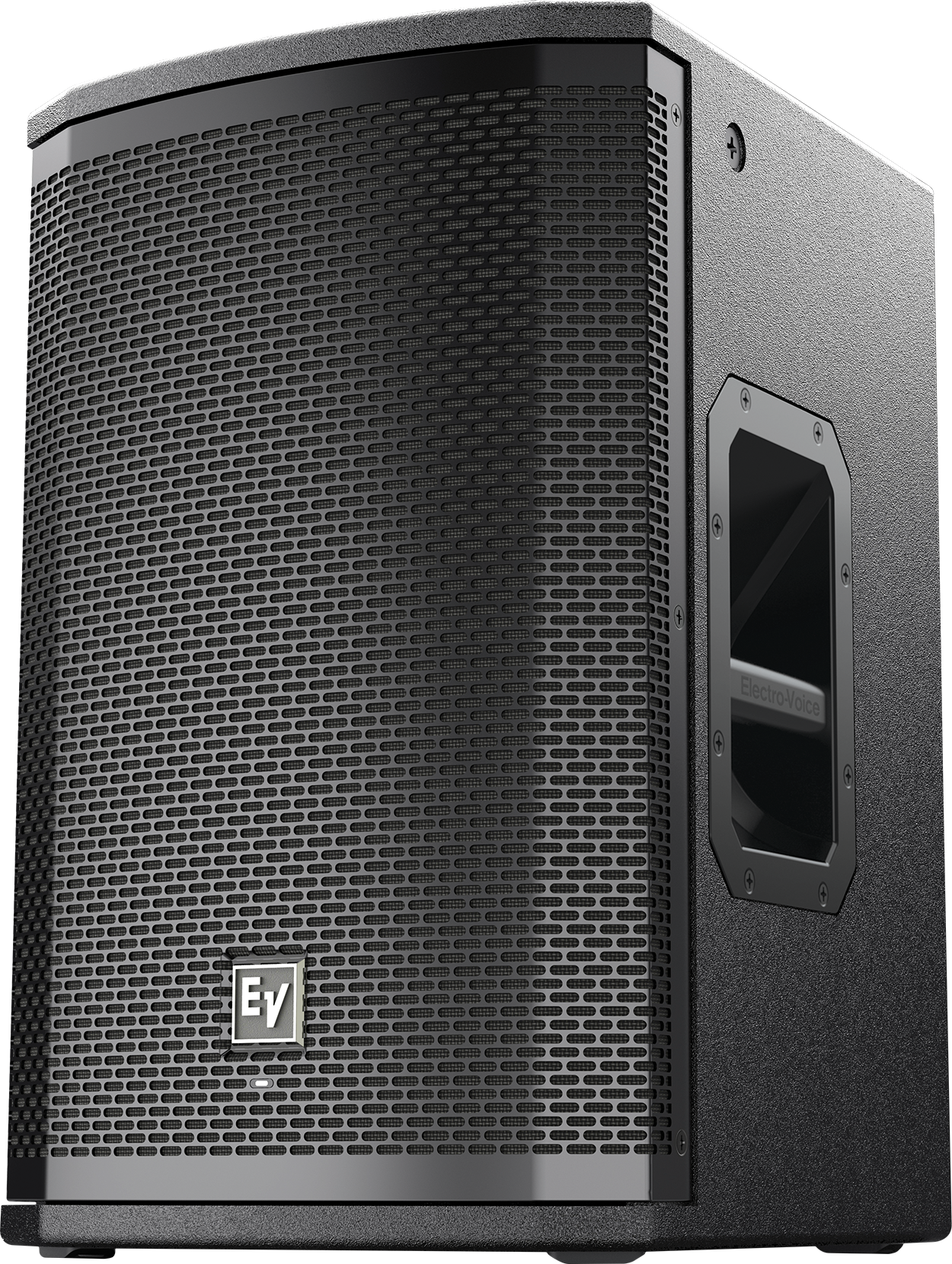

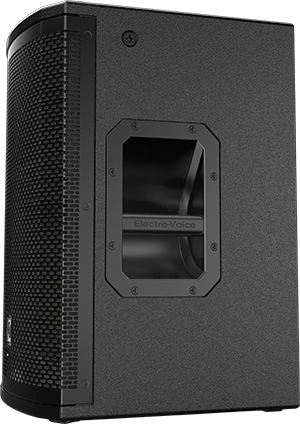

Product Image
