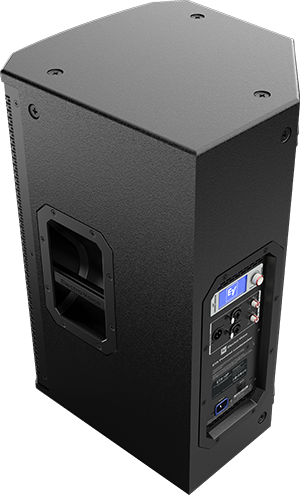

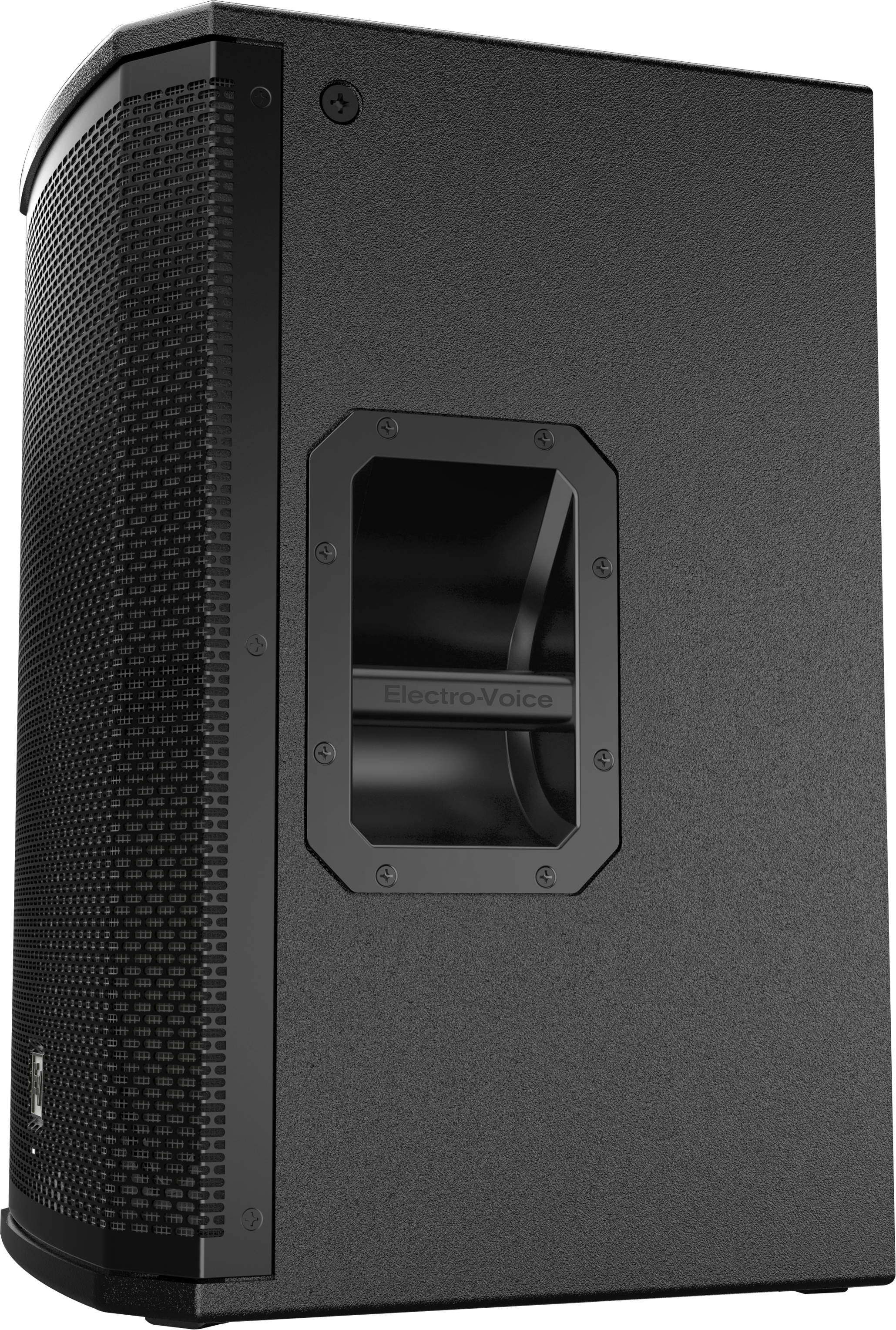

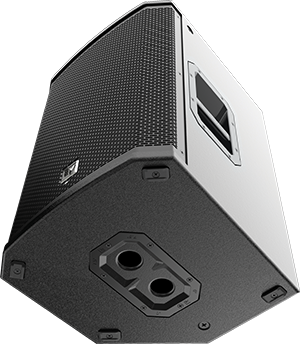

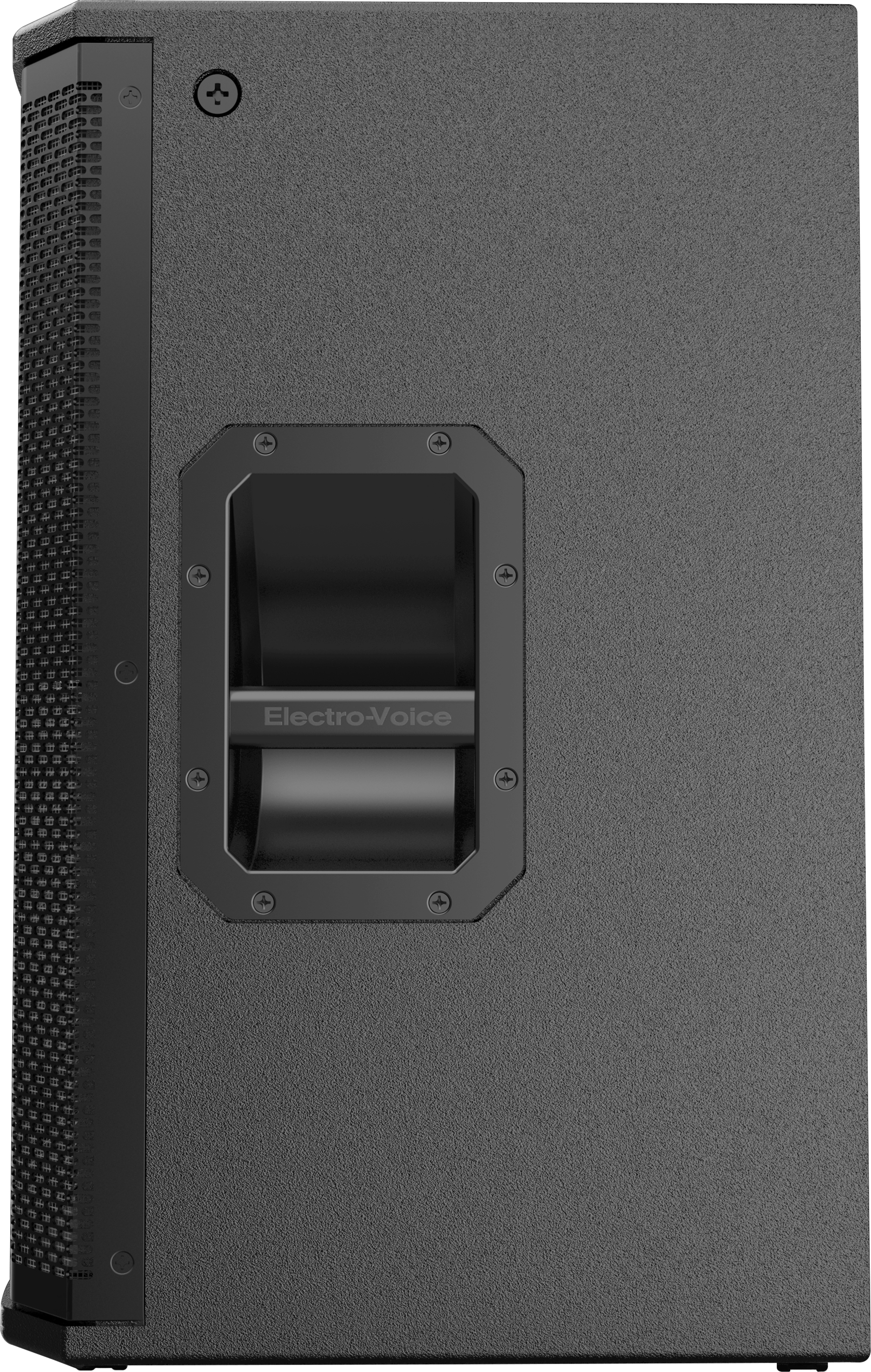

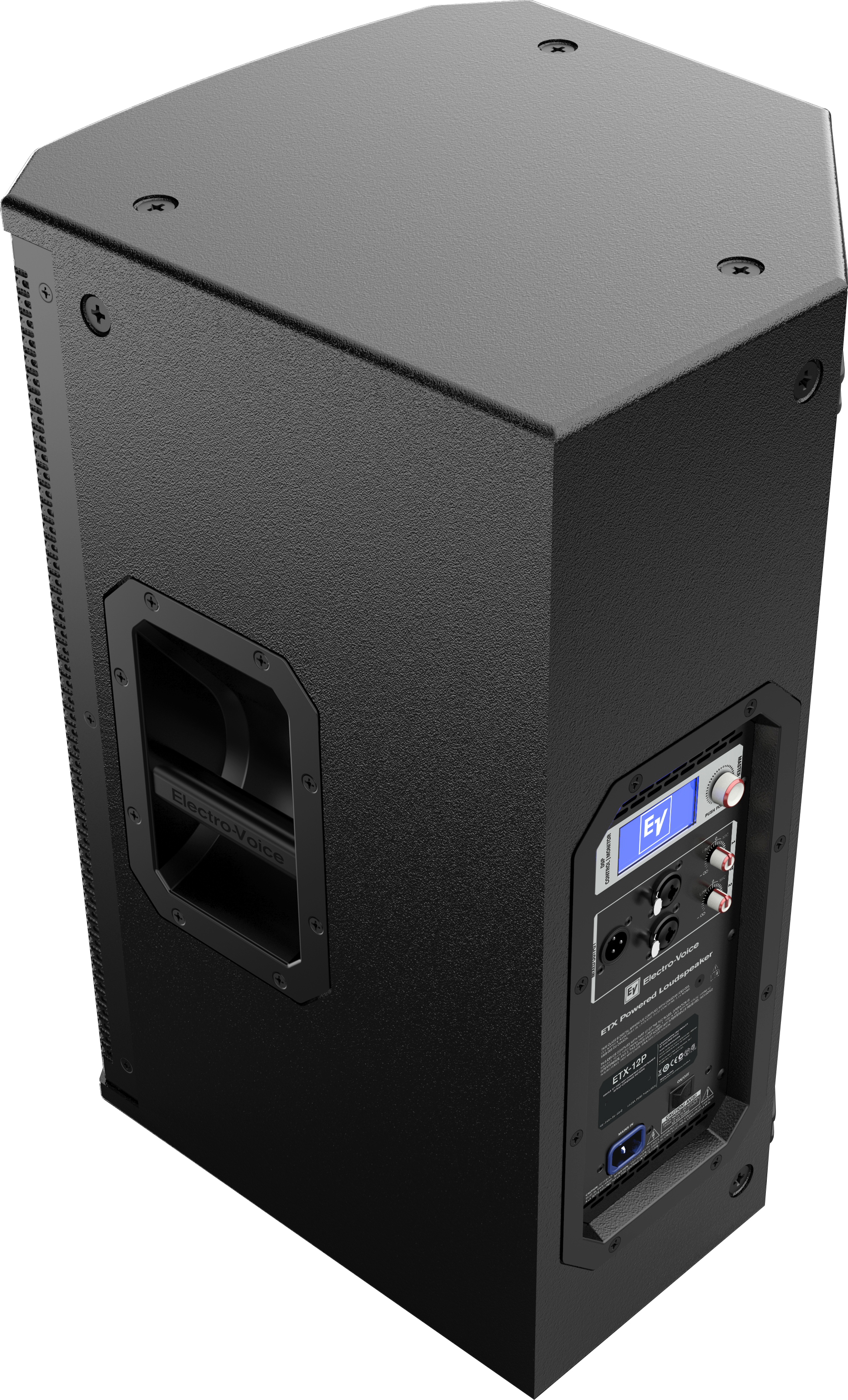

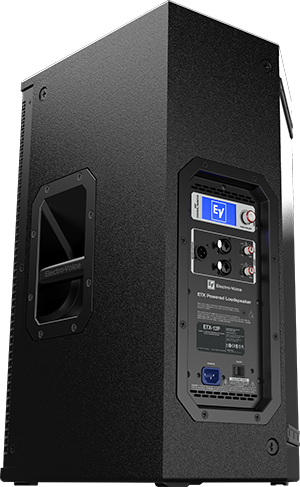

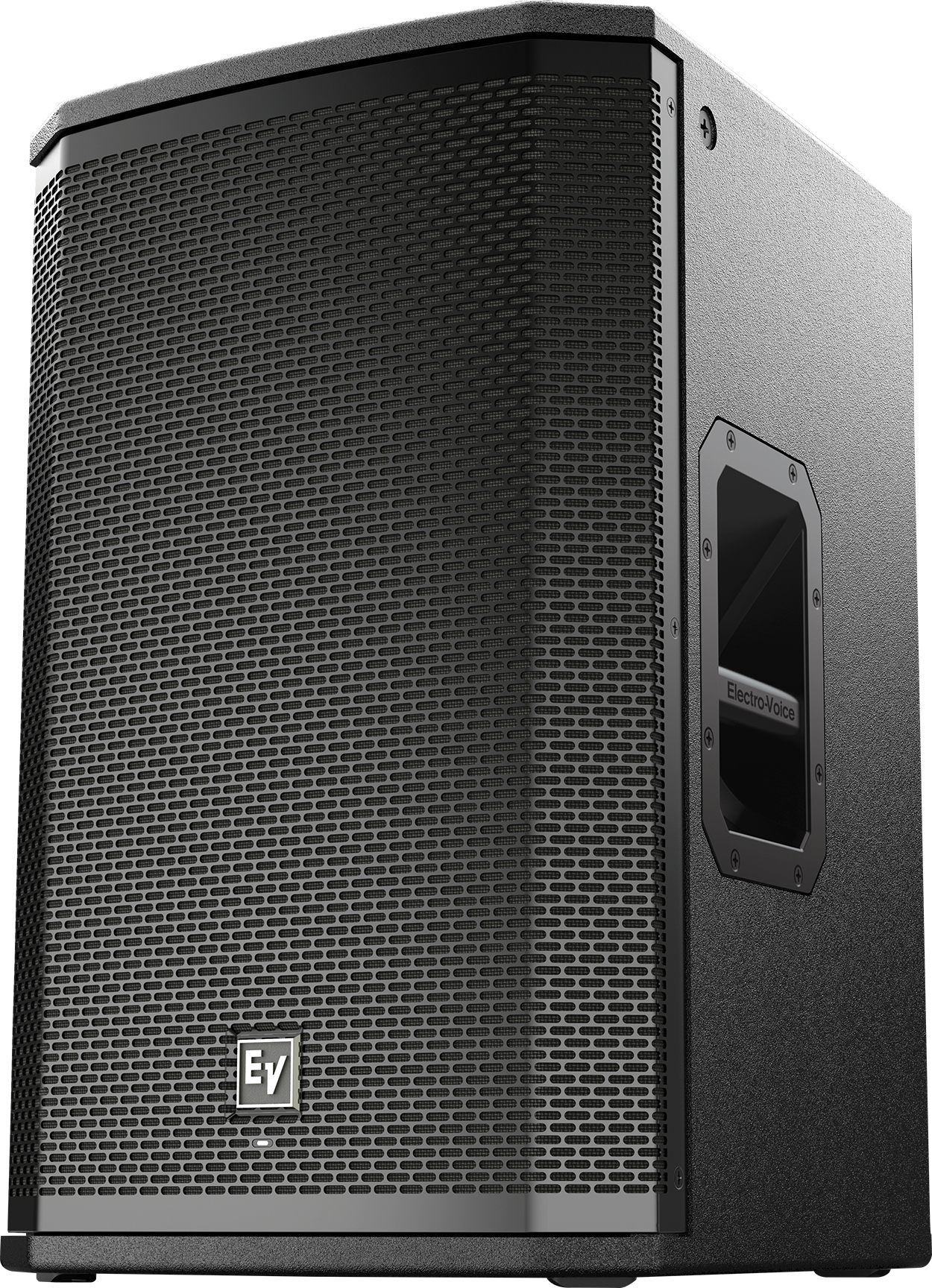

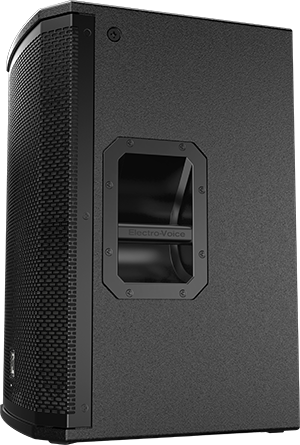

ETX-12P
12”两分频有源扬声器
- 12英寸SMX低频单元
- 1.25英寸高频钛压缩驱动器
- 2000W D类功放，带一体式FIR驱动的DSP
- 135 dB峰值声压级
Specifications

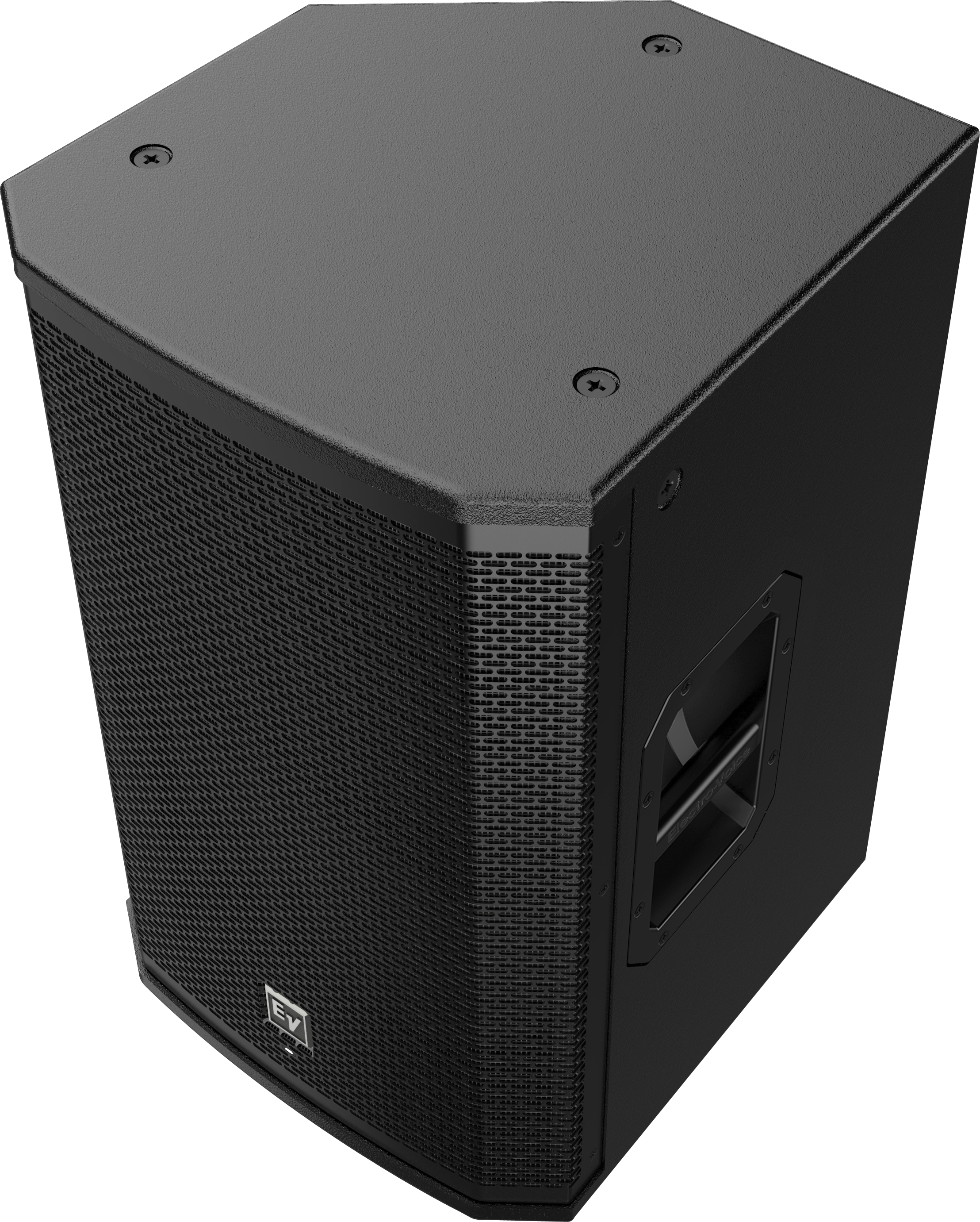

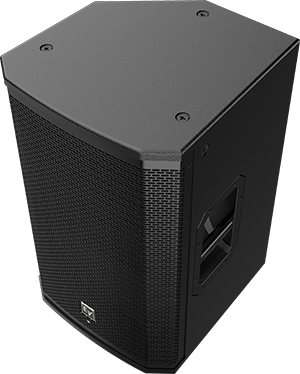

| Suspension | (8) M10 suspension points |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Speaker Type | Full-Range, two-way |
产品规格 |
|
| Woofer Size | 12 |
| Powered or Passive | Powered |
| Frequency Range (-10 dB)¹ | 43 Hz – 20 kHz |
| Max. SPL/1m (calc)² | 135 |
| Coverage (Nominal -6 dB) H | 90 |
| Coverage (Nominal -6 dB) V | 60 |
| LF Transducer | SMX2120 300 mm (12 in) |
| Power Rating | 2000 |
| Crossover Frequency | 1600 |

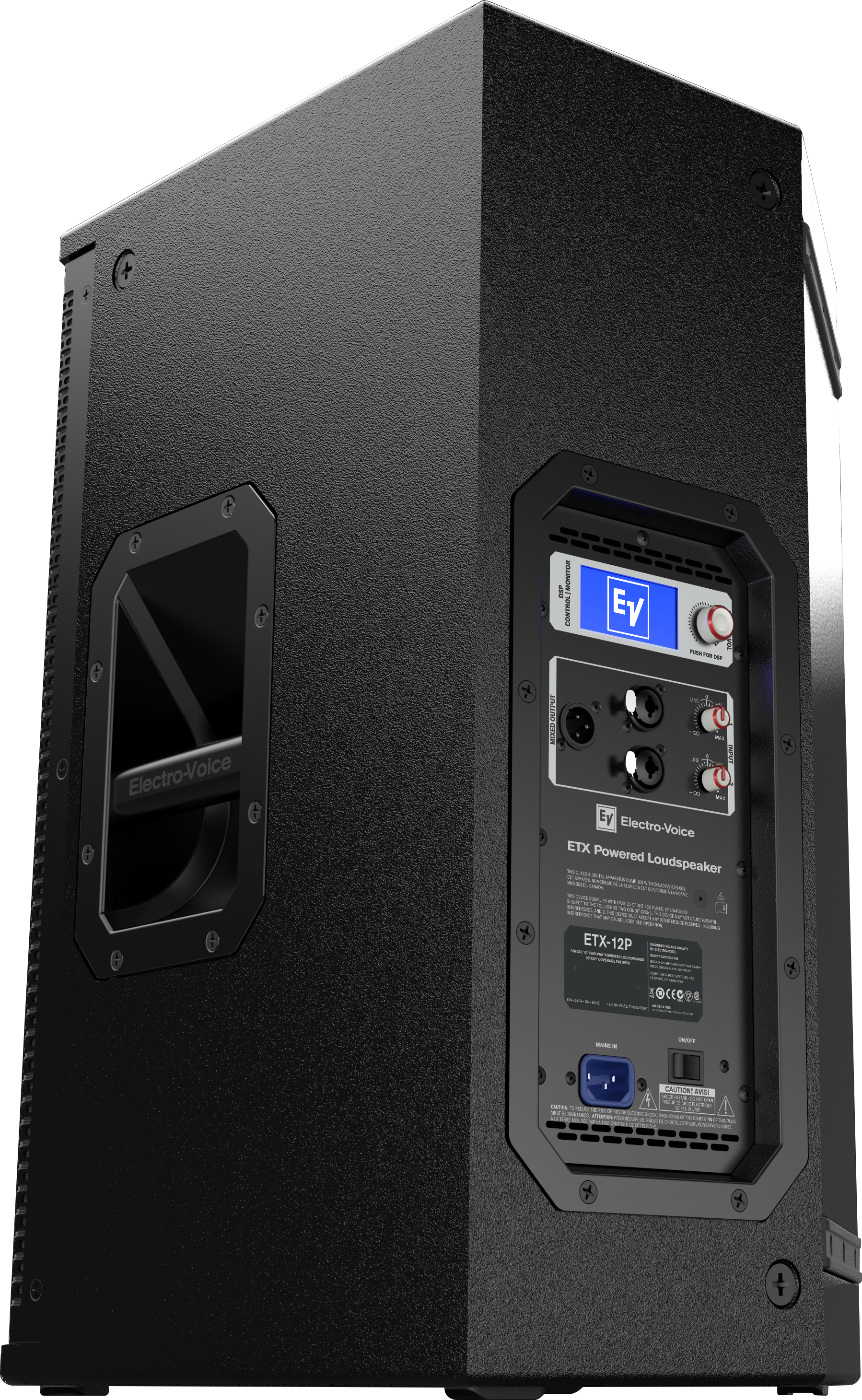

| Connector Type | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure Material | 18-mm, 13-ply birch plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |
| Height | 613 |
| Width | 381 |
| Depth | 400 |
| Weight Net | 23.6 |
| Frequency Response (-3 dB) | 55 Hz – 20 kHz |
| Shipping Weight | 26.8 |
| Power Consumption³ | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A |
| Family | ETX |
| Maximum SPL | 135 peak |
