PXM-12MP

12” powered coaxial monitor

  • Multi-functional monitoring system that is useable as a floor wedge or as a mains PA.
  • Acoustically optimized 55° monitor floor angle
  • QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
  • 700 W Class-D power amplifier designed by Dynacord delivers up to 129 dB peak SPL utilizing transducers by EV.
  • System reliability verified with over 500 hours of abuse and endurance testing.

The PXM-12MP is a dedicated portable loudspeaker system designed to provide musicians, DJs, and audio engineers convenient and powerful monitoring and playback functionality. By providing a symmetrical 90° x 90° coverage pattern facilitated by a 12” / 1.75” coaxial driver, users can experience solid, consistent coverage, which ensures that their mix can be heard clearly without constraining them to a limited part of the stage. The 55° monitoring angle enables users to stand as close or as far away from the system as necessary without sacrificing audio intelligibility. An integrated pole mount at the front allows for additional applications such fills, delays, or a main PA. With a dedicated subwoofer and the adjustable subwoofer matching LPFs of the PXM-12MP, a full 3-way system can be configured to create an extremely compact main PA.

The integrated mixing section provides 3 input channels: 2x XLR / ¼” combination connectors and a stereo RCA input. The DSP offers 4 EQ presets, high and low shelving, parametric midrange EQs, adjustable low-cut filters, a tunable feedback notch filter, and recallable user settings. The Class-D 700W amplifier provides enough power to satisfy the most demanding monitoring requirements, and system protection and limitation designed by Electro-Voice ensures that the PXM-12MP will play loudly and consistently even at the edge of its specifications.

产品规格

Frequency response (-3 dB) 64 Hz - 20 kHz
Frequency range (-10 dB) 53 Hz - 20 kHz
Monitor Angle 55°

Maximum SPL 129 dB
Coverage (H x V) 90˚ x 90˚
Amplifier Rating 700 W
LF Channel Rating 500 W
HF Channel Rating 200 W
Crossover frequency 1.6 kHz
Transducer CXCA2128-1NA 12” / 1.75” 2-way coaxial
Connectors 2x XLR/TRS combo input
1x Stereo RCA input
1x XLR THRU input
Enclosure  15 mm Plywood
Grille  Steel with black powder coat
Color  Black
Dimensions (H x W x D) mm (in) 334 mm x 409 mm x 484 mm (13.1 in x 16.1 in x 19.0 in)
Net weight  13.5 kg (29.8 lb)
Shipping weight  15.6 kg (34.3 lb)
Power consumption  100 - 240 V AC, 50 - 60 Hz, 0.8 - 0.5 A

Similar Products

下载

名称 语言 文件大小 日期
PXM-12MP Flyer DE 422KB 2020年05月28日
PXM-12MP Flyer ES 424KB 2020年06月08日
PXM-12MP Flyer FR 418KB 2020年05月27日
PXM-12MP Flyer PL 424KB 2020年06月03日
PXM-12MP Flyer PT 425KB 2020年07月16日
PXM-12MP Flyer RU 427KB 2020年06月08日
名称 文件大小 日期
Environmental Compliance Document 148KB 2017年10月03日
名称 语言 文件大小 日期
PXM-12MP Engineering Data Sheet ZH 2.52MB 2020年02月13日
PXM-12MP Engineering Data Sheet EN 2.42MB 2020年01月07日
PXM-12MP Engineering Data Sheet DE 2.42MB 2020年02月13日
PXM-12MP Engineering Data Sheet ES 2.42MB 2020年02月13日
PXM-12MP Engineering Data Sheet FR 2.42MB 2020年02月13日
PXM-12MP Engineering Data Sheet JA 2.49MB 2020年02月13日
PXM-12MP Engineering Data Sheet KO 2.53MB 2020年02月13日
PXM-12MP Engineering Data Sheet PT 2.42MB 2020年02月13日
PXM-12MP Engineering Data Sheet RU 2.43MB 2020年02月13日
名称 语言 文件大小 日期
PXM-12MP Flyer EN 693KB 2020年01月07日
名称 语言 文件大小 日期
PXM-12MP Installation Manual ZH 4.89MB 2020年02月11日
PXM-12MP Installation Manual DE 4.67MB 2020年02月11日
PXM-12MP Installation Manual ES 4.67MB 2020年02月11日
PXM-12MP Installation Manual FR 4.67MB 2020年02月11日
PXM-12MP Installation Manual JA 4.78MB 2020年02月11日
PXM-12MP Installation Manual KO 4.74MB 2020年02月11日
PXM-12MP Installation Manual PT 4.67MB 2020年02月11日
PXM-12MP Installation Manual EN 4.6MB 2020年05月13日

EV PXM-12MP Corner HR Original 37860

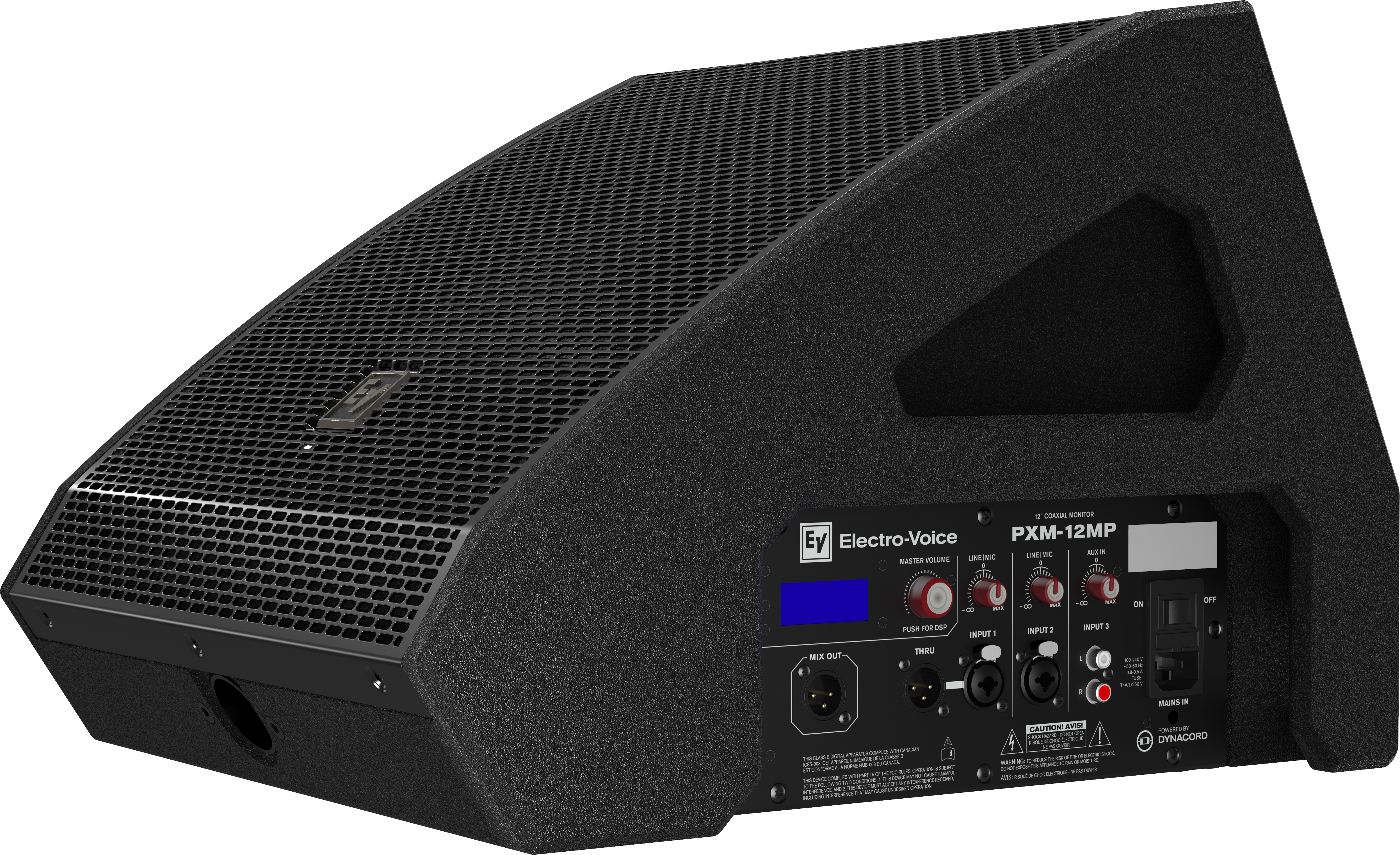

EV PXM-12MP Corner HR Original 37863

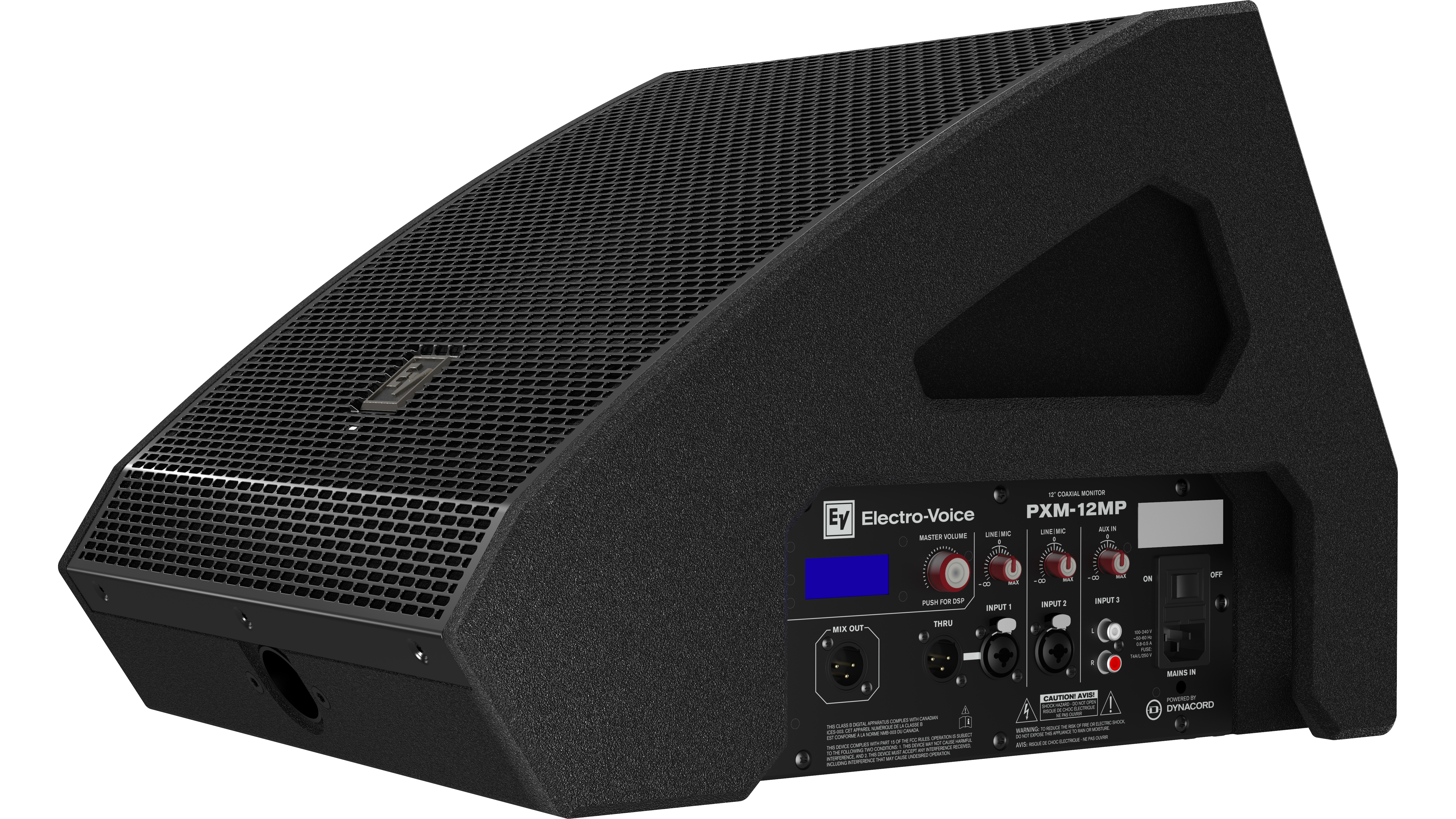

EV PXM-12MP Corner HR Original 37863-16x9

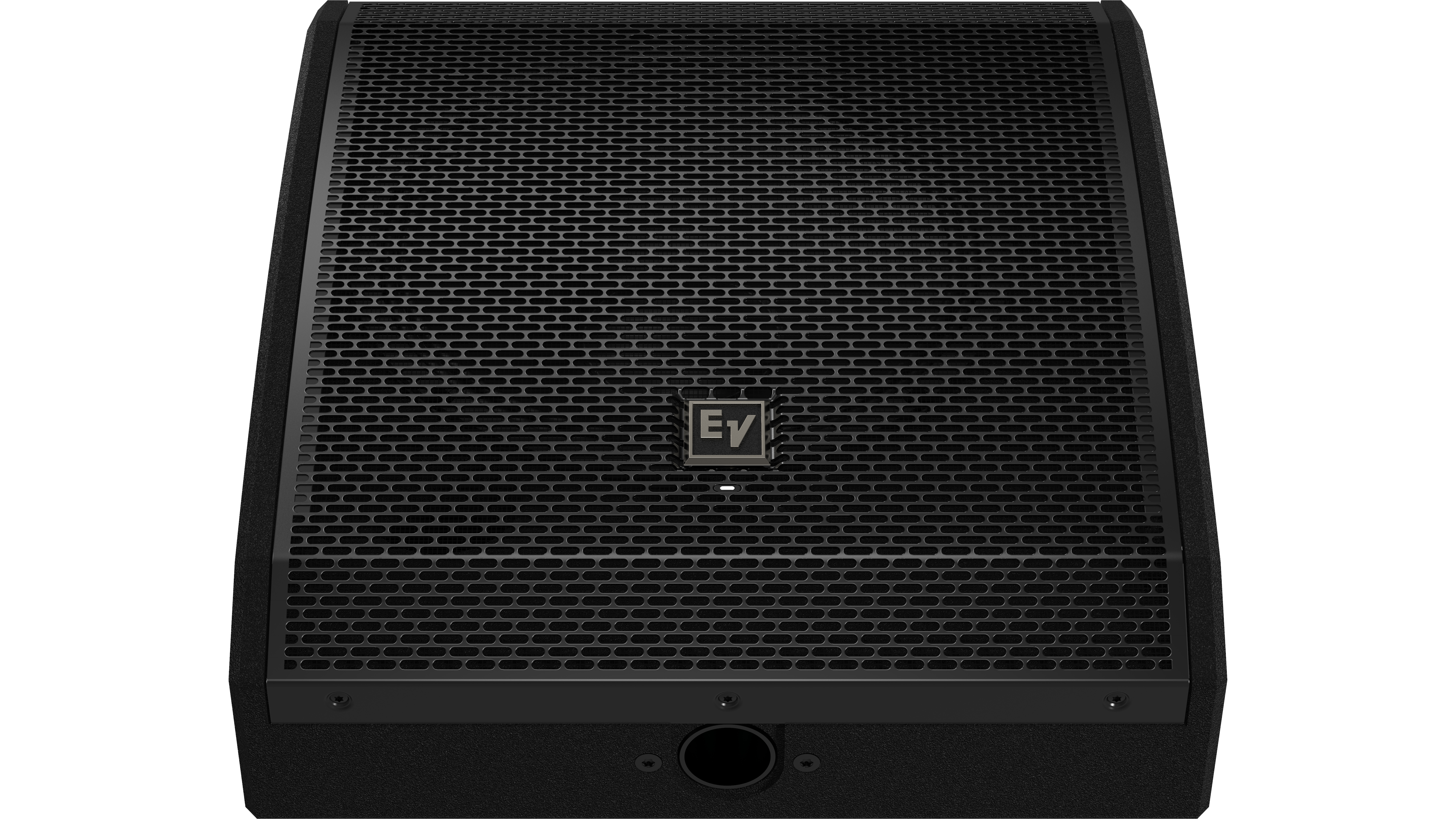

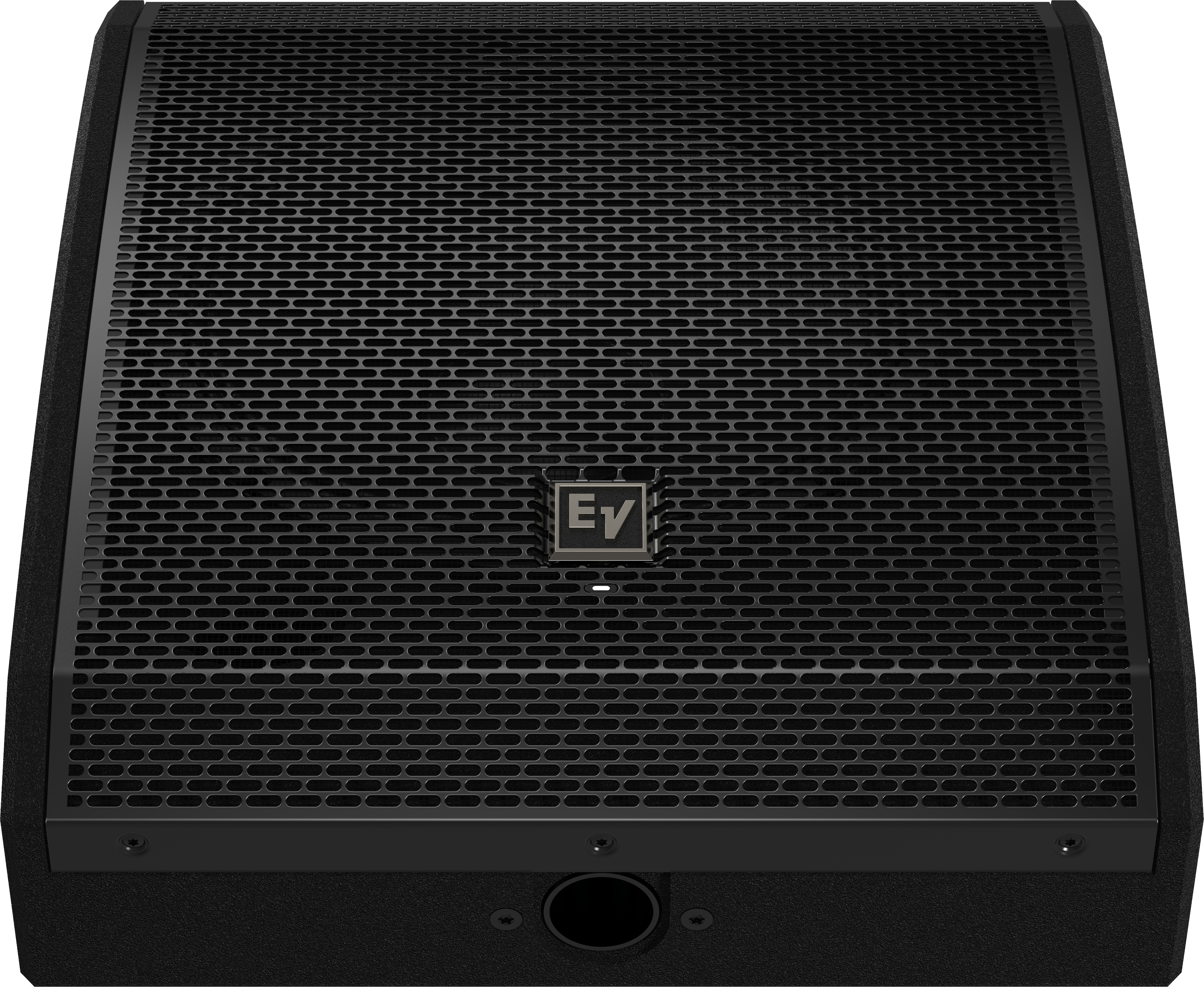

EV PXM-12MP Front HR Original 37861

EV PXM-12MP Front HR Original 37861-16x9

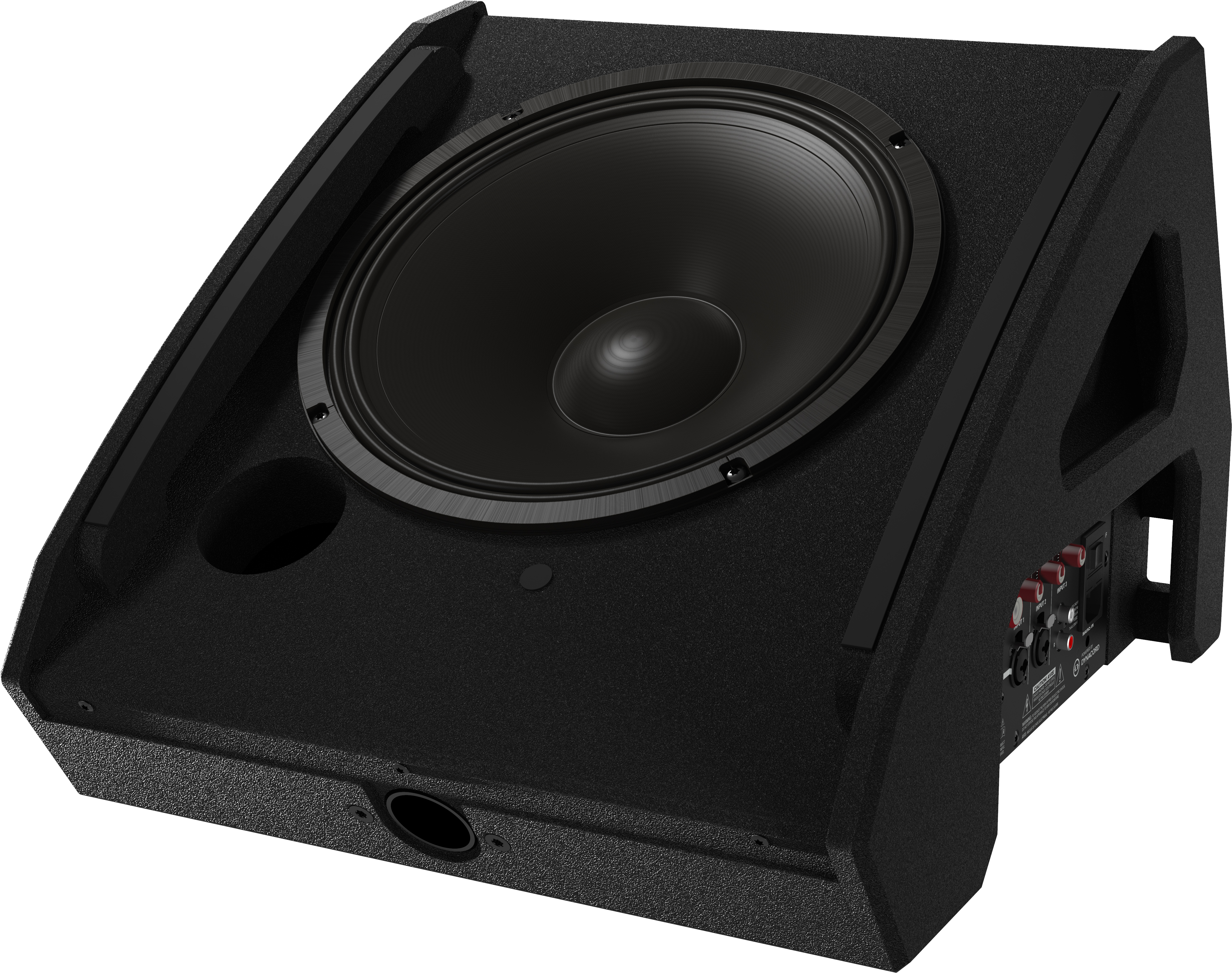

EV PXM-12MP No Grill HR Original 37862

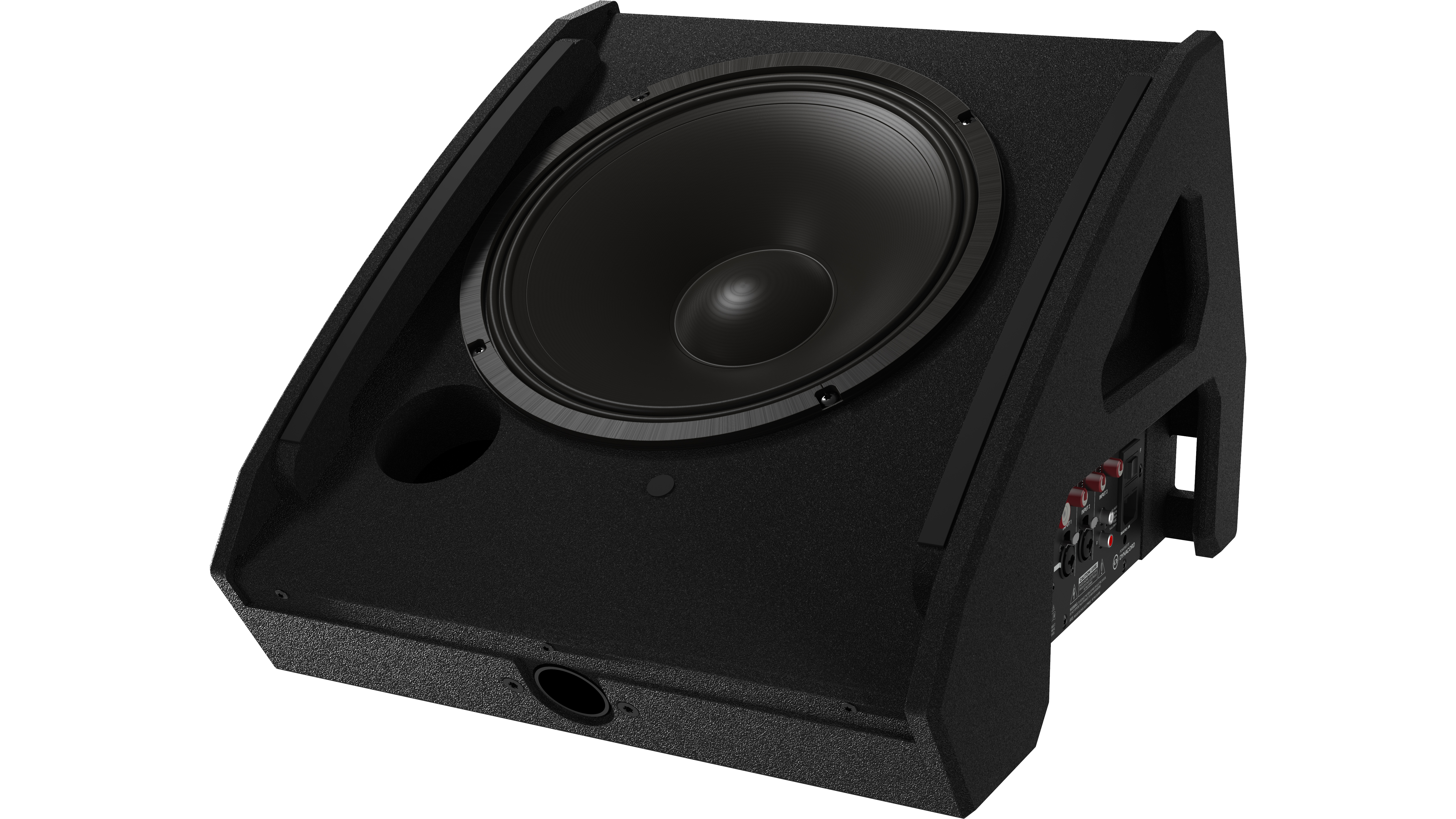

EV PXM-12MP No Grill HR Original 37862-16x9

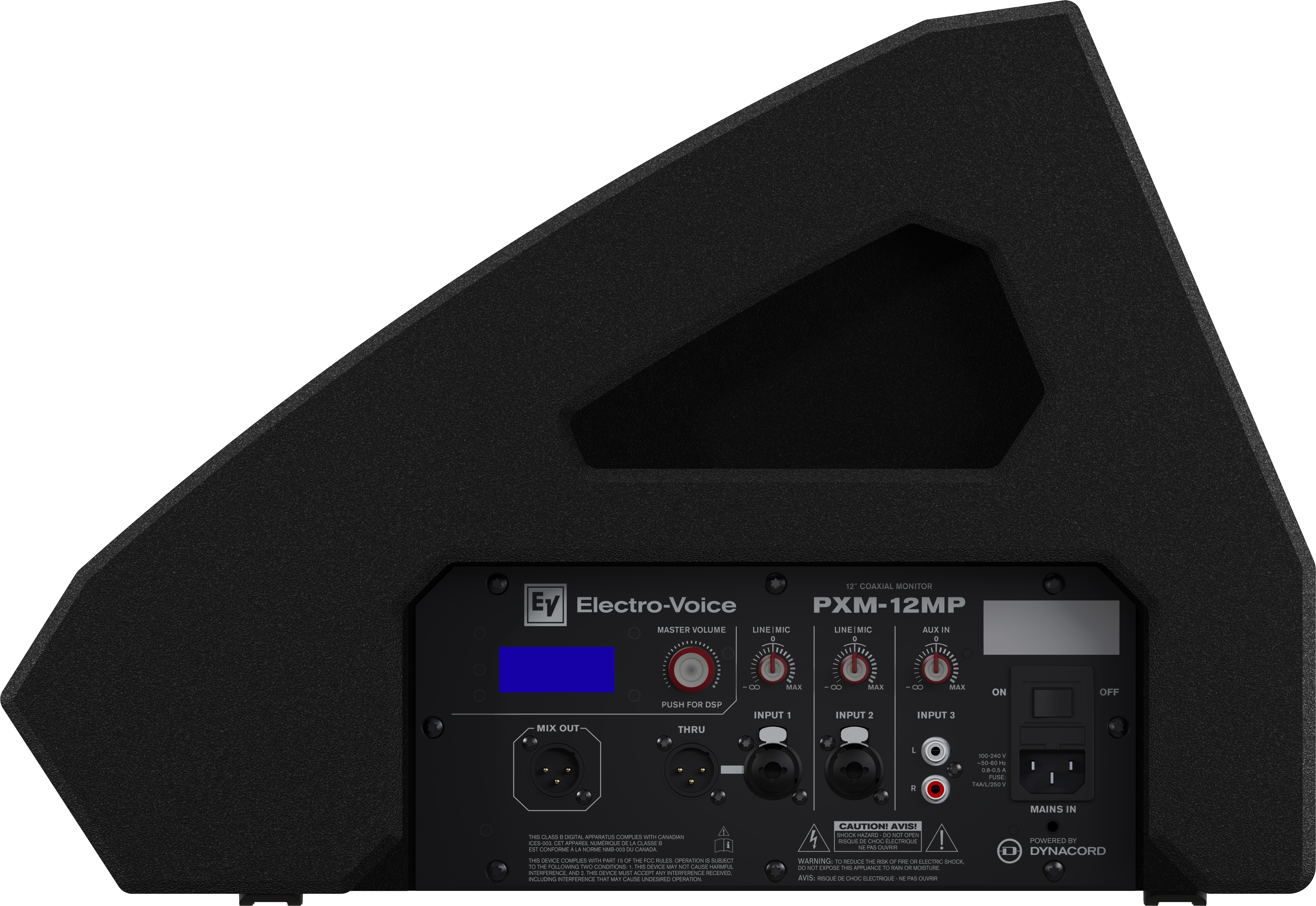

EV PXM-12MP Panel HR Original 37864

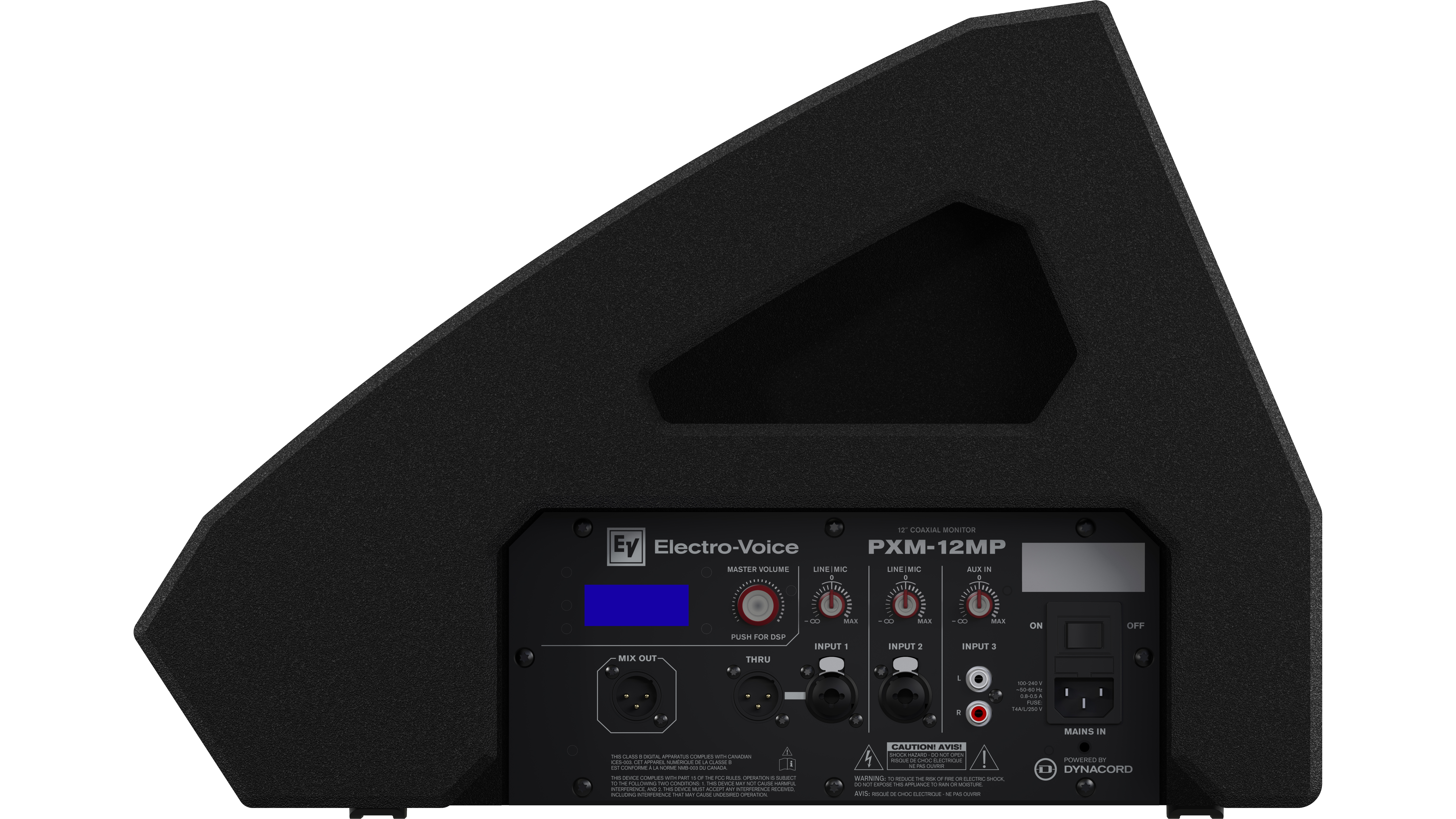

EV PXM-12MP Panel HR Original 37864-16x9

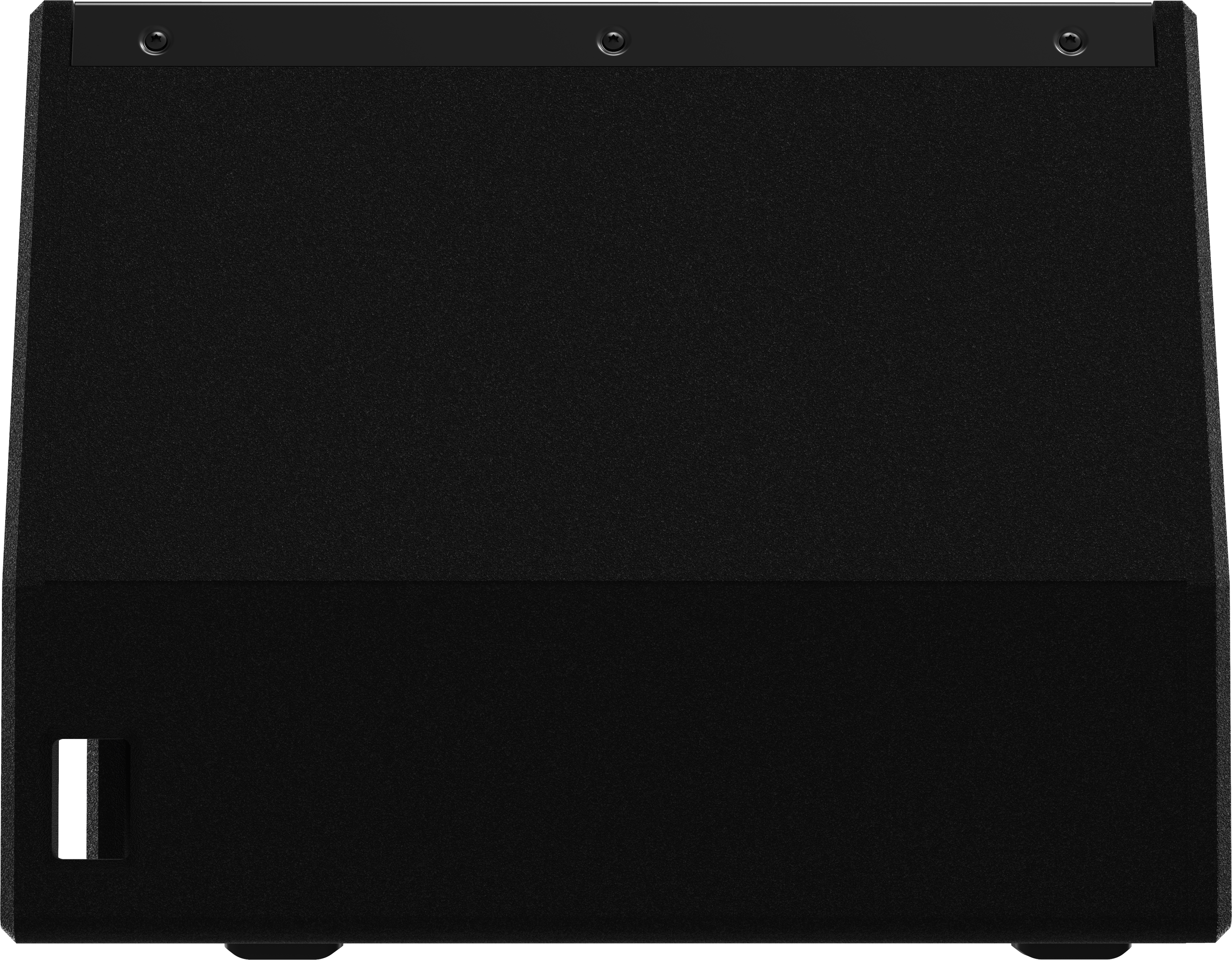

EV PXM-12MP Rear HR Original 37865

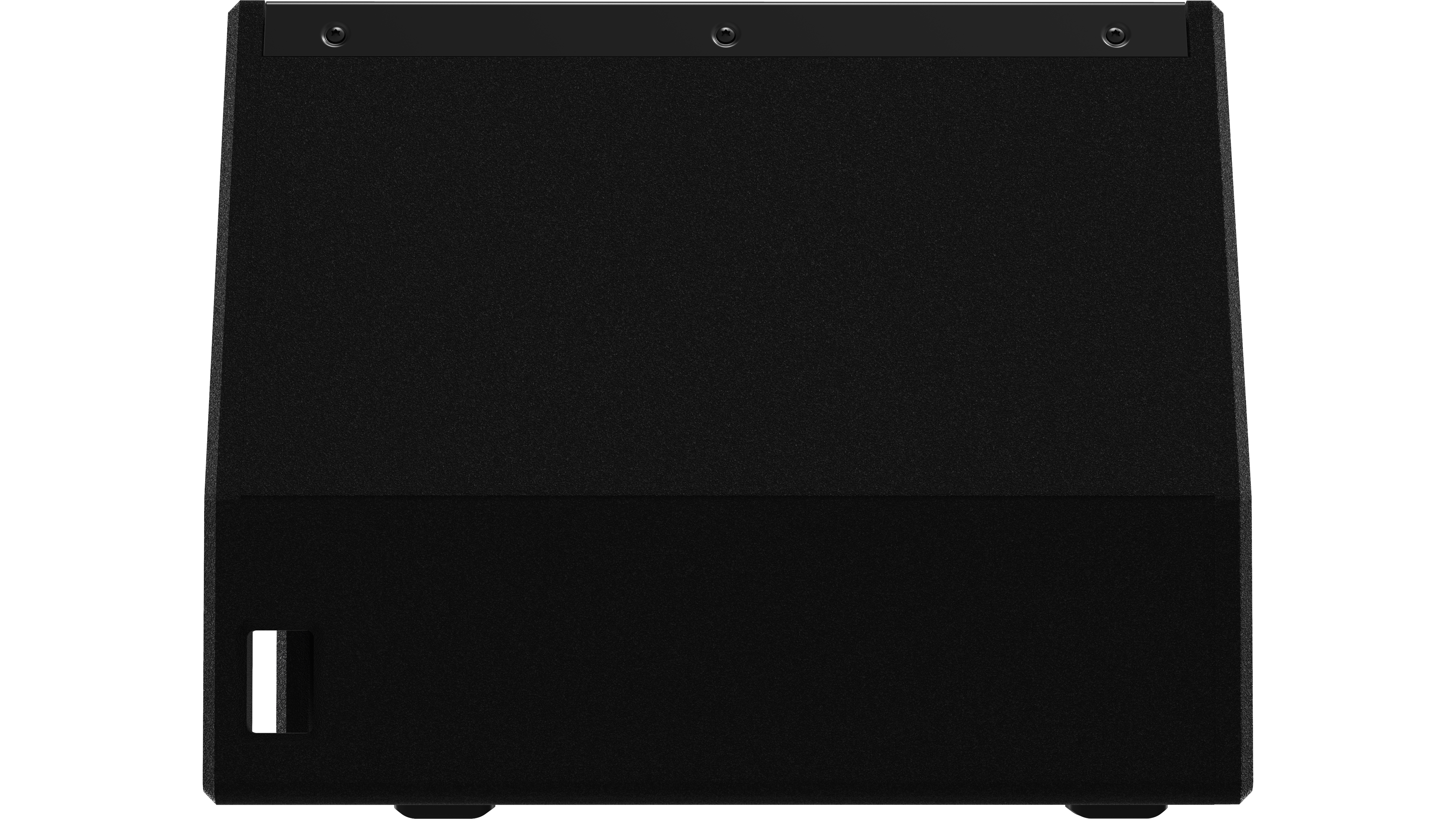

EV PXM-12MP Rear HR Original 37865-16x9
