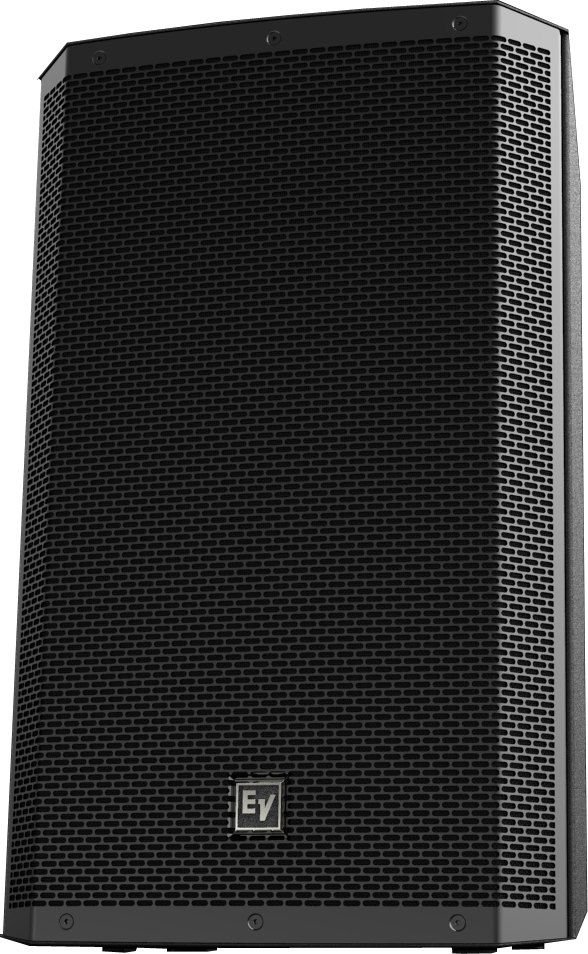

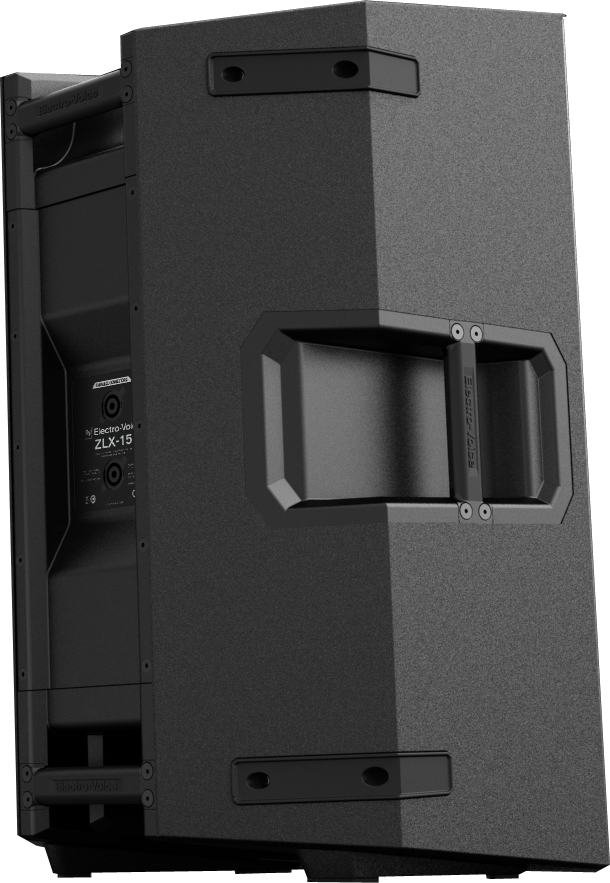

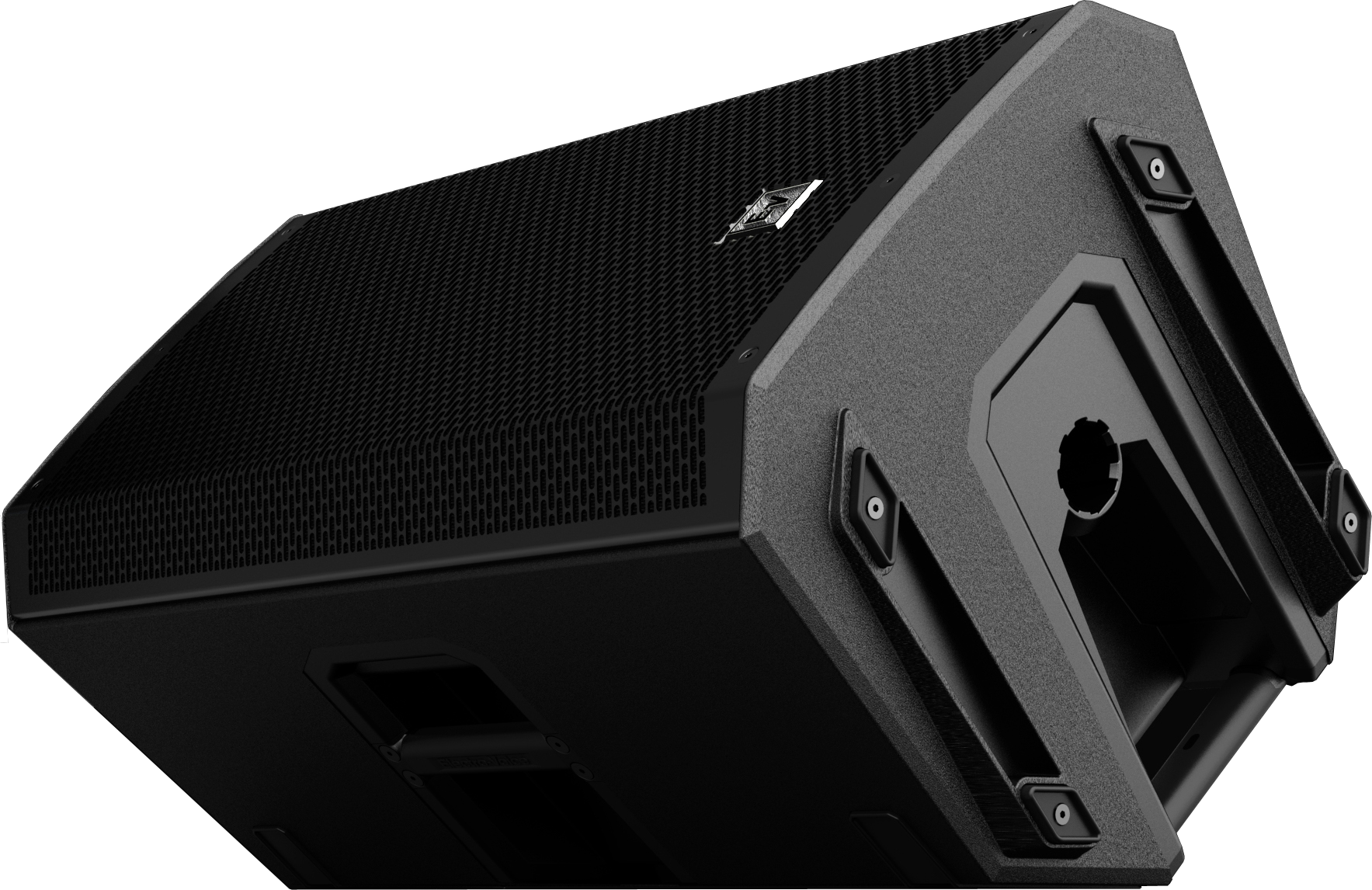

ZLX-15
15”两分频无源音箱
- 扩展低频响应的15”低音单元和1.5”高频钛压缩驱动器
- 频率范围：44 Hz – 20 kHz
- 连续功率：250W，峰值功率：1000W
- 灵敏度：96dB，最大声压级：126dB
- 36.5 磅（16.6千克）
ZLX-15采用业界最值得信赖的单元，按照严格的设计标准为较大的演出场所提供出色的EV音质，无论是否与低音一起使用，都让您充满信心。
Specifications
| Minimum Impedance | 7 |
| HF Transducer | DH-1K |
| Speaker Type | Full-Range, two-way |
产品规格 |
|
| Woofer Size | 15 |
| Powered or Passive | Passive |
| Frequency Range (-10 dB)¹ | 44 Hz - 20 kHz |
| Max. SPL/1m (calc)² | 126 |
| Coverage (Nominal -6 dB) H | 90 |
| Coverage (Nominal -6 dB) V | 60 |
| LF Transducer | EVS-15L, 380 mm (15 in) Woofer |
| Power Rating | 1000 |
| Crossover Frequency | 1700 |
| Maximum SPL (1% THD) | 0 |

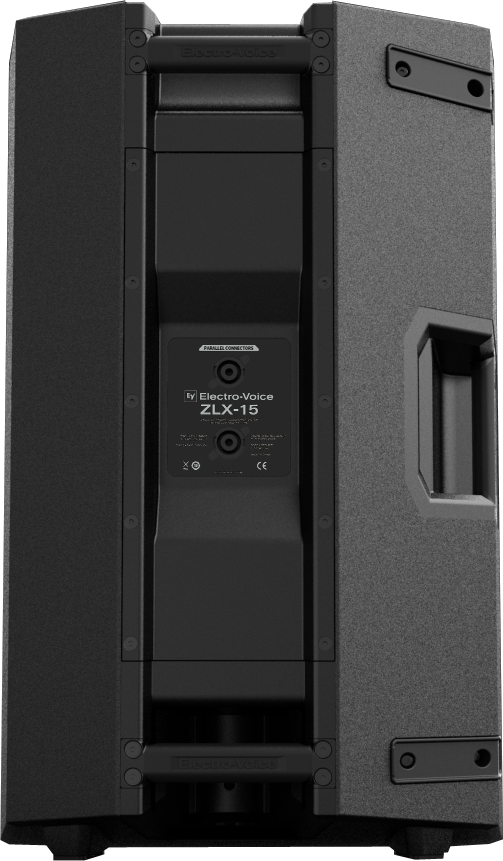

| Connector Type | Dual NL4 |
| Enclosure Material | Polypropylene Composite |
| Grille | 18 Gauge Steel with Black Powder Coat |
| Height | 685 |
| Width | 423 |
| Recommended High-Pass Frequency | 40 |
| Depth | 383 |
| Frequency Response (-3 dB) | 56 Hz - 18 kHz |
| Weight Net | 16.6 |
| Shipping Weight | 22 |
| Family | ZLX |
| Maximum SPL | 126 |
| Passive Power Handling | 1000 |
| Nominal Impedance | 8 |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 96 |
| Power Handling (Continuous / Peak) | 250 / 1000 |
Videos
ZLX Loudspeaker Overview
Electro-Voice at Winter NAMM 2013
ZLX
In Search of Excellent Audio & Video
Recommended Amplifiersffs
For optimal sound system performance, Electro-Voice recommends the following amplifiers for ZLX-15.
Dynacord C‑Series更多 |
Dynacord L‑Series更多 |
|
|---|---|---|
| Two-Channel | ✔ | ✔ |
| Multi-Channel | ||
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ||
| Installation | ✔ | |
| Live Sound | ✔ |
