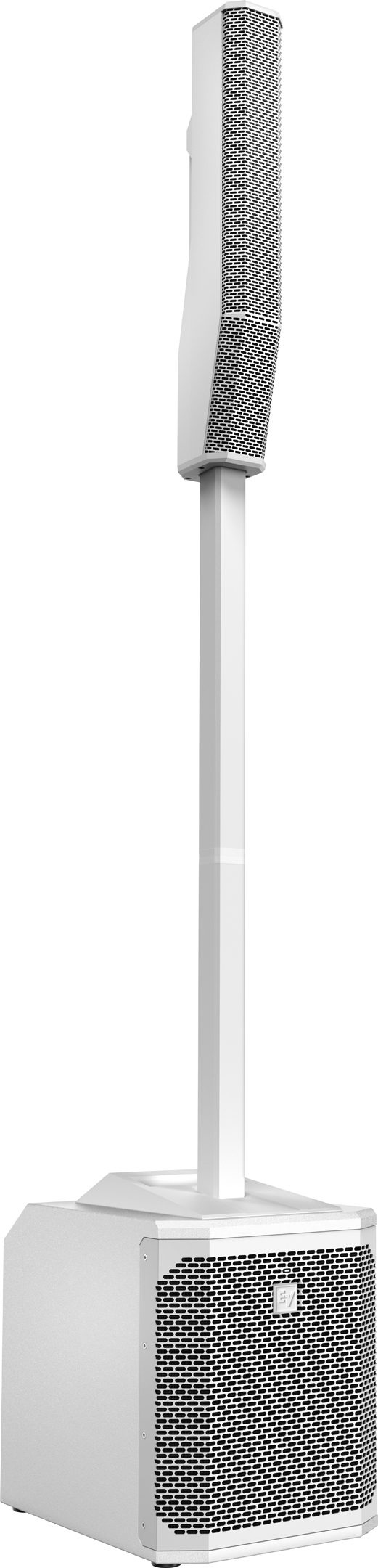

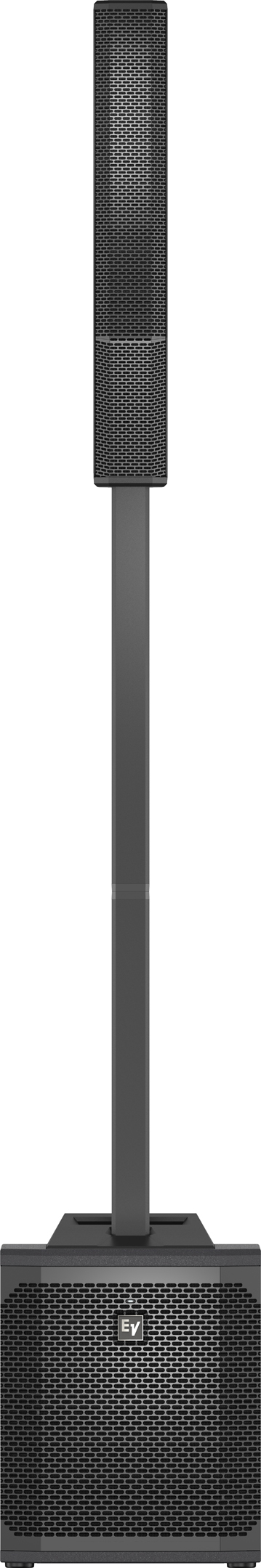

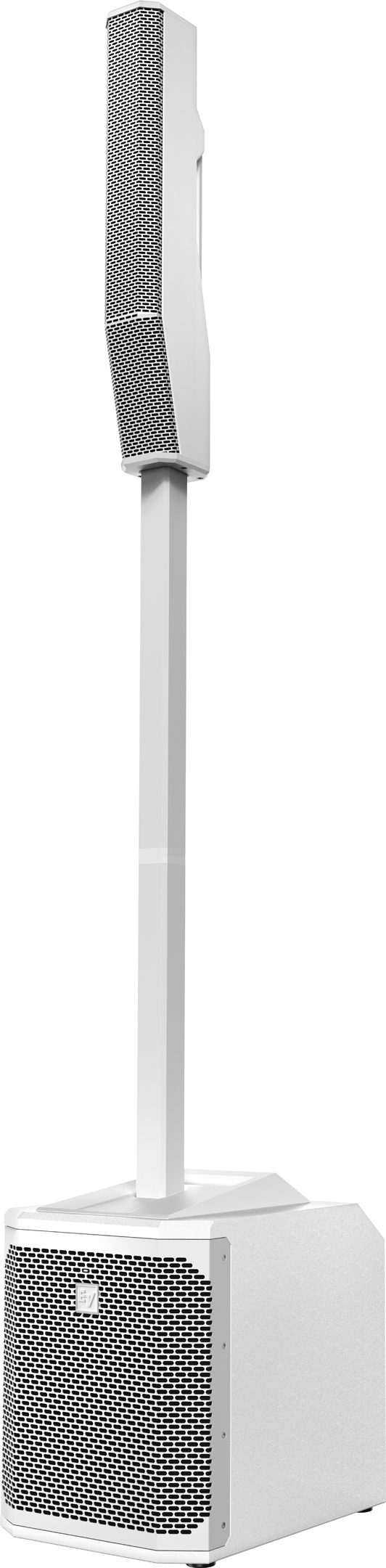

EVOLVE 30M

Portable powered column system

  • Mix your show like a pro
  • Optimize every detail of your sound
  • Room-filling coverage
  • Super-quick setup
  • Single-trip portability
  • Available in black or white

Superior Electro-Voice sound quality coupled with the most complete feature set in its class – the perfect combination of performance and flexible functionality, in a very compact package

The EVOLVE 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It includes an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application (available via the Apple Store and on Google Play).

Specifications

Frequency response (-3 dB)1 51 Hz to 20 KHz
Frequency range (-10 dB)1 45 Hz to 20 KHz
Maximum SPL2 123 dB

Coverage (H x V) 120° x 40°
Amplifier rating 1000 W
LF channel rating 500 W
HF channel rating 500 W
Crossover frequency 200 Hz

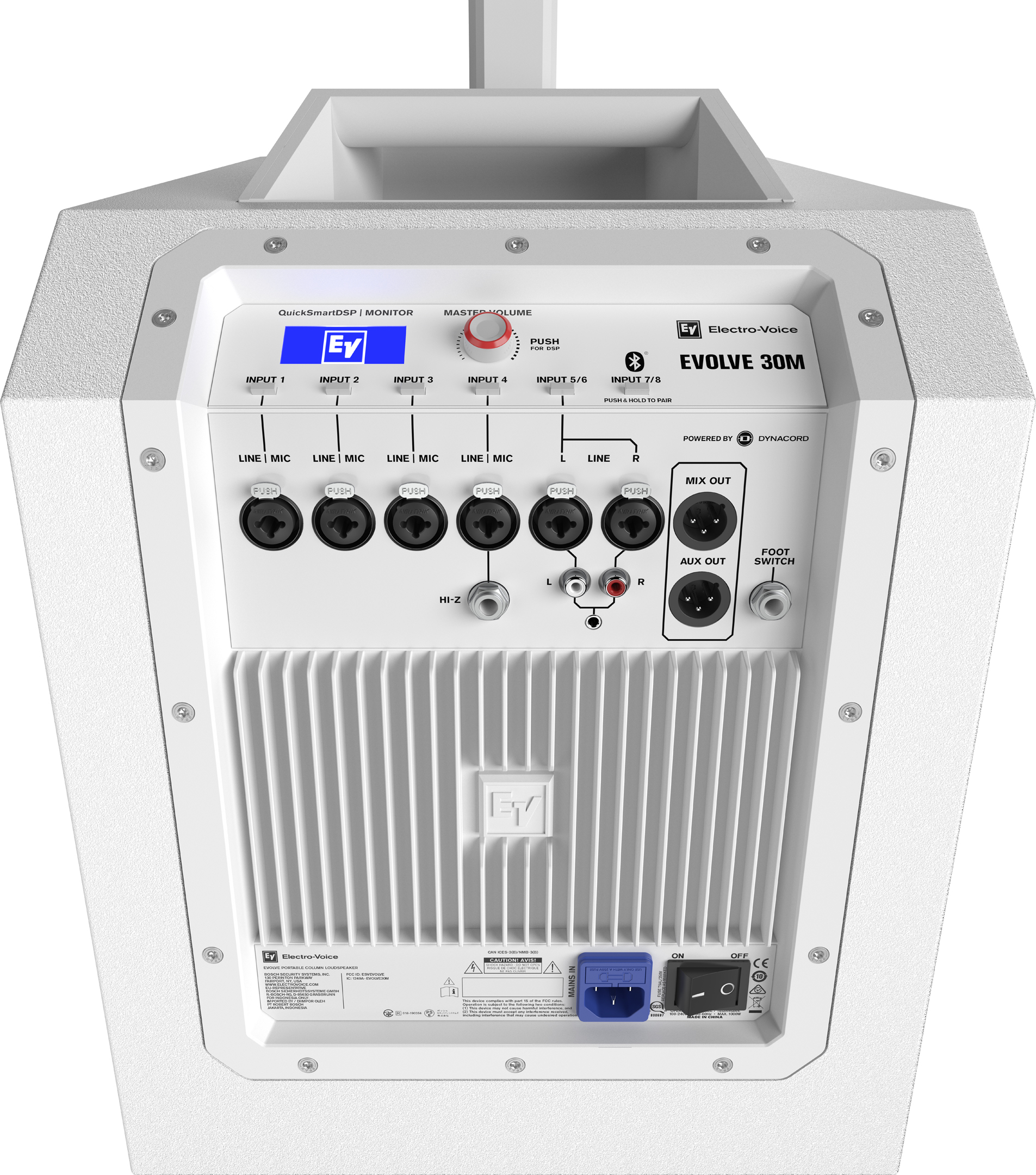

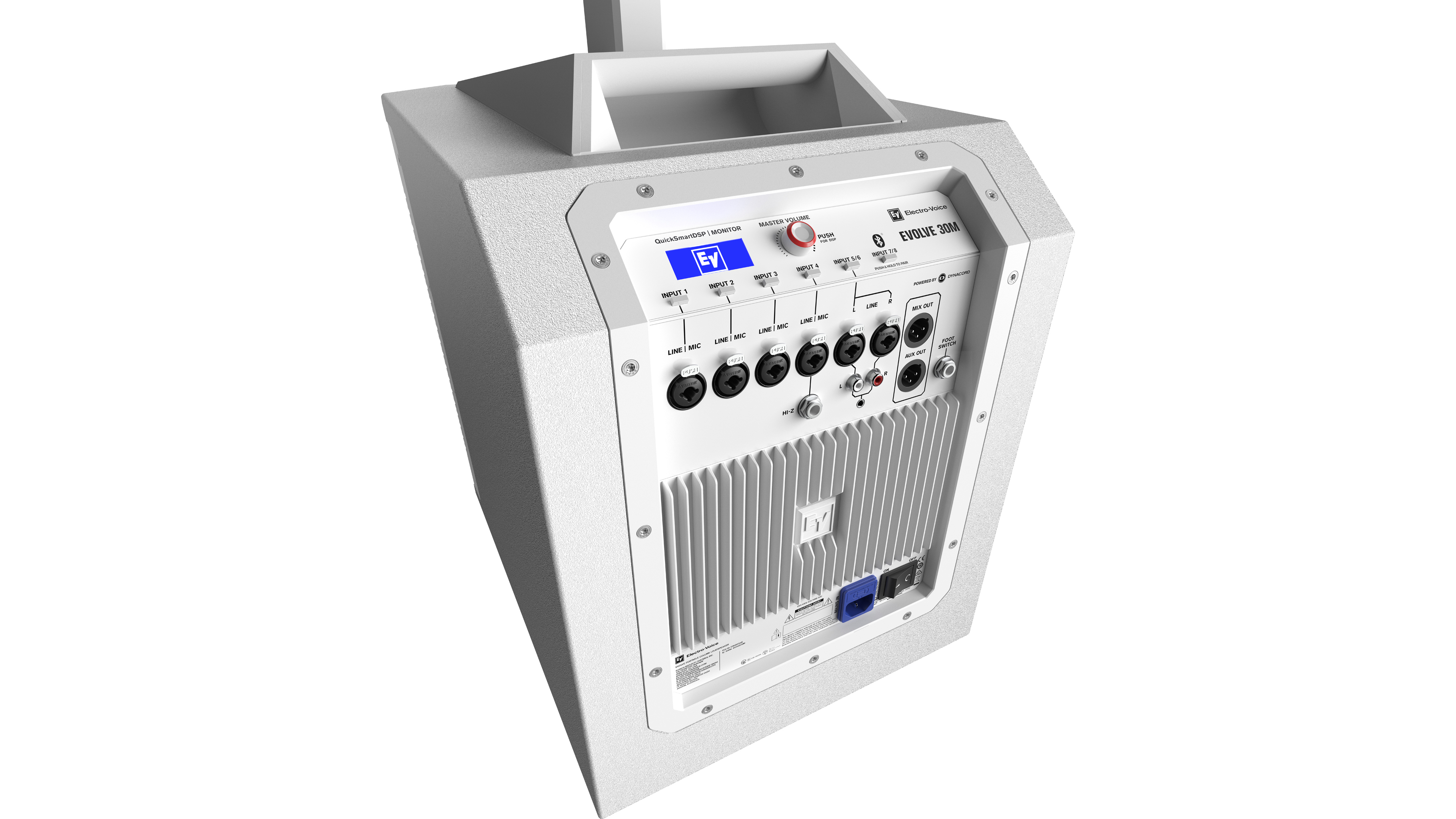

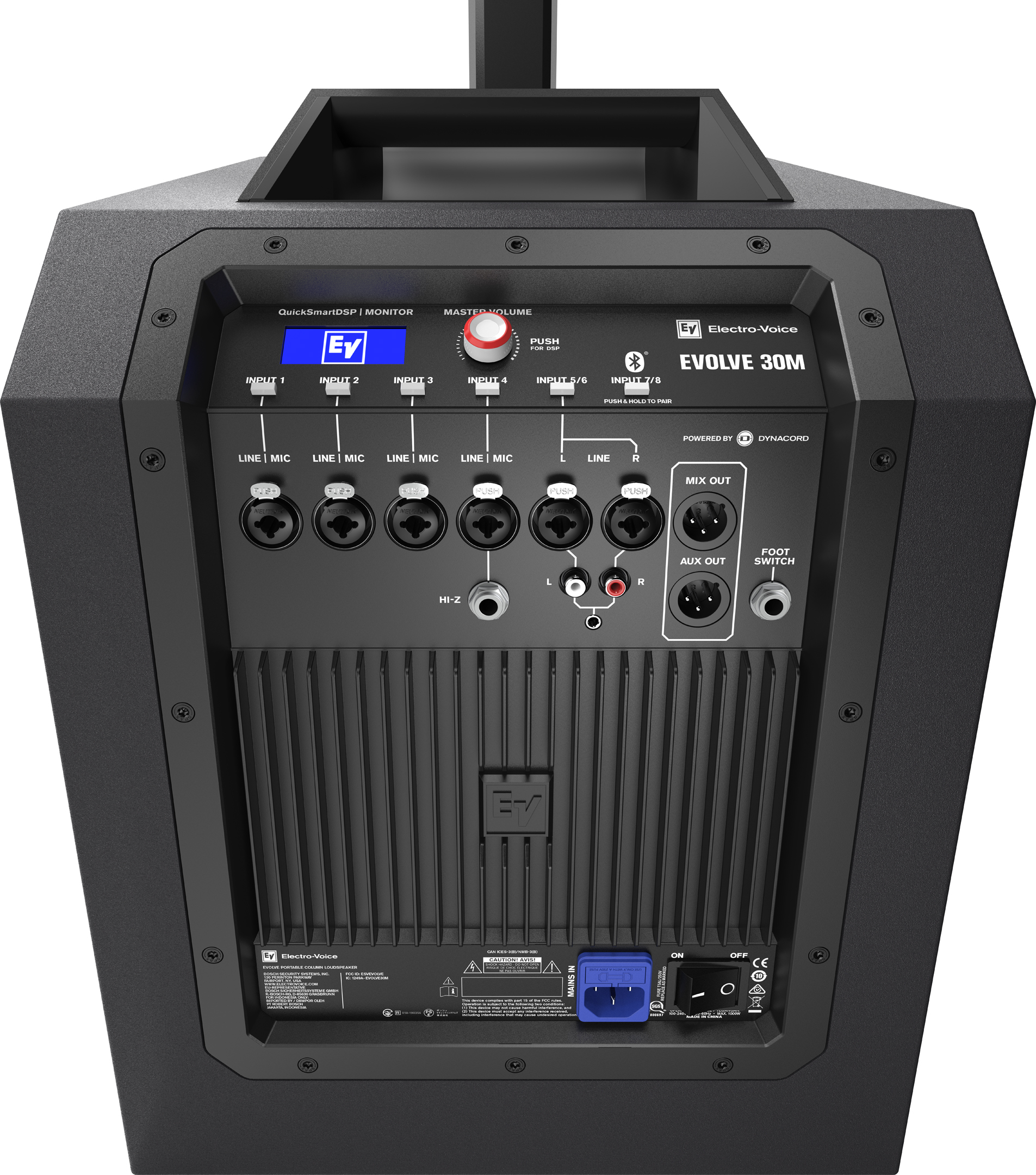

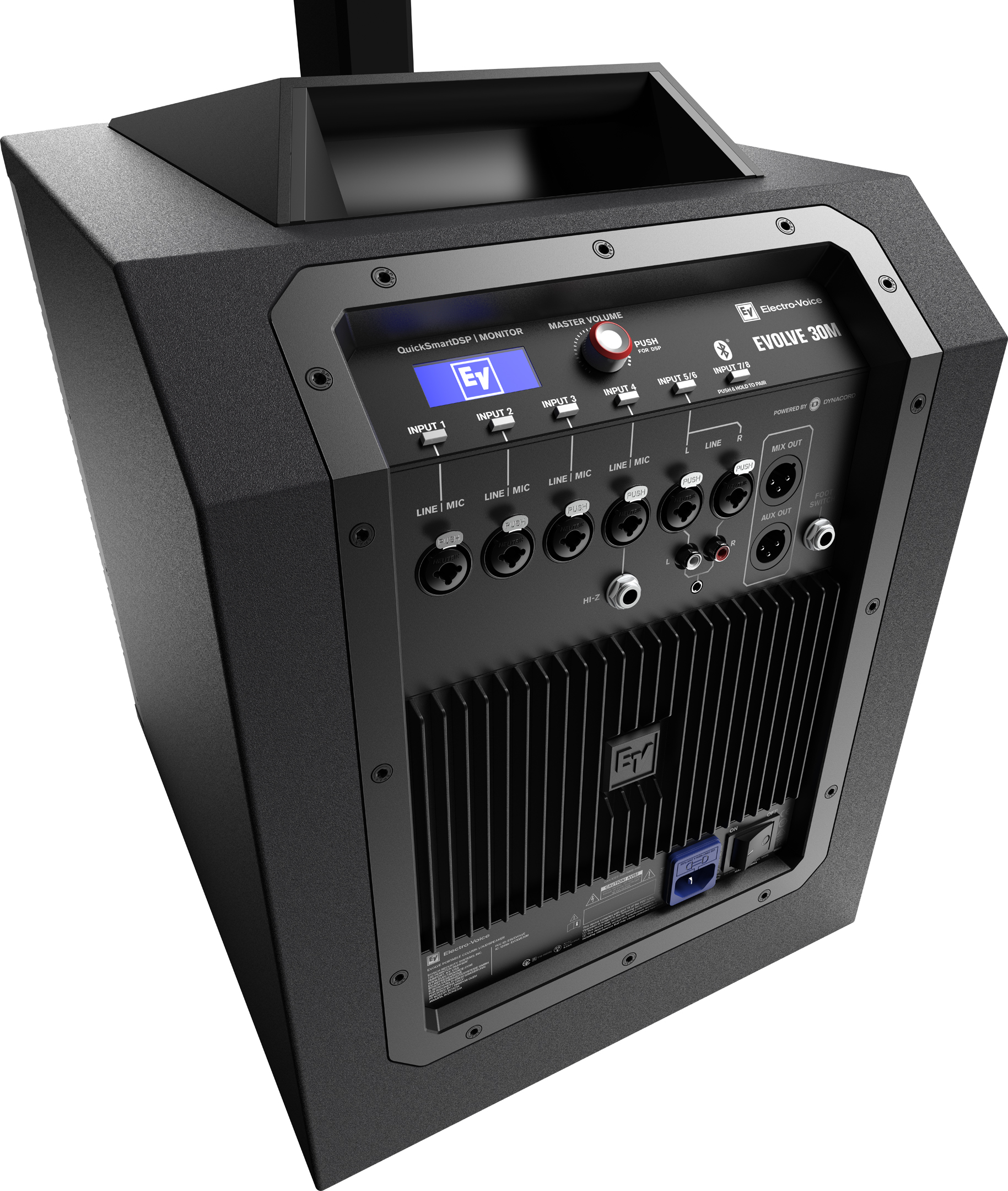

Connectors 4x XLR/TRS Combo Jack Line / Mic Input
1x 1/4" TRS HI-Z input
2x XLR/TRS Combo Jack for Stereo Line Input
1x Stereo RCA Input
1x 3.5 mm Stereo Input
1x Wireless Stereo Bluetooth® Audio Input
1x 1/4" Foot Switch Input
1x XLR MIX OUT Output
1x XLR AUX OUT Output
Enclosure Sub: 15 mm plywood
Column: Composite
Pole: Aluminum
Grille: Steel with black or white powder coat
Color: Black or white
Dimensions (HxWxD): mm (in) Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)
Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)
Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)
Net weight Sub: 34.9 lb (15.8 kg)
Column: 6.0 lb (2.7 kg)
Pole (2 pcs): 3.1 lb (1.4 kg)

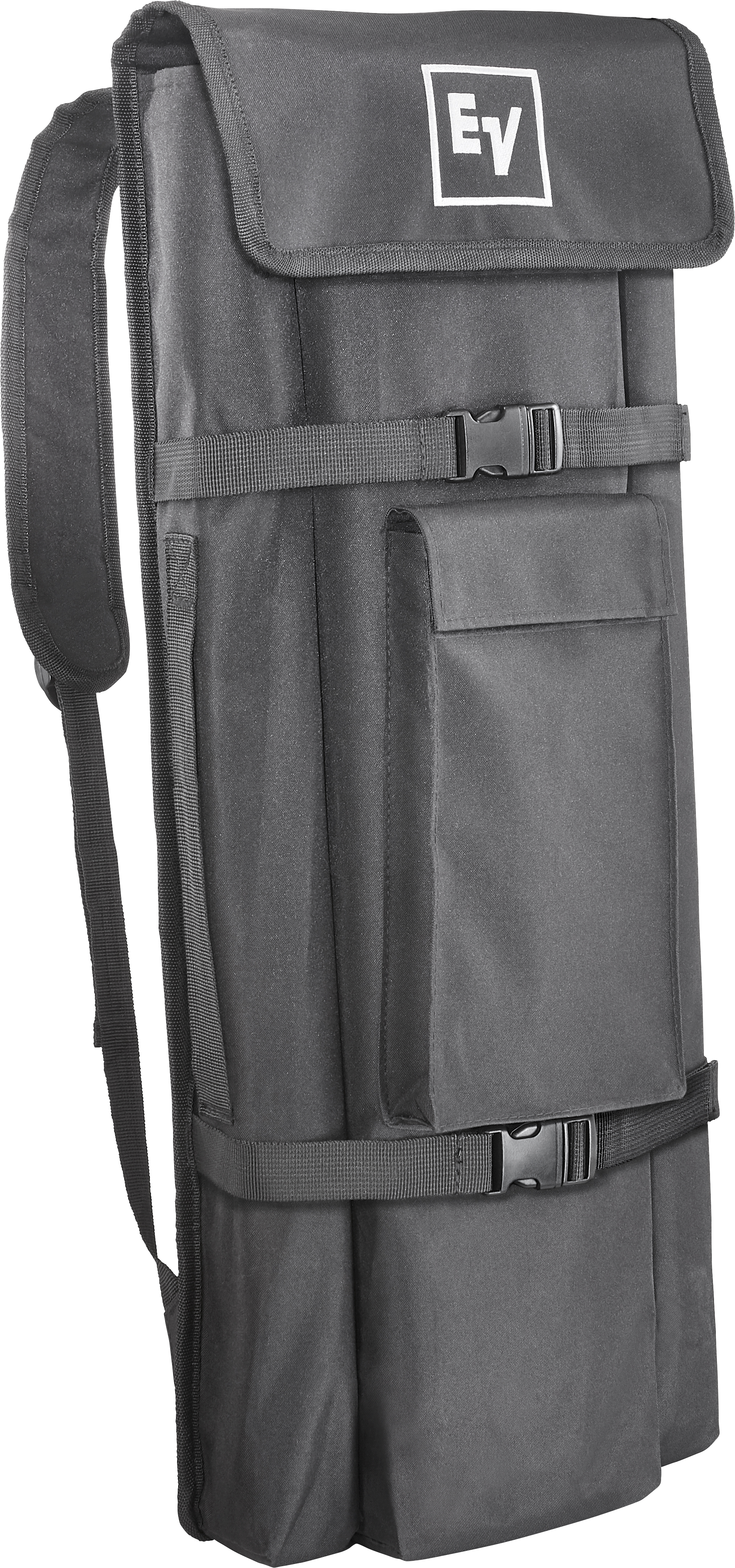

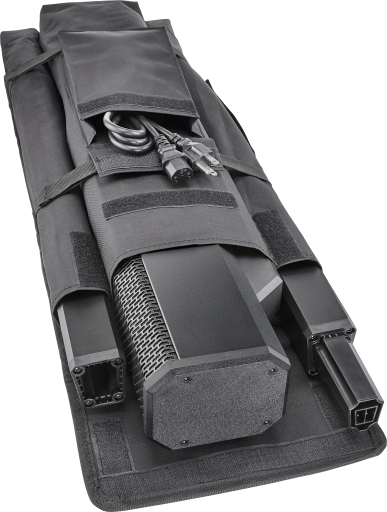

Bag for column and pole: 1.9 (0.85 kg)
Shipping weight 53.4 lb (24.2 kg)
Power consumption3 100-240 V AC, 50-60 Hz, 1.5-0.6 A
1Half-space measurement using live DSP preset.
2Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3Current rating is 1/8 power.

Compatible Products

Downloads

Name Size Date
200000472 EV USA EVOLVE30M Google AdBillboard 970x250 81KB 06.30.2020
Name Language Size Date
Portable speakers catalog 2020 EMEA EN 9.22MB 01.21.2020
Portable speakers catalog 2020 NA EN 10.63MB 05.22.2020
EVOLVE 30M Flyer ES 714KB 05.27.2020
EVOLVE 30M Flyer FR 715KB 05.27.2020
EVOLVE 30M Flyer PL 715KB 06.04.2020
EVOLVE 30M Flyer PT 716KB 06.11.2020
EVOLVE 30M Flyer RU 730KB 06.09.2020
Name Size Date
Environmental Compliance Document 148KB 10.03.2017
EVOLVE 30M EC Declaration of Conformity 13.36MB 03.06.2020
Name Language Size Date
EVOLVE-30M Engineering Data Sheet EN 1.02MB 01.06.2020
EVOLVE-30M Engineering Data Sheet DE 1.02MB 08.31.2020
EVOLVE-30M Engineering Data Sheet ES 1.02MB 08.31.2020
EVOLVE-30M Engineering Data Sheet FR 1.02MB 08.31.2020
EVOLVE-30M Engineering Data Sheet JA 1.12MB 08.31.2020
EVOLVE-30M Engineering Data Sheet KO 1.16MB 08.31.2020
EVOLVE-30M Engineering Data Sheet PT 1.02MB 08.31.2020
EVOLVE-30M Engineering Data Sheet ZH 1.14MB 08.31.2020
Name Language Size Date
EVOLVE-30M Flyer EN 2.34MB 12.19.2019
Name Language Size Date
EVOLVE-30M User Manual EN 2.99MB 07.30.2020
EVOLVE-30M Manual ES 2.35MB 01.24.2020
EVOLVE-30M User Manual DE 2.36MB 01.24.2020
EVOLVE-30M User Manual FR 2.36MB 01.24.2020
EVOLVE-30M User Manual JA 2.52MB 01.24.2020
EVOLVE-30M User Manual PT 2.36MB 01.24.2020
EVOLVE-30M 说明书 ZH 2.61MB 01.24.2020
EVOLVE-30M 설치 매뉴얼 KO 2.45MB 01.24.2020
Name Size Date
EVOLVE30M app01 4c fullrights 2.9MB 01.06.2020
EVOLVE30M app02 4c fullrights 3.27MB 01.06.2020
EVOLVE30M app03 4c fullrights 3.06MB 01.06.2020
EVOLVE30M app04 4c fullrights 3.04MB 01.06.2020
EVOLVE30M app05 4c fullrights 3.08MB 01.06.2020
EVOLVE30M app06 4c fullrights 2.9MB 01.06.2020
EVOLVE30M app07 4c fullrights 3.15MB 01.06.2020
EVOLVE30M app08 4c fullrights 3.21MB 01.06.2020
EVOLVE30M app09 4c fullrights 2.91MB 01.06.2020
EVOLVE30M array01 4c fullrights 2.47MB 01.06.2020
EVOLVE30M array02 4c fullrights 3.38MB 01.06.2020

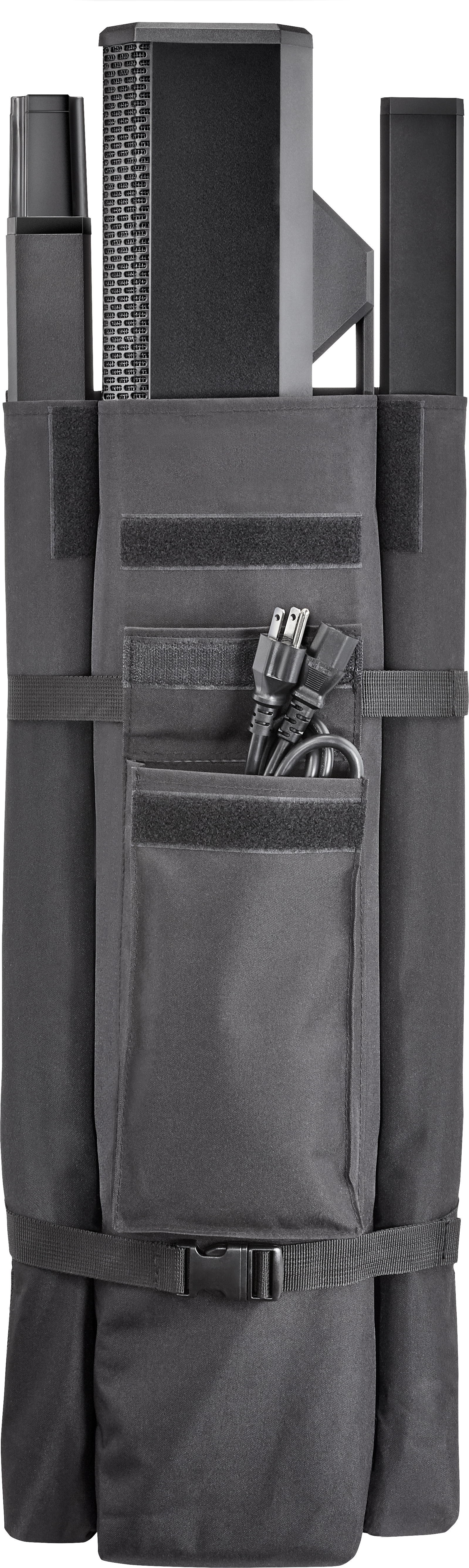

EVOLVE30M bag01 4c fullrights 3.05MB 01.06.2020
EVOLVE30M bag02 4c fullrights 3.11MB 01.06.2020
EVOLVE30M bag03 4c fullrights 3.09MB 01.06.2020
EVOLVE30M dj01 4c fullrights 3.07MB 01.06.2020
EVOLVE30M dj02 4c fullrights 3.3MB 01.06.2020
EVOLVE30M dj03 4c fullrights 2.71MB 01.06.2020
EVOLVE30M duo01 4c fullrights 3.39MB 01.06.2020
EVOLVE30M duo02 4c fullrights 3.74MB 01.06.2020
EVOLVE30M duo03 4c fullrights 3.32MB 01.06.2020
EVOLVE30M duo04 4c fullrights 3.51MB 01.06.2020
EVOLVE30M duo05 4c fullrights 3.4MB 01.06.2020
EVOLVE30M duo06 4c fullrights 3.04MB 01.06.2020
EVOLVE30M poles01 4c fullrights 2.89MB 01.06.2020
EVOLVE30M solo01 4c fullrights 3.68MB 01.06.2020
EVOLVE30M solo02 4c fullrights 2.79MB 01.06.2020
EVOLVE30M solo03 4c fullrights 2.59MB 01.06.2020
EVOLVE30M solo04 4c fullrights 3.81MB 01.06.2020
EVOLVE30M solo05 4c fullrights 3.35MB 01.06.2020
EVOLVE30M solo06 4c fullrights 3.4MB 01.06.2020
EVOLVE30M sub01 4c fullrights 2.99MB 01.06.2020
EVOLVE30M sub02 4c fullrights 3.25MB 01.06.2020
EVOLVE30M sub03 4c fullrights 3.76MB 01.06.2020
EVOLVE30M sub04 4c fullrights 4.05MB 01.06.2020
EVOLVE30M trio01 4c fullrights 3.43MB 01.06.2020
EVOLVE30M trio02 4c fullrights 3.15MB 01.06.2020

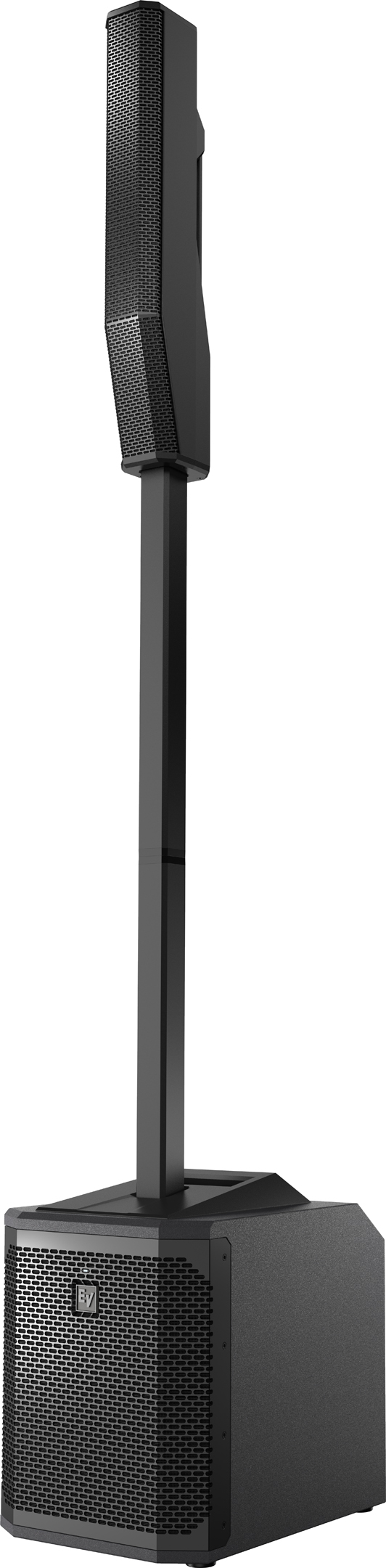

EVOLVE30M Hero Left Assembled FullSystem Black

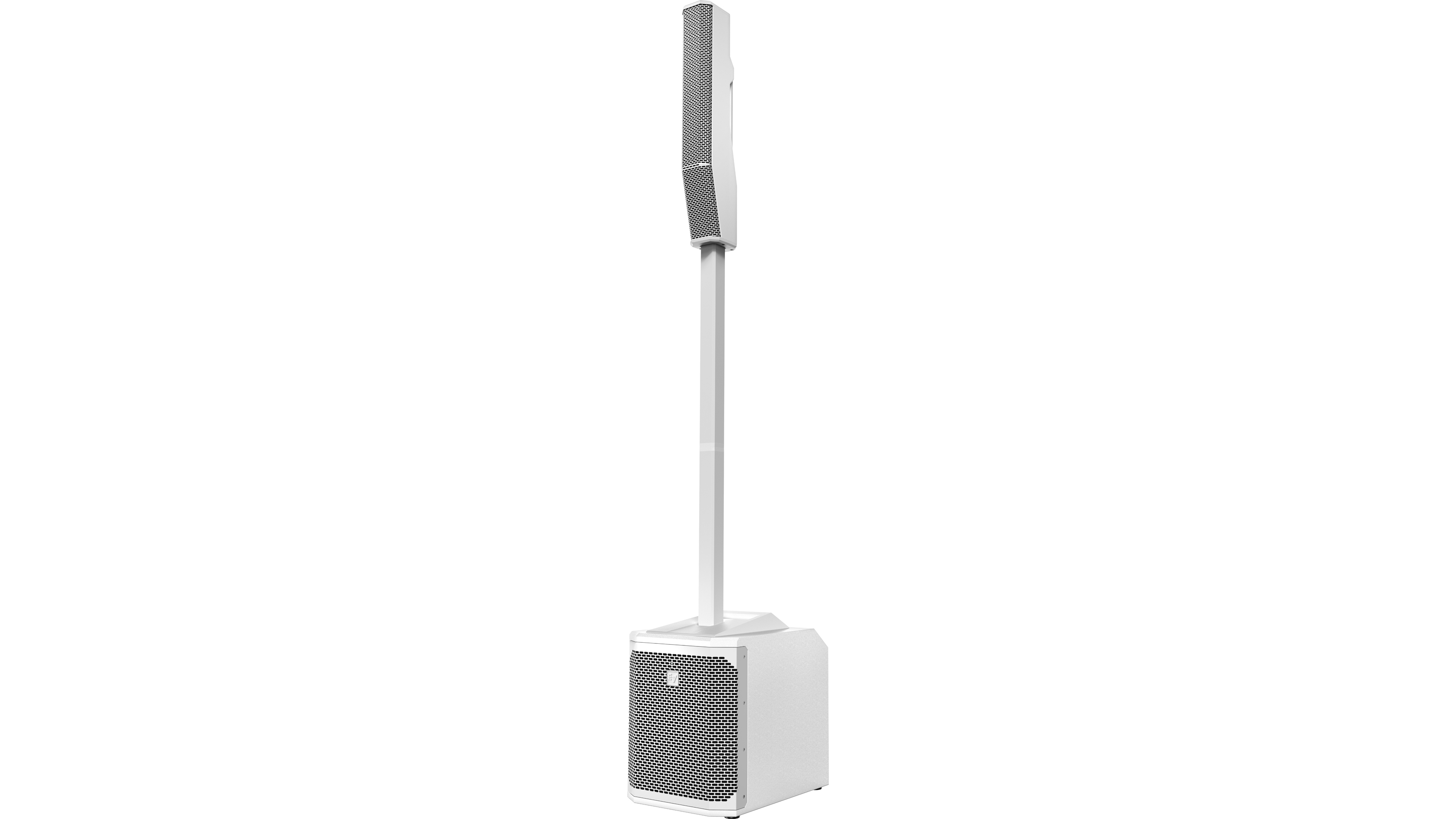

EVOLVE30M Hero Left Assembled FullSystem White2

EVOLVE30M Backpack Left Closed

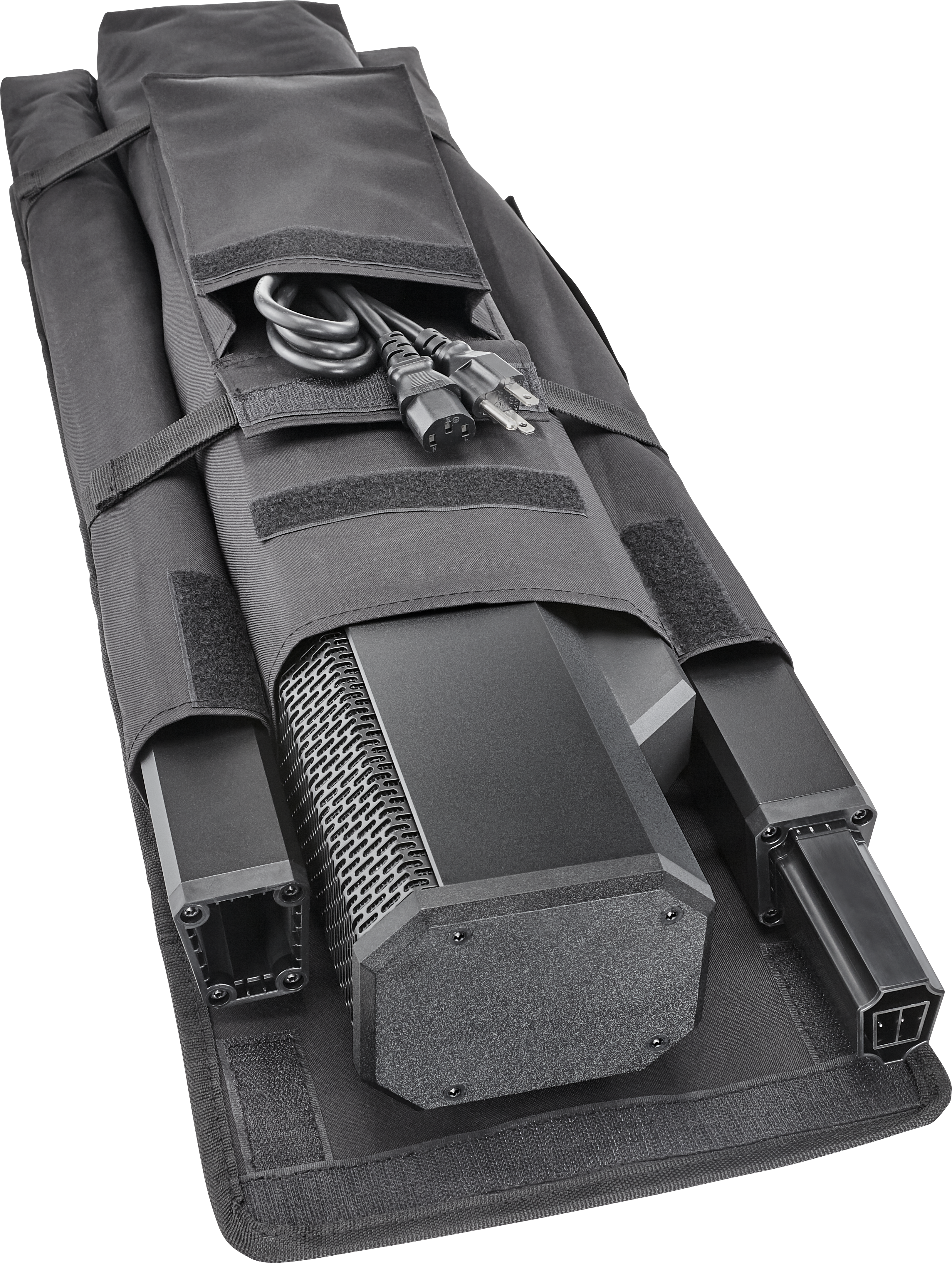

EVOLVE30M Backpack Open01

EVOLVE30M Backpack Open02

EVOLVE30M Backpack Right Closed

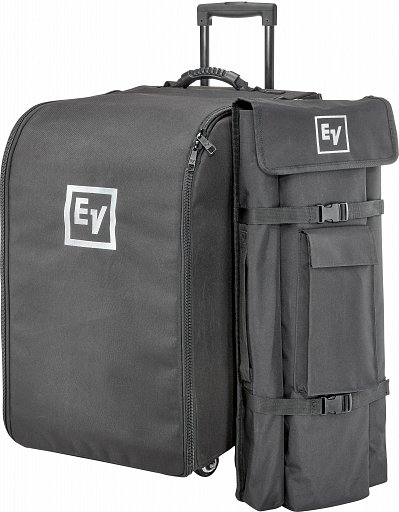

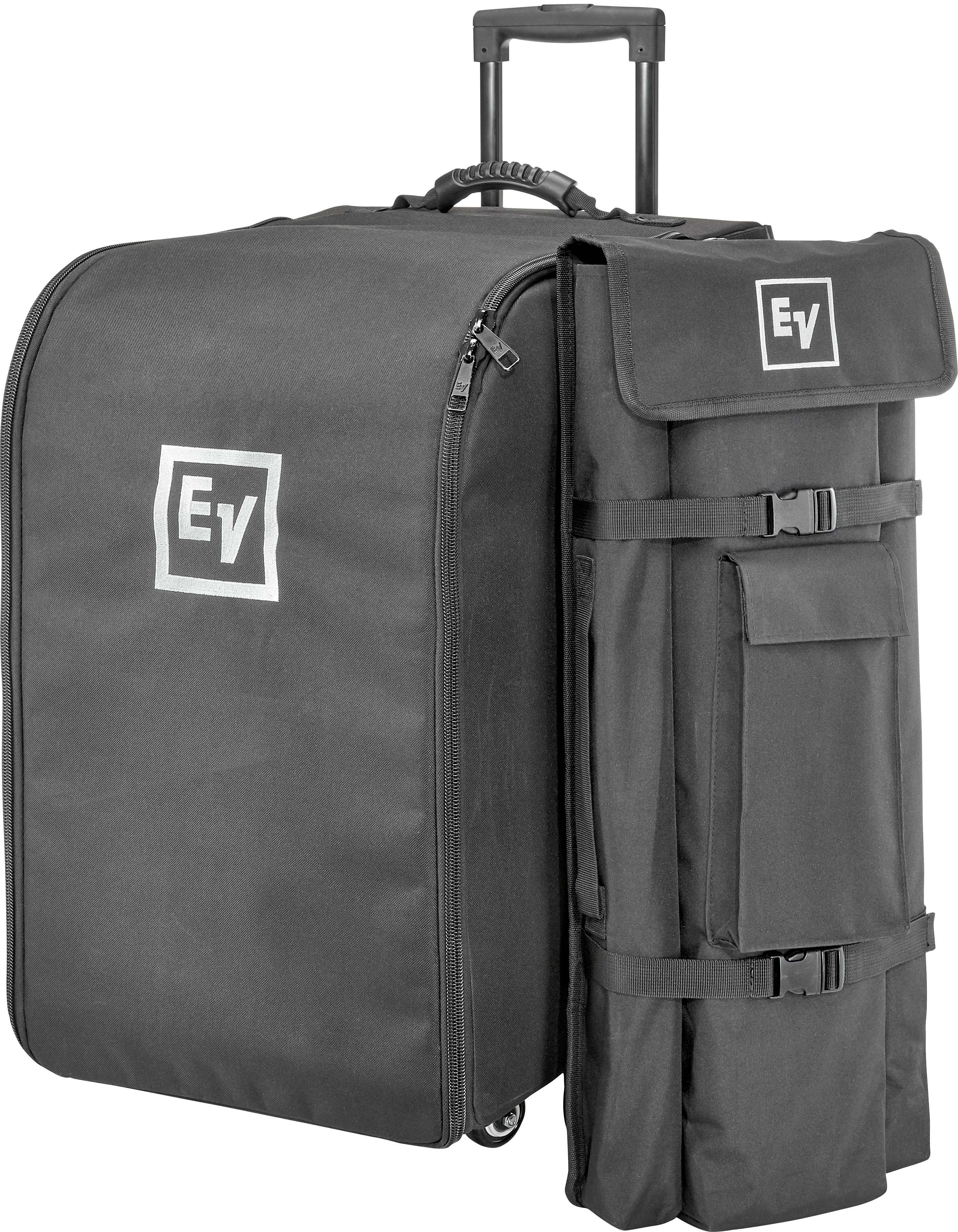

EVOLVE30M Backpack RollingCase

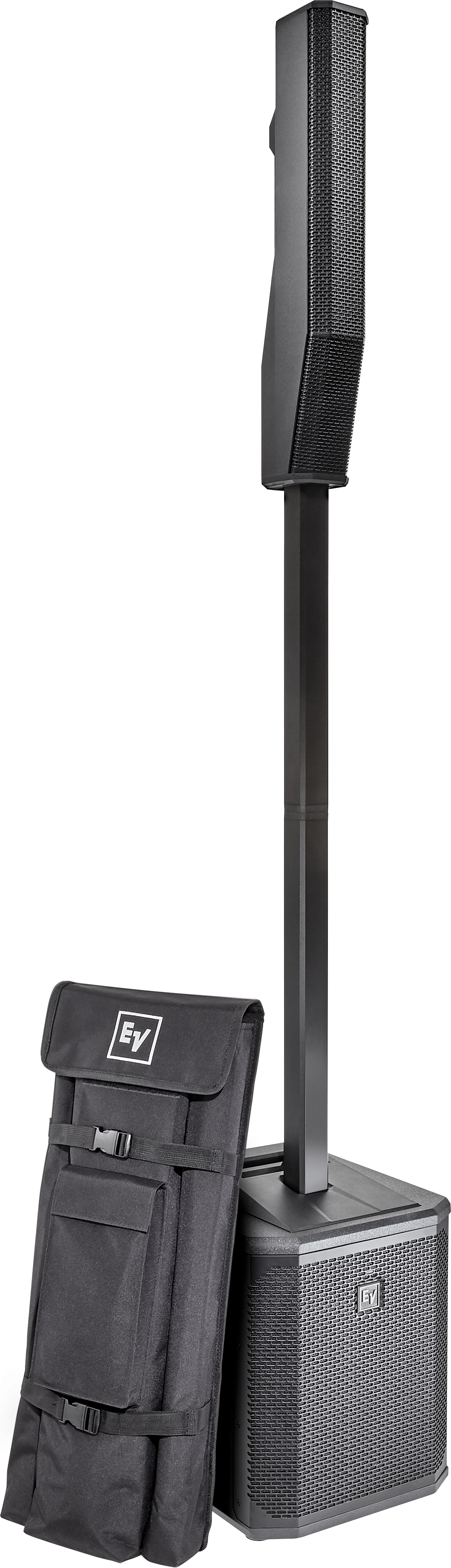

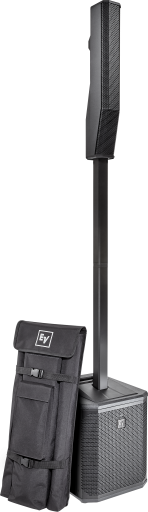

EVOLVE30M Backpack wSystem

EVOLVE30M Exploded Array Black

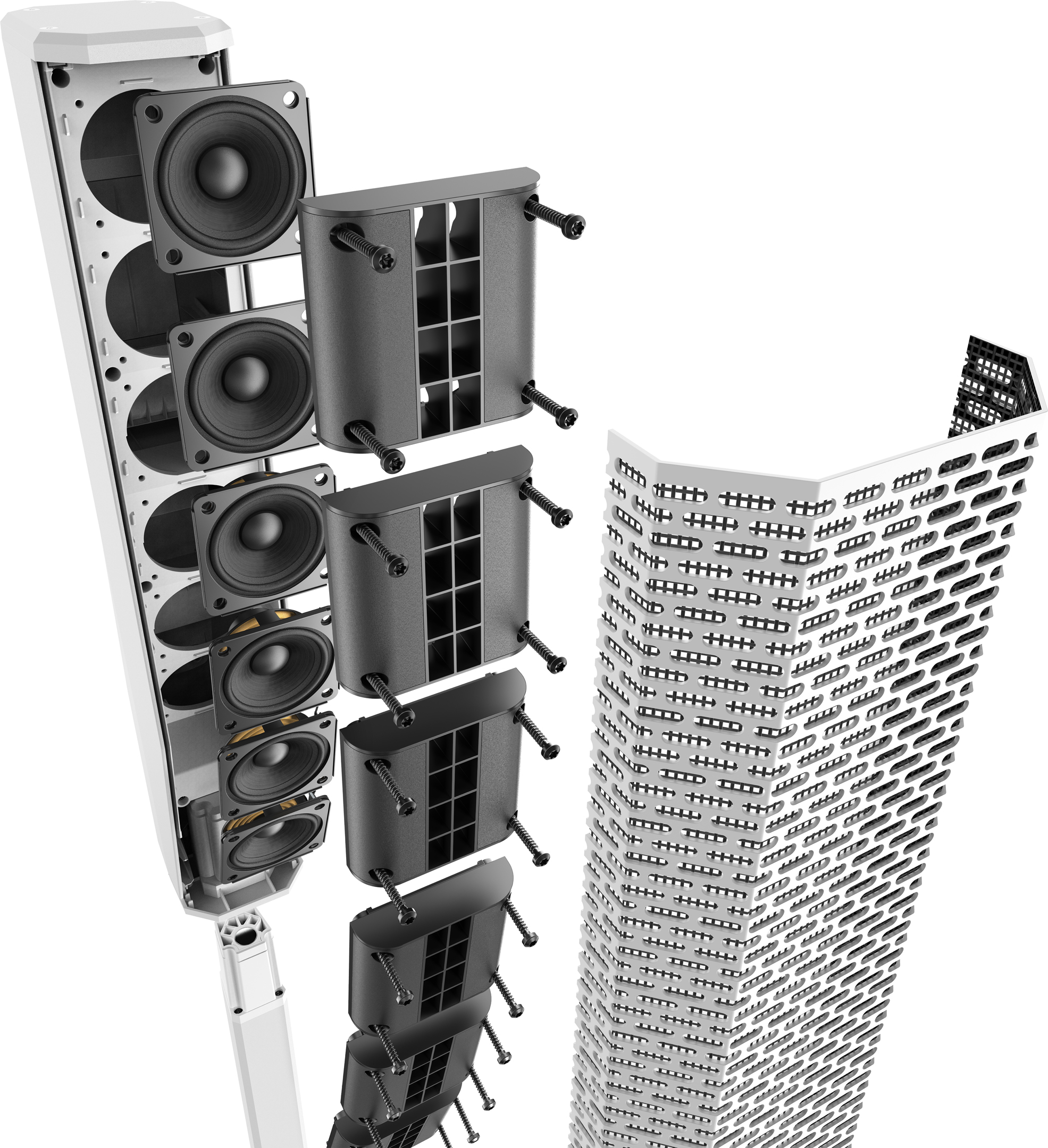

EVOLVE30M Exploded Array White

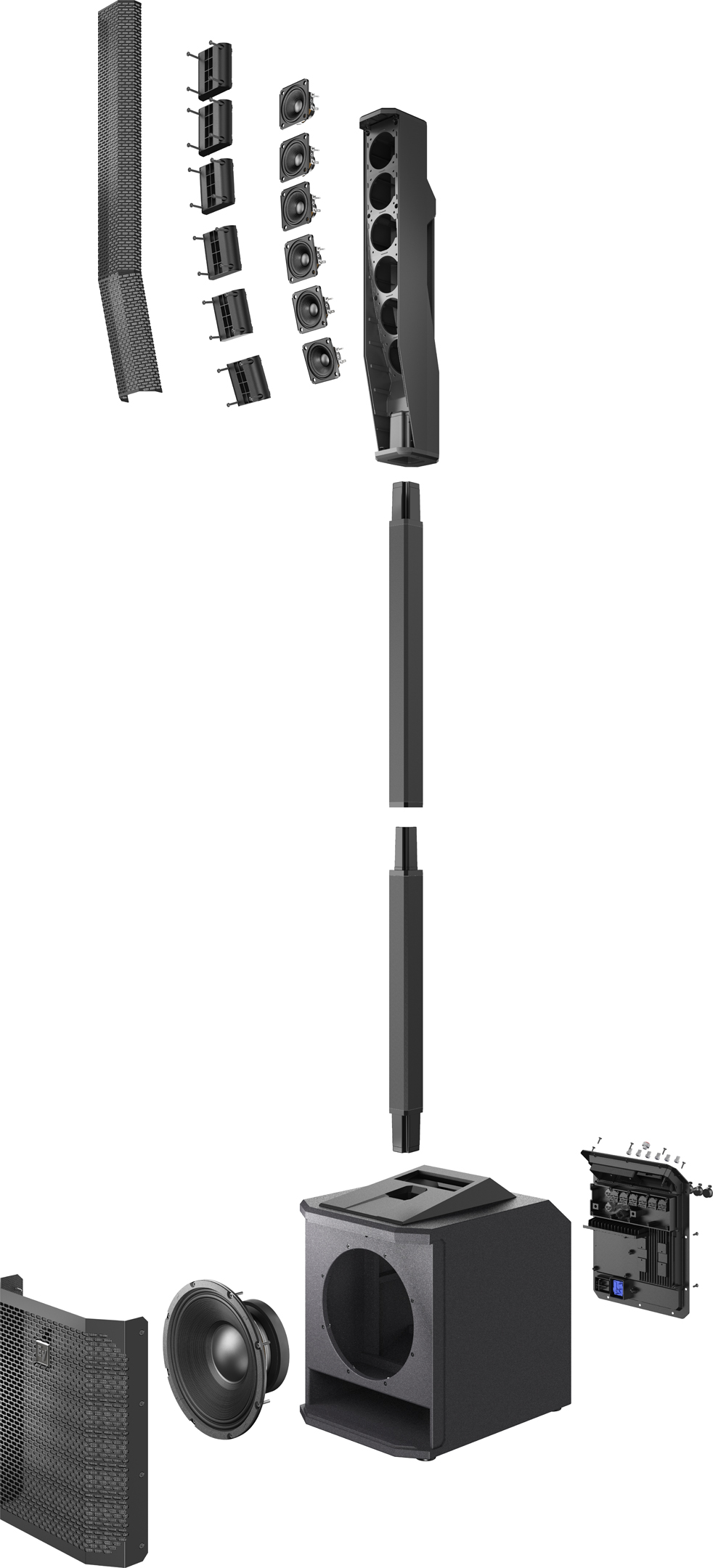

EVOLVE30M Exploded Back FullSystem Black

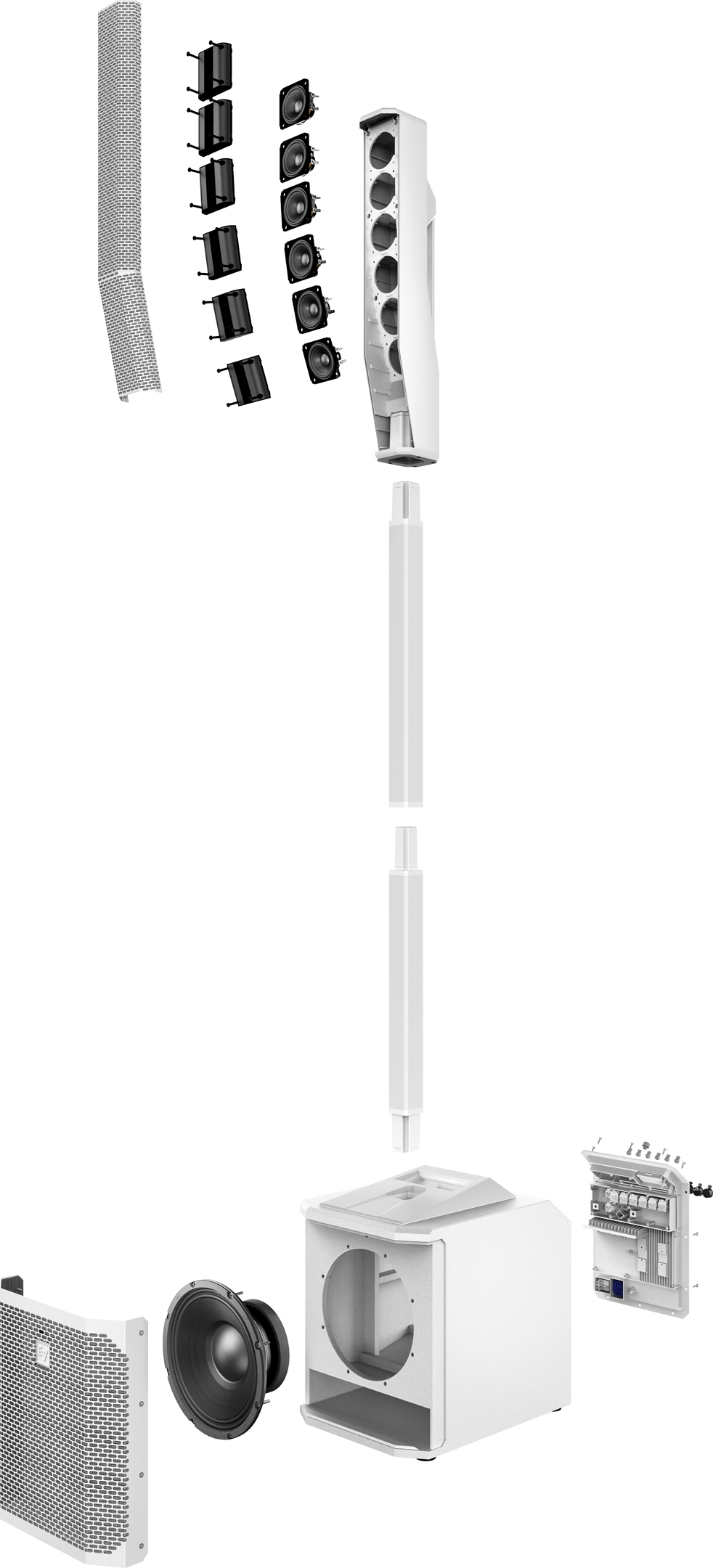

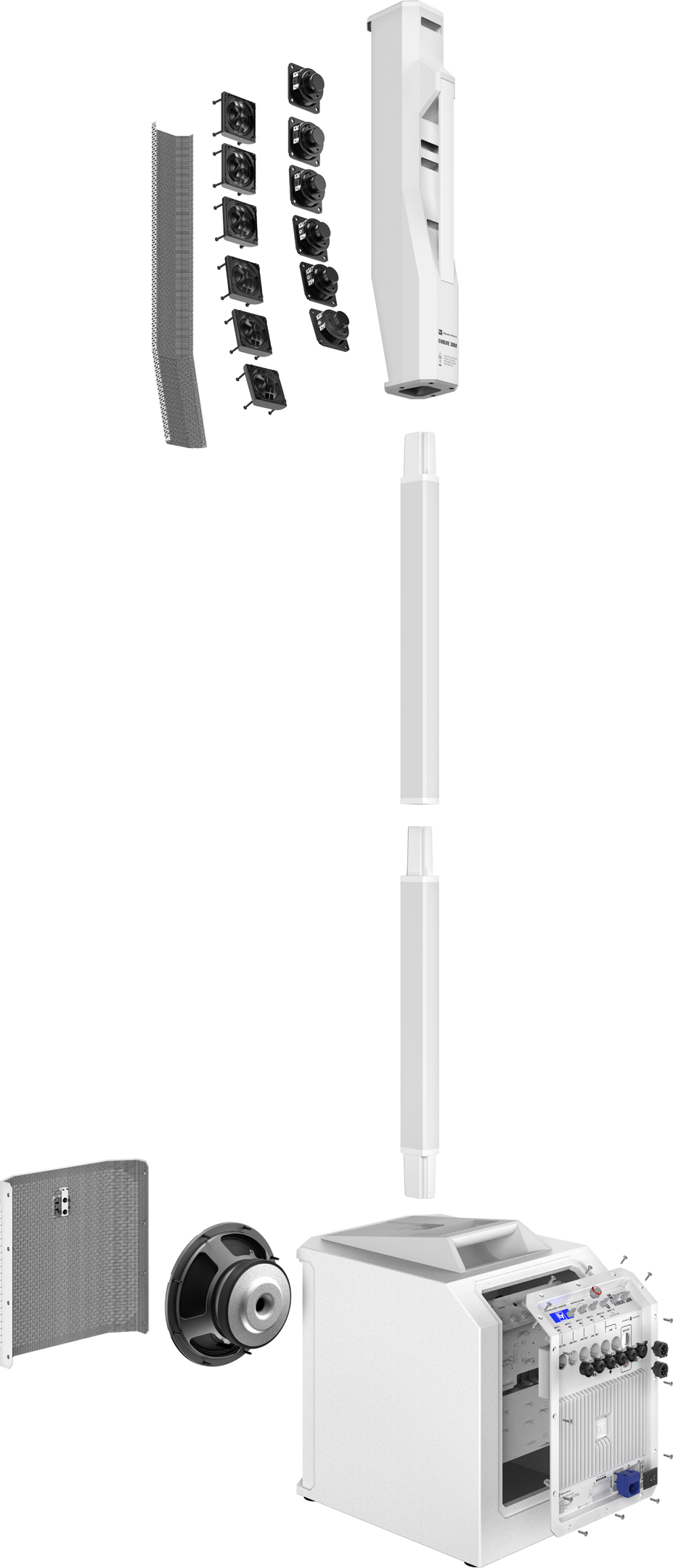

EVOLVE30M Exploded Back FullSystem White

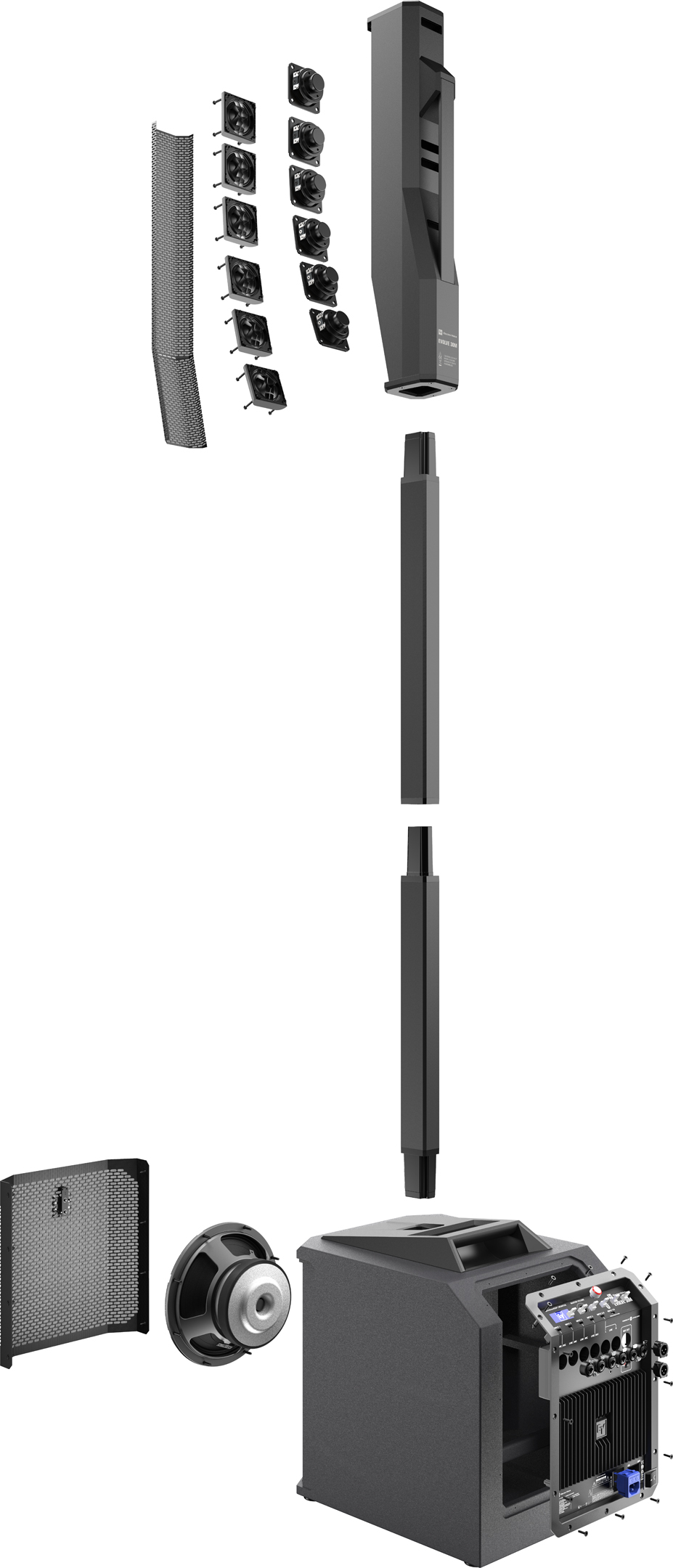

EVOLVE30M Exploded Front FullSystem Black

EVOLVE30M Exploded Front FullSystem White

EVOLVE30M Hero Left Assembled FullSystem White

EVOLVE30M Hero Left Disassembled FullSystem Black

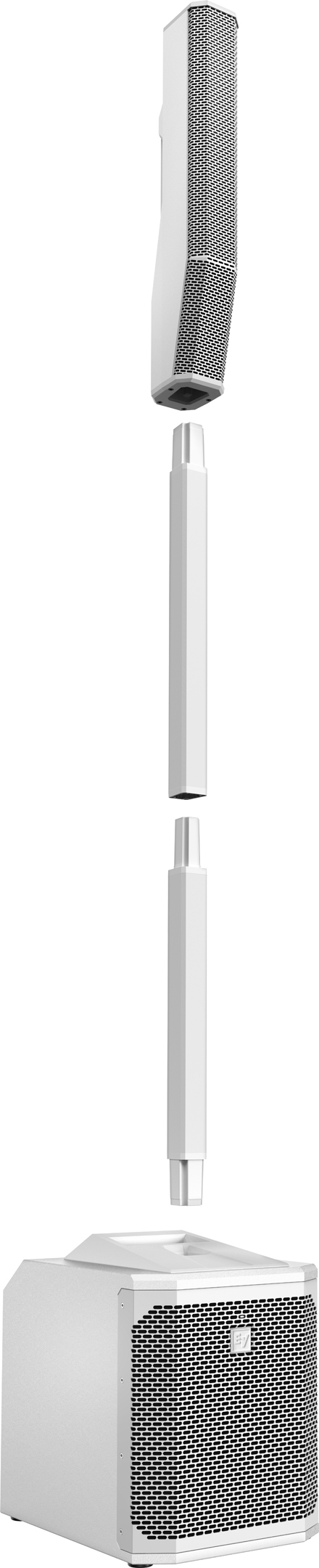

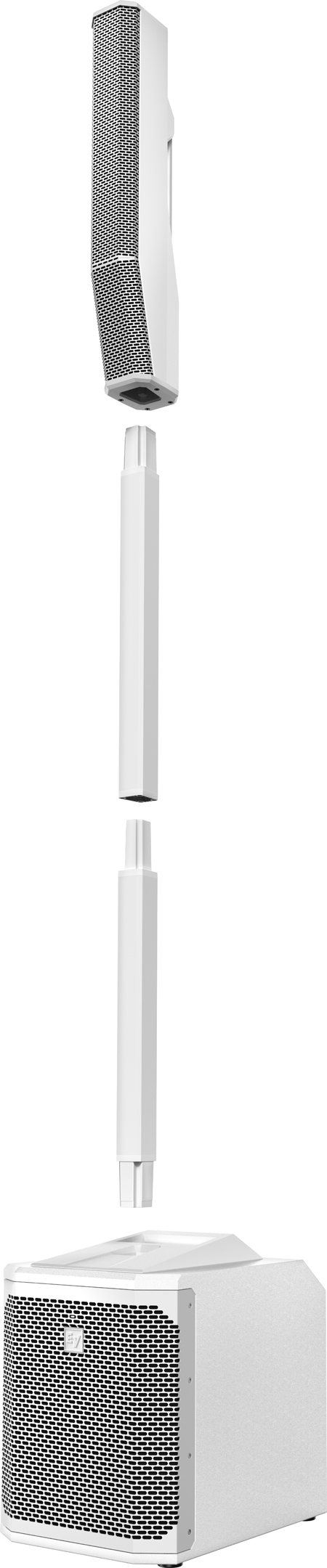

EVOLVE30M Hero Left Disassembled FullSystem White

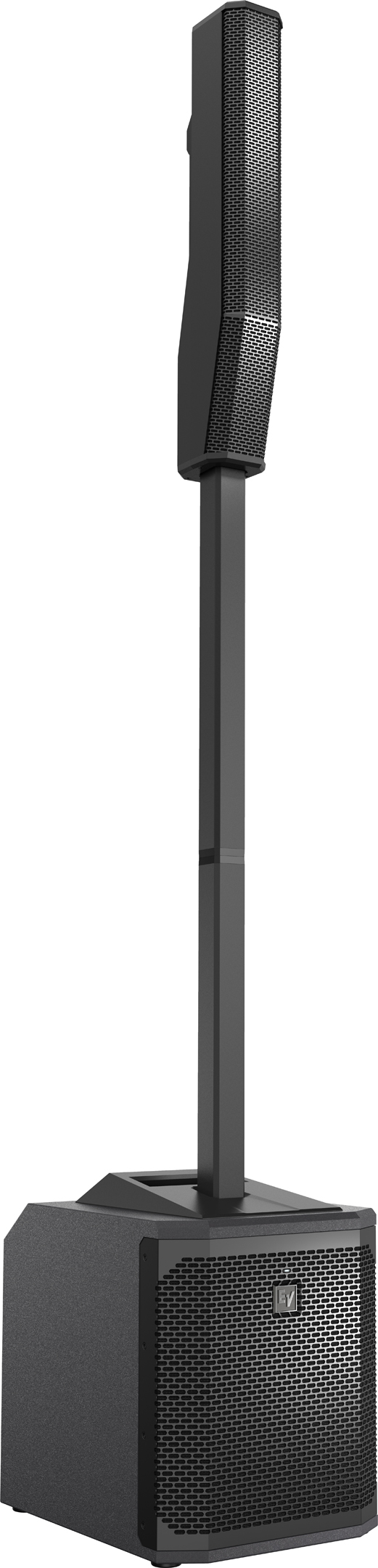

EVOLVE30M Hero Right Assembled FullSystem Black

EVOLVE30M Hero Right Assembled FullSystem White

EVOLVE30M Hero Right Disassembled FullSystem Black

EVOLVE30M Hero Right Disassembled FullSystem White

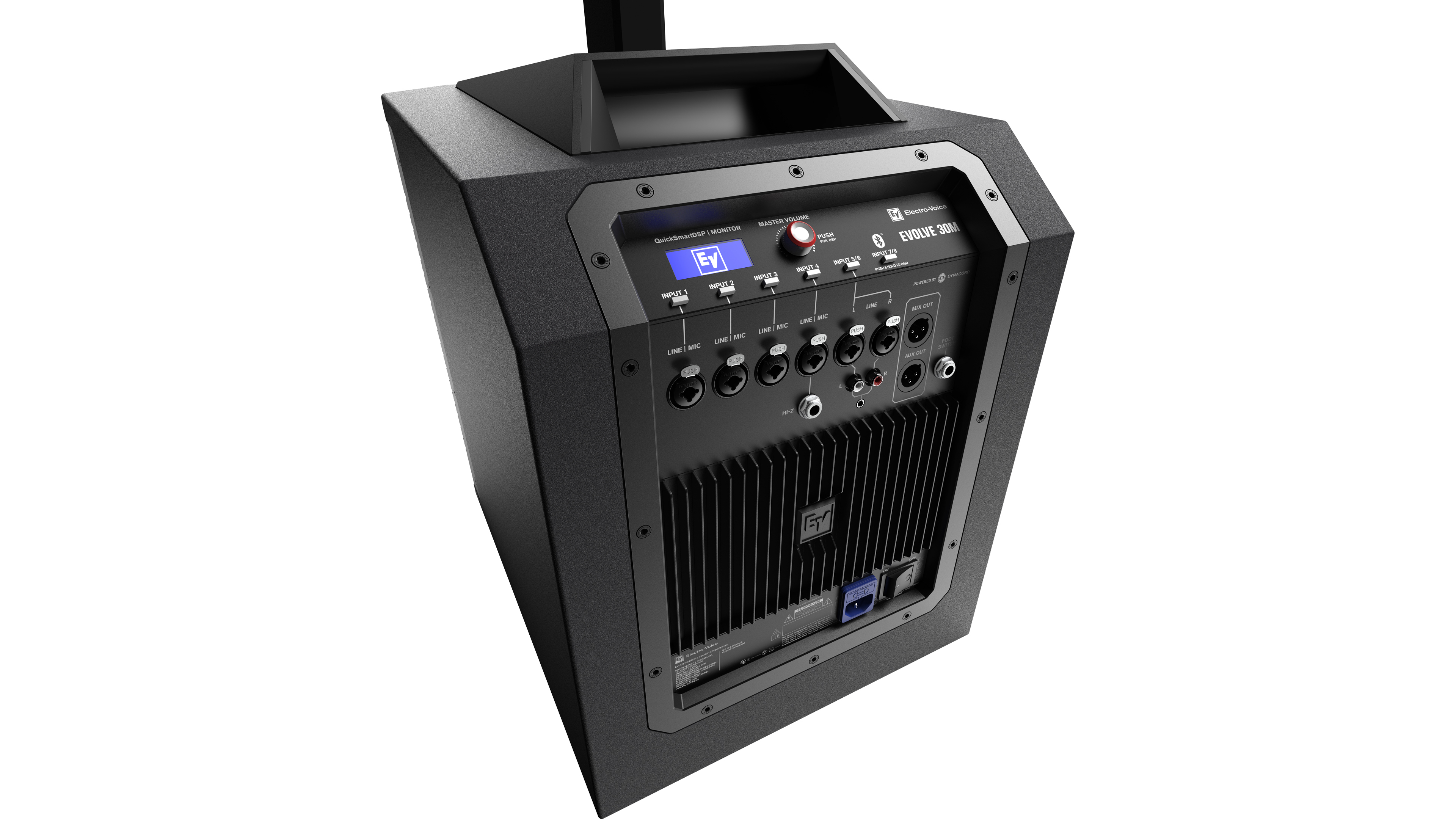

EVOLVE30M Hero Sub Black

EVOLVE30M Hero Sub Black2

EVOLVE30M Hero Sub White

EVOLVE30M Hero Sub White2

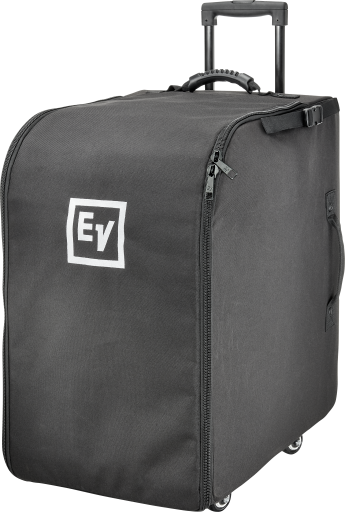

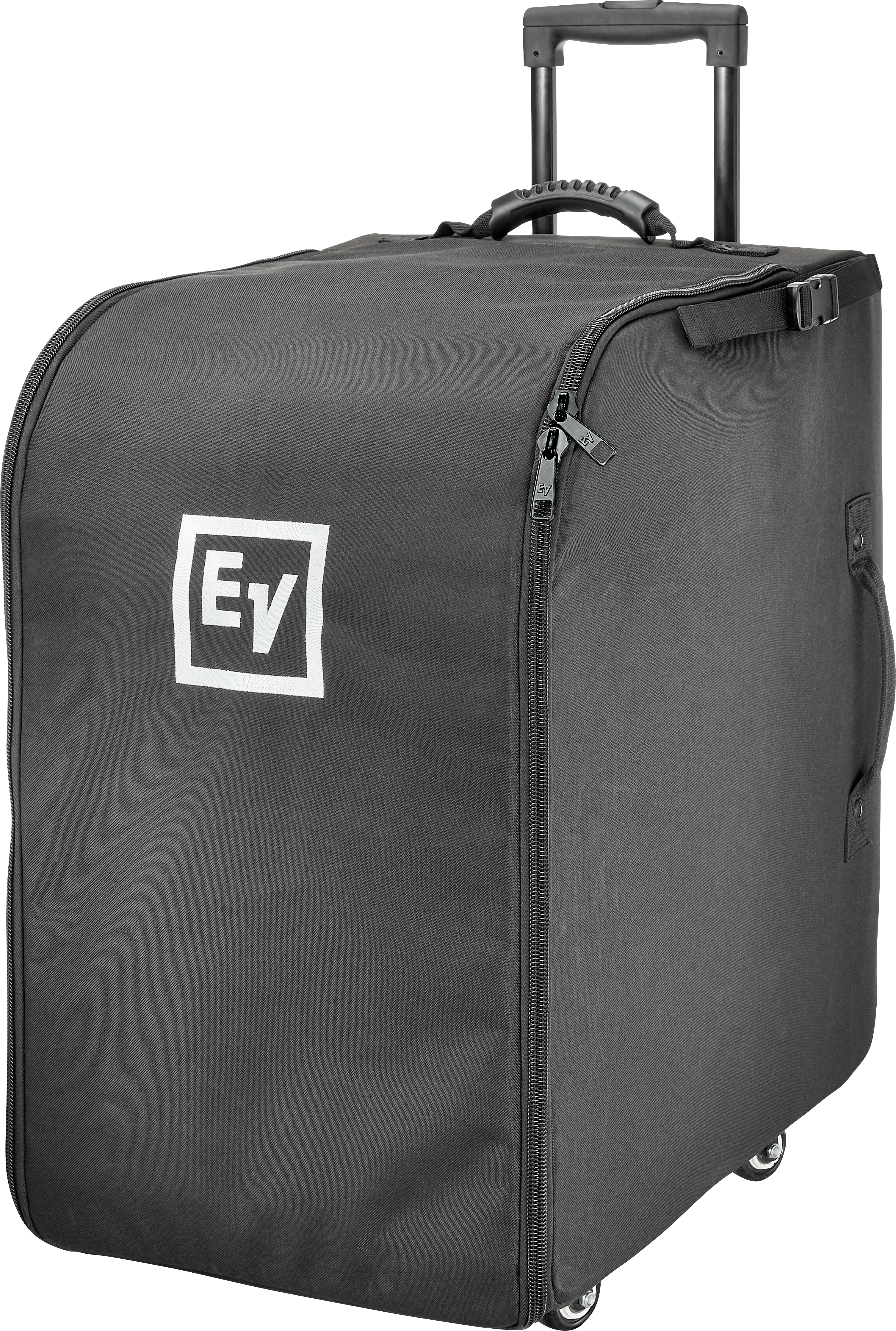

EVOLVE30M RollingCase

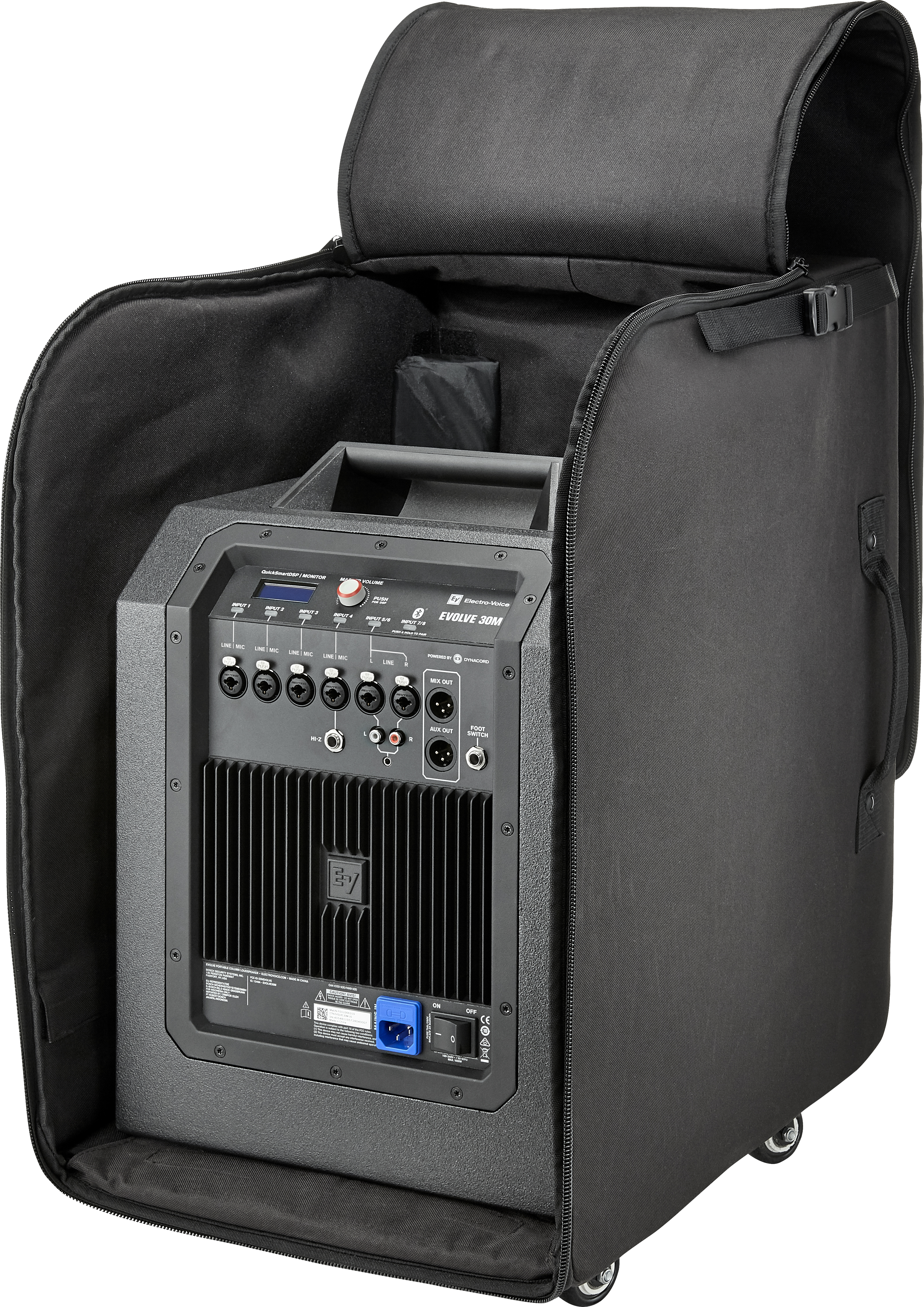

EVOLVE30M RollingCase Open SubBack

EVOLVE30M RollingCase Open SubFront

EVOLVE30M RollingCase Small

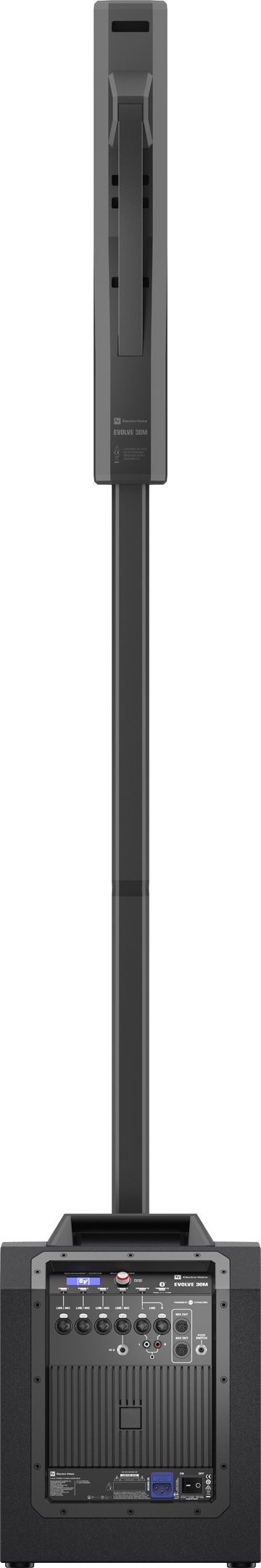

EVOLVE30M Straight Back Assembled FullSystem Black

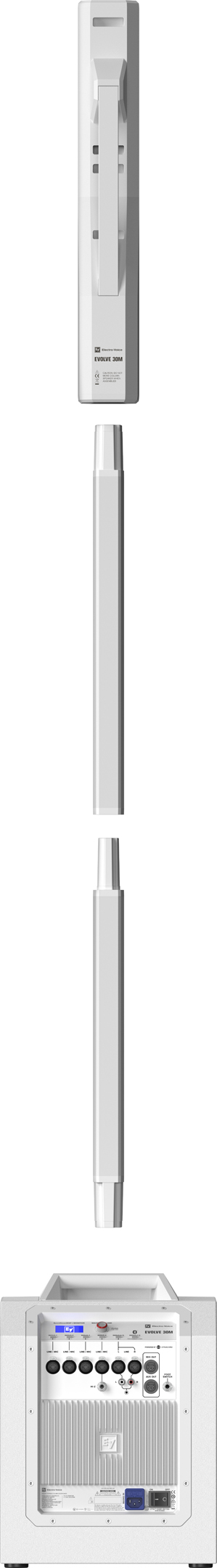

EVOLVE30M Straight Back Assembled FullSystem White

EVOLVE30M Straight Back Disassembled FullSystem Black

EVOLVE30M Straight Back Disassembled FullSystem White

EVOLVE30M Straight Front Assembled FullSystem Black

EVOLVE30M Straight Front Assembled FullSystem White

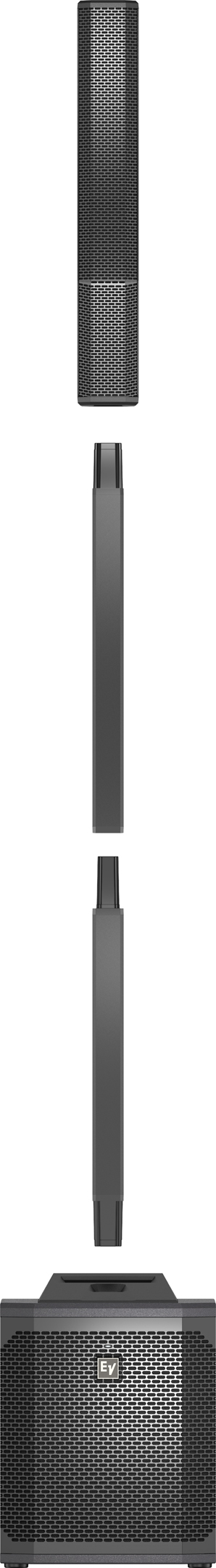

EVOLVE30M Straight Front Disassembled FullSystem Black

EVOLVE30M Straight Front Disassembled FullSystem White

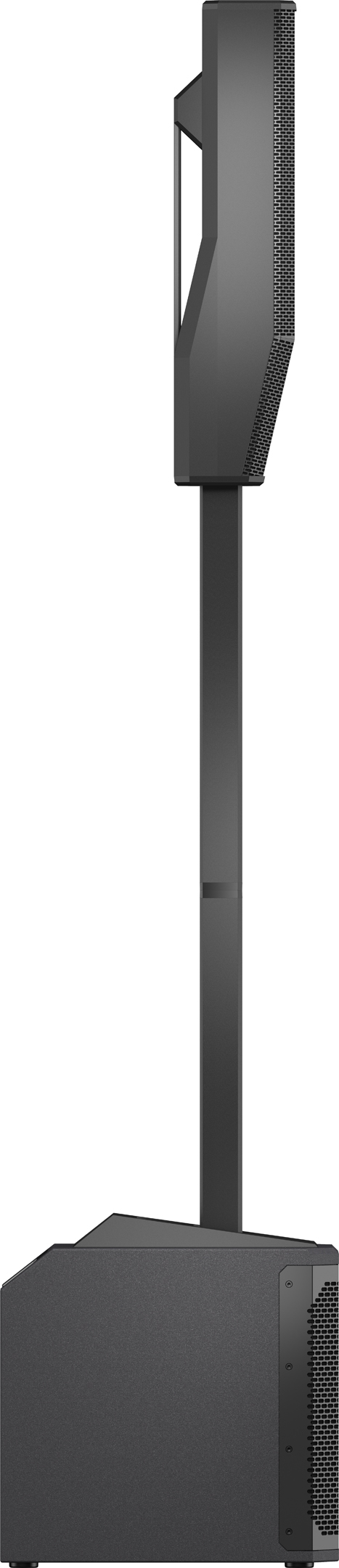

EVOLVE30M Straight Side Assembled FullSystem Black

EVOLVE30M Straight Side Assembled FullSystem White

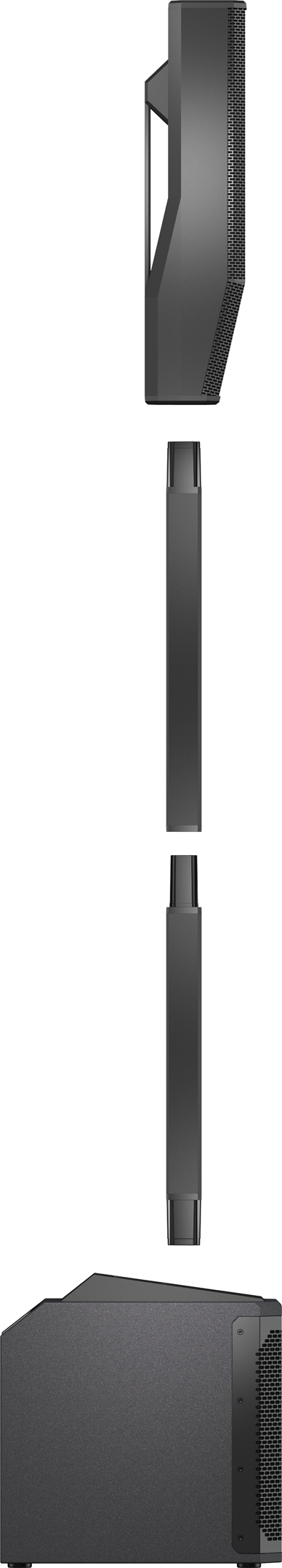

EVOLVE30M Straight Side Disassembled FullSystem Black
