EVID-C8.1S-G2
- EZ-install system for quick, safe, and reliable installation.
- Bezel-less design with easy-attach grille.
- Front baffle wattage tap adjustment.
- Includes tile bridge and mounting ring for easy installation.
- UL 1480A, UL 2043 and CSA 22.2 205 certified.

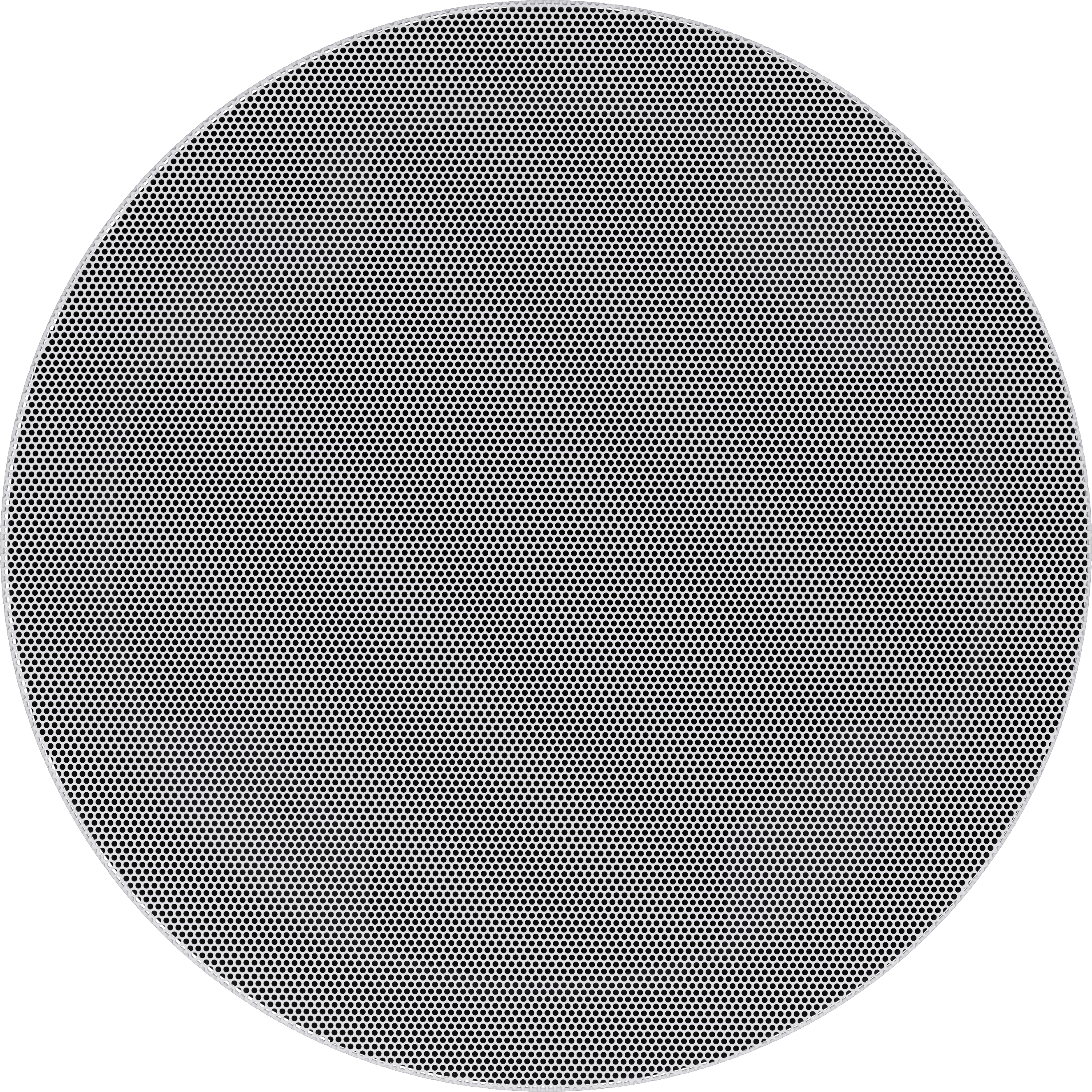

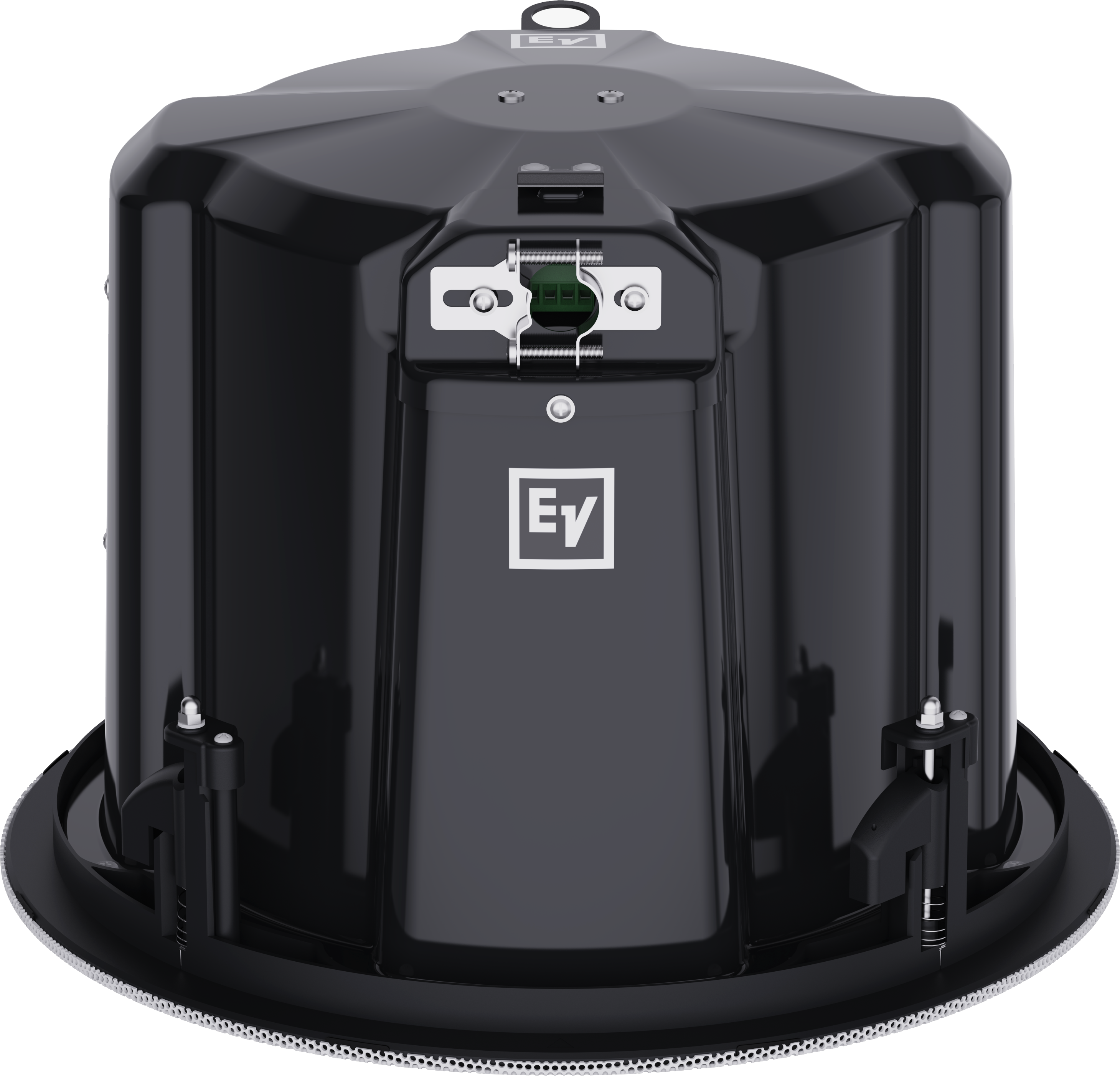

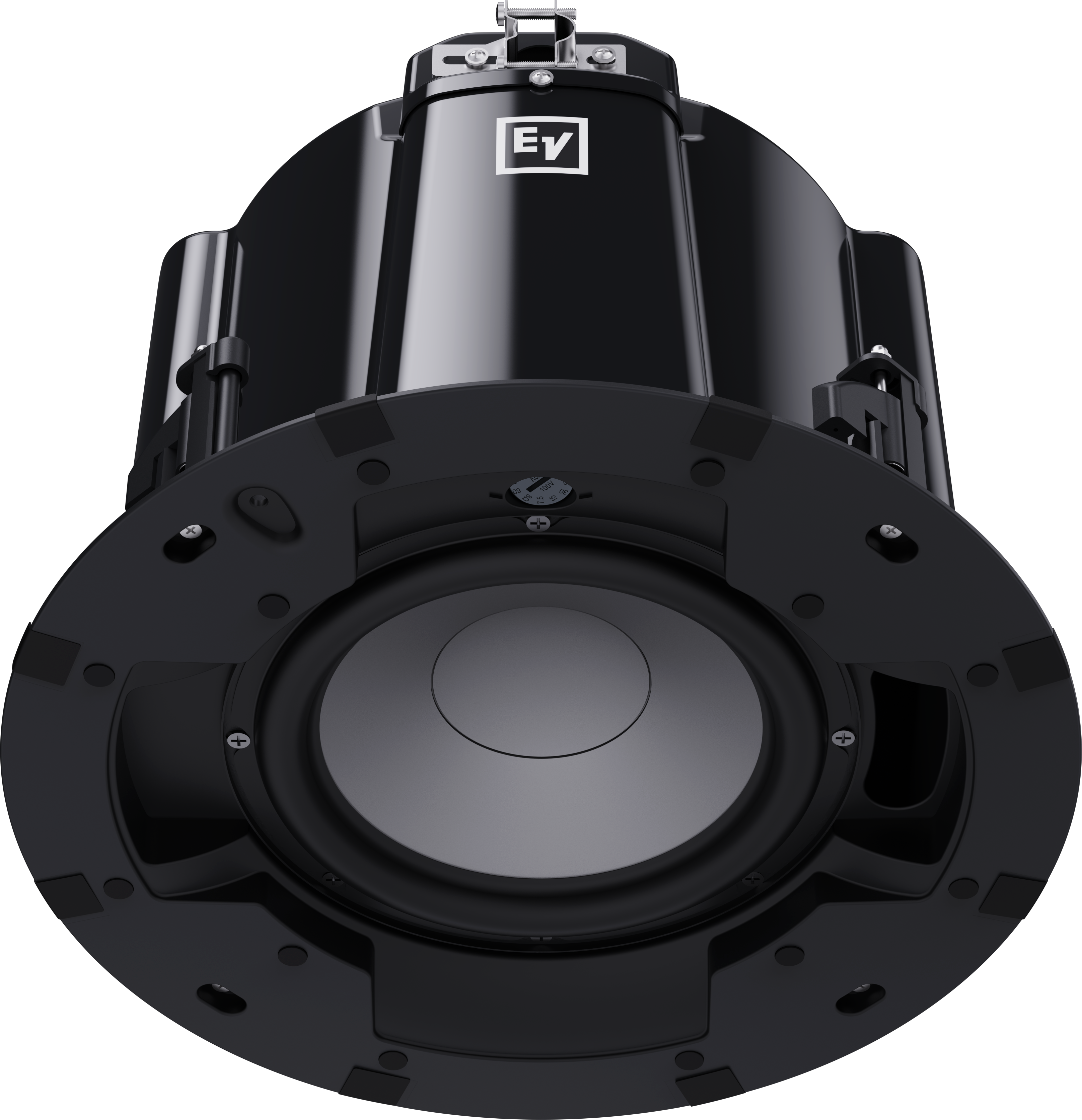

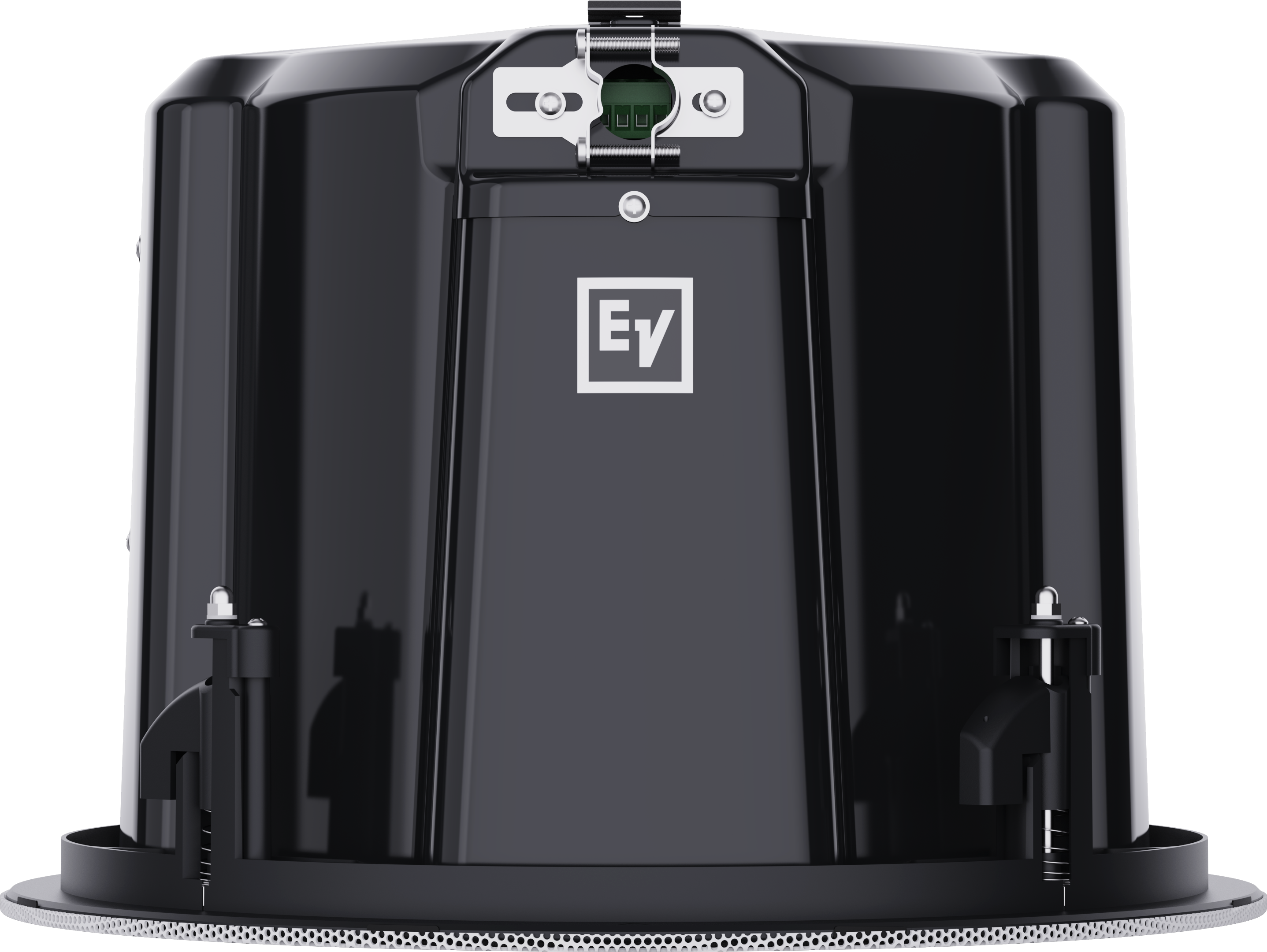

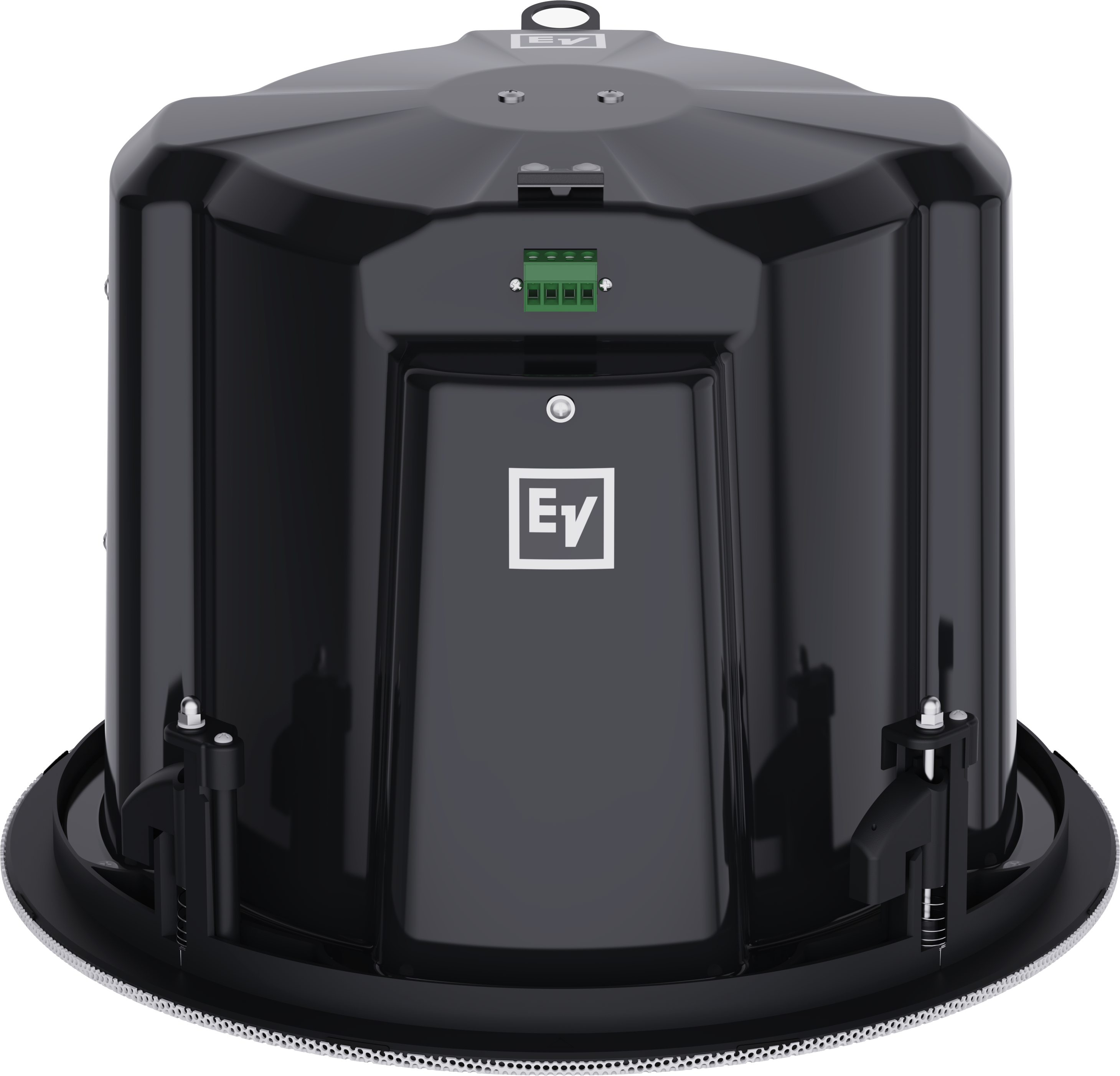

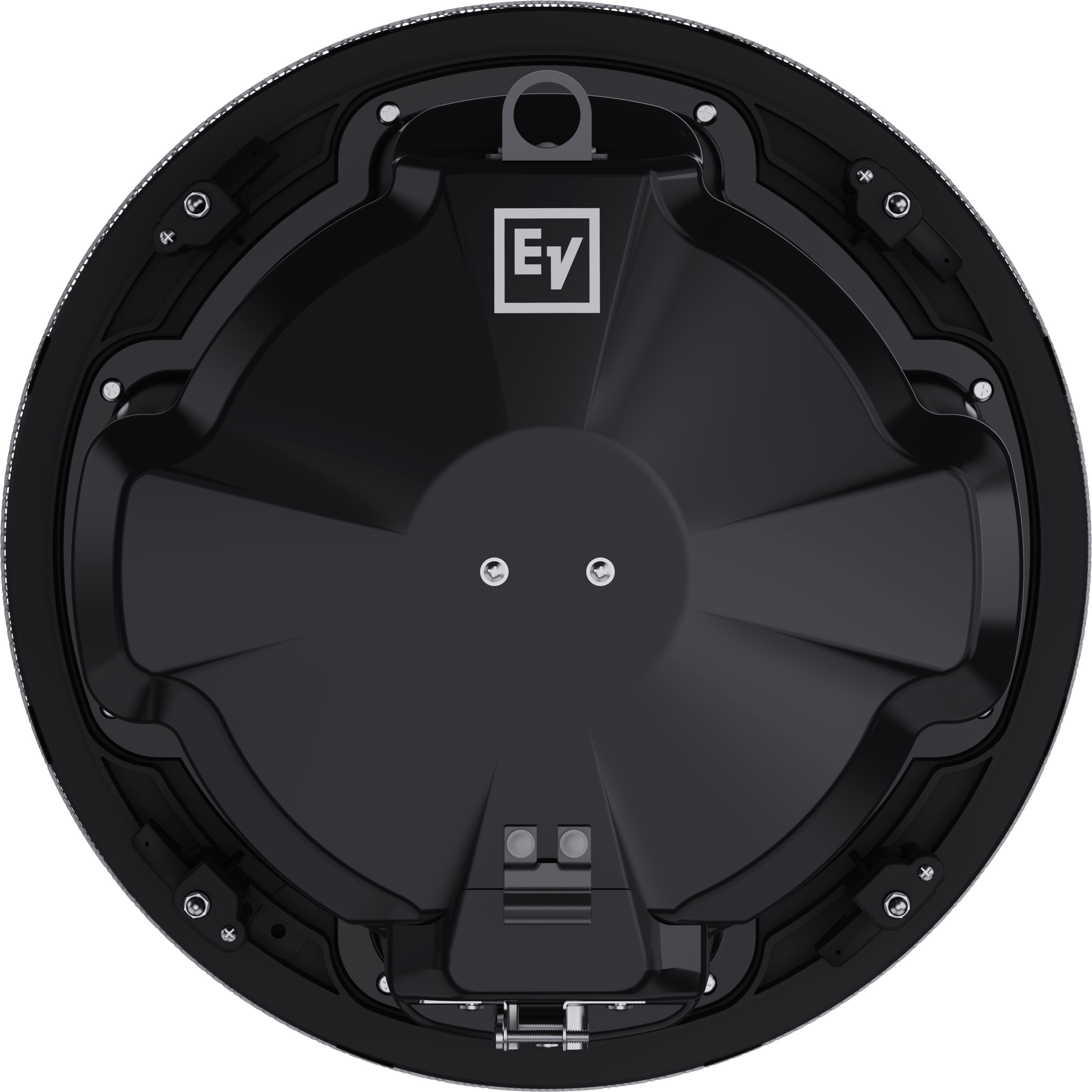

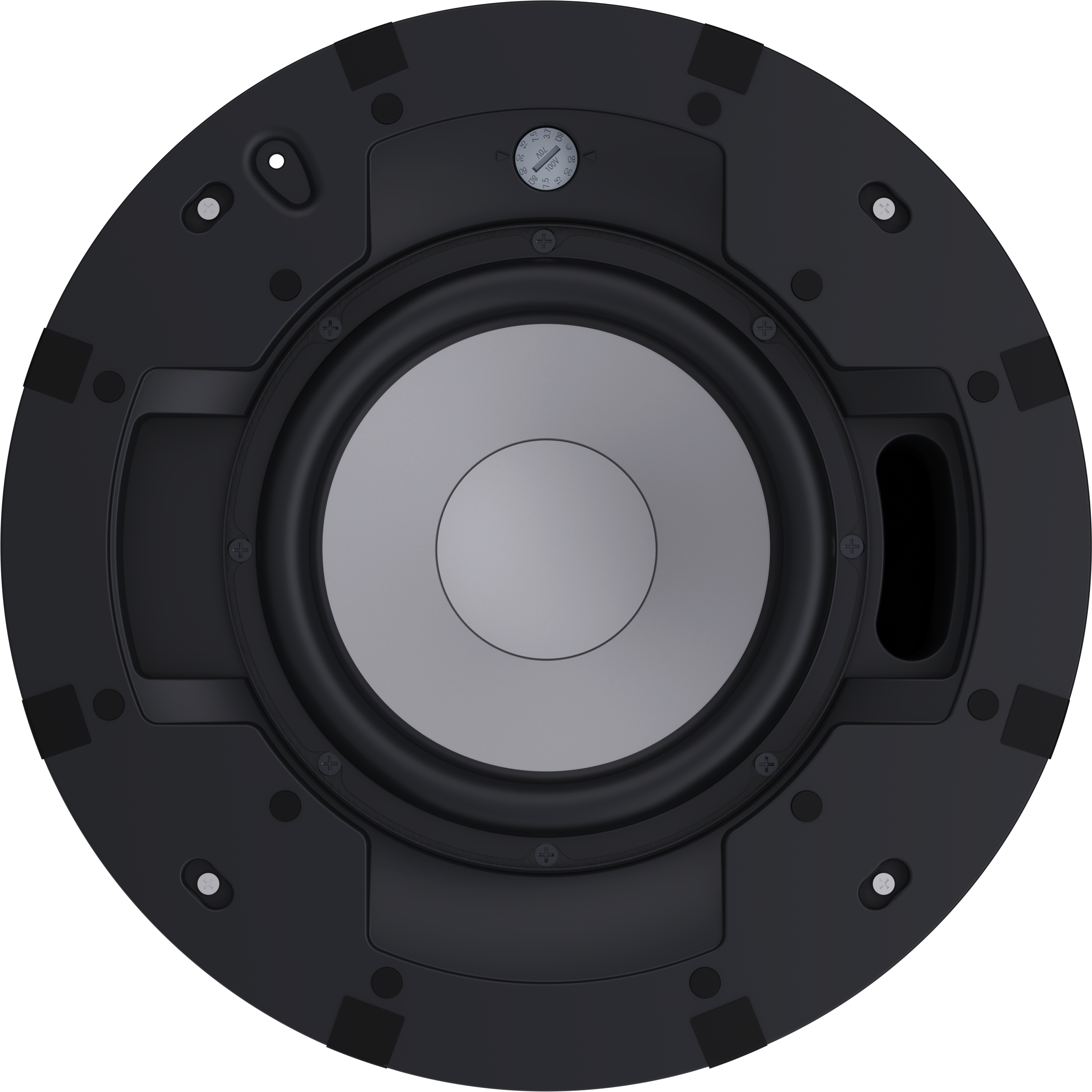

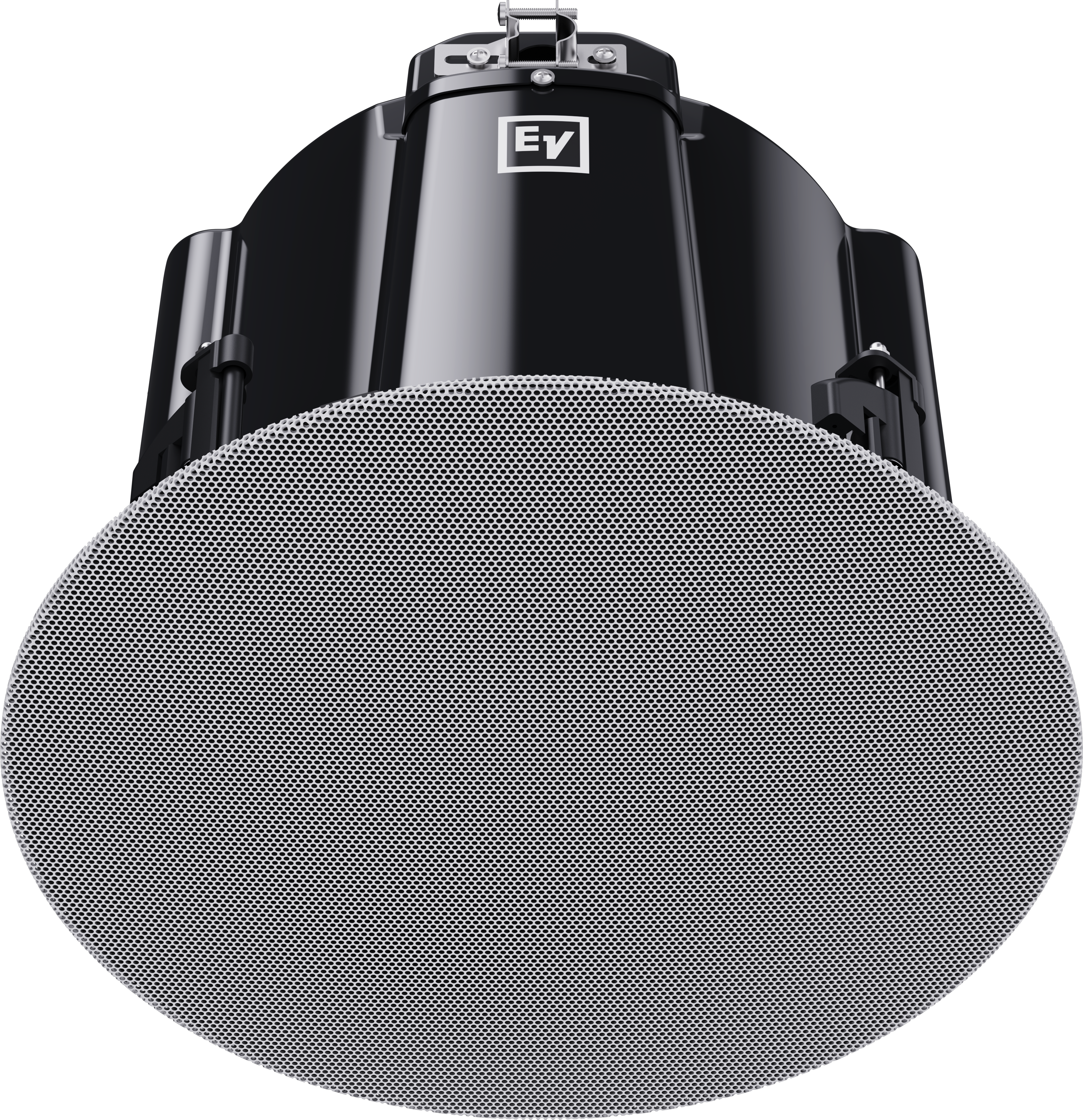

The Electro-Voice EVID-C8.1S-G2 is a complete 8-inch coaxial two-way loudspeaker that offers excellent sound quality and outstanding reliability with firstclass aesthetics. It includes the EZ-Install system for quick and easy installations that are fast and reliable without compromising on safety. The loudspeaker features a point-source design to improve off-axis response and overall uniform coverage. The EVID-C8.1S-G2 utilizes a transformer that offers a selection of 3.75 (70-V only), 7.5, 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle is constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge coated steel. The low-profile enclosure makes it easy to mount in very tight spaces. A side terminalcover provides access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge and 3.3 mm2-wire and provides pass through to additional speakers. A mounting ring and a tile bridge are included for safe suspension of the EVID-C8.1S-G2 ceiling systems in a drop ceiling that uses mineral wool, or other fiberbased ceiling tiles. The wide range of EVID ceiling speakers has been designed to work together as a complete system in a variety of different ceiling constructions, and to be used in combination with other EVID surface-mount and in-wall speakers.
Specifications
| Frequency range (-10 dB) (Hz) 1 | 50 Hz – 500 Hz |
| Maximum SPL (continuous) (dB) 2 | 116 dB |
| Maximum SPL (peak) (dB) 3 | 122 dB |
| Sensitivity (1 W, 1 m) 4 | 92 dB SPL 1 W, 1 m |
Specifications |
|
| Coverage angle conical (°) | 360° |
| Power handling (continuous) (W) 5 | 150 W |
| Power handling (peak) (W) 5 | 600 W |
| Nominal impedance (Ω) (Low Z) | 8 Ω |
| Transformer taps 70 V line (W) | 15 W; 3.75 W; 7.5 W; 30 W; 60 W |
| Transformer taps 100 V line (W) | 15 W; 7.5 W; 30 W; 60 W |
| LF transducer size (in) | 8 in |
| Material | Steel |
| Grille material | Powder coated steel |
| Connector type | 4-pin Euroblock Input + Pass through |
| Wire size (AWG) | 12AWG (maximum) |
| Wire diameter (mm2) | 3.3 mm2 (maximum) |
| Color | White; Customized colors |
| Color (RAL) | RAL 9003 Signal white |
| Mounting cutout (in) | 12.7 in |
| Mounting cutout (mm) | 323 mm |
| Dimensions (Ø x D) (in) | 13.4 in x 11.9 in |
| Dimensions (Ø x D) (mm) | 340 mm x 303 mm |
| Mounting depth (in) | 11,5 in |
| Mounting depth (mm) | 292 mm |
| Ceiling thickness (in) | 0,5 in - 1,5 in |
| Ceiling thickness (mm) | 12,5 mm - 38 mm |
| Weight (kg) | 6 kg |
| Weight (lb) | 13.2 lb |
| Shipping weight (kg) | 13.5 kg |
| Shipping weight (lb) | 30 lb |
| IP rating 6 | IP34 |
| Weatherization | Indoor |
| Operating temperature (°F) | 32 °F – 104 °F |
| Operating temperature (°C) | 0 °C – 40 °C |
| Safety agency ratings | UL 1480A, safe for use in airhandling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638 |
2 Calculated
3 Measured
4 Half-space (in-ceiling averaged XXX Hz - XX kHz, 1 W)
5 Continuous pink noise (100 hours) 24.5 Vrms
6 Per IEC-60529
