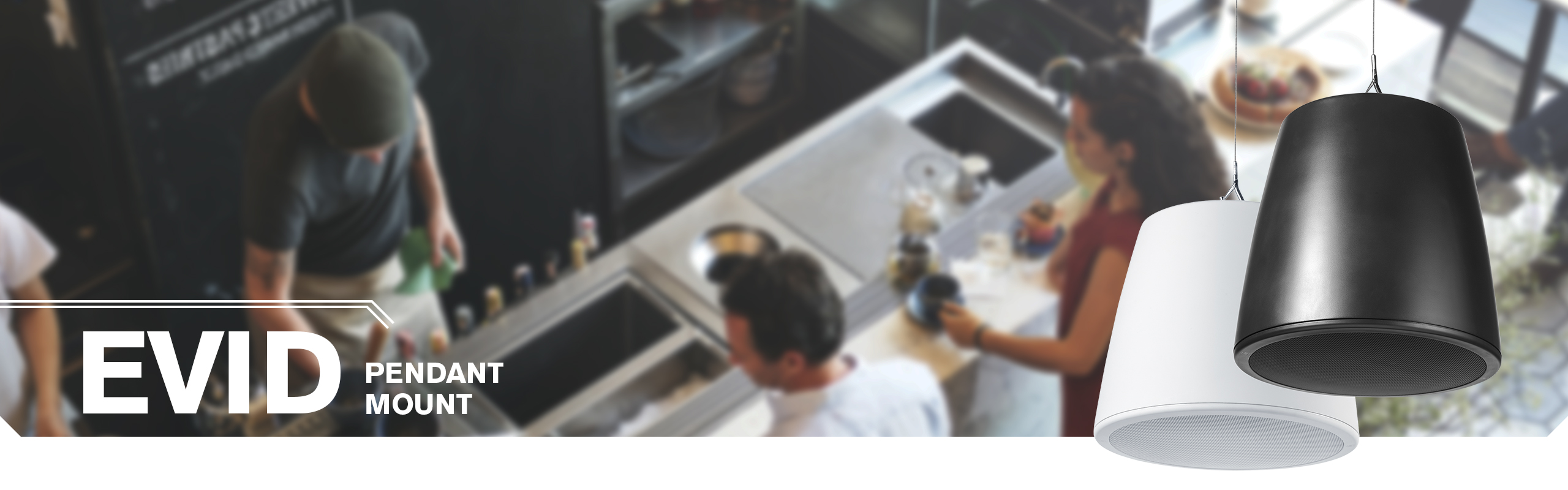

EVID pendant mount speakers
The pendant loudspeakers provide a convenient way to equip open ceiling spaces with sound where conventional surface or ceiling mount speakers cannot be used. It’s ideal for use in a wide variety of environments and spaces to provide background speech and music.
The EVID-P6.2 Pendant Loudspeaker is UL1480A and CSA C22.2 certified for indoor installations and protected outdoor installations.
Models
 |
 | |
EVID-P2.1 |
EVID-P6.2 | |
| Frequency Range (-10 dB) | 180 Hz – 20 kHzkHz | 60 Hz – 20 kHzkHz |
| Weatherized | Yes | Yes |
| Power Rating | 30W | 75W |
| Connector Type | Phoenix (4-pin) | |
| Enclosure Material | ABS (fire rated) | UL94V-0 rated enclosure and baffle |
| Sensitivity 1 W/1 m | 84dB | 87dB |
| Available Color | White | Black or White |
| Height | 7.91" (201mm) | 11.85" (301mm) |
| Weight Net | 25.75oz (730g) | 11.64lbs (5.28kg) |
| Shipping Weight | 4.5lbs (2.04kg) () | 13.85lbs (6.28kg) |
| Input Confinguration | 8Ω; 70V/100V | |
| Diameter (Max) | 4.45" (113mm) | 12.2" (310mm) |
| Coverage (Nominal -6 dB) | 150 x 150 (Voice) 100 x 100 (Music Program) | 115° conical |
| Impedance | 16Ω | 8Ω |
| Maximum SPL | 100dB | |
| Regulatory Approvals | UL1480 | CE, UL 1480A, CSA 22.2 |
| Passive Power Handling | 30W peak | 75W peak |
| Learn More | Learn More |
Show more specs
Downloads
| Name | Size | Date |
|---|---|---|
| EVID_P2.1.rfa | 435KB | Jan 16, 2019 |
| EVID-P6.2.rfa | 590KB | Jan 17, 2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| EVID Family Brochure | EN | 1.75MB | Jul 6, 2020 |
| Name | Size | Date |
|---|---|---|
| Ceiling Speaker Layout Calculator | 251KB | Feb 21, 2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Etl, Ul 1480, Evid-40C, Evid-C2.1, Evid-P2.1, Lc6-Sw100-L, Lc6-S-L, Lp6-S-L, Authorization To Mark (Atm), Intertek Report No. 102194033Crt-001 Certificate | 42KB | Dec 18, 2019 |
| EVID Compact Sound Declaration of Conformity | 443KB | Mar 14, 2018 |
| EVID-P6.2_ATM_4788471462 UL Certificate of Compliance | 49KB | Dec 18, 2019 |
| EVID-P6.2_MARKING UL Certificate of Compliance | 49KB | Dec 18, 2019 |
| Name | Size | Date | |
|---|---|---|---|
| EVID GLL V1.0 | ZIP | 209KB | Jun 13, 2018 |
| EVID P6.2 pendant GLL | GLL | 951KB | Mar 26, 2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| EVID P2.1 Engineering Data Sheet | EN | 257KB | Jan 25, 2016 |
| EVID-P6.2 Engineering Data Sheet | EN | 451KB | Nov 20, 2018 |
| EVID P2.1 Engineering Data Sheet | CS | 257KB | Jan 25, 2016 |
| EVID P2.1 Datenblatt | DE | 257KB | Jan 25, 2016 |
| EVID P2.1 Datenblatt | DE | 262KB | Jan 25, 2016 |
| EVID P2.1 Hoja de Datos de Ingeniería | ES | 255KB | Jan 25, 2016 |
| EVID-P6.2 Engineering Data Sheet | ES | 535KB | Mar 13, 2019 |
| EVID P2.1 Engineering Data Sheet | FI | 255KB | Jan 25, 2016 |
| EVID P2.1 Fiche Technique | FR | 256KB | Jan 25, 2016 |
| EVID-P6.2 Engineering Data Sheet | FR | 535KB | Mar 13, 2019 |
| EVID P2.1 Engineering Data Sheet | HU | 257KB | Jan 25, 2016 |
| EVID P2.1 Engineering Data Sheet | ID | 255KB | Jan 25, 2016 |
| EVID P2.1 Engineering Data Sheet | IT | 255KB | Jan 25, 2016 |
| EVID P2.1 Engineering Data Sheet | KO | 353KB | Jan 25, 2016 |
| EVID P2.1 Engineering Data Sheet | NL | 256KB | Feb 8, 2016 |
| EVID P2.1 Engineering Data Sheet | PL | 258KB | Jan 25, 2016 |
| EVID P2.1 Engineering Data Sheet | PT | 257KB | Jan 25, 2016 |
| EVID-P6.2 Engineering Data Sheet | PT | 536KB | Mar 13, 2019 |
| EVID P2.1 Engineering Data Sheet | RU | 263KB | Jan 25, 2016 |
| EVID P2.1 Engineering Data Sheet | TH | 271KB | Jan 25, 2016 |
| EVID P2.1 Engineering Data Sheet | TR | 259KB | Jan 25, 2016 |
| EVID P2.1 Engineering Data Sheet | VI | 268KB | Jan 25, 2016 |
| EVID P2.1 数据表 | ZH | 453KB | Jan 25, 2016 |
| Name | Language | Size | Date |
|---|---|---|---|
| System solutions Retail | EN | 924KB | Feb 25, 2020 |
| Name | Language | Size | Date |
|---|---|---|---|
| EVID P2.1 Installation Manual | EN | 888KB | Apr 25, 2016 |
| EVID Pendant Speaker Installation Manual | EN | 4.54MB | Nov 20, 2018 |
| EVID P2.1 Pendel-Satellitenlautsprecher Benutzerhandbuch | DE | 803KB | Apr 25, 2016 |
| Altavoz satélite de montaje colgante EVID P2.1 Manual | ES | 803KB | Apr 25, 2016 |
| EVID Pendant Speaker Installation Manual | ES | 5.12MB | Jan 16, 2019 |
| EVID P2.1 Guide | FR | 824KB | Apr 25, 2016 |
| EVID Pendant Speaker Installation Manual | FR | 5.12MB | Jan 16, 2019 |
| Altoparlante satellite con montaggio in sospensione EVID P2.1 Installation Manual | IT | 803KB | Apr 25, 2016 |
| EVID Pendant Speaker Installation Manual | PT | 5.08MB | Jan 16, 2019 |
| Сателлитный громкоговоритель для подвесного монтажа EVID P2.1 Installation Manual | RU | 835KB | Apr 25, 2016 |
| EVID P2.1 说明书 | ZH | 1.14MB | Apr 25, 2016 |
