Integrated software platform for remote‑controllable devices & systems
Full System Integration
IRIS-Net enables complete configuration, unified control, and status monitoring of a wide variety of Dynacord, Electro-Voice, and Bosch audio systems and devices. This allows centralized control and operation of a complete system of unique hardware devices. Supported hardware includes:
- NetMax and P64 Matrix Systems
- TGX and IPX Series Amplifiers
- Tour Grade Series Amplifiers
- PowerH Series Amplifiers
- DSP Precision Series Amplifiers
- Contractor Precision Series Amplifiers
- DSP600/Dx46 Loudspeaker Processors
- PWS-Series Wall Controllers
- TPI Series Touch Panel Interfaces
- PROMATRIX and PAVIRO Public Address Systems
Complete System Monitoring and Supervision
It is critical to be able to monitor the status, health and components of a system. Whether the system is mobile or permanently installed, the ability to spot and diagnose any potential problems quickly and efficiently is a key requirement for users, operators and designers alike. IRIS-Net is able to monitor all aspects of the system components, from signal and DSP performance, to hardware and network status. Real time load monitoring provides a clear indication on the connected loudspeaker’s status. A sophisticated internal communication between the devices allows to indicate deviations or trigger activities also with third party devices. IRIS-Net ensures an optimized system performance, reduces maintenance costs and down time and provides valuable peace-of-mind to sound system designers, operators and owners alike.
Custom User Interfaces

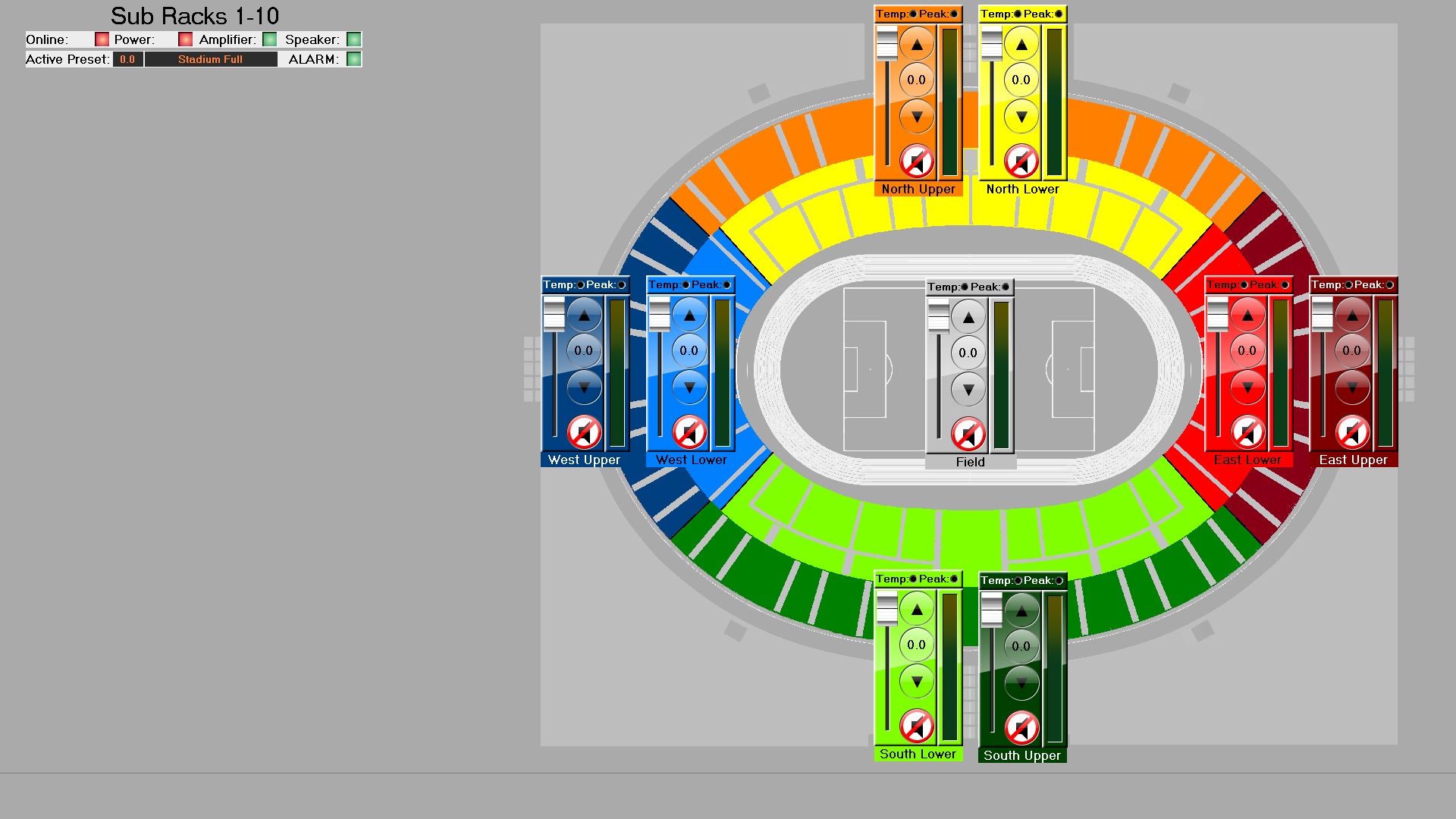

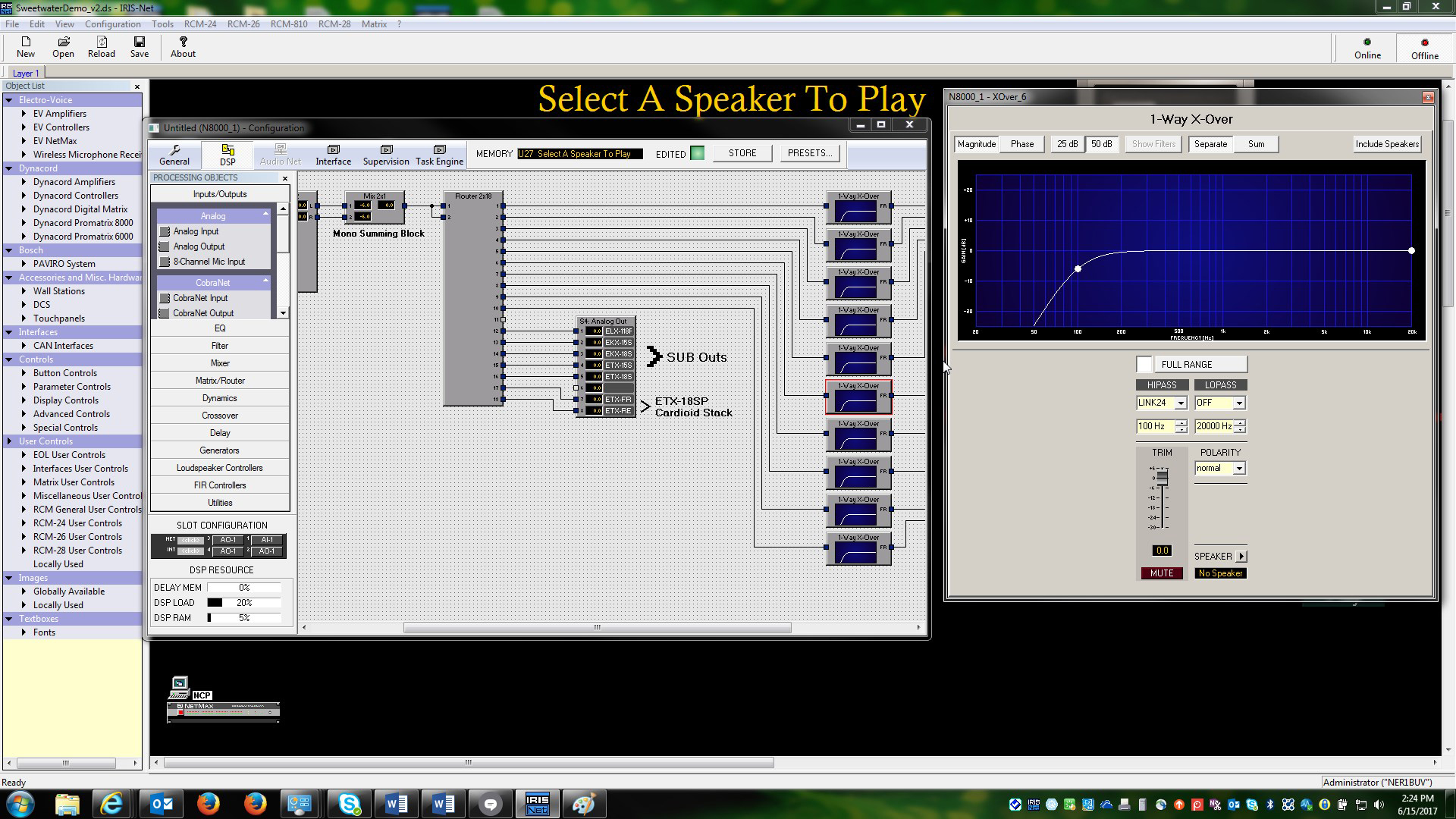

The way of operating and the user interface is one of the most important aspects. IRIS-Net allows fully customizable Graphic User Interfaces for any application and any kind of user. IRIS-Net includes a large library of graphical elements, such as buttons, faders, LEDs and display objects, and allow a programmer to fully customize the look and feel of any control objects within the software project. Programmers can create clusters of controls called User Controls and save this in a personal library for future use. This level of customization creates projects that are attractive and easy to understand and operate for all kind of users, regardless of their technical knowledge and ability.
Interface Control and User Access Permissions
Increasing complexity of sound systems on one side and time constraints for operators on the other side require to provide user specific system information and system control. With the creation of up to 64 Graphic User Interface layers, which can be managed with multi-user access control, IRIS-Net provides a superior solution for the most demanding needs. The user access and security features in IRIS-Net allow a programmer to give users access to the right components and controls at the right time, while preventing unauthorized access to critical control elements.
IRIS Net- short for “Intelligent Remote and Integrated Supervision Network” - allows complete audio systems with a multitude of similar or different devices to be configured, supervised and controlled centrally from a single user interface. Applications range from sound systems used at live events to complex installations in arenas, stadiums, cruise ships, or houses of worship, with the unique capability of combining Pro Sound and Public Address applications in a common system.
IRIS Net supports Ethernet, CobraNet, CAN bus and USB as well as OMNEO, Dante and AES70 (OCA), and is open for future standards.
IRIS-Net allows to create a sound system with comprehensive supervision of power amplifiers and loudspeakers including their cables and interfaces. System statuses are being polled permanently with instant error detection, reporting and event logging, providing piece of mind during operation and immediate, detailed diagnostics in case of any unexpected instance.
Fully customizable user panels combined with user access control provide the dedicated set of system remote control and supervision for a wide variety of users over a wide variety of applications, from most experienced sound system engineers operating a large live sound rig to simplified recalls and indication for non-technical operators.
IRIS Net is used globally in thousands of audio installations and systems, providing a sound system management solution every day.
Intelligent Remote and Integrated Supervision – IRIS-Net
|ProSound Loudspeakers and Electronics Catalog||EN||15.43MB||Apr 2, 2019|
|Environmental Compliance Document||148KB||Oct 3, 2017|
|ELX200 Project File Example for IRIS-Net||ZIP||10.16MB||Oct 26, 2017|
|IRIS-Net 4.0.0||EXE||405.22MB||Sep 3, 2018|
|IRISNet ReadMe||241KB||Sep 3, 2018|
|Installing & Running IRIS-Net in Windows Vista OS||EN||96KB||Mar 17, 2011|
|IRIS-Net Project Generator Guide||EN||12.45MB||Mar 17, 2011|
|IRIS-Net Quick Start Guide||EN||4.62MB||Mar 17, 2011|
|PCI-CAN Interface Installation Instructions||EN||134KB||Mar 17, 2011|
|Firmware RCM28 2.0.15 for IRIS-Net 4.0||ZIP||5.52MB||Jan 29, 2020|
|OMNEO Firmware Upload Tool 32-Bit||MSI||14.85MB||Feb 6, 2015|
|OMNEO Firmware Upload Tool 64-Bit||MSI||16.07MB||Feb 6, 2015|
|EVF Presets for IRIS-Net||ZIP||31KB||Sep 28, 2009|
|EVH-1152S Series v1.0 for IRISNet||ZIP||418KB||Oct 18, 2010|
|Preset - IRIS||ZIP||7KB||Dec 26, 2007|
|X-Line FIR-Drive For IRIS-Net v2.1||ZIP||458KB||Apr 19, 2011|
|X-Line IRIS Presets v4.0||ZIP||26KB||Jan 13, 2009|
|X-Line Presets for IRIS||ZIP||4KB||Dec 26, 2007|
|XLC-DVX FIR Drive For IRIS-Net v2.0-M||ZIP||280KB||Sep 28, 2010|
|XLC-DVX FIR Drive For IRIS-Net v2.1||ZIP||564KB||Apr 19, 2011|
|Xlc127+ Presets for IRIS||ZIP||3KB||Dec 26, 2007|
|XLD IRIS Presets||ZIP||180KB||Jan 13, 2009|
|XLE IRIS Presets v1.1||ZIP||44KB||Jan 13, 2009|
|Zx3 Presets for IRIS-Net||ZIP||8KB||Sep 30, 2009|

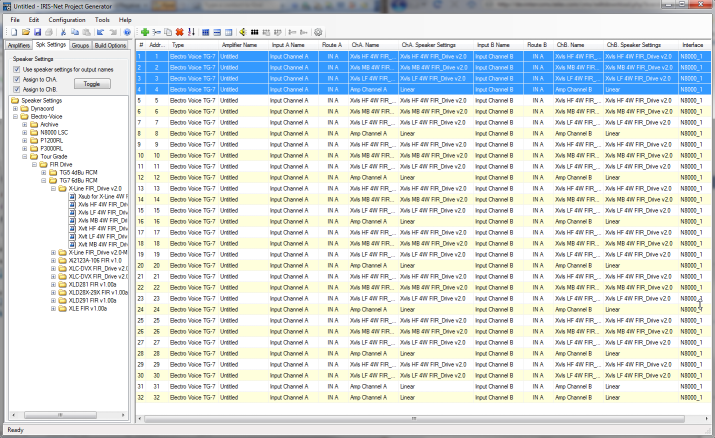

IRIS Generator 1
