RCM-810

IRIS‑Net remote control module for CPS series amplifiers

  • Enable powerful control and supervision capabilities
  • Integrate up to 100 devices in each remote control network, 250 with multiple networks
  • Support for 2-, 4-, and 8-channel CPS models
  • Freely programmable control inputs and outputs
  • Load-monitoring for each channel
  • Variable Load Drive for independent channel impedance on 4- and 8-channel amps  (2-10 Ω in 0.1 Ω steps)

Specifications

Internal Processing None
Network Interface CAN Bus
CAN Bus Interface 10 - 500 kbaud, 2x RJ-45 (IRIS-Net Control)

GPIO Control Ports 2 x 3-pole Euro block 2 Control Inputs 2 Control Outputs 2 Reference Outputs (+5 V, 200 mA / GND)
Audio Network No
Variable Load Drive (VLD) Yes
FIR-Drive No
Network Control (IRIS-Net) Yes

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
RCM-810 EC Declaration of Conformity 47KB Nov 13, 2019
Name Language Size Date
RCM-810 Engineering Data Sheet EN 2.23MB May 15, 2019
Name Language Size Date
CPS4.5, CPS4.10, CPS8.5 Owners' Manual EN 4.17MB Sep 24, 2009

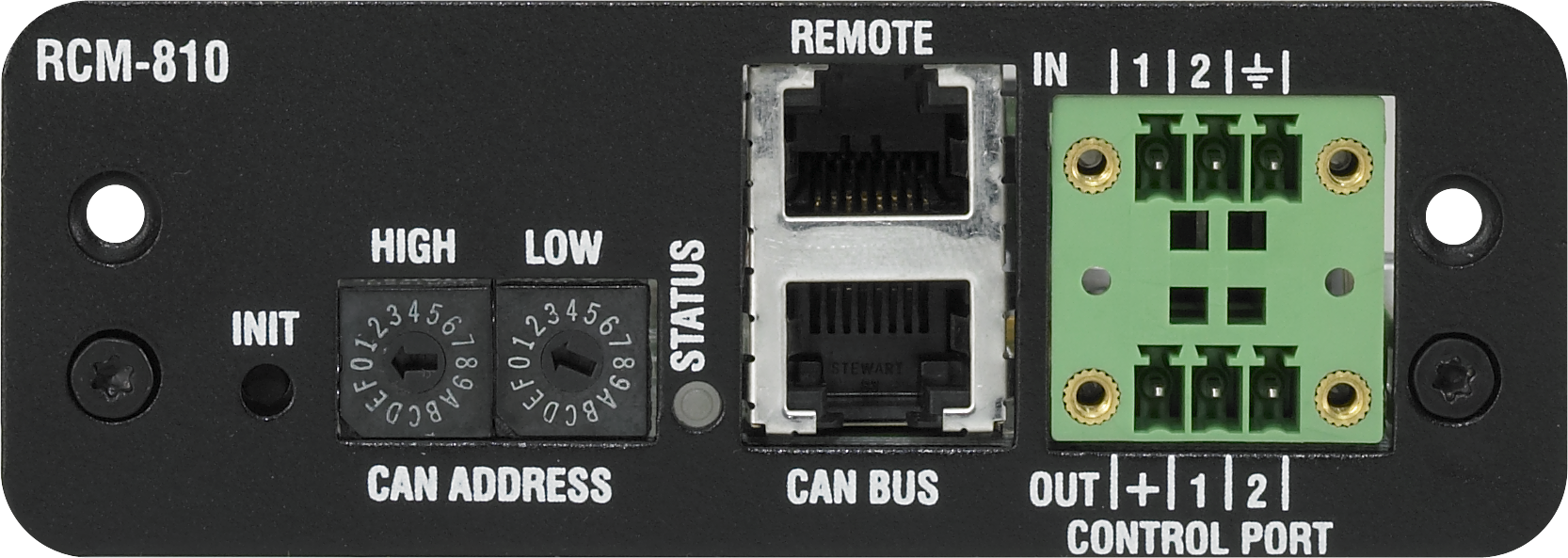

RCM810 front-trans
