Models
 |
 |
 |
 |
 |
 |
 |
 | |
ND44 |
ND46 |
ND66 |
ND68 |
ND76 |
ND76S |
ND86 |
ND96 | |
| Shipping Weight | 17.21oz (488g) | 20.6oz (584g) | 16.4oz (465g) | 24.8oz (703g) | 21.09oz (598g) | 20.21oz (573g) | 21.2oz (601g) | 21.2oz (601g) |
| Weight Net | 6.84oz (194g) | 10.9oz (309g) | 6.31oz (179g) | 13.19oz (374g) | 11.39oz (323g) | 11.39oz (323g) | 11.5oz (326g) | 11.39oz (323g) |
| Height | 5.47" (139mm) | 5.67" (144.1mm) | 5.63" (143mm) | 5.63" (143mm) | 7.19" (182.5mm) | 7.19" (182.5mm) | 7.19" (182.5mm) | 6.69" (170mm) |
| Connector Type | 3-pin XLR | 3-pin XLR | 3-pin XLR | 3-pin XLR | 3-pin XLR | 3-pin XLR | 3-pin XLR | 3-pin XLR |
| Finish | Black polyurethane paint | Black polyurethane paint | Black polyurethane paint | Black polyurethane paint | Black polyurethane paint | Black polyurethane paint | Black polyurethane paint | Black polyurethane paint |
| Diameter (Max) | 1.91" (48.5mm) | 2.2" (56mm) | 0.83" (21mm) | 2.39" (60.8mm) | 1.99" (50.5mm) | 1.99" (50.5mm) | 1.99" (50.5mm) | 1.99" (50.5mm) |
| Impedance, Low-Z balanced | 350Ω | 350Ω | 200Ω | 150Ω | 350Ω | 350Ω | 350Ω | 350Ω |
| Power Requirement | Passive | Passive | 48 VDC Phantom | Passive | Passive | Passive | Passive | Passive |
| Open Circuit Voltage | 2.4mV/Pascal | 2.4mV/Pascal | 10mV/Pascal | 0.8mV/Pascal | 2.4mV/Pascal | 2.4mV/Pascal | 2.4mV/Pascal | 3.3mV/Pascal |
| Audio Frequency Response | 80 – 16,500 | 70 – 18,000 | 50 – 20,000 | 20 – 11,000 | 70 – 17,000 | 70 – 17,000 | 70 – 17,000 | 140 – 15,000 |
| Element | Dynamic | Dynamic | Condenser | Dynamic | Dynamic | Dynamic | Dynamic | Dynamic |
| Case Material | Die cast zinc handle, ABS polycarbonate head | Die cast zinc | Die cast zinc | Die cast zinc | Die cast zinc | Die cast zinc | Die cast zinc | Die cast zinc |
| Maximum SPL | > 140dB | > 140dB | 146dB | > 140dB | > 140dB | > 140dB | > 140dB | > 140dB |
| Family | ND Series | ND Series | ND Series | ND Series | ND Series | ND Series | ND Series | ND Series |
| Polar Pattern | Tight Cardioid | Supercardioid | Cardioid | Supercardioid | Cardioid | Cardioid | Supercardioid | Supercardioid |
| Wired/Wireless | Wired | Wired | Wired | Wired | Wired | Wired | Wired | Wired |
| Mic Type | Instrument | Instrument | Instrument | Instrument | Handheld | Handheld | Handheld | Handheld |
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
Show more specs
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ND Series Microphones Brochure | EN | 10.21MB | Jul 7, 2020 |
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Microphone Catalog 2020 | EN | 10.97MB | Jul 3, 2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Nd66, Condenser Instrument Microphone, 797 Audio, 06-2016 Country of Origin Certificate | 47KB | Dec 18, 2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| ND44 Engineering Data Sheet | EN | 738KB | Mar 17, 2016 |
| ND46 Engineering Data Sheet | EN | 525KB | Mar 17, 2016 |
| ND66 Engineering Data Sheet | EN | 806KB | Mar 28, 2016 |
| ND68 Engineering Data Sheet | EN | 574KB | Mar 17, 2016 |
| ND76 Engineering Data Sheet | EN | 490KB | Mar 17, 2016 |
| ND76S Engineering Data Sheet | EN | 439KB | Mar 17, 2016 |
| ND86 Engineering Data Sheet | EN | 526KB | Mar 17, 2016 |
| ND96 Engineering Data Sheet | EN | 552KB | Mar 17, 2016 |
| ND76-RC3 Engineering Data Sheet | DE | 3.75MB | Apr 20, 2020 |
| ND86-RC3 Engineering Data Sheet | DE | 4.47MB | Apr 20, 2020 |
| ND96-RC3 Engineering Data Sheet | DE | 5.35MB | Apr 20, 2020 |
| Name | Size | Date |
|---|---|---|
| Electro-Voice ND66 Guitar | 5.22MB | Nov 16, 2016 |
| ev 90years ndseries singer jan17 4c fullrights Original 27451 | 5.39MB | Feb 14, 2017 |
| ev ndseries band feb16 4c fullrights Original 26671 | 15.39MB | Nov 30, 2016 |
| ev ndseries band jan17 4c fullrights Original 27444 | 9.31MB | Feb 14, 2017 |
| ev ndseries musician nov15 4c fullrights Original 27432 | 11.54MB | Feb 14, 2017 |
| ev ndseries singer feb16 4c fullrights Original 26665 | 8.52MB | Nov 30, 2016 |
| ev ndseries singer jan17 4c fullrights Original 27457 | 4.77MB | Feb 14, 2017 |
| ND44 App-02 Original 25736 | 37.25MB | Jul 1, 2016 |

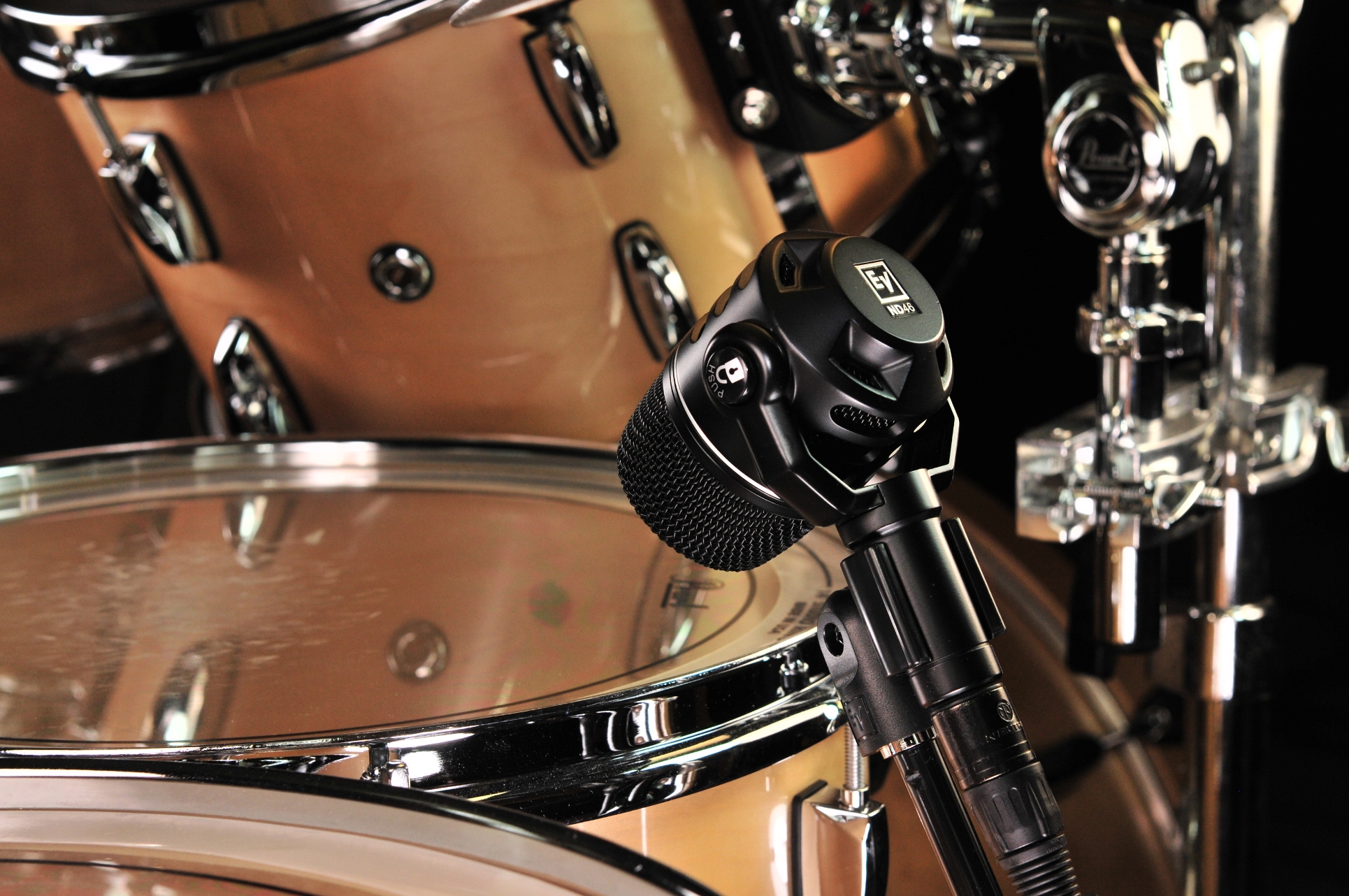

| ND44 mounted on snare | 1.44MB | Aug 8, 2016 |
| ND44 mounted on tom | 1.37MB | Aug 8, 2016 |
| ND46 App-02 Original 25737 | 22.93MB | Jul 1, 2016 |
| ND46 on floor tom-stand mounted | 1.52MB | Aug 8, 2016 |

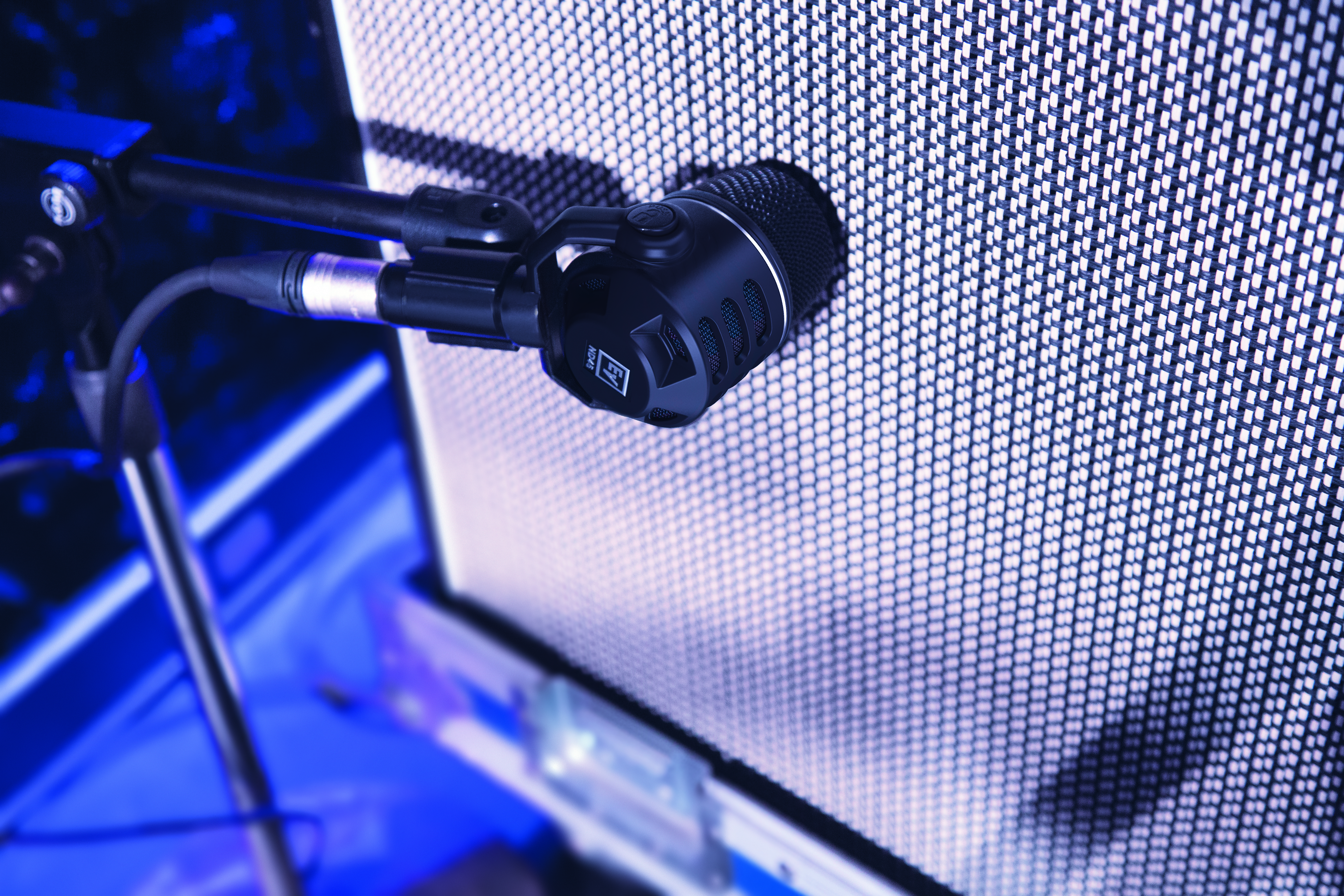

| ND46 on guitar amp | 2.22MB | Aug 8, 2016 |
