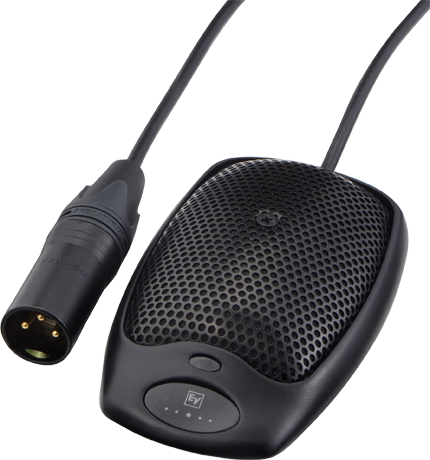

PC Boundary

Multi‑pattern boundary layer microphone

  • Easy switching between omni, cardioid, supercardioid, or figure “8” polar patterns
  • Versatility for different acoustic environments
  • Consistent microphone voicing across all four patterns
  • Easy-to-use mute switch, programmable for either latching on/off or momentary operation

The PC Boundary is a very low-profile area microphone that can be used on any surface and with virtually any mic mixer. Featuring multiple on-board polar patterns—three directional and one omni—the PC Boundary is ideal for any installation where premium-grade area coverage is required.

Specifications

Connector Type 3-pin XLR
Frequency Response (-3 dB) 50 - 20,000 Hz
Family PolarChoice

Polar Pattern Omni, Cardioid, S-cardioid & Figure 8
Mic Type Boundary
Element Dual condenser (back-electret)
Impedance, Low-Z balanced 200Ω
Open Circuit Voltage 31.5mV/Pascal
Case Material Steel
Finish Non-reflective camera black
Power Requirement 12 - 52 VDC
