RE92H
Cardioid pattern hanging microphone w/hpf
- Hanging installation microphone
- Wide, smooth frequency response
- Cardioid polar pattern
- In-line electronics module
- 12 dB/octave switchable high pass filter
- Transformerless differential output to drive long cables
Designed specifically for applications where the condenser microphone needs to be suspended from above the sound source. The RE92H is ideal for theater, house of worship or any application where a small, high-quality mic needs to be “heard but not seen.” Also available in white (RE92HW).
Specifications
| Weight Net | 8.47oz (240g) |
| Height | 0.41" (10.5mm) |
| Connector Type | 3-pin XLR |
Specifications |
|
| Maximum SPL (1% THD) | 135dB |
| Frequency Response (-3 dB) | 40 - 20,000 Hz |
| Open Circuit Voltage | 5.6mV/Pascal |
| Case Material | Metal |
| Finish | Non-reflective black or white |
| Power Requirement | 24 - 52 V Phantom |
| Current Consumption | 6 mA |
| Specials | external pre-amp |
| Family | RE Series Installation |
| Polar Pattern | Cardioid |
| Wired/Wireless | Wired |
| Mic Type | Hanging |
| Diameter (Max) | 1.26" (32mm) |
| Element | Condenser (back-electret) |
| Impedance, Low-Z balanced | 250Ω |
Similar
Complementary
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Language | Size | Date |
|---|---|---|---|
| RE92H RE92HW Engineering Data Sheet | EN | 465KB | Nov 13, 2015 |

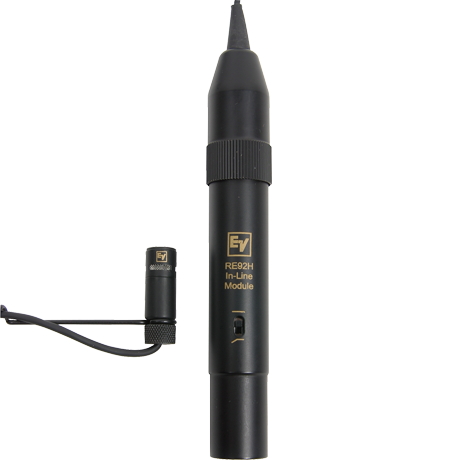

RE92H-trans
