Wired Install Microphones

Models

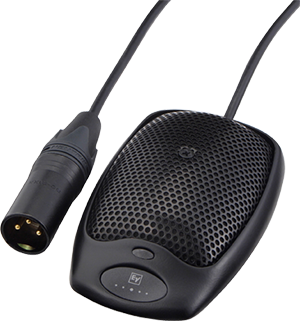

PC Boundary
Multi‑pattern boundary layer microphone

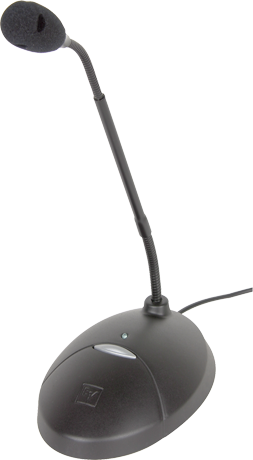

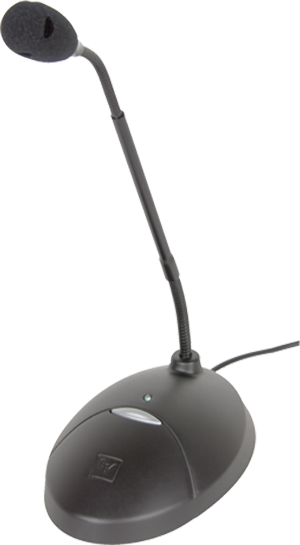

PC Desktop microphone
Multi‑pattern desktop microphone

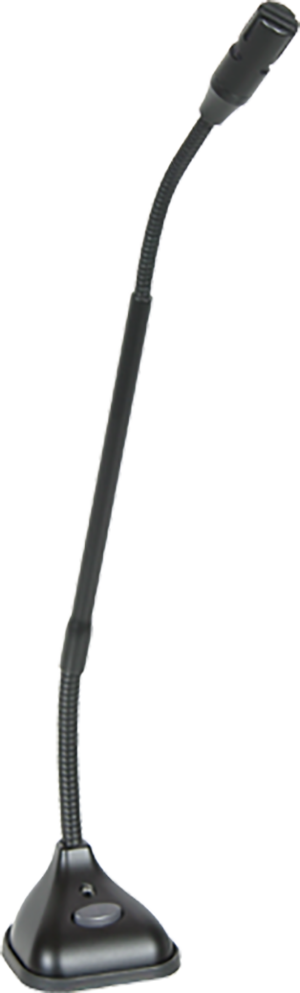

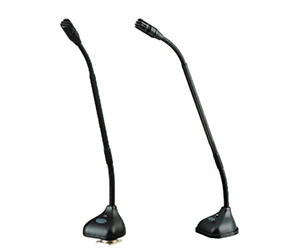

PC Plus
Miniature multi-pattern podium microphone

PolarChoice Podium
PolarChoice series podium microphone

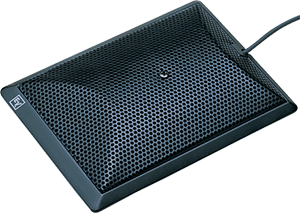

RE90B
Half‑cardioid pattern boundary layer microphone

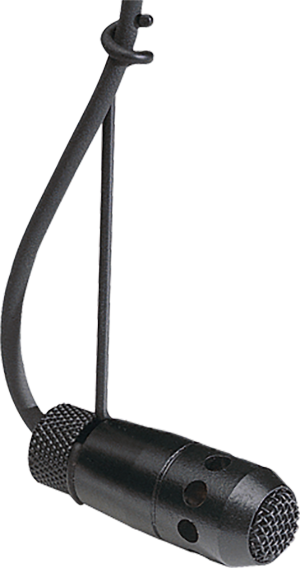

RE90H
Cardioid pattern hanging microphone

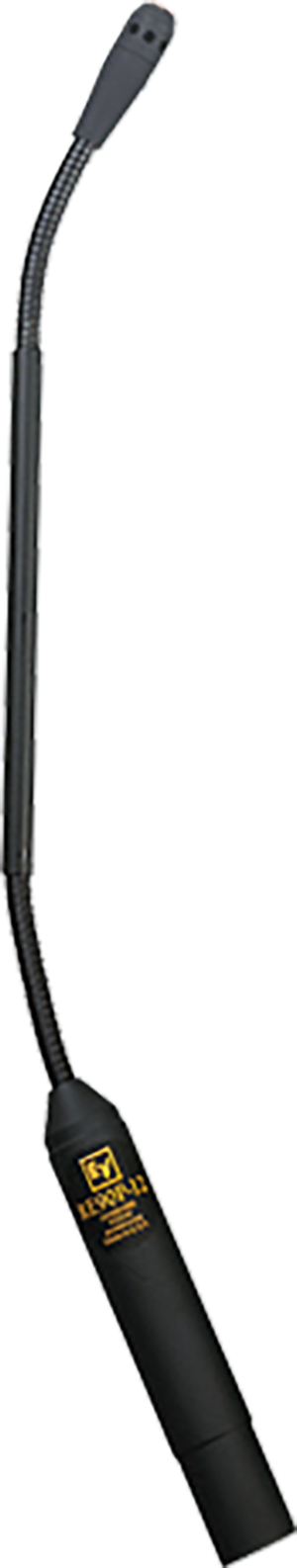

RE90P
Cardioid pattern gooseneck microphone

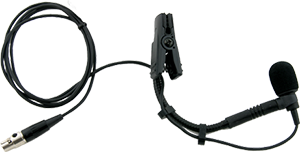

RE920
Horn & instrument microphone

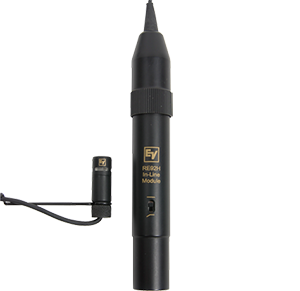

RE92H
Cardioid pattern hanging microphone w/HPF

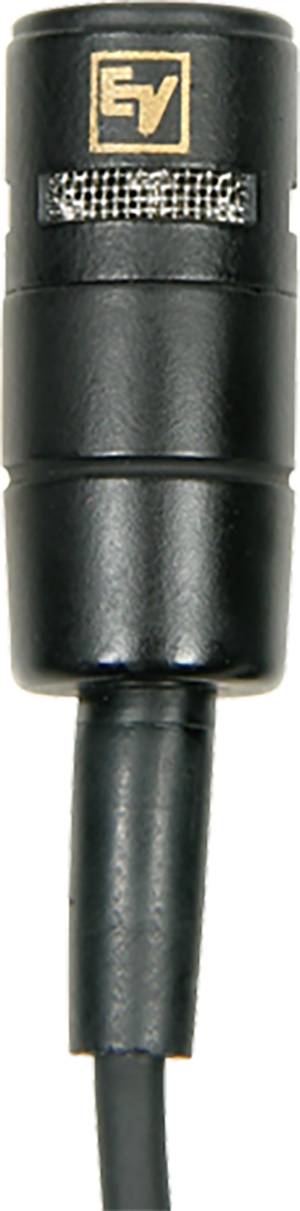

RE92L
Cardioid pattern lavalier microphone

RE92Tx
Directional lavalier microphone


	PC Boundary Multi‑pattern boundary layer microphone	PC Desktop microphone Multi‑pattern desktop microphone	PC Plus Miniature multi-pattern podium microphone	PolarChoice Podium PolarChoice series podium microphone	RE90B Half‑cardioid pattern boundary layer microphone	RE90H Cardioid pattern hanging microphone	RE90P Cardioid pattern gooseneck microphone	RE920 Horn & instrument microphone	RE92H Cardioid pattern hanging microphone w/HPF	RE92L Cardioid pattern lavalier microphone	RE92Tx Directional lavalier microphone
Maximum SPL (1% THD)								148dB	135dB	135dB	135dB
Connector Type	3-pin XLR	3-pin XLR		3-pin XLR	3-pin XLR	3-pin XLR	3-pin XLR	TA4F	3-pin XLR	3-pin XLR	TA4F
Height		13.54" (344mm)		11.77" (299mm)	0.63" (16mm)	1.46" (37mm)	11.06" (281mm)	6.22" (158mm)	0.41" (10.5mm)	0.41" (10.5mm)	0.41" (10.5mm)
Width		4.49" (114mm)			3.7" (94mm)
Depth		7.01" (178mm)			4.84" (123mm)
Frequency Response (-3 dB)	50 - 20,000 Hz	50 - 20,000 Hz			80 - 15,000 Hz	75 - 15,000 Hz	70 - 15,000 Hz	80 - 18,000 Hz	40 - 20,000 Hz	40 - 20,000 Hz
Weight Net		24.34oz (690g)		14.5oz (411g)	12.63oz (358g)	5.54oz (157g)	8.61oz (244g)	19.05oz (540g)	8.47oz (240g)	5.64oz (160g)	0.81oz (23g)
Family	PolarChoice	PolarChoice		PolarChoice	RE Series Installation	RE Series Installation	RE Series Installation	RE Series Live Performance	RE Series Installation	RE Series Installation	RE Series Installation
Finish	Non-reflective camera black	Non-reflective camera black		Semi-Gloss Camera Black	Non-reflective black or white	Non-reflective black or white	Non-reflective black	Non-reflecting Black	Non-reflective black or white	Non-reflective black	Non-reflecting Black
Specials									external pre-amp	external preamp
Open Circuit Voltage	31.5mV/Pascal	5.6mV/Pascal		5.6mV/Pascal	25mV/Pascal	27mV/Pascal	4.5mV/Pascal	1.3mV/Pascal	5.6mV/Pascal	5.6mV/Pascal	5.6mV/Pascal
Power Requirement	12 - 52 VDC	12 - 52 VDC			9 - 52 VDC	9 - 52 VDC	9 - 52 VDC	5 VDC (via optional bodypack)	24 - 52 V Phantom	24 - 52 V Phantom
Case Material	Steel	Steel		Steel	Die cast zinc	Steel	Steel	Metal	Metal	Metal	Metal
Current Consumption									6 mA	6 mA	< 500 uA
Polar Pattern	Omni, Cardioid, S-cardioid & Figure 8	Omni, Cardioid, S-cardioid & H-cardioid		Cardioid, Hypercardioid, Supercardioid, Omni	Cardioid	Cardioid	Cardioid	Cardioid	Cardioid	Cardioid	Cardioid
Element	Dual condenser (back-electret)	Dual condenser (back-electret)		Back Electret Condenser	Condenser (back-electret)	Condenser (back-electret)	Condenser (back-electret)	Condenser (back-electret)	Condenser (back-electret)	Condenser (back-electret)	Back Electret Condenser
Wired/Wireless		Wired		Wired	Wired	Wired	Wired	Wired	Wired	Wired	Wireless
Impedance, Low-Z balanced	200Ω	200Ω		200Ω	200Ω	200Ω	200Ω	1000Ω	250Ω	250Ω
Mic Type	Boundary	Gooseneck		Gooseneck	Boundary	Hanging	Gooseneck	Instrument	Hanging	Lavalier	Lavalier
Diameter (Max)		0.25" (6.4mm)		0.25" (6.4mm)		0.51" (13mm)	0.25" (6.4mm)	0.94" (24mm)	1.26" (32mm)	0.94" (24mm)	0.94" (24mm)
	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More

Show more specs

Downloads

Technical Documentations

Certification/Regulatory

Name	Language & Download
Miniature Gooseneck And Boundary Wired Microphones, Mean Time Between Failures (Mtbf) Declaration	EN
PolarChoice Mics UKCA Declaration of Conformity (2023-Aug)	EN
RE90-RE92-PolarChoice Mics EU Declaration of Conformity (2023-Aug)	EN
RE92x Wired Mics EU Declaration of Conformity (2023-Sep)	EN

Engineering Data Sheet

Name	Language & Download
PC Boundary Multi-Pattern Engineering Data Sheet	EN
PC Desktop (12 & 18-inch)	EN
PC Desktop-18RD Engineering Data Sheet	EN
PC Plus Engineering Data Sheet	EN
RE90B BW Engineering Data Sheet	EN
RE90H RE90HW Engineering Data Sheet	EN
RE90P-12 RE90P-18 Engineering Data Sheet	EN
RE920Tx Engineering Data Sheet	EN
RE92H RE92HW Engineering Data Sheet	EN
RE92L Engineering Data Sheet	EN
RE92TX Engineering Data Sheet	EN

Manual

Name	Language & Download
PolarChoice PC Plus Drilling Template	EN
RE3 UHF Wireless Installation manual	EN DE ES

Service Policies

Name	Language & Download
Warranty conditions for Electro-Voice products in North America	EN

White Paper

Name	Language & Download
Audio 101 - Basic Audio Terminology	EN
Audio 101 - Loudspeaker Basics	EN
Audio 101 - Microphone Basics	EN
Audio 101 - Wireless Microphone Basics	EN
Microphone Facts- Axial Response	EN
Microphone Facts- The New Model 666R Joins the 666 Family	EN
PA Bible 03: Microphone Types	EN
PA Bible 08: Microphone Techniques	EN
PA Bible 15: Barrier Miking	EN
The EV PA Bible	EN
The PA Bible Chapter Zero	EN
