ELX200-10

10" passive loudspeaker

  • 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
  • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
  • High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

Specifications

Shipping Weight 33.73lbs (15.3kg)
Weight Net 29.54lbs (13.4kg)
Depth 12.56" (319mm)

Width 12.99" (330mm)
Height 20.91" (531mm)
Suspension (3) M10 suspension points
Grille 18 AWG steel with powdercoat
Enclosure Material Polypropylene Composite
Connector Type Dual NL4
Minimum Impedance 7.2Ω
Crossover Frequency 2 kHz
HF Transducer DH-1C 1-inch titanium compression driver
LF Transducer EVS-10M 254 mm (10 in)
Coverage (Nominal -6 dB) V 60°
Coverage (Nominal -6 dB) H 90°
Max. SPL/1m (calc) 127dB
Recommended High-Pass Frequency 55Hz
Frequency Response (-3 dB) 65 Hz - 20 kHz
Power Handling (Continuous / Peak) 300 W/1200W
Family ELX200
Speaker Type Full-Range
Available Color Black or White
Nominal Impedance
Axial Sensitivity (SPL, 1 W @ 1 m) 90dB
Power Rating 1200W
Woofer Size 10inch
Frequency Range (-10 dB) 49 Hz - 22 kHz

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Portable Speaker Feature Overview EN 2.43MB Aug 28, 2018
Portable speakers catalog 2020 EMEA EN 9.22MB Jan 21, 2020
Portable speakers catalog 2020 NA EN 10.63MB May 22, 2020
Portable speakers catalog 2020 EMEA PL 6.77MB May 12, 2020
Portable speakers catalog 2020 EMEA FR 6.76MB May 12, 2020
Portable speakers catalog 2020 EMEA ES 6.76MB May 12, 2020
Portable speakers catalog 2020 EMEA EL 6.78MB May 12, 2020
Portable speakers catalog 2020 EMEA DE 6.76MB May 12, 2020
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Name Language Size Date
ELX200-10 Engineering Data Sheet EN 2.83MB Apr 16, 2019
ELX200-10 Engineering Data Sheet DE 842KB Jul 25, 2019
ELX200-10 Engineering Data Sheet ES 839KB Jul 25, 2019
ELX200-10 Engineering Data Sheet FR 900KB Jul 25, 2019
ELX200-10 Engineering Data Sheet JA 986KB Jul 25, 2019
ELX200-10 Engineering Data Sheet KO 1.02MB Jul 25, 2019
ELX200-10 Engineering Data Sheet PT 842KB Jul 25, 2019
ELX200-10 Engineering Data Sheet ZH 1.03MB Jul 25, 2019
Name Size Date
ELX200 Project File Example for IRIS-Net ZIP 10.16MB Oct 26, 2017
IRIS-Net 4.0.0 EXE 405.22MB Sep 3, 2018
Name Language Size Date
ELX200 Full-Range Loudspeaker Accessories Installation Note EN 3.53MB Dec 6, 2017
ELX200 Passive Loudspeakers Installation Manual EN 22.48MB Apr 16, 2019
Altavoces pasivos ELX200 Manual ES 8.28MB Jul 23, 2019
Alto-falantes passivos ELX200 Manual PT 8.28MB Jul 23, 2019
ELX200 パッシブスピーカー マニュアル JA 8.39MB Jul 23, 2019
ELX200 无源扬声器 说明书 ZH 8.49MB Jul 23, 2019
ELX200 패시브형 라우드스피커 설치 매뉴얼 KO 8.34MB Jul 23, 2019
ELX200-Passivlautsprecher Benutzerhandbuch DE 8.28MB Jul 23, 2019
Enceintes passives ELX200 Guide FR 8.29MB Jul 23, 2019

ELX200 10 Passive 2400px

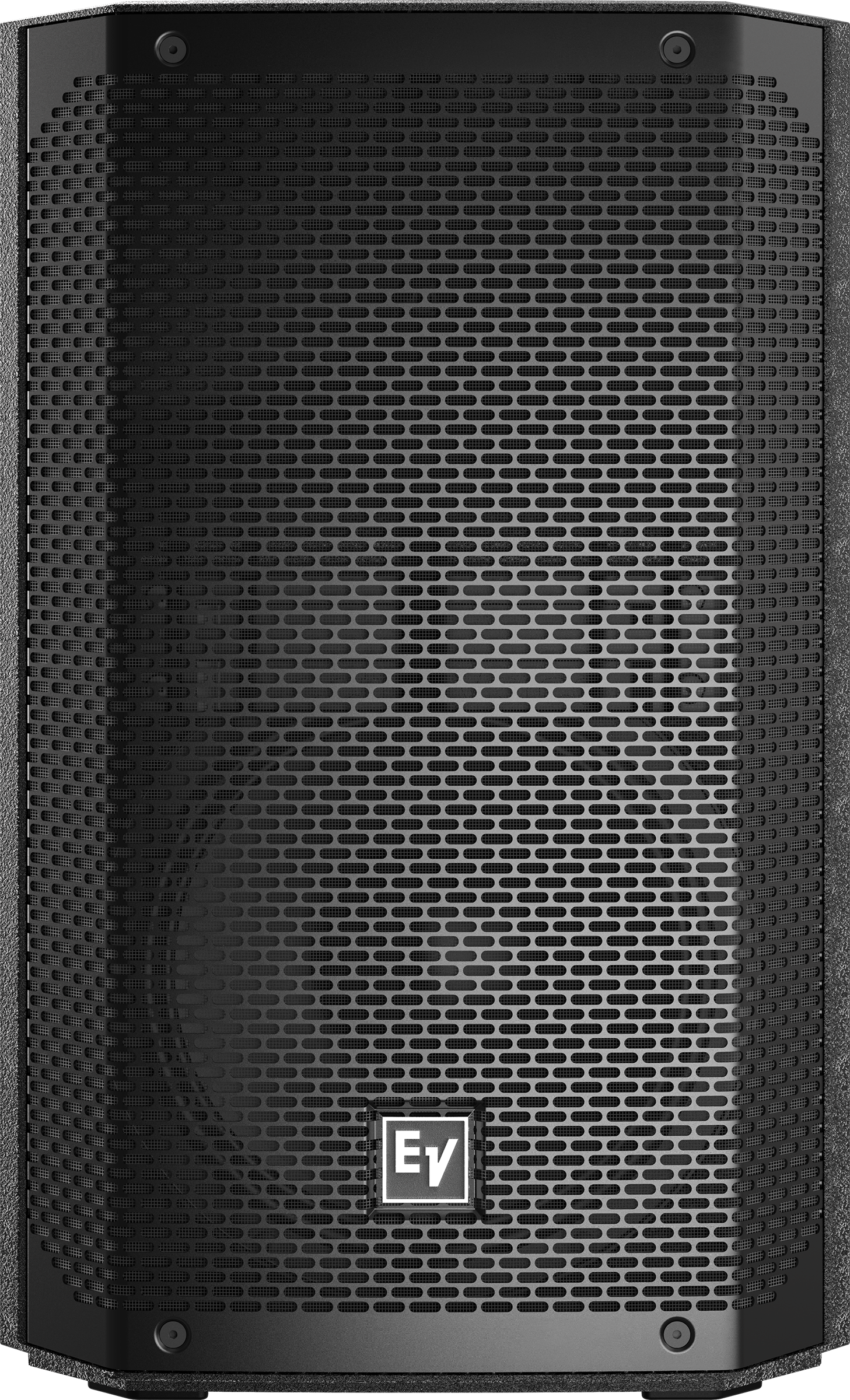

ELX200 10 Passive Front 2400px

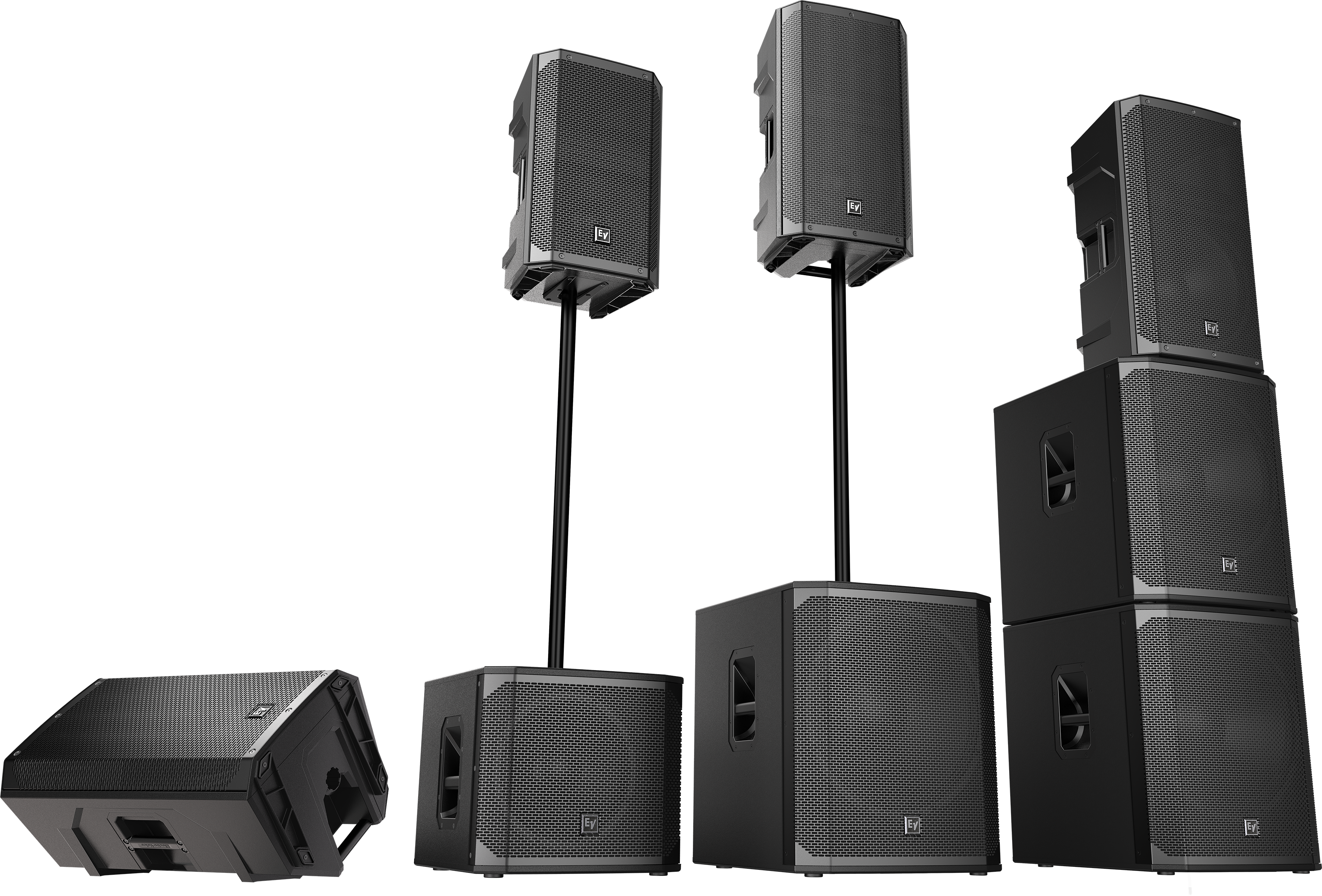

ELX200 Passive Family 2400px
