ELX200-12S
12" passive subwoofer
- 1600 W (peak), 129 dB peak SPL utilizing high sensitivity transducer designed and engineered by EV for maximum punch.
- High-output EVS-12L woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- System reliability verified with over 500 hours of abuse testing and endurance testing.
- Ideal for portable and installed applications. Lightweight, compact 15 mm wood enclosure with internal bracing with durable polyurea top-coat finish.
- Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The subwoofers pack powerful low-frequency output into a surprisingly compact footprint, and feature tuned 15 mm thick wood enclosures with a premium top-coat finish. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Specifications
Suspension | |
Minimum Impedance | 6.9Ω |
HF Transducer | |
Specifications |
Speaker Type | Subwoofer |
Woofer Size | 12inch |
Frequency Response (-3 dB)¹ | 42 Hz - 220 Hz |
Frequency Range (-10 dB)¹ | 33 Hz - 300 Hz |
Max. SPL/1m (calc)² | 129dB |
LF Transducer | EVS-12L 300 mm (12 in) |
Power Rating | 1600W |
Connector Type | Dual NL4 |
Enclosure Material | 15 mm plywood with durable polyurea top-coat finish |
Grille | 18 AWG steel with powdercoat |
Available Color | Black or White |
Height | 15.63" (397mm) |
Width | 17.52" (445mm) |
Recommended High-Pass Frequency | 42Hz |
Depth | 17.99" (457mm) |
Weight Net | 44.53lbs (20.2kg) |
Shipping Weight | 44.53lbs (20.2kg) |
Family | ELX200 |
Nominal Impedance | 8 ΩΩ |
Axial Sensitivity (SPL, 1 W @ 1 m) | 93dB |
Power Handling (Continuous / Peak) | 400 W/1600W |
Similar Products
Compatible Products
Downloads
Name | Language | Size | Date |
---|---|---|---|
ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
Portable speakers catalog 2020 EMEA | EN | 9.22MB | Jan 21, 2020 |
Portable speakers catalog 2020 NA | EN | 10.63MB | May 22, 2020 |
Name | Size | Date |
---|---|---|
Environmental Compliance Document | 148KB | Oct 3, 2017 |
Name | Language | Size | Date |
---|---|---|---|
ELX200-12S Engineering Data Sheet | EN | 1.32MB | Apr 16, 2019 |
ELX200-12S Engineering Data Sheet | DE | 502KB | Jul 25, 2019 |
ELX200-12S Engineering Data Sheet | ES | 493KB | Jul 25, 2019 |
ELX200-12S Engineering Data Sheet | FR | 492KB | Jul 25, 2019 |
ELX200-12S Engineering Data Sheet | JA | 562KB | Jul 25, 2019 |
ELX200-12S Engineering Data Sheet | KO | 608KB | Jul 25, 2019 |
ELX200-12S Engineering Data Sheet | PT | 493KB | Jul 25, 2019 |
ELX200-12S Engineering Data Sheet | ZH | 599KB | Jul 25, 2019 |
Name | Size | Date | |
---|---|---|---|
ELX200 Project File Example for IRIS-Net | ZIP | 10.16MB | Oct 26, 2017 |
IRIS-Net 4.0.0 | EXE | 405.22MB | Sep 3, 2018 |
Name | Language | Size | Date |
---|---|---|---|
ELX200 Passive Loudspeakers Installation Manual | EN | 22.48MB | Apr 16, 2019 |
Altavoces pasivos ELX200 Manual | ES | 8.28MB | Jul 23, 2019 |
Alto-falantes passivos ELX200 Manual | PT | 8.28MB | Jul 23, 2019 |
ELX200 パッシブスピーカー マニュアル | JA | 8.39MB | Jul 23, 2019 |
ELX200 无源扬声器 说明书 | ZH | 8.49MB | Jul 23, 2019 |
ELX200 패시브형 라우드스피커 설치 매뉴얼 | KO | 8.34MB | Jul 23, 2019 |
ELX200-Passivlautsprecher Benutzerhandbuch | DE | 8.28MB | Jul 23, 2019 |
Enceintes passives ELX200 Guide | FR | 8.29MB | Jul 23, 2019 |

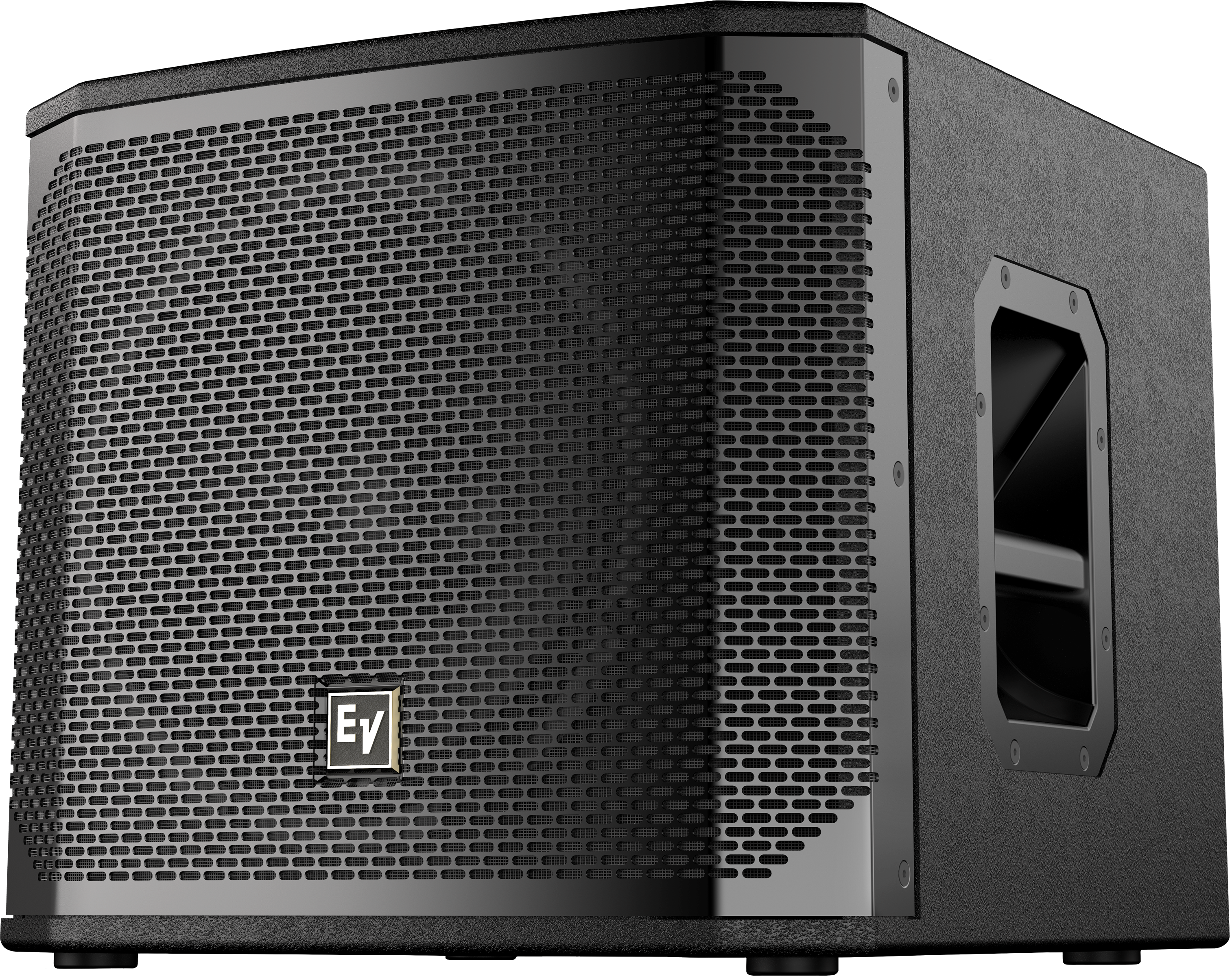

ELX200 12S Passive 2400px

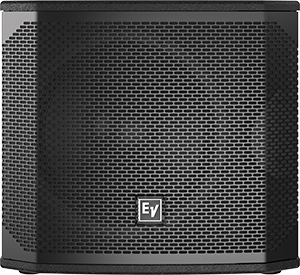

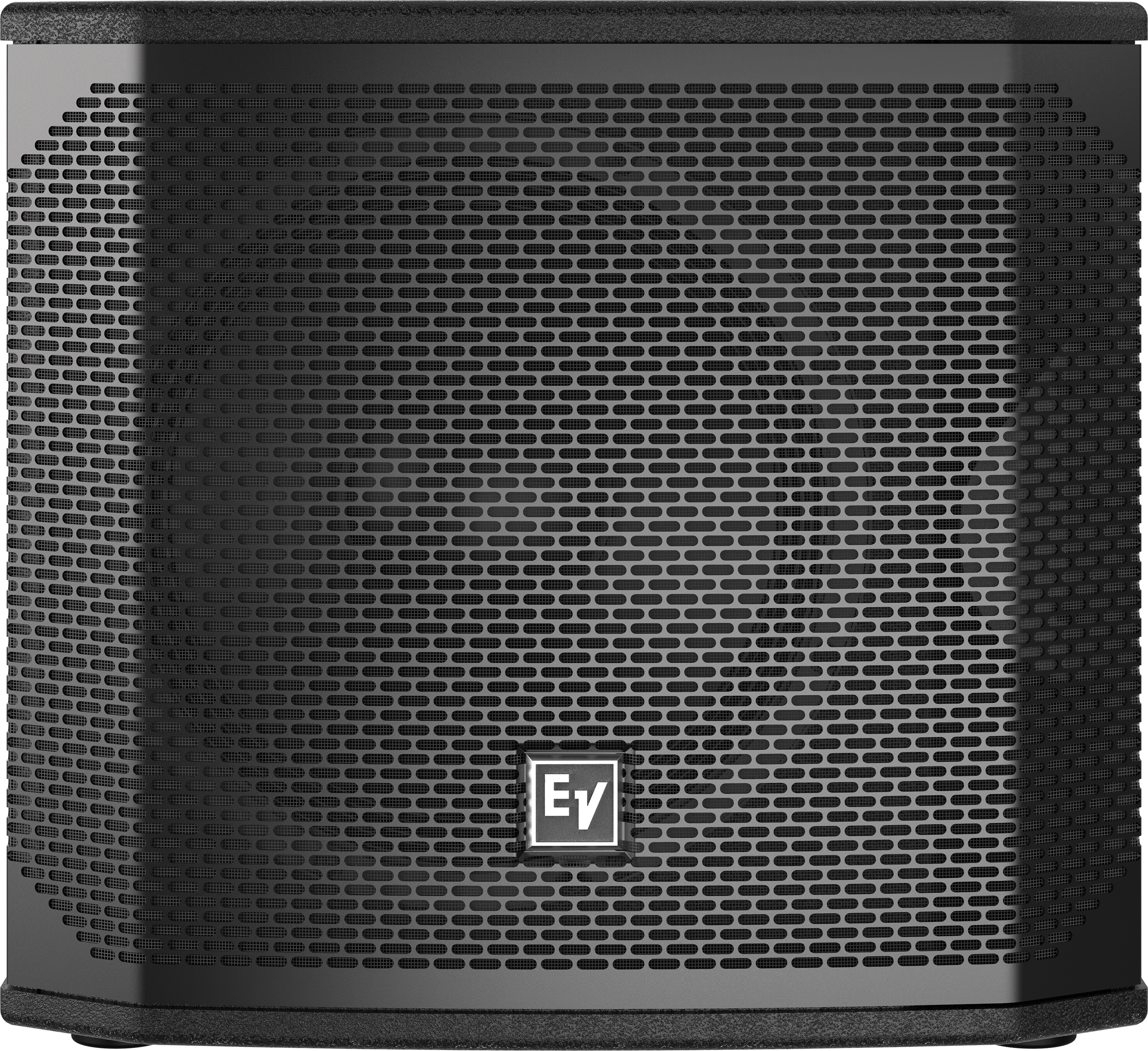

ELX200 12S Passive Front 2400px

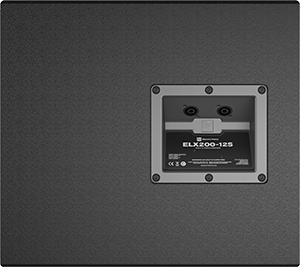

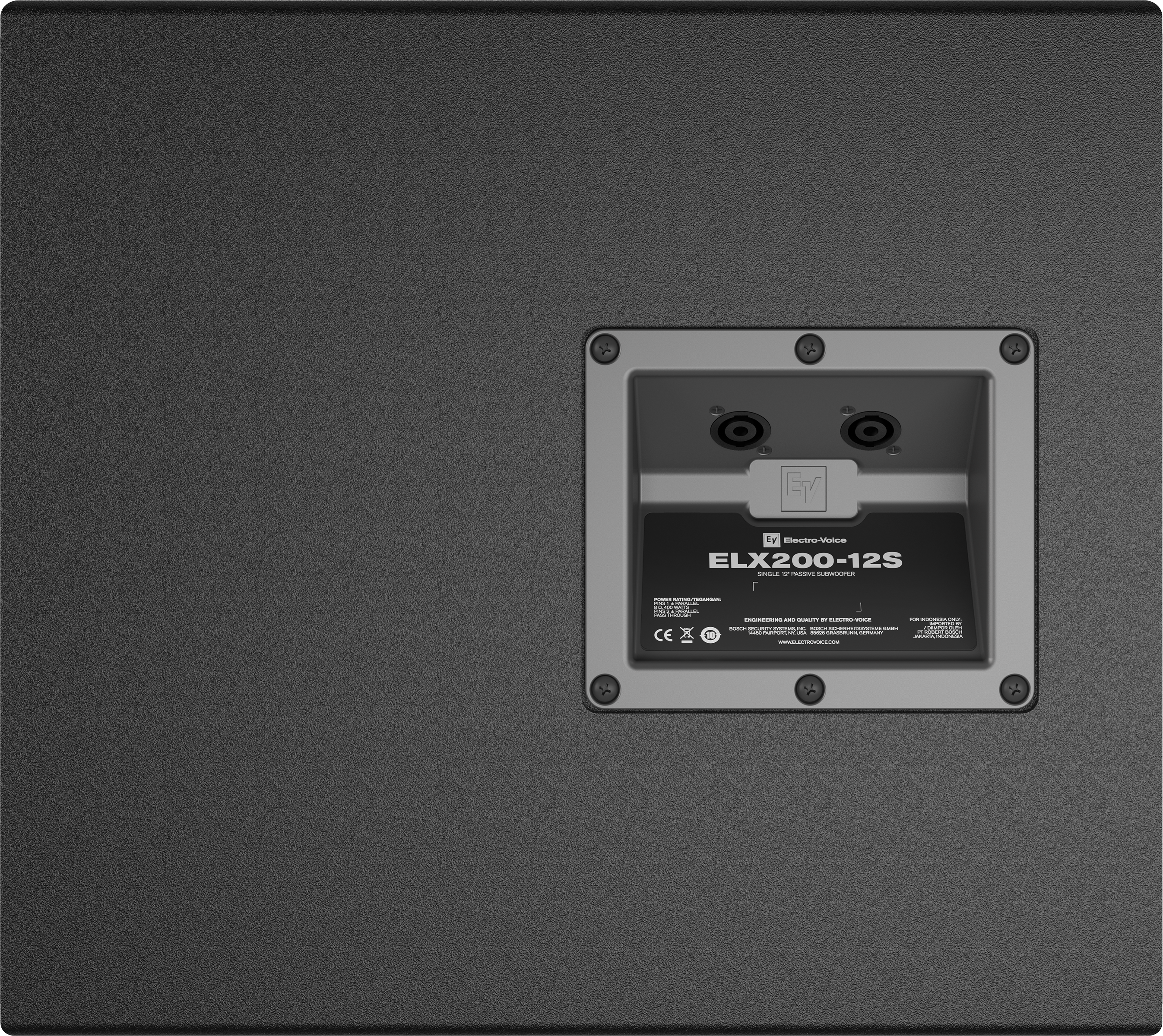

ELX200 12S Rear Passive 2400px

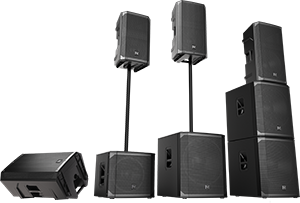

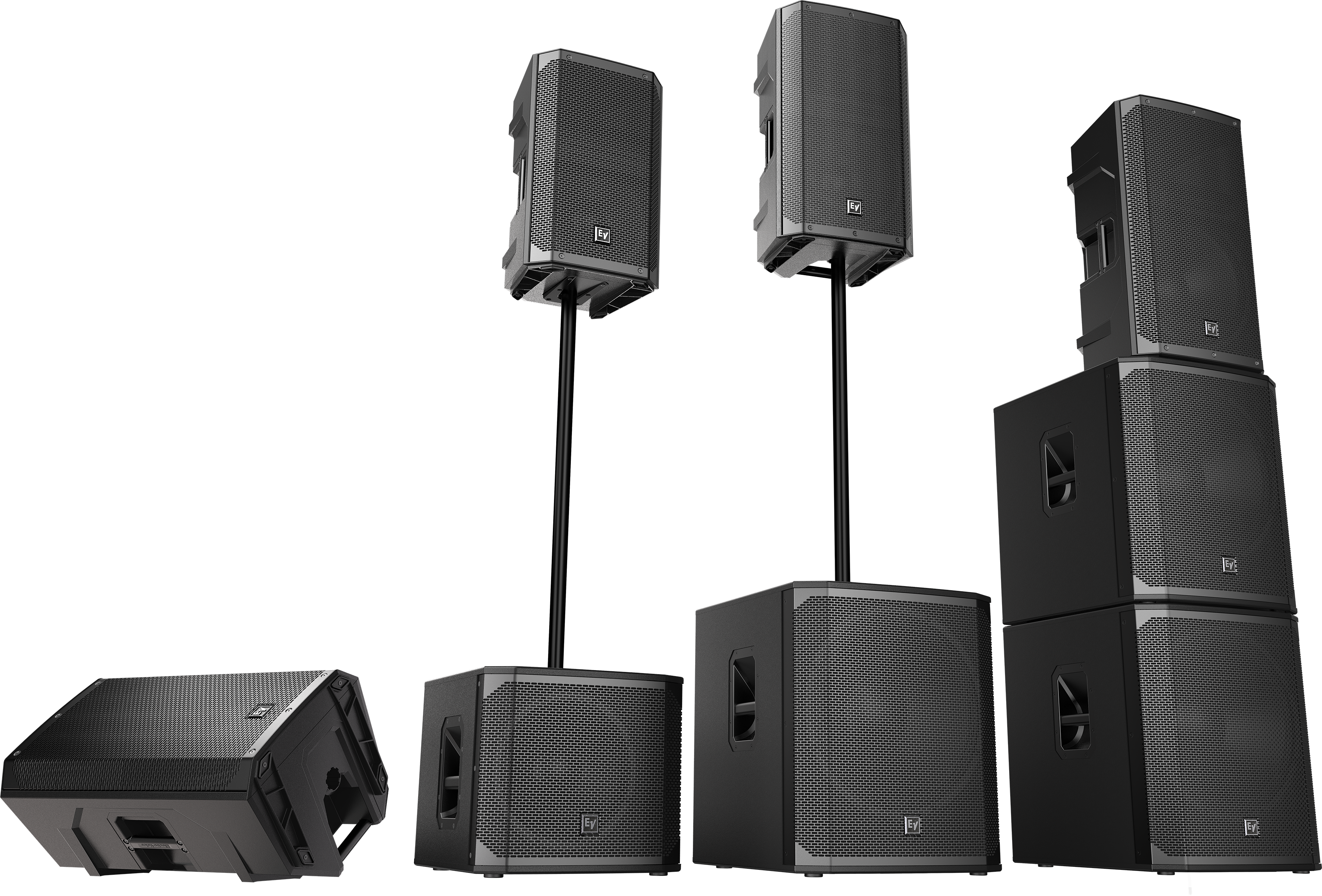

ELX200 Passive Family 2400px
