EVF Arrayable point-source loudspeaker systems

Compact front-loaded full-range systems with 12" & 15" woofers

Seven coverage patterns aid the design process.
High maximum SPL output capability with extremely low distortion.
All 12" and 15" enclosures and the 18" subwoofer have the same height, promoting attractive clusters.
Biampable, but sophisticated internal crossover/EQ networks make cost-saving passive operation very attractive.
Available in black or white in one of three versions: EVCoat (interior use), PI (indirect weather exposure) and FG (fiberglass—direct exposure).

The most popular class of loudspeakers for sound reinforcement is full-range two-way systems with 12" or 15" front-loaded woofers. This configuration provides an attractive combination of high performance, modest size and modest cost, particularly appropriate in acoustically well-behaved environments. EVF expands on Electro-Voice’s popular FRi and FRi+ series by adding supplementary low-frequency systems and more coverage patterns, providing a dedicated solution for installed sound applications.

While EVF systems can be biamped, highly sophisticated internal fourth-order EQ/crossover networks provide superb passive performance and eliminate the need for digital signal processing and multiple amplifier channels.

Models

EVF-1122D/126
Premium Arrayable point-source 12" loudspeaker

EVF-1122D/126-FG
Premium Arrayable point-source 12” 120°x60° fully-weatherized loudspeaker

EVF-1122D/64
Premium Arrayable point-source 12" loudspeaker

EVF-1122D/64-FG
Premium Arrayable point-source 12” 60°x40° fully-weatherized loudspeaker

EVF-1122D/66
Premium Arrayable point-source 12" loudspeaker

EVF-1122D/66-FG
Premium Arrayable point-source 12” 60°x60° fully-weatherized loudspeaker

EVF-1122D/94
Premium Arrayable point-source 12" loudspeaker

EVF-1122D/94-FG
Premium Arrayable point-source 12” 90°x40° fully-weatherized loudspeaker

EVF-1122D/96
Premium Arrayable point-source 12" loudspeaker

EVF-1122D/96-FG
Premium Arrayable point-source 12” 90°x60° fully-weatherized loudspeaker

EVF-1122D/99
Premium Arrayable point-source 12" loudspeaker

EVF-1122D/99-FG
Premium Arrayable point-source 12” 90°x90° fully-weatherized loudspeaker

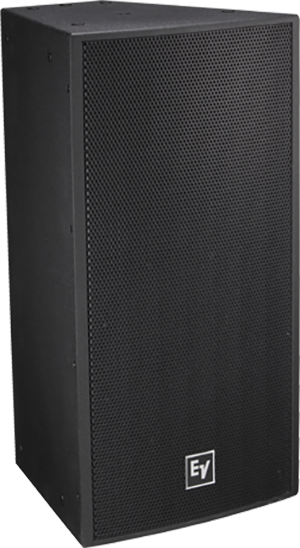

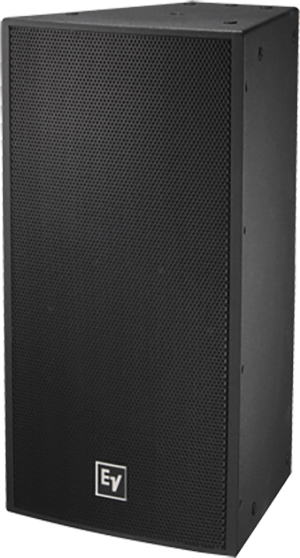

EVF-1122S 126
Arrayable point-source 12" loudspeaker

EVF-1122S 64
Arrayable point-source loudspeaker

EVF-1122S 66
Arrayable point-source 12" loudspeaker

EVF-1122S 94
Arrayable point-source 12" loudspeaker

EVF-1122S 96
Arrayable point-source 12" loudspeaker

EVF-1122S 99
Arrayable point-source 12" loudspeaker

EVF-1151S
15" front‑loaded bass element

EVF-1152D/43
Premium Arrayable point-source 15" loudspeaker

EVF-1152D/43-FG
Premium Arrayable point-source 15” 40°x30° fully-weatherized loudspeaker

EVF-1152D/64
Premium Arrayable point-source 15" loudspeaker

EVF-1152D/64-FG
Premium Arrayable point-source 15” 60°x40° fully-weatherized loudspeaker

EVF-1152D/66
Premium Arrayable point-source 15" loudspeaker

EVF-1152D/66-FG
Premium Arrayable point-source 15” 60°x60° fully-weatherized loudspeaker

EVF-1152D/94
Premium Arrayable point-source 15" loudspeaker

EVF-1152D/94-FG
Premium Arrayable point-source 15” 90°x40° fully-weatherized loudspeaker

EVF-1152D/96
Premium Arrayable point-source 15" loudspeaker

EVF-1152D/96-FG
Premium Arrayable point-source 15" 90°x60° fully-weatherized loudspeaker

EVF-1152D/99
Premium Arrayable point-source 15" loudspeaker

EVF-1152D/99-FG
Premium Arrayable point-source 15" 90°x90° fully-weatherized loudspeaker

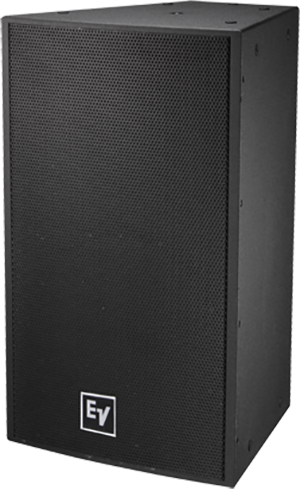

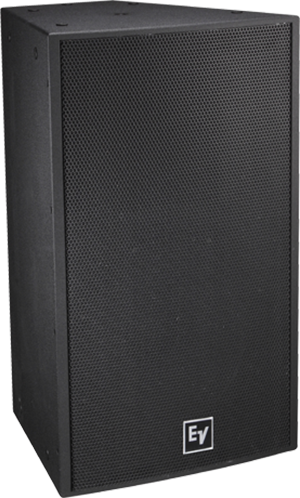

EVF-1152S 43
Arrayable point-source 15" loudspeaker

EVF-1152S 64
Arrayable point-source 15" loudspeaker

EVF-1152S 66
Arrayable point-source 15" loudspeaker

EVF-1152S 94
Arrayable point-source 15" loudspeaker

EVF-1152S 96
Arrayable point-source 15" loudspeaker

EVF-1152S 99
Arrayable point-source 15" loudspeaker

EVF-1181S
18" front‑loaded subwoofer

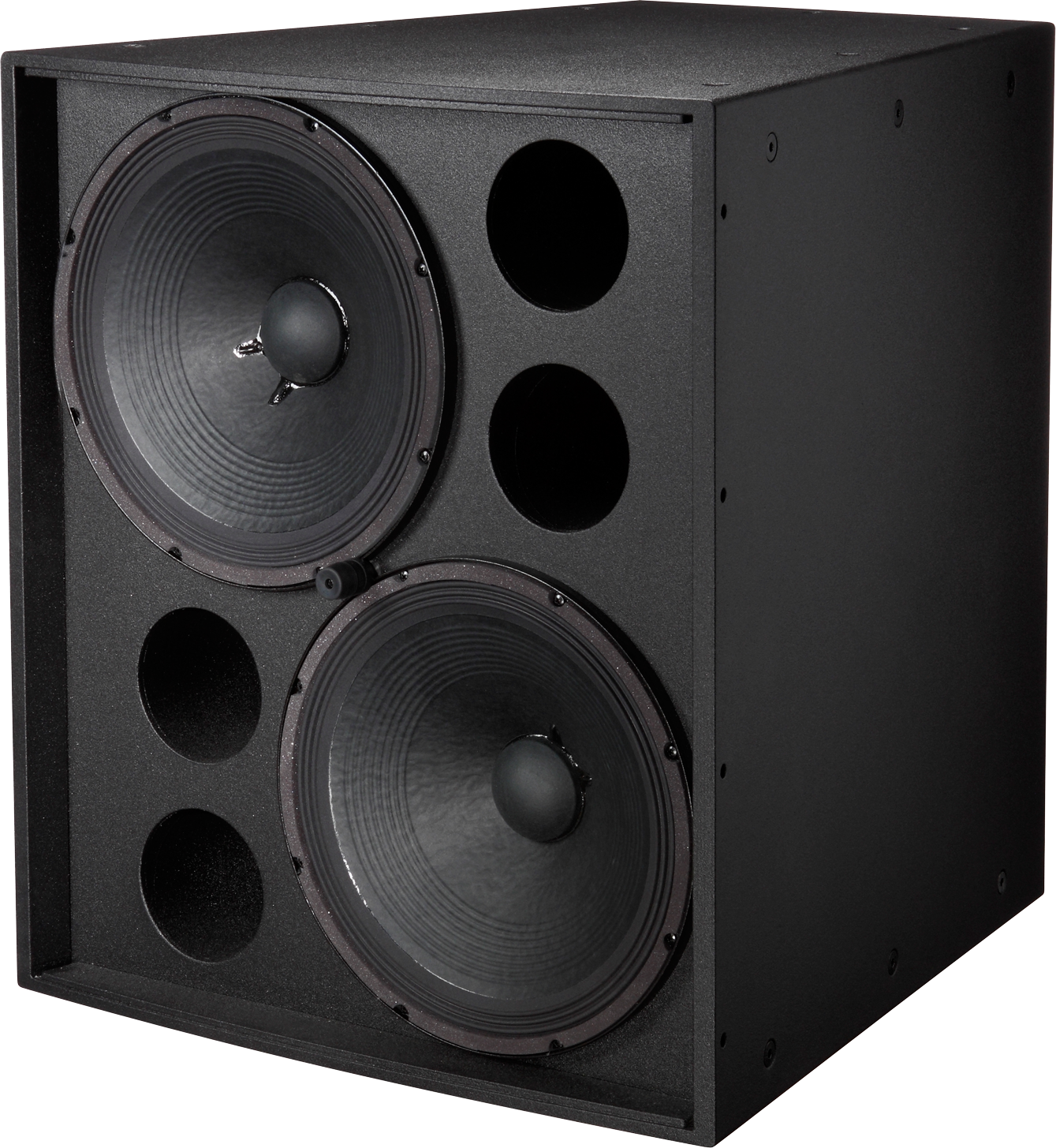

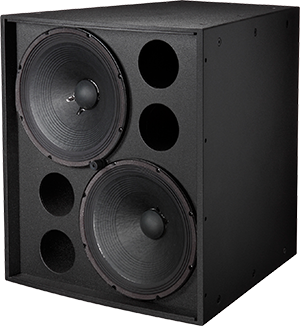

EVF-2151D
Dual 15" front‑loaded subwoofer

EVF-D 12
Premium Arrayable 12" loudspeaker

EVF-D 15
Premium Arrayable 15" loudspeaker

EVF-S 12
Arrayable point-source 12" loudspeaker

EVF-S 15
Arrayable point-source 15" loudspeaker


	EVF-1122D/126 Premium Arrayable point-source 12" loudspeaker	EVF-1122D/126-FG Premium Arrayable point-source 12” 120°x60° fully-weatherized loudspeaker	EVF-1122D/64 Premium Arrayable point-source 12" loudspeaker	EVF-1122D/64-FG Premium Arrayable point-source 12” 60°x40° fully-weatherized loudspeaker	EVF-1122D/66 Premium Arrayable point-source 12" loudspeaker	EVF-1122D/66-FG Premium Arrayable point-source 12” 60°x60° fully-weatherized loudspeaker	EVF-1122D/94 Premium Arrayable point-source 12" loudspeaker	EVF-1122D/94-FG Premium Arrayable point-source 12” 90°x40° fully-weatherized loudspeaker	EVF-1122D/96 Premium Arrayable point-source 12" loudspeaker	EVF-1122D/96-FG Premium Arrayable point-source 12” 90°x60° fully-weatherized loudspeaker	EVF-1122D/99 Premium Arrayable point-source 12" loudspeaker	EVF-1122D/99-FG Premium Arrayable point-source 12” 90°x90° fully-weatherized loudspeaker	EVF-1122S 126 Arrayable point-source 12" loudspeaker	EVF-1122S 64 Arrayable point-source loudspeaker	EVF-1122S 66 Arrayable point-source 12" loudspeaker	EVF-1122S 94 Arrayable point-source 12" loudspeaker	EVF-1122S 96 Arrayable point-source 12" loudspeaker	EVF-1122S 99 Arrayable point-source 12" loudspeaker	EVF-1151S 15" front‑loaded bass element	EVF-1152D/43 Premium Arrayable point-source 15" loudspeaker	EVF-1152D/43-FG Premium Arrayable point-source 15” 40°x30° fully-weatherized loudspeaker	EVF-1152D/64 Premium Arrayable point-source 15" loudspeaker	EVF-1152D/64-FG Premium Arrayable point-source 15” 60°x40° fully-weatherized loudspeaker	EVF-1152D/66 Premium Arrayable point-source 15" loudspeaker	EVF-1152D/66-FG Premium Arrayable point-source 15” 60°x60° fully-weatherized loudspeaker	EVF-1152D/94 Premium Arrayable point-source 15" loudspeaker	EVF-1152D/94-FG Premium Arrayable point-source 15” 90°x40° fully-weatherized loudspeaker	EVF-1152D/96 Premium Arrayable point-source 15" loudspeaker	EVF-1152D/96-FG Premium Arrayable point-source 15" 90°x60° fully-weatherized loudspeaker	EVF-1152D/99 Premium Arrayable point-source 15" loudspeaker	EVF-1152D/99-FG Premium Arrayable point-source 15" 90°x90° fully-weatherized loudspeaker	EVF-1152S 43 Arrayable point-source 15" loudspeaker	EVF-1152S 64 Arrayable point-source 15" loudspeaker	EVF-1152S 66 Arrayable point-source 15" loudspeaker	EVF-1152S 94 Arrayable point-source 15" loudspeaker	EVF-1152S 96 Arrayable point-source 15" loudspeaker	EVF-1152S 99 Arrayable point-source 15" loudspeaker	EVF-1181S 18" front‑loaded subwoofer	EVF-2151D Dual 15" front‑loaded subwoofer	EVF-D 12 Premium Arrayable 12" loudspeaker	EVF-D 15 Premium Arrayable 15" loudspeaker	EVF-S 12 Arrayable point-source 12" loudspeaker	EVF-S 15 Arrayable point-source 15" loudspeaker
Frequency Range (-10 dB)	49 Hz – 21 kHz	66 Hz - 21 kHz	49 Hz – 21 kHz	66 Hz - 21 kHz	49 Hz – 21 kHz	66 Hz - 21 kHz	49 Hz – 21 kHz	66 Hz - 21 kHz	49 Hz – 21 kHz	66 Hz - 21 kHz	49 Hz – 21 kHz	66 Hz - 21 kHz	49 Hz – 19 kHz	49 Hz – 19 kHz	49 Hz – 19 kHz	49 Hz – 19 kHz	49 Hz – 19 kHz	49 Hz – 19 kHz	46–124 HzkHz	40 Hz – 21 kHz	66 Hz - 21 kHz	40 Hz – 21 kHz	66 Hz - 21 kHz	40 Hz – 21 kHz	66 Hz - 21 kHz	40 Hz – 21 kHz	66 Hz - 21 kHz	40 Hz – 21 kHz	66 Hz - 21 kHz	40 Hz – 21 kHz	66 Hz - 21 kHz	41 Hz – 18 kHz	41 Hz – 18 kHz	41 Hz – 18 kHz	41 Hz – 18 kHz	41 Hz – 18 kHz	41 Hz – 18 kHz	28–650 HzkHz	30 Hz – 3.2 kHz	49 - 21kHz	40 - 21kHz	49 - 19kHz	41 - 18kHz (Half-space measurement in passive mode, FG (full outdoors) versions have no enclosure vents, somewhat reducing their low frequency response )
Suspension	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 threaded suspension points	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	22 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	28 M10 threaded suspension points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)	(22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
Weatherized	No	Yes	No	Yes	No	Yes	No	Yes	No	Yes	No	Yes	No	No	No	No	No	No	No	No	Yes		Yes	No	Yes	No	Yes	No	Yes	No	Yes	No	No	No	No	No	No	No	No	No	No	No	No
Minimum Impedance	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	6Ω	Passive: N/A, Biamp: 6 Ω	Passive: N/A, Biamp: 2.7 Ω	6Ω	6Ω	6Ω	6Ω
Nominal Impedance (Passive)	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	Passive: 4 , Biamp: 8 Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	Passive: N/A, Biamp: 8 Ω	Passive: N/A, Biamp: 4 Ω	8Ω	8Ω	8Ω	8Ω
HF Transducer	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver		3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	3" DH7N diaphragm compression driver	DH7N, 3” (76 mm) diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver	2" ND2B diaphragm compression driver			DH7N 3-inch (76 mm) diaphragm compression driver	DH7N 3-inch (76 mm) diaphragm compression driver	ND2B 2-inch (51 mm) diaphragm compression driver	ND2B 2-inch (51 mm) diaphragm compression driver
Speaker Type	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Subwoofer	Full-Range, Two-Way	Full-Range, Two-Way		Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Subwoofer	Subwoofer	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way	Full-Range, Two-Way
Frequency Response (-3 dB)¹	57 Hz – 18 Hz	118 Hz - 18 Hz	57 Hz – 18 Hz	118 Hz - 18 Hz	57 Hz – 18 Hz	118 Hz - 18 Hz	57 Hz – 18 Hz	118 Hz - 18 Hz	57 Hz – 18 Hz	118 Hz - 18 Hz	57 Hz – 18 Hz	118 Hz - 18 Hz	58 Hz – 16 Hz	58 Hz – 16 Hz	58 Hz – 16 Hz	58 Hz – 16 Hz	58 Hz – 16 Hz	58 Hz – 16 Hz	67–95 HzHz	70 Hz – 18 Hz	118 Hz - 18 Hz	70 Hz – 18 Hz	118 Hz - 18 Hz	70 Hz – 18 Hz	118 Hz - 18 Hz	70 Hz – 18 Hz	118 Hz - 18 Hz	70 Hz – 18 Hz	118 Hz - 18 Hz	70 Hz – 18 Hz	118 Hz - 18 Hz	70 Hz – 14 Hz	70 Hz – 14 Hz	70 Hz – 14 Hz	70 Hz – 14 Hz	70 Hz – 14 Hz	70 Hz – 14 Hz	35–100 HzHz	40 Hz – 2.6 Hz	57 - 18000Hz	70 - 18000Hz	58 - 16000Hz	70 - 14000Hz ()
LF Nominal Impedance	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω								8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω	8Ω
Max. SPL/1m (calc)²	131dB	131dB	131dB	131dB	131dB	131dB	131dB	131dB	131dB	131dB	131dB	131dB	131 dBdB	131 dBdB	131 dBdB	131 dBdB	131 dBdB	131 dBdB	131dB	134dB	131dB	134dB	131dB	134dB	131dB	134dB	131dB	134dB	131dB	134dB	131dB	134 dBdB	134 dBdB	134dB	134dB	134dB	134dB	131dB	137dB	131dB	134dB	131dB	134dB
Coverage (Nominal -6 dB) H	120°	120°	60°	60°	60°	60°	90°	90°	90°	90°	90°	90°	120°	60°	60°	90°	90°	90°	360°	40°	40°	60°	60°	60°	60°	90°	90°	90°	90°	90°	90°	40°	60°	60°	90°	90°	90°	360°	360°	120°	90°	120°	90°
Coverage (Nominal -6 dB) V	60°	60°	40°	40°	60°	60°	40°	40°	60°	60°	90°	90°	60°	40°	60°	40°	60°	90°		30°	30°	40°	40°	60°	60°	40°	40°	60°	60°	90°	90°	30°	40°	60°	40°	60°	90°		Omnidirectional°
LF Transducer	12" DVX3121A woofer	DVX3121A, 12” (305 mm) driver	12" DVX3121A woofer	DVX3121A, 12” (305 mm) driver	12" DVX3121A woofer	DVX3121A, 12” (305 mm) driver	12" DVX3121A woofer	DVX3121A, 12” (305 mm) driver	12" DVX3121A woofer	DVX3121A, 12” (305 mm) driver	12" DVX3121A woofer	DVX3121A, 12” (305 mm) driver	12" SMX2121 driver	12" SMX2121 driver	12" SMX2121 driver	12" SMX2121 driver	12" SMX2121 driver	12" SMX2121 driver	15" EVS15SB driver	15" DVX3151A woofer	- DVX3121A, 12” (305 mm) driver	15" DVX3151A woofer	- DVX3121A, 12” (305 mm) driver	15" DVX3151A woofer	- DVX3121A, 12” (305 mm) driver	15" DVX3151A woofer	- DVX3121A, 12” (305 mm) driver	15" DVX3151A woofer	- DVX3121A, 12” (305 mm) driver	15" DVX3151A woofer	- DVX3121A, 12” (305 mm) driver	15" SMX2151 driver	15" SMX2151 driver	15" SMX2151 driver	15" SMX2151 driver	15" SMX2151 driver	15" SMX2151 driver	18" EVS18SB driver	Two 15" DVX3159A drivers	DVX3121A 12-inch (305 mm) woofer	DVX3151A 15-inch (381 mm) woofer	SMX2121 12-inch (305 mm) driver	SMX2151 15-inch (381 mm) driver
System Power Handling (Continuous/Program/Peak)	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	400 , 800 , 1600 Watts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	600 , 1200 , 2400 Watts	600 continuous, 2400 peakWatts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	500 , 1000 , 2000 Watts	400 , 800 , 1600 Watts	1000 , 2000 , 4000 Watts	600, 1200, 2400Watts	600, 1200, 2400Watts	500, 1000, 2000Watts	500, 1000, 2000Watts
Crossover Frequency	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1450Hz	1450Hz	1450Hz	1450Hz	1450Hz	1450Hz		1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1300Hz	1450Hz	1450Hz	1450Hz	1450Hz	1450Hz	1450Hz
Enclosure Material	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch with fiberglass finish	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch	13-ply weather-resistant birch
Grille	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	18 GA stainless steel with hydrophobic cloth	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16 ga Galvanneal, Powdercoat with screen behind PI and FG versions: 18 ga Stainless, Powdercoat with hydrophobic cloth behind	Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind	Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind	Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind	Standard versions: 16-ga Galvanneal, Powdercoat, with screen behind PI and FG versions: 18-ga Stainless, Powdercoat, with hydrophobic cloth behind
Sensitivity 1 W/1 m	97dB	97 (1 W/1 m)dB	97dB	97 (1 W/1 m)dB	97dB	97 (1 W/1 m)dB	97dB	97 (1 W/1 m)dB	97dB	97 (1 W/1 m)dB	97dB	97 (1 W/1 m)dB	98 dBdB	98 dBdB	98 dBdB	98 dBdB	98 dBdB	98 dBdB	99dB	100dB	97 (1 W/1 m)dB	100dB	97 (1 W/1 m)dB	100dB	97 (1 W/1 m)dB	100dB	97 (1 W/1 m)dB	100dB	97 (1 W/1 m)dB	100dB	97 (1 W/1 m)dB	101 dBdB	101 dBdB	101dB	101dB	101dB	101dB	99dB	101dB	97dB	100dB	98dB	101dB
Height	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)		30.26" (768.6mm)	30.26" (768.6mm)	30.26" (768.6mm)
Width	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	16" (406.3mm)	18.5" (470mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	18.5" (469.8mm)	26.6" (675.6mm)	26.6" (675.6mm)		18.5" (469.8mm)	16" (406.3mm)	18.5" (469.8mm)
Recommended High-Pass Frequency	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	65Hz	35Hz	45Hz	65Hz	45Hz	65Hz	45Hz	65Hz	45Hz	65Hz	45Hz	65Hz	45Hz	65Hz	45Hz	45Hz	45Hz	45Hz	45Hz	45Hz	33Hz	35Hz	65Hz	45Hz	65Hz	45Hz
Depth	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	16.27" (413.3mm)	18.39" (467mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	18.37" (466.6mm)	28.6" (726.4mm)	28.6" (726.4mm)		18.37" (466.6mm)	16.27" (413.3mm)	18.37" (466.6mm)
Weight Net	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	65.48lbs (29.7kg)	63.05lbs (28.6kg)	63.05lbs (28.6kg)	63.05lbs (28.6kg)	63.05lbs (28.6kg)	63.05lbs (28.6kg)	63.05lbs (28.6kg)	62.61lbs (28.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	70.77lbs (32.1kg)	70.77lbs (32.1kg)	70.77lbs (32.1kg)	70.77lbs (32.1kg)	70.77lbs (32.1kg)	70.77lbs (32.1kg)	101.19lbs (45.9kg)	117.07lbs (53.1kg)		75.84lbs (34.4kg)	63.05lbs (28.6kg)	70.77lbs (32.1kg)
Shipping Weight	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)	75.84lbs (34.4kg)								86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)	86.2lbs (39.1kg)
Available Coverage Patterns (Nominal -6 dB) HxV	120 x 60°	120 x 60°	60 x 40°	60 x 40°	60 x 60°	60 x 60°	90 x 40°	90 x 40°	90 x 60°	90 x 60°	90 x 90°	90 x 90°	120 x 60°	60 x 40°	60 x 60°	90 x 40°	90 x 60°	90 x 90°	Omnidirectional in normal operating range°	40 x 30°	40 x 30°	60 x 40°	60 x 40°	60 x 60°	60 x 60°	90 x 40°	90 x 40°	90 x 60°	90 x 60°	90 x 90°	90 x 90°	40 x 30°	60 x 40°	60 x 60°	90 x 40°	90 x 60°	90 x 90°	Omnidirectional in normal operating range°	Omnidirectional in normal operating range°	60x40, 60x60, 90x40, 90x60, 90x90, 120x60°	40x30, 60x40, 60x60, 90x40, 90x60, 90x90°	60x40, 60x60, 90x40, 90x60, 90x90, 120x60°	40x30, 60x40, 60x60, 90x40, 90x60, 90x90°
Input Connections	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual gland nut input panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Dual four-pin 10 AWG Phoenix/Euro Block screw-terminals, CDG dual-gland-nut input panel cover included for weatherizing	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual-gland-nut input-panel cover	Euroblock; PI and FG versions include dual gland nut input panel cover	Euroblock; PI and FG versions include dual gland nut input panel cover	Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover	Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover	Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover	Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
Environmental Specs	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55	Standard versions: IEC 60529 IP44 PI and FG versions: IEC 60529 IP55
Internal Passive Crossover Frequency	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1450Hz	1450Hz	1450Hz	1450Hz	1450Hz	1450Hz	Hz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1300Hz	1300 HzHz	1450Hz	1450Hz	1450Hz	1450Hz	1450Hz	1450Hz	Hz	Hz	1300Hz	1300Hz	1450Hz	1450Hz
Passive Power Handling	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2000W peak	2000W peak	2000W peak	2000W peak	2000W peak	2000W peak	1600W peak	2400W peak	2400W peak		2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2400W peak	2000W peak	2000W peak	2000W peak	2000W peak	2000W peak	2000W peak	1600W peak	4000W peak	2400W peak	2400W peak	2000W peak	2000W peak
Net Weight	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	65.5 lb (29.7 kg)	63.1 lb (28.6 kg)	63.1 lb (28.6 kg)	63.1 lb (28.6 kg)	63.1 lb (28.6 kg)	63.1 lb (28.6 kg)	63.1 lb (28.6 kg)	62.6 lb (28.4 kg)	75.7 lb (34.4 kg)	65.5 lb (29.7 kg)	75.7 lb (34.4 kg)	65.5 lb (29.7 kg)	75.7 lb (34.4 kg)	65.5 lb (29.7 kg)	75.7 lb (34.4 kg)	65.5 lb (29.7 kg)	75.7 lb (34.4 kg)	65.5 lb (29.7 kg)	75.7 lb (34.4 kg)	65.5 lb (29.7 kg)	70.9 lb (32.1 kg)	70.9 lb (32.1 kg)	70.9 lb (32.1 kg)	70.9 lb (32.1 kg)	70.9 lb (32.1 kg)	70.9 lb (32.1 kg)	101.2 lb (45.9 kg)	117 lb (53.1 kg)
Dimensions (H x W x D)	30.26" x 16.00" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 16.00" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 16.00" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 16.00" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 16.00" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 16.00" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26" x 16" x 16.27" (768.6 x 406.3 x 413.3 )mm	30.26" x 18.5" x 18.4" (768.6 x 470 x 467 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26” x 16.00” x 16.27” (768.6 x 406.3 x 413.3 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26" x 18.5" x 18.37" (768.6 x 469.8 x 466.6 )mm	30.26" x 26.6" x 28.6" (768.6 x 675.6 x 726.4 )mm	30.26" x 26.6" x 28.6" (768.6 x 675.6 x 726.4 )mm
Nominal Impedance																																						Passive: N/A, Bi-amp: 8Ω ()	4Ω
Coverage (Nominal -6 dB)																			Omnidirectional in normal operating range																			Omnidirectional in normal operating range	Omnidirectional in normal operating range
Internal Passive Low-Pass Filter																			100 ()
