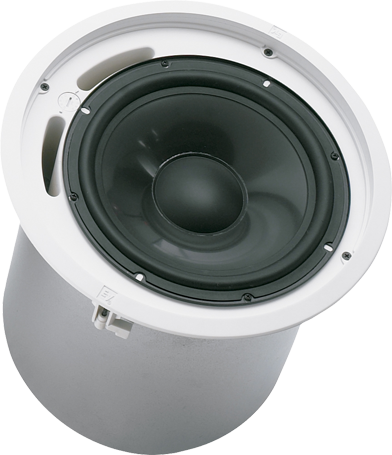

EVID C10.1
10" high‑power ceiling subwoofer
- Supplemental LF for ceiling systems
- High-excursion woofer in ported enclosure for extended lows
- Low pass network with overload protection
- Integrated transformer for 70 V, 100 V, or 8 Ω use
- Front-panel mode/wattage selector
- Internally damped heavy-gauge steel enclosure
- Safe, easy installation with included tile bridge and mounting ring
- White semi-gloss perforated grille
- Complete package, requires no additional accessories
Specifications
| Frequency Range (-10 dB) | 45 - 180kHz |
| Weight Net | 15.43lbs (7kg) |
| Height | 11.93" (303mm) |
Specifications |
|
| Grille | Powder-coated steel |
| Weatherized | No |
| Flying | No |
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel |
| LF Transducer | 10-inch polypropylene cone |
| System Power Handling (Continuous/Program/Peak) | 150Watts |
| Max. SPL/1m (calc) | 122dB |
| Sensitivity 1 W/1 m | 94dB |
| Mounting Systems | Integrated 3-point toggle anchors |
| Power Rating | 600W |
| Diameter (Max) | 12.6" (320mm) |
| Transformer Taps (Transformer Version Only) | (7.5 - 70 V only), 15, 30, 60 |
| Speaker Type | Dual ported cabinet, internally damped |
| Transformer | Yes |
| Available Color | White (paintable surface) |
| Input Formats | 8ω, 70 V, 100 V |
| Coverage (Nominal -6 dB) | 180 |
| Chassis Size | 10" (254mm) |
