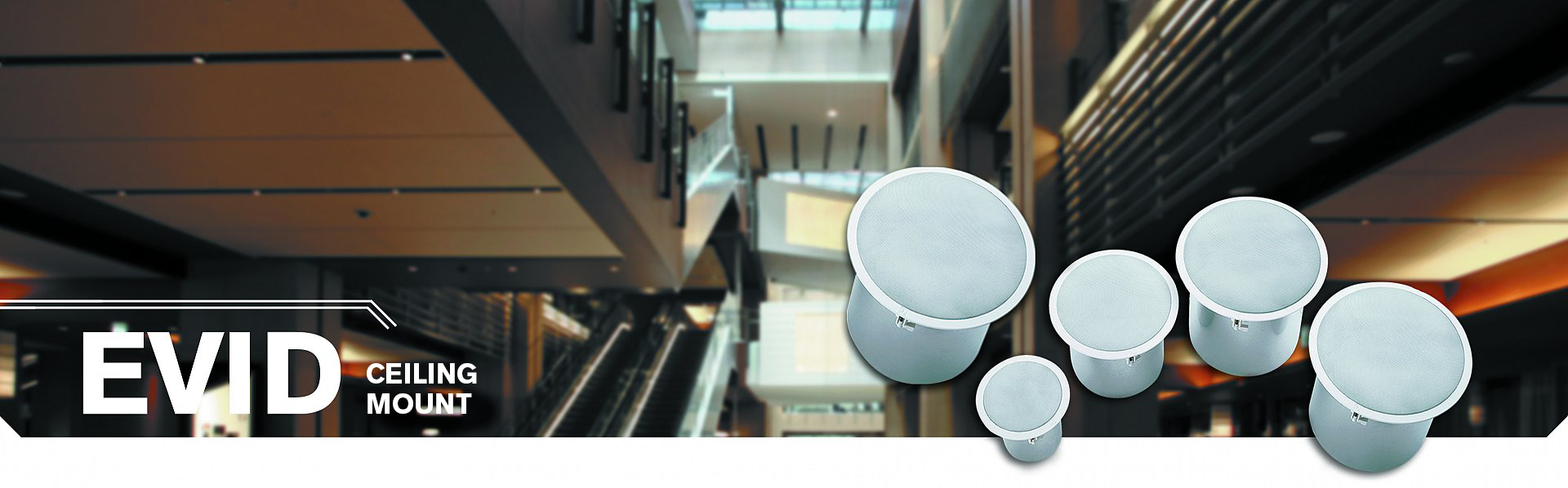

EVID ceiling mount speakers
Premium in‑ceiling speakers
Designed with both the contractor and listener in mind, EVID ceiling speakers are high-performance problemsolvers that deliver exceptional sound in even the most challenging situations. From the compact power of the C4.2 to the exclusive waveguide‑coupled design of the C8.2HC, each great-sounding EVID solution is uniquely suited to handle installer needs across a specific range of intended applications. Sonically superior and aesthetically pleasing, every EVID ceiling model installs with ease and provides lasting value. For commercial sound across all venue types, EVID has the ceiling covered.
Models
 |
 |
 |
 |
 |
 |
 |
 |
 |
 | |
EVID C4.2 |
EVID-C4.2LP |
EVID-C6.2 |
EVID-PC6.2 |
EVID C8.2 |
EVID-PC8.2 |
EVID C8.2HC |
EVID C8.2LP |
EVID C12.2 |
EVID C10.1 | |
| Max Calculated SPL | 60 watt Transformer coupled @ 4 meters: 92 dB 100 watt Direct coupled @ 4 meters: 95 dBdB | |||||||||
| Frequency Range (-10 dB) | 65 - 20000kHz | 50 - 20kHz | 50 - 20000kHz | 50 - 20000kHz | 45 - 180kHz | |||||
| Weatherized | No | No | No | No | No | |||||
| Flying | No | |||||||||
| HF Transducer | 0.75-inch (19 mm) Ti Mylar Laminate Dome | 35 mm compression driver | 1-inch (25 mm) Ti Mylar Laminate Dome | 35 mm compression driver | 1-inch (25 mm) Ti Mylar Laminate Dome | 1 in (25 mm) Ti Mylar laminate | 1-inch (25 mm) () | |||
| Speaker Type | Ported cabinet, internally damped, two-way () | Ported cabinet, internally damped, two-way (passive crossover included) | Ported cabinet, internally damped, two-way (passive crossover included) | Ported cabinet, internally damped two-way () | Dual ported cabinet, internally damped | |||||
| Frequency Response (-3 dB)¹ | 65 - 20,000Hz | |||||||||
| Frequency Range (-10 dB)¹ | 40 - 20kHz | |||||||||
| Max. SPL/1m (calc)² | 108 db avg, 114 pkdB | 126dB () | 122dB | |||||||
| LF Transducer | 4-inch polypropylene cone | 165 mm (6.5 in) | 8-inch polypropylene cone | 200 mm (8 in) | 8-inch polypropylene cone plus waveguide | 8 in. (200 mm) Polypropylene cone | 12-inch EVID 920-8B () | 10-inch polypropylene cone | ||
| System Power Handling (Continuous/Program/Peak) | 50Watts () | 100Watts () | 100Watts () | 100Watts | 150Watts | |||||
| Power Rating | 200W | 200W | 300W | 200W | 300W | 64W | 600W | |||
| HF Power Handling | 200 W program, 100 W pink noiseWatts | 200W program, 100W pink noiseWatts | ||||||||
| Crossover Frequency | 2000Hz | |||||||||
| Connector Type | Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size | Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size | ||||||||
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel | ABS plastic (UL94V-0) baffle, steel back can | Steel enclosure and UL94V-0 rated baffle and bezel | ABS plastic (UL94V-0) baffle, steel back can | Steel enclosure and UL94V-0 rated baffle and bezel | Steel enclosure and UL94V-0 rated baffle and bezel | Steel enclosure and UL94V-0 rated baffle and bezel | |||
| Grille | Powder-coated steel | Color-matched steel grille with fabric | Powder-coated steel | Color-matched steel grille with fabric | Powder-coated steel | Perforated powder coated steel wit safety tether | Powder-coated steel | Powder-coated steel | ||
| Available Color | White (paintable surface) | White | White (paintable surface) | White | White (paintable surface) | White (paintable surface) () | White (paintable surface) | |||
| Sensitivity 1 W/1 m | 86dB | 87dB | 91dB | 88dB | 93dB | 100dB | 94dB | |||
| Height | 6.93" (176mm) | 10.24" (260mm) | 7.01" (178mm) | 12.76" (324mm) | 11.93" (303mm) | 13.11" (333mm) | 11.93" (303mm) | |||
| Weight Net | 5.95lbs (2.7kg) | 15.43lbs (7kg) | 11.02lbs (5kg) | 17.64lbs (8kg) | 13.23lbs (6kg) | 27.12lbs (12.3kg) | 15.43lbs (7kg) | |||
| Shipping Weight | 37.1lbs (16.83kg) | 44.6lbs (20.23kg) | ||||||||
| Connectors | Phoenix type removable, with scre terminals and "loop-thru", accepts 12 ga wire | |||||||||
| Coverage (Nominal -6 dB) | 130 () | 120° | 110 () | 100° | 75 () | 90 () | 180 | |||
| Enclosure | Baffle- UL 94V-O rated AB Backcan-Zinc plated steel | |||||||||
| Chassis Size | 4" (101.6mm) | 203.2 mm | 203.2 mm | 10" (254mm) | ||||||
| Mounting Systems | Integrated 3-point toggle anchors | C ring, tile bridge | Integrated 3-point toggle anchors | C ring, tile bridge | Integrated 3-point toggle anchors | Integrated 3-point toggle anchors | Integrated 3-point toggle anchors | |||
| Diameter (Max) | 7.13" (181mm) | 11.02" (280mm) | 10.63" (270mm) | 12.87" (327mm) | 12.6" (320mm) | 16.3" (414mm) | 12.6" (320mm) | |||
| Dimensions (H x Dia) | 7.0" x 10.6 (178mm x 270mm) | |||||||||
| Impedance | 8Ω | 8Ω | 8 Ohms nominal (transformer bypass) | |||||||
| Cutout Size | 9.76" (248mm) | 11.59" (294.3mm) | 10.75" (272mm) | |||||||
| Net Weight | 11.0 lbs (5.0 kg) | |||||||||
| Maximum SPL | 107 dB avg, 113 pkdB | |||||||||
| Transformer Taps (Transformer Version Only) | (1.88 - 70 V only), 3.75, 7.5, 15, 30 | 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω | (1.88 - 70 V only), 3.75, 7.5, 15, 30 | 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω | (7.5 - 70 V only), 15, 30, 60 | 4 (70 V only), 8, 16, 32, 64 W ASC protected | (7.5 - 70 V only), 15, 30, 60 | |||
| Shipping Weight:(pair) | 24.0 lbs (11.0 kg) | |||||||||
| Support Hardware | Tile bridge, backing plate support cutout template, paint shield | |||||||||
| Freq. Response (-10 dB) | 50 Hz - 20 kHzdb | |||||||||
| Regulatory Approvals | UL1480; UL2043 | UL1480; UL2043 | UL1480; EN54-24; UL2043 | UL1480; UL2043 | UL1480; UL2043 | |||||
| Transformer | Yes | Yes | Yes | Yes | ||||||
| Coverage (Conical) | 110° | |||||||||
| Safety Agency Ratings | UL 1480 Safe for use in air handling spaces per UL 2043 | |||||||||
| Power Handling | 75 W Cont. / 300 W Peak | |||||||||
| Sensitivity (SPL 1W/1m) | 91 dB | |||||||||
| Network | Network and transducers protected 12 dB/oct 2.6 kHz | |||||||||
| Input Formats | 8ω, 70 V, 100 V | 8ω, 70 V, 100 V | 8ω, 70 V, 100 V | 8ω / 70V / 100V | 8ω, 70 V, 100 V | |||||
| LP Height | 10.04" (255mm) | |||||||||
| Transformer Taps | 70V: 1.88, 3.75, 7.5, 15 or 30 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms | |||||||||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
Show more specs
Recommended Amplifiers
recommendedamplifiers-p1
recommendedamplifiers-p2
|
Two-channel power amplifiers for fixed install |
Multi-channel power amplifier for commercial installations |
CPS contractor precision series amplifiers |
PA series multi-channel power for fixed install applications |
|
|---|---|---|---|---|
| Two-Channel | ✓ | |||
| Multi-Channel | ✓ | ✓ | ✓ | |
| powerTANK | ✓ | |||
| DSP | ✓ | |||
| Direct Drive | ✓ | ✓ | ✓ | |
| OMNEO (Dante, OCA) | ||||
| Installation | ✓ | ✓ | ✓ | ✓ |
Downloads
Notice: Undefined index: NL in /net/mtpwspz1/fs0/STNA/html/global/shared_v3/section_support_v5.php on line 128
Notice: Undefined index: NL in /net/mtpwspz1/fs0/STNA/html/global/shared_v3/section_support_v5.php on line 128
Notice: Undefined index: TW in /net/mtpwspz1/fs0/STNA/html/global/shared_v3/section_support_v5.php on line 128
Notice: Undefined index: TW in /net/mtpwspz1/fs0/STNA/html/global/shared_v3/section_support_v5.php on line 128
Technical Documentations
A/E Specification
Application Guide
| Name | Language & Download |
|---|---|
| EVID Ceiling Speaker Systems Application Guide | EN |
Certification/Regulatory
| Name | Language & Download |
|---|---|
| Etl, Ul 1480, Evid-Pc6.2, Evid-Pc8.2, Lc20-Pc60G6-6, Lc20-Pc60G6-8, Authorization To Mark (Atm), Report No. 101881104Crt-001 Certificate | EN |
| Etl, Ul 2043, Evid-Pc6.2, Evid-Pc8.2, Lc20-Pc60G6-6, Lc20-Pc60G6-8, Authorization To Mark (Atm), Report No. 101881104Sat-002 Certificate | EN |
| Evid C4.2Lp, Low Voltage Directive (Lvd), En 62368-1:2014+A11:2017, Ningbo Emtek Certificate No. En180620013S-C1 | EN |
| EVID-C & -FM EU Declaration of Conformity (2024-Mar) | EN |
| EVID-C & -FM UKCA Declaration of Conformity (2024-Mar) | EN |
| EVID-C4.2-C6.2_MARKING UL Certificate of Compliance | EN |
| Evid-C4.2P, Iec Low Voltage, Certificate No. En180620013S-C1 Certificate | EN |
| EVID-C6.2-C4.2LP_ATM_4788471459 UL Certificate of Compliance | EN |
| EVID-CEILING_EVID-PENDANT_UEAY.S2925 UL Certificate of Compliance | EN |
| EVID-PC Ceiling Speakers EU Declaration of Conformity (2023-Sep) | EN |
| EVID-PC Ceiling Speakers UKCA Declaration of Conformity (2023-Sep) | EN |
| Evid-Pc6.2, Lc20-Pc60G6-6, Low Voltage Directive (Lvd), Btl Safety Certificate No. Btl-Lvd-1-S1411C172 | EN |
| Evid-Pc6.2, Lc20-Pc60G6-6, Low Voltage Directive (Lvd), Btl Safety Certificate No. Btl-Lvd-1-S1411C172A | EN |
| Evid-Pc6.2, Lc20-Pc60G6-6, Low Voltage Directive (Lvd), Btl Safety Report No. Btl-Lvd-1-S1411C172 | EN |
| Evid-Pc8.2, Lc20-Pc60G6-8, Low Voltage Directive (Lvd), Btl Safety Certificate No. Btl-Lvd-1-S1411C173 | EN |
| Evid-Pc8.2, Lc20-Pc60G6-8, Low Voltage Directive (Lvd), Btl Safety Certificate No. Btl-Lvd-1-S1411C173A | EN |
| Evid, Low Voltage Directive (Lvd), Ningbo Emtek Certificate No. En140805015S | EN |
Engineering Data Sheet
| Name | Language & Download |
|---|---|
| EVID-PC6.2 Engineering Data Sheet | TW EN NL DE ES FR IT RU PT PL TR ZH |
| EVID C10.1 Ceiling Engineering Data Sheet | EN |
| EVID C12.2 Ceiling Engineering Data Sheet | EN |
| EVID C4.2 Ceiling Engineering Data Sheet | EN |
| EVID C8.2 Engineering Data Sheet | EN |
| EVID C8.2HC Ceiling Engineering Data Sheet | EN |
| EVID C8.2LP Ceiling Engineering Data Sheet | EN |
| EVID-C4.2LP Engineering Data Sheet | EN |
| EVID-C6.2 Engineering Data Sheet | EN ES FR PT |
| EVID-PC8.2 Engineering Data Sheet | TW EN NL DE ES FR IT RU PT PL TR ZH |
| EVID-C4.2LP Ceiling speaker 4 low profile Datasheet ES | ES |
| EVID-C4.2LP Ceiling speaker 4 low profile Datasheet FR | FR |
| EVID-C4.2LP Ceiling speaker 4 low profile Datasheet PT | PT |
| EVID-PC8.2E Engineering Data Sheet | ZH |
Manual
| Name | Language & Download |
|---|---|
| Ceiling Speaker User Manual | EN |
| EVID Accessories | EN |
| EVID C12.2 User Manual | EN |
| EVID Ceiling Speaker Systems Installation manual (C4.2 C4.2LP C8.2 C6.2 C8.2LP C8.2HC C10.1) | EN DE ES FR IT RU PT ZH |
| EVID Design & Installation Reference Guide | EN |
| EVID High Performance Ceiling Speakers Installation Note | EN DE DE ES ES FR FR IT IT RU RU ZH ZH |
| EVID RR/RPK Assembly & Installation Instructions | EN |
| RR, RPK Series Assembly & Installation Instructions | EN |
Service Policies
| Name | Language & Download |
|---|---|
| Warranty conditions for Electro-Voice products in North America | EN |
Software, Firmware & Design Tools
BIM
Calculators
| Name | Language & Download |
|---|---|
| Ceiling Speaker Layout Calculator | Download |
Drawing
| Name | Language & Download |
|---|---|
| EVID Ceiling Speakers CAD Drawings | Download |
EASE/CLF
Other Software
| Name | Language & Download |
|---|---|
| EVID Arrayshow | Download |
Marketing Materials
Brochure
PR Image
| Name | Language & Download |
|---|---|
| Ramada Paramaribo Princess Hotel 01 | Download |
| Ramada Paramaribo Princess Hotel 05 | Download |
| Ramada Paramaribo Princess Hotel 10 | Download |
| Omni Hotel 15 | Download |
| Omni Hotel 18 | Download |
| Omni Hotel 33 | Download |
| EVID Kaiser 05 | Download |
| EVID Ducasse 1800 | Download |
| EVID Kaiser 01 | Download |

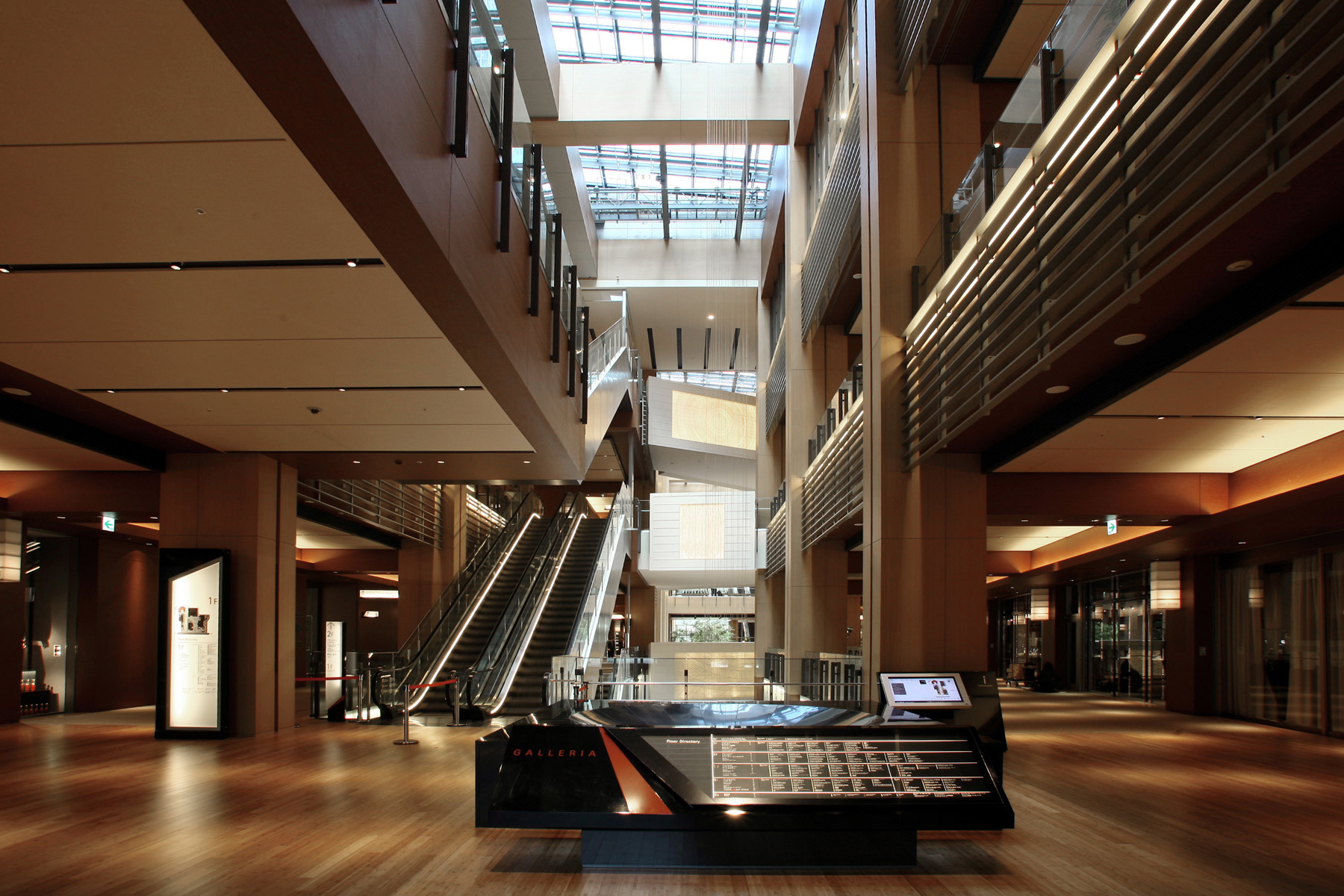

| TokyoMidtown 01 | Download |
