X1-212/90
Compact 12" vertical line‑array loudspeaker system
- Mid-Band Hydra (MBH) Superior Box Coupling
- Wavefront-Shaping Circular Hydra (WCH) Extended Linear HF Performance
- Integrated Rigging System (IRS) Quick Setup
The X1 system combines innovative new technologies and time-saving features to advance the state of high-end sound reinforcement. The compact design of the X1 enables its use in a wide variety of applications.
Specifications
| Frequency Response (-3 dB) | 57 Hz - 16 kHz¹ |
| Horizontial Coverage | 90° |
| Vertical Coverage | Array dependent |
Specifications | |
| Rec. High-Pass Frequency | 50 Hz |
| Max Calculated SPL | 143 db Peak² |
| Configuration | Passive, Bi-amp |
| Passvie Crossover Freq. | 1600 Hz |
| Passive Axial Sensitivity | 98 dB (1 W/1 m)⁴ |
| Passive Power Handling | 500 W continuous, 2000 peak |
| Passive Impedance | 8 Ω (nominal, 6.4 Ω (min) |
| LF Transducer | SMX2121, 12-in (305 mm) driver |
| LF Axial Sensitivity | 98 dB (1 W/1 m)4 |
| LF Power Handling | 400 W continuous, 1600 W peak |
| LF Impedance | 8 Ω (nominal), 6.1 Ω (min) |
| HF Transducer | 2 x ND2R, 2-in (51 mm) diaphragm compression driver |
| HF Axial Sensitivity | 110 dB (1 W/1 m)⁴ |
| HF Power Handling | 120 W continuous, 480 W peak³ |
| HF Impedance | 8 Ω (nominal, 6.0 Ω (min) |
| Connectors | Dual NL8 type connector |
| Enclosure | 13-ply weather resistant birch with EVCoat |
| Grille | 16 GA powder coated galvanneal |
| Suspension | IRS - Integrated Rigging System |
| Dimensions (H x W x D) | 13.5 in x 28.77 in x 12.04 in (342.9 mm x 730.8 mm x 534.4 mm) |
| Net Weight | 92 lb (41.7 kg) |
| Shipping Weight | 106 lb (48 kg) |
² Full-space measurement of HF section of 4 elements. SPL adjusted for 1m distance.
³ AES 2-1984 power test.
⁴ Full-space anechoic measurement of a single element.
Similar Products
Compatible Products
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for X1-212/90.
Dynacord TGX SeriesLearn More |
Dynacord IPX SeriesLearn More |
|
|---|---|---|
| Two-Channel | ||
| Multi-Channel | ✔ | ✔ |
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ✔ | ✔ |
| Installation | ✔ | |
| Live Sound | ✔ |
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Size | Date | |
|---|---|---|---|
| X1 - 2D CAD | DWG | 851KB | May 15, 2015 |
| X1 - 3D CAD | DWG | 17.57MB | May 15, 2015 |
| Name | Size | Date | |
|---|---|---|---|
| X1 X2 X12-125F GLL - Ease Focus enabled | ZIP | 104.16MB | Jul 2, 2020 |
| Name | Language | Size | Date |
|---|---|---|---|
| X1-212/90 EDS | EN | 1.14MB | Apr 27, 2015 |
| Name | Size | Date |
|---|---|---|
| LAPS 3.3.7 for X-Line Advance & 32-Bit Excel ONLY | 34.29MB | Jun 7, 2016 |
| LAPS 3.3.7 for X-Line Advance & 64-Bit Excel ONLY | 34.59MB | Jun 7, 2016 |
| Name | Language | Size | Date |
|---|---|---|---|
| X-Line Advance System Rigging and Transport Manual | EN | 56.63MB | Feb 11, 2020 |
| Name | Size | Date | |
|---|---|---|---|
| EV SpeakerDB v1.1+ IRIS | ZIP | 28.48MB | Feb 10, 2020 |
| Name | Size | Date |
|---|---|---|
| Electro-Voice_PREVIEW_Early_Adopter_Windows_Beta_v1.4.1_Setup.exe | 113.86MB | Jul 29, 2020 |
| Electrovoice-PREVIEW_Early_Adopter_MacOS_Beta_ v1.4.1.pkg | 249.57MB | Jul 29, 2020 |

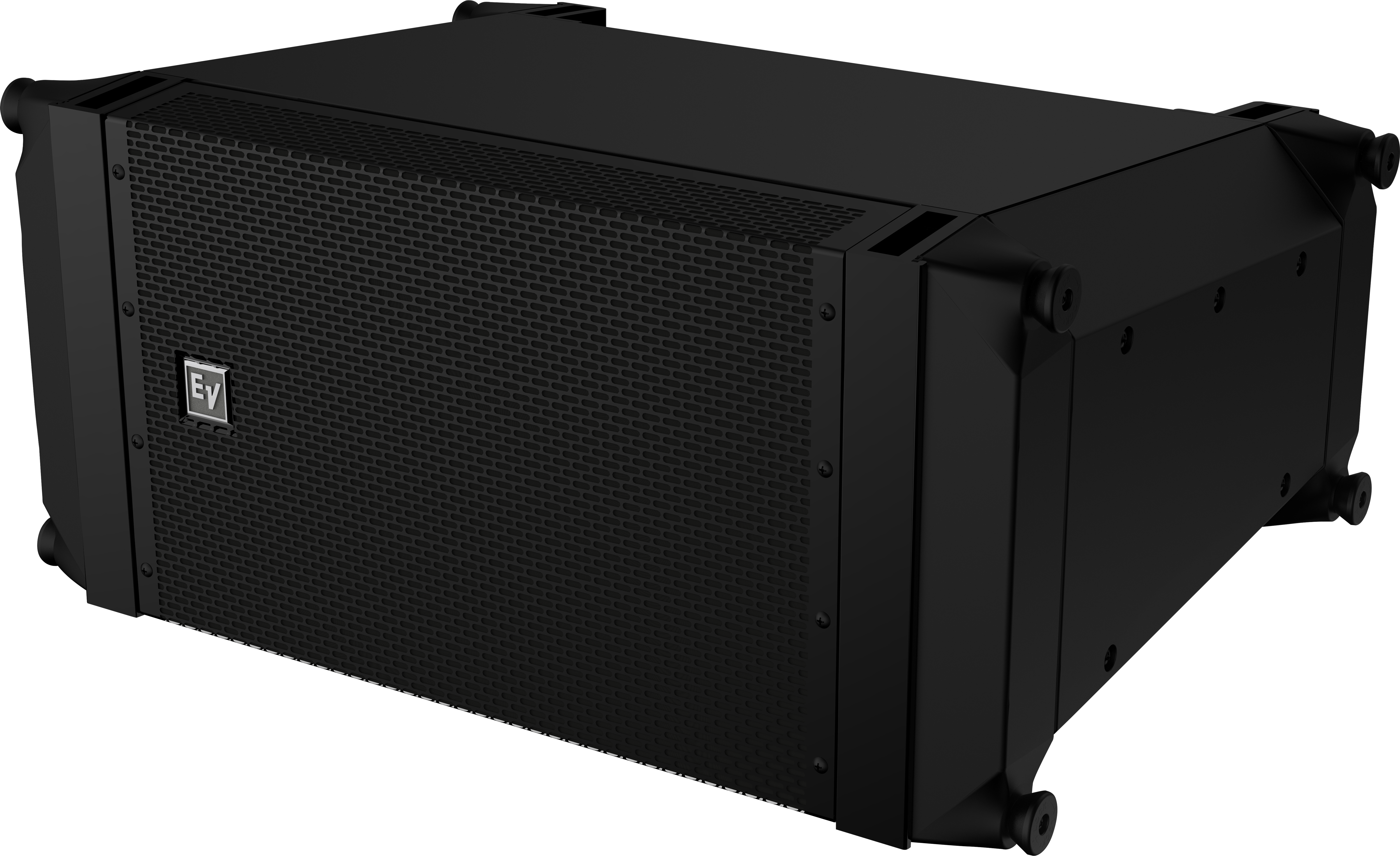

FrontHero X1

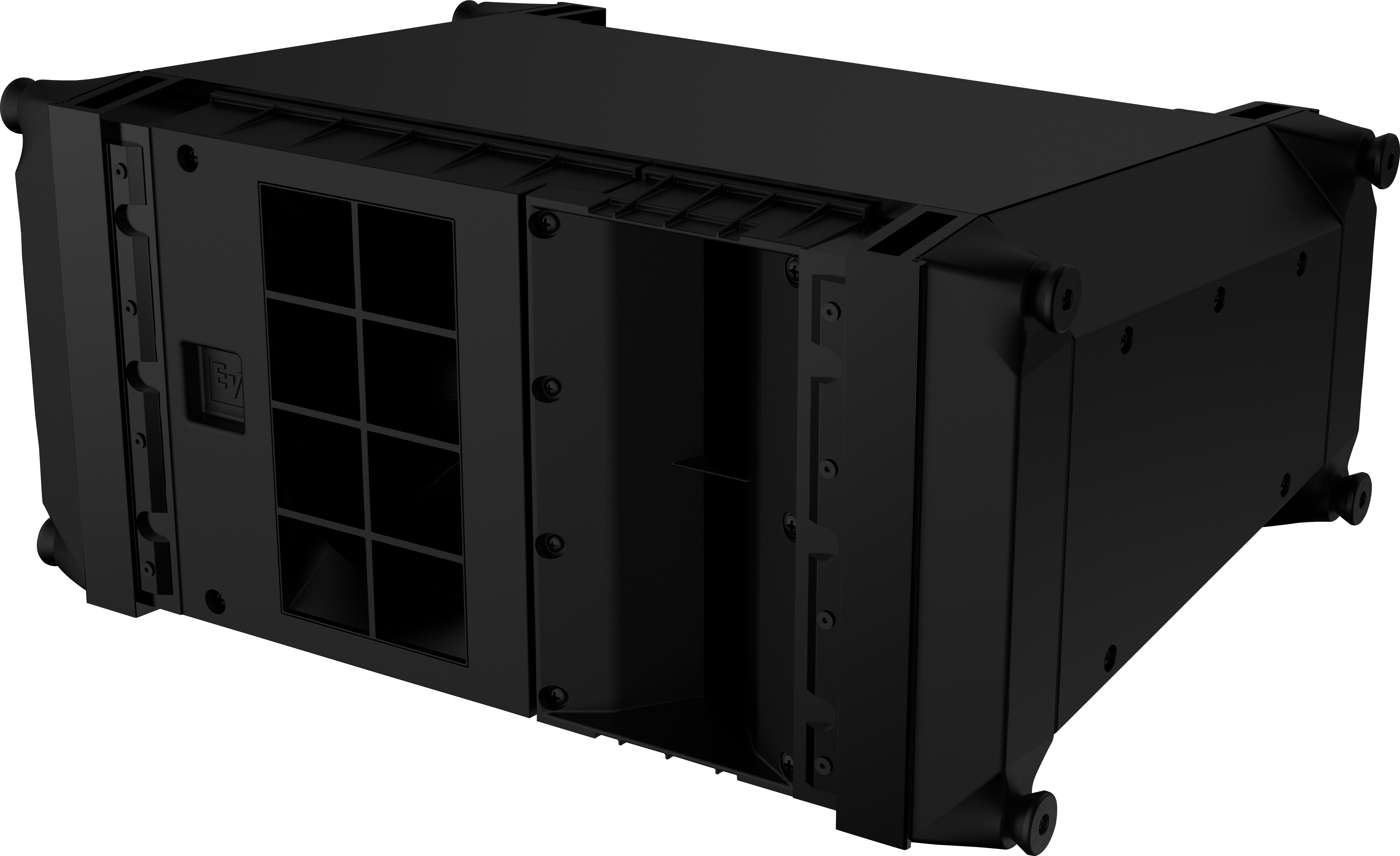

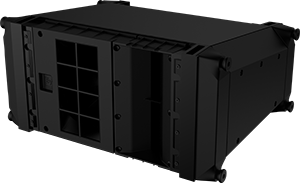

FrontHero X1 noGrille
