X2-212/90
High‑performance compact 12" vertical line array loudspeaker system
- DVN3125 12-Inch Neodymium Woofer
- Higher Output, Lower Distortion
- Mid-Band Hydra (MBH) Superior Box Coupling
- Advanced PDH Pin Diffraction Hydra Controlled Linear HF Performance
- Integrated Rigging System (IRS) Quick Setup
The X2 System provides high SPL capability, extended HF response, and linear LF output for more performance than previously possible in an extremely compact cabinet.
Specifications
| HF Transducer | Two 3-Inch ND6A |
| Speaker Type | Full-Range, Line-array |
| Frequency Response (-3 dB)¹ | 52 Hz - 19 kHz |
Specifications |
|
| Coverage (Nominal -6 dB) H | 90° |
| LF Transducer | 12-Inch DVN3125 |
| Enclosure Material | EVCoat-coated birch plywood |
| Sensitivity 1 W/1 m | 101dB |
| Height | 13.5" (342.9mm) |
| Width | 28.5" (723.9mm) |
| Depth | 21.13" (536.6mm) |
| Weight Net | 92.99lbs (42.18kg) |
| Passive Power Handling | 2000W peak |
Similar Products
Compatible Products
Videos
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for X2-212/90.
Dynacord TGX SeriesLearn More |
Dynacord IPX SeriesLearn More |
|
|---|---|---|
| Two-Channel | ||
| Multi-Channel | ✔ | ✔ |
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ✔ | ✔ |
| Installation | ✔ | |
| Live Sound | ✔ |
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Size | Date | |
|---|---|---|---|
| X2 - 2D CAD | DWG | 848KB | May 15, 2015 |
| X2 - 3D CAD Drawing | DWG | 17.54MB | May 15, 2015 |
| Name | Size | Date | |
|---|---|---|---|
| X1 X2 X12-125F GLL - Ease Focus enabled | ZIP | 104.16MB | Jul 2, 2020 |
| Name | Language | Size | Date |
|---|---|---|---|
| X2-212/90 EDS | EN | 848KB | Apr 27, 2015 |
| Name | Size | Date |
|---|---|---|
| LAPS 3.3.7 for X-Line Advance & 32-Bit Excel ONLY | 34.29MB | Jun 7, 2016 |
| LAPS 3.3.7 for X-Line Advance & 64-Bit Excel ONLY | 34.59MB | Jun 7, 2016 |
| Name | Language | Size | Date |
|---|---|---|---|
| X-Line Advance System Rigging and Transport Manual | EN | 56.63MB | Feb 11, 2020 |
| Name | Size | Date | |
|---|---|---|---|
| EV SpeakerDB v1.1+ IRIS | ZIP | 28.48MB | Feb 10, 2020 |
| Name | Size | Date |
|---|---|---|
| 2018-Sommernachtstraum-Munich 07 | 727KB | Oct 25, 2018 |

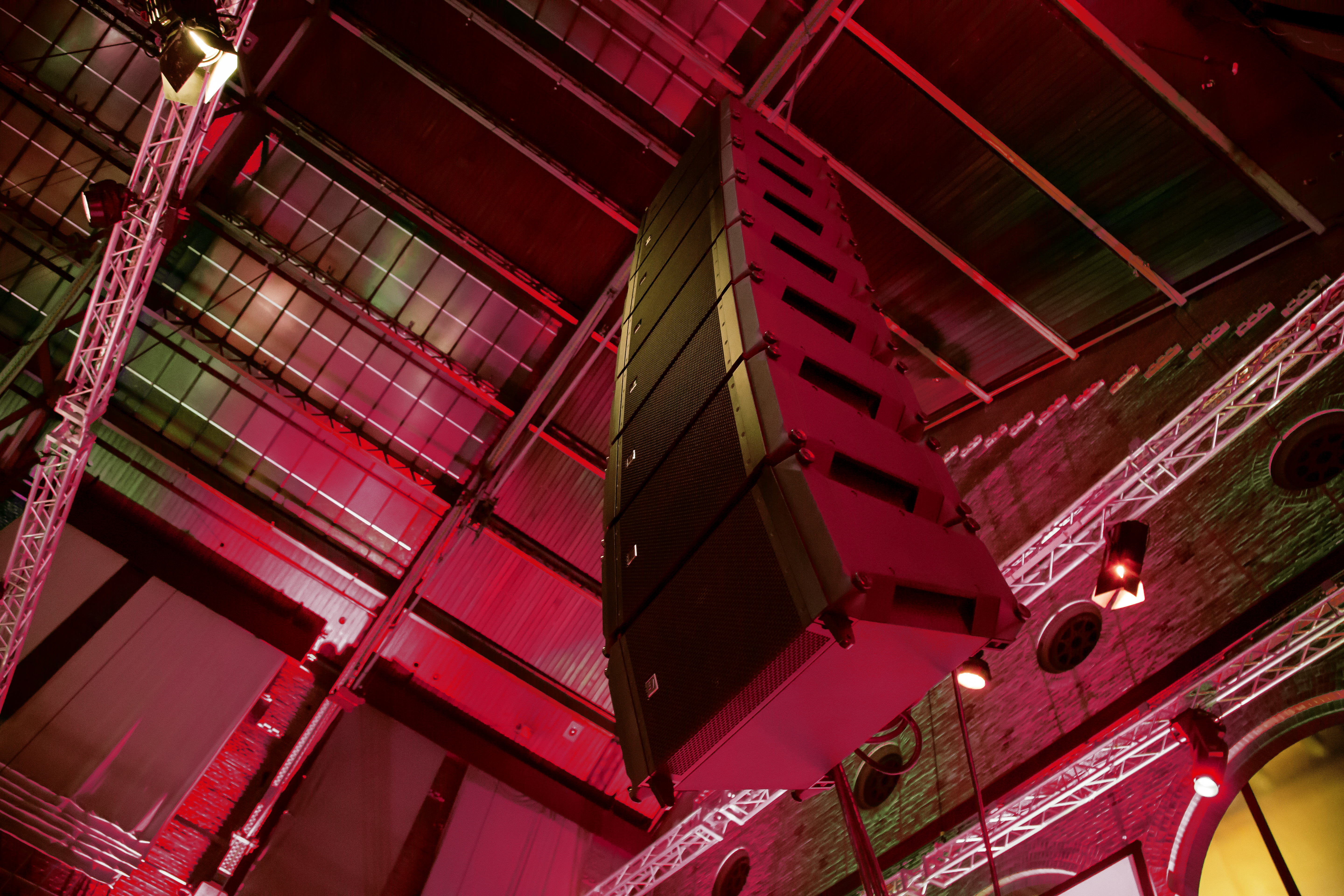

| ev x2 concert feb16 4c fullrights Original 26685 | 19.99MB | Nov 30, 2016 |
| ev x2 setup02 nov16 4c fullrights Original 26679 | 14.65MB | Nov 30, 2016 |
| paloma faith 03 | 1.18MB | Oct 25, 2018 |
| Name | Size | Date |
|---|---|---|
| Electro-Voice_PREVIEW_Early_Adopter_Windows_Beta_v1.4.1_Setup.exe | 113.86MB | Jul 29, 2020 |
| Electrovoice-PREVIEW_Early_Adopter_MacOS_Beta_ v1.4.1.pkg | 249.57MB | Jul 29, 2020 |

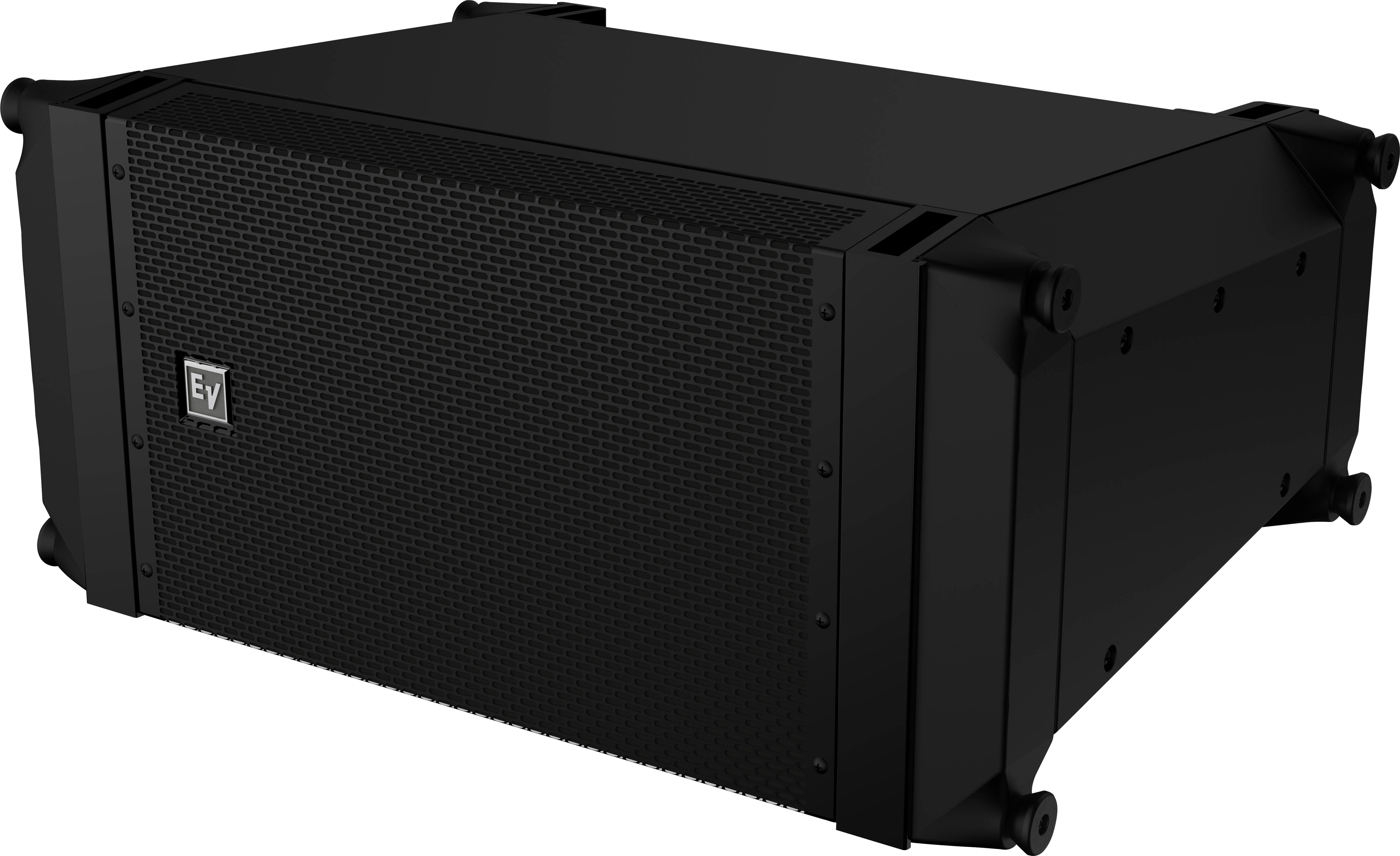

FrontHero X2

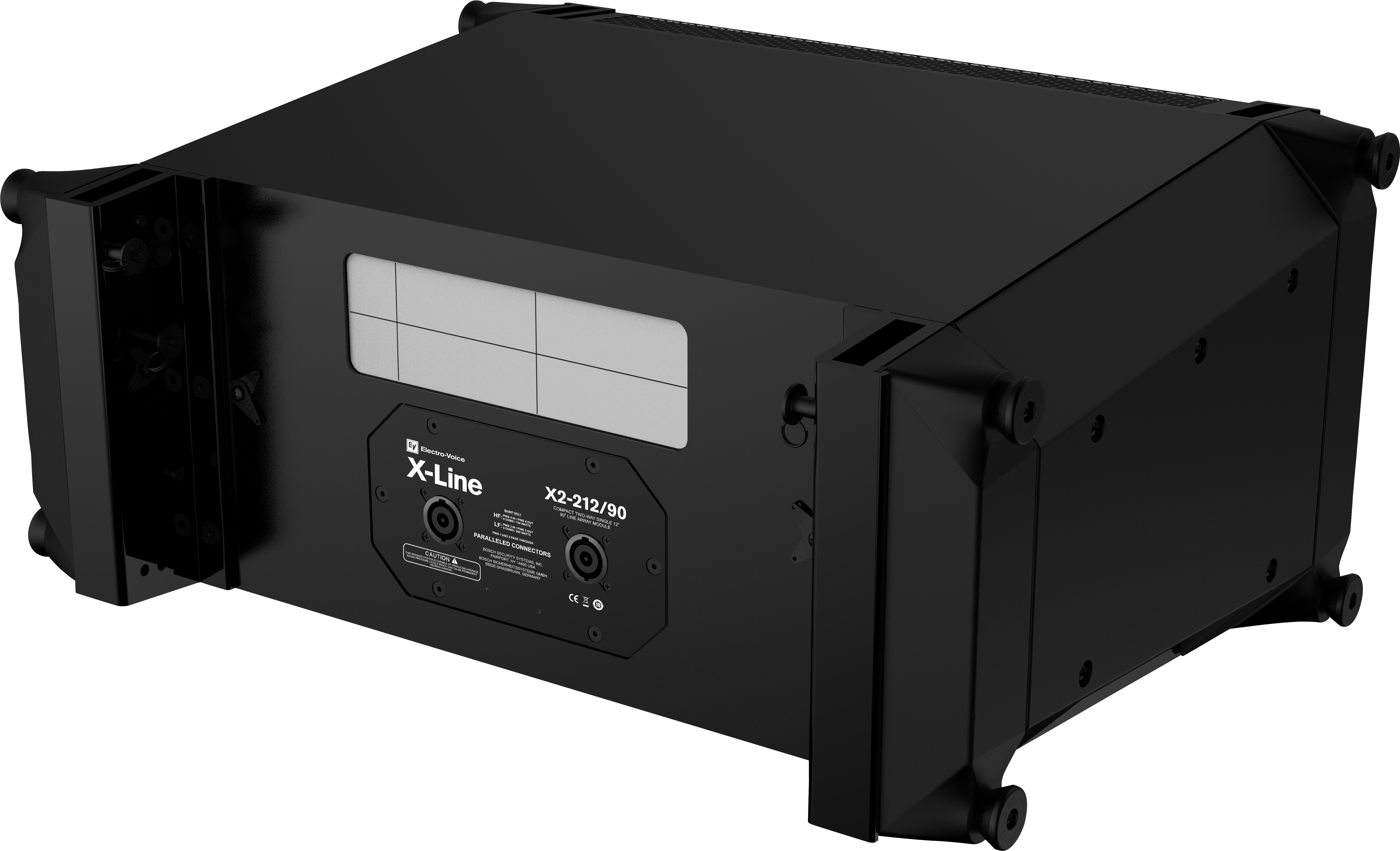

BackHero X2

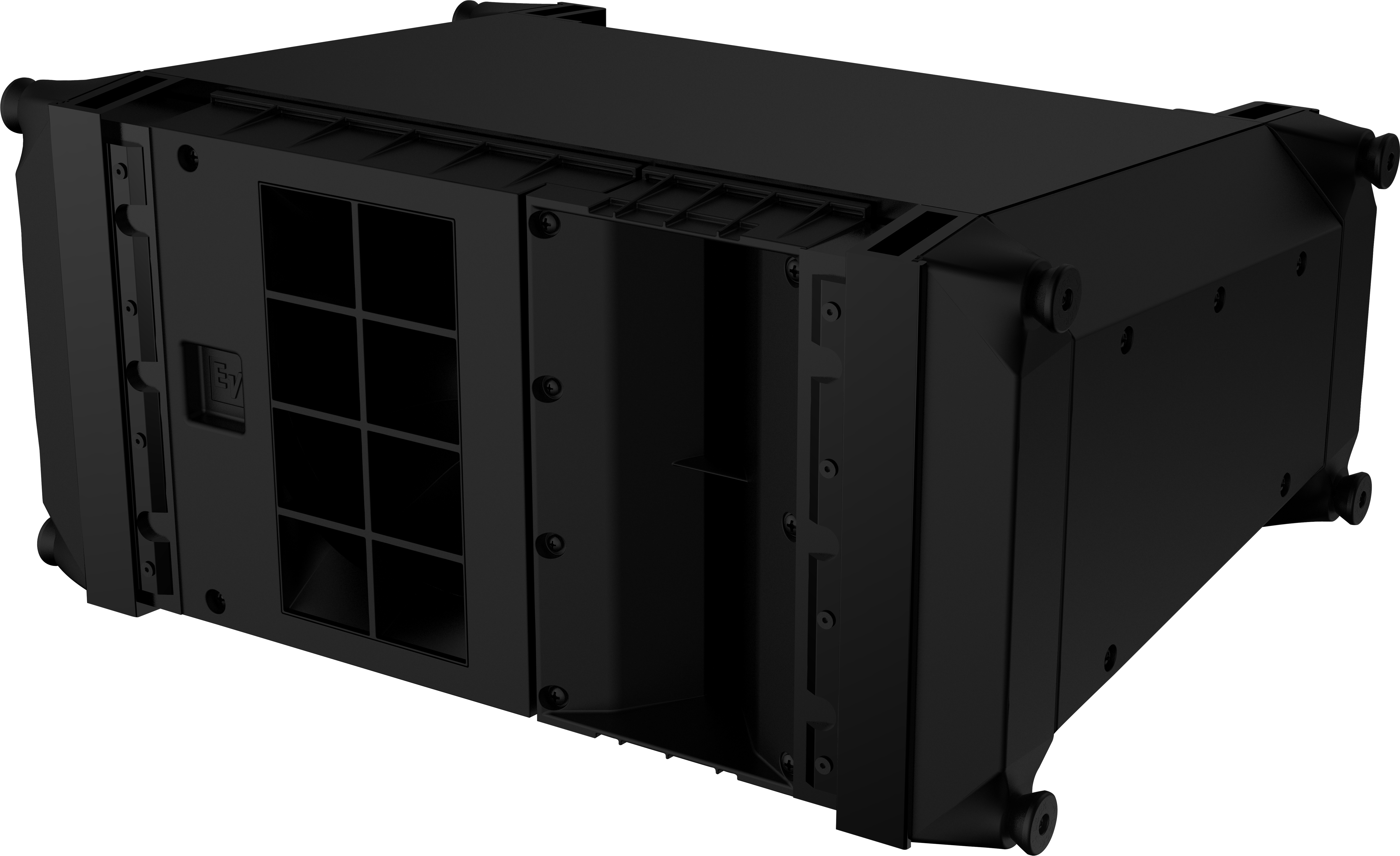

FrontHero X2 noGrille

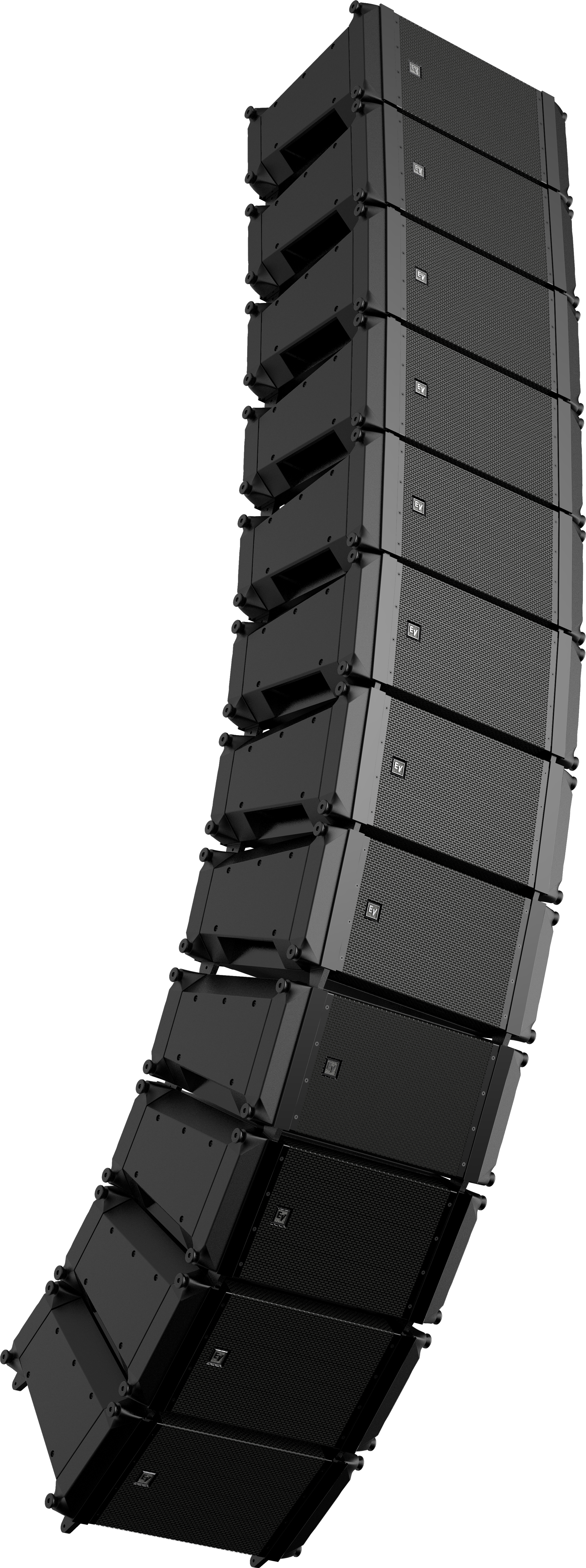

X2Array

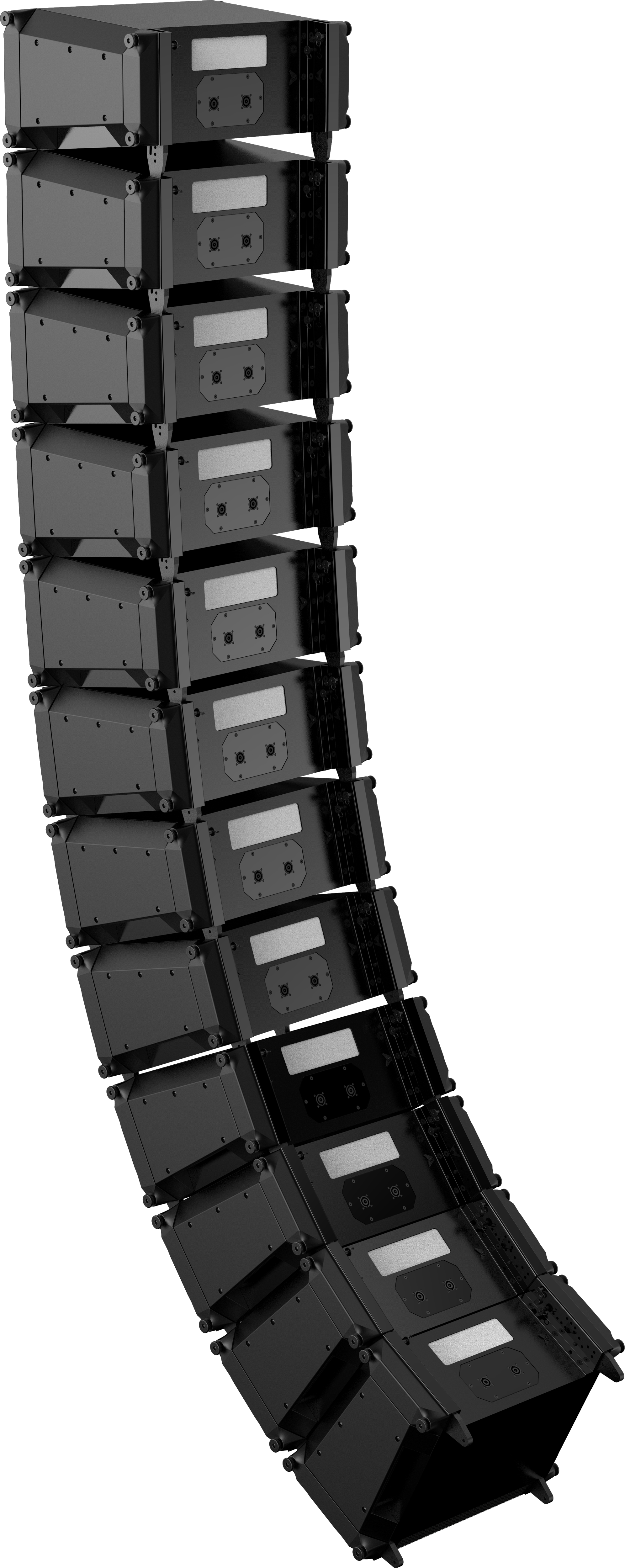

X2Array BackIso

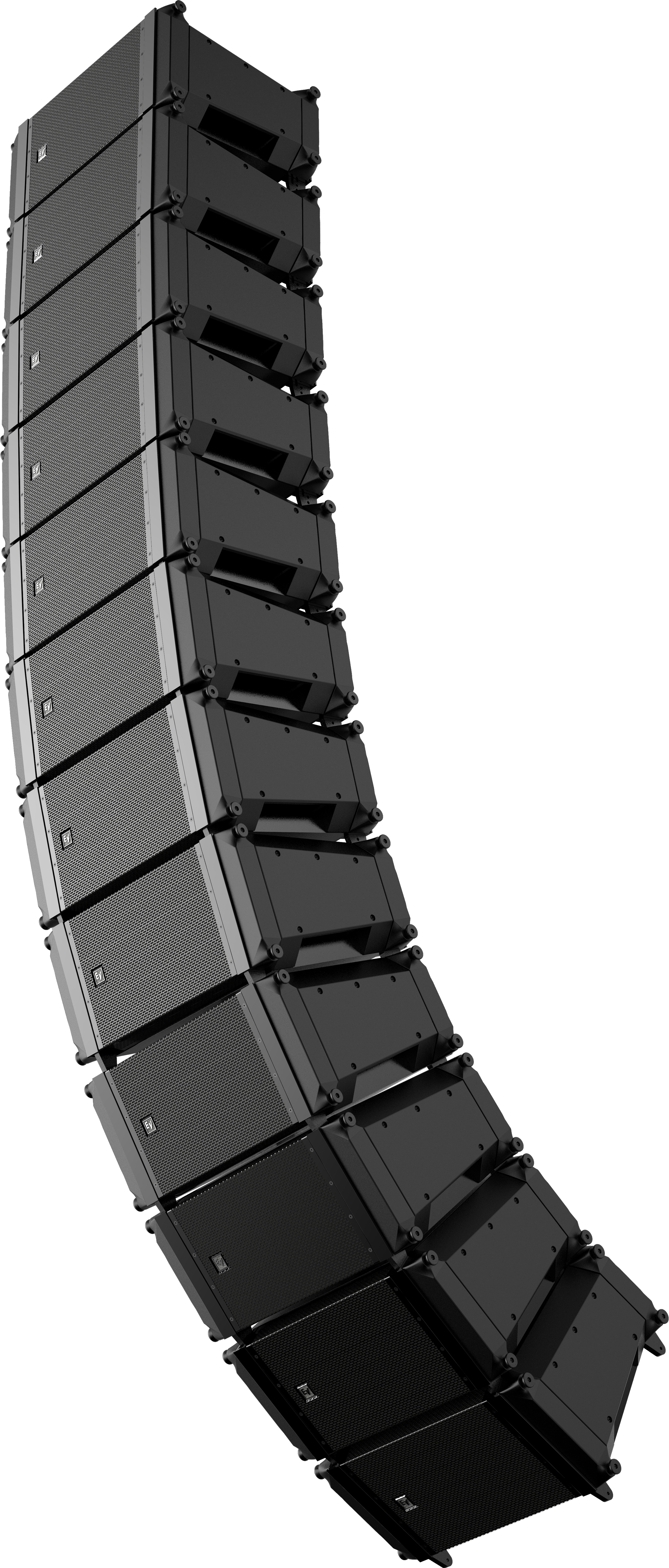

X2Array LeftIso
