X12-128
Dual 18" subwoofer system
- High-output, high-impact dual 18" subwoofer system
- Super-high-output DVF4180 woofers for low distortion at extremely high SPLs
- Dual front and rear signal connection points for flexibility in system configurations, including cardioid setup for increased focus of low-frequency output
- Compact cabinets with low-profile footprint, suitable for under-stage applications
- 105 dB sensitivity (1 W/1 m half space)
- Power handling: 4000 W continuous, 16,000 W peak
- 141/147 dB maximum SPL (continuous/peak)
The X-Line Advance X12-128 subwoofer produces the greatest low-frequency impact and performance EV has ever developed. It is truly a state-of-the-art compact cabinet that delivers more LF output in a smaller footprint than other subwoofers available today.
In addition to its extremely high output capability, the X12-128 is designed to acoustically match seamlessly with any X-Line Advance top cabinet. It offers superior configuration flexibility for easier system design and setup, making it the standout subwoofer choice for any larger-format live or installed audio application.
Specifications
| Speaker Type | Subwoofer |
| Frequency Response (-3 dB)¹ | 33 - 200Hz |
| Coverage (Nominal -6 dB) H | 360° |
Specifications |
|
| LF Transducer | 2 x 18-Inch DVF4180 |
| Enclosure Material | EVCoat-coated birch plywood |
| Sensitivity 1 W/1 m | 105dB |
| Height | 43.36" (1101.34mm) |
| Width | 30" (762.00mm) |
| Depth | 20.36" (517.14mm) |
| Weight Net | 195lbs (88.45kg) |
| Passive Power Handling | 16000W peak |
Compatible Products
Similar Products
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for X12-128.
Dynacord TGX SeriesLearn More |
Dynacord IPX SeriesLearn More |
|
|---|---|---|
| Two-Channel | ||
| Multi-Channel | ✔ | ✔ |
| DSP | ✔ | ✔ |
| Direct Drive | ✔ | ✔ |
| OMNEO (Dante, OCA) | ✔ | ✔ |
| Installation | ✔ | |
| Live Sound | ✔ |
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| X12-128 A&E Specification | EN | 58KB | Nov 24, 2020 |
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Size | Date | |
|---|---|---|---|
| X12-128 - 2D CAD | DWG | 537KB | May 15, 2015 |
| X12-128 - 3D CAD | DWG | 11.97MB | May 15, 2015 |
| Name | Size | Date | |
|---|---|---|---|
| X12-128 v2.2 GLL - Ease Focus enabled | ZIP | 9.34MB | Jul 2, 2020 |
| Name | Language | Size | Date |
|---|---|---|---|
| X12-128 Engineering Data Sheet | EN | 1.05MB | Jan 15, 2016 |
| Name | Size | Date |
|---|---|---|
| LAPS 3.3.7 for X-Line Advance & 32-Bit Excel ONLY | 34.29MB | Jun 7, 2016 |
| LAPS 3.3.7 for X-Line Advance & 64-Bit Excel ONLY | 34.59MB | Jun 7, 2016 |
| Name | Language | Size | Date |
|---|---|---|---|
| X-Line Advance System Rigging and Transport Manual | EN | 56.63MB | Feb 11, 2020 |
| Name | Size | Date | |
|---|---|---|---|
| EV SpeakerDB v1.1+ IRIS | ZIP | 28.48MB | Feb 10, 2020 |
| Name | Size | Date |
|---|---|---|
| Dallas Smith 02 | 2.85MB | Mar 13, 2018 |
| Ellis PV 01 1800 | 1.86MB | Jun 11, 2018 |
| HALESTORM 04 | 1.53MB | Oct 23, 2018 |
| Name | Size | Date |
|---|---|---|
| Electro-Voice_PREVIEW_Early_Adopter_Windows_Beta_v1.4.1_Setup.exe | 113.86MB | Jul 29, 2020 |
| Electrovoice-PREVIEW_Early_Adopter_MacOS_Beta_ v1.4.1.pkg | 249.57MB | Jul 29, 2020 |

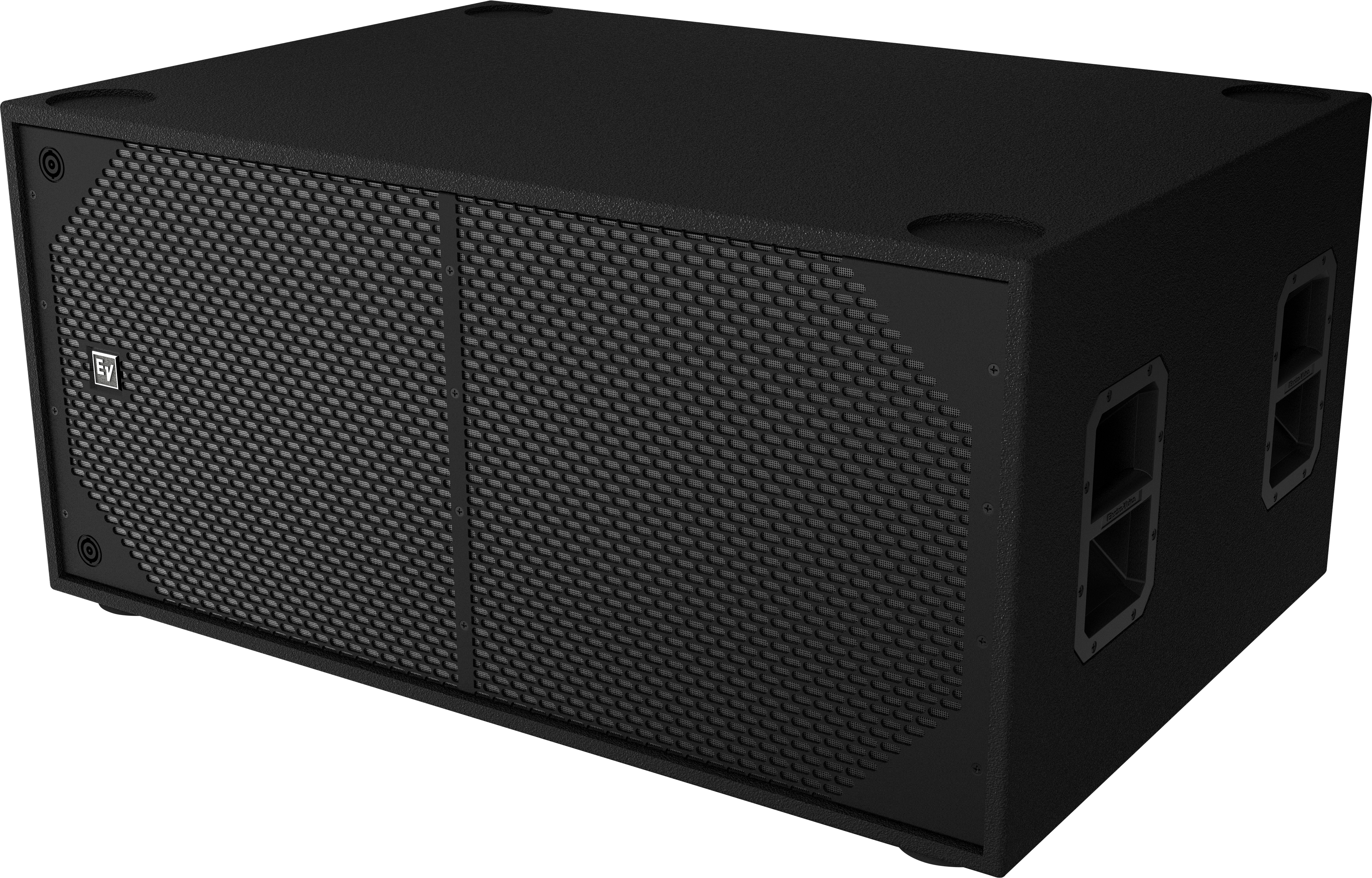

FrontHero X12Sub

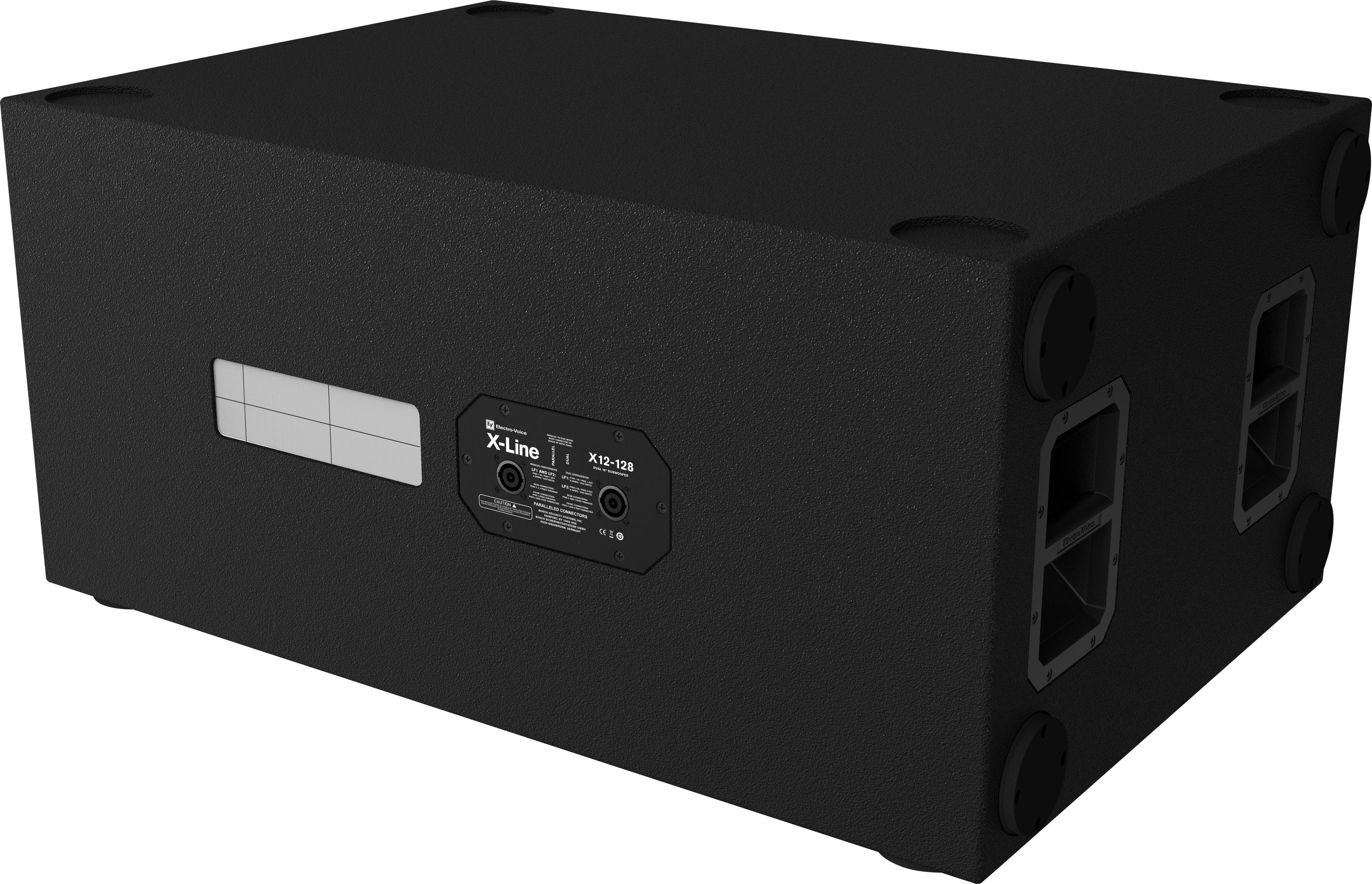

BackHero X12Sub
