ZLX-15

15" passive loudspeaker

  • 15” woofer for extended low-frequency response and 1.5” high-frequency titanium compression driver
  • 44 Hz – 20 kHz frequency range
  • 250 W continuous and 1000 W peak power handling
  • 96 dB SPL sensitivity; 126 dB max SPL
  • 36.5 lbs (16.6 kg)

The ZLX-15 gives you the confidence of the industry’s most trusted components – engineered to exacting standards to bring exceptional EV audio quality for larger applications, with or without a subwoofer.

Specifications

Frequency Response 56 Hz - 18 kHz¹
Frequency Range 44 Hz - 20 kHz
Axial Sensitivity 96 dB

Maximum SPL 126 dB
Recommended HP Frequency 40 Hz
Coverage (Hort. x Vert.) 90° x 60°
Power Handling 250 Watts Continuous, 1000 Watts Peak
LF Transducer EVS-15L, 380 mm (15 in) Woofer
HF Transducer DH-1K
Crossover Frequency 1.7 kHz
Nominal Impedance 8 Ω
Minimum Impedance 7 Ω
Connectors Dual NL4
Enclosure Polypropylene
Grille 18 Gauge Steel with Black Powder Coat
Dimensions (H x W x D) 685 mm x 423 mm x 383 mm (27 in x 17 in x 15 in)
Net Weight 16.6 kg (36.5 lb)
Shipping Weight 22.0 kg (48.3 lb)
¹ Full Space Measurement, will have low frequency extension when mounted on floor or wall

Recommended Amplifiers

Related Products Learn More Related Products Learn More
Two-Channel
Multi-Channel
DSP
Direct Drive
OMNEO (Dante, OCA)
Installation
Live Sound

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
Portable speakers catalog 2020 EMEA EN 9.22MB Jan 21, 2020
Portable speakers catalog 2020 NA EN 10.63MB May 22, 2020
ZLX Folleto ES 1.03MB May 6, 2013
ZLX Brochura Português PT 1.04MB May 8, 2013
Portable speakers catalog 2020 EMEA PL 6.77MB May 12, 2020
Portable speakers catalog 2020 EMEA FR 6.76MB May 12, 2020
Portable speakers catalog 2020 EMEA ES 6.76MB May 12, 2020
Portable speakers catalog 2020 EMEA EL 6.78MB May 12, 2020
Portable speakers catalog 2020 EMEA DE 6.76MB May 12, 2020
ZLX产品宣传册 ZH 1.25MB Apr 11, 2013
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Play X, Zlx-12P, Zlx-15P, Certificate of Compliance, Certificate No. 2592938 257KB Dec 18, 2019
ZLX-12P_ZLX-15P Certificate of Compliance 422KB Dec 18, 2019
Zlx-12P-Ex, Zlx-15P-Ex, Bosch (Zhuhai) Security Systems, 01-2016 Country of Origin Certificate 351KB Dec 18, 2019
Zlx-12P, Zlx-15P Series, EC Declaration of Conformity 588KB Dec 18, 2019
Zlx-12P, Zlx-15P, Cert No. Ca/17727/Csa, Cb Report No. 162507-70008000 (70041693) Certificate 177KB Dec 18, 2019
Zlx-12P, Zlx-15P, Certificate of Compliance, Certificate No. 2592938, Project No. 70041692 Certificate 42KB Dec 18, 2019
Zlx12, Zlx15 Passive, EC Declaration of Conformity 575KB Dec 18, 2019
Name Language Size Date
ZLX-12 & ZLX-15 Engineering Data Sheet EN 1.67MB Jan 18, 2013
Name Language Size Date
ZLX Flyer Español ES 222KB May 6, 2013
Name Language Size Date
ZLX User Manual EN 8.71MB May 3, 2019
ZLX Wall Mount Bracket Installation Guide EN 2.25MB Mar 11, 2014
Série ZLX Manual PT 8.72MB Jul 23, 2019
ZLX Serie Benutzerhandbuch DE 8.72MB Jul 23, 2019
ZLX Series Manual ES 8.72MB Jul 23, 2019
ZLX シリーズ マニュアル JA 8.87MB Jul 23, 2019
ZLX 시리즈 설치 매뉴얼 KO 8.81MB Jul 23, 2019
ZLX系列产品说明书 ZH 8.71MB Jul 23, 2019
Name Size Date
IMG 0801 6.59MB Dec 13, 2012
Rocker Carry 836KB Mar 29, 2013
Rocker Unload 946KB Mar 29, 2013
ZLX App 10 2.46MB Nov 16, 2016

Detail-3-Amplified

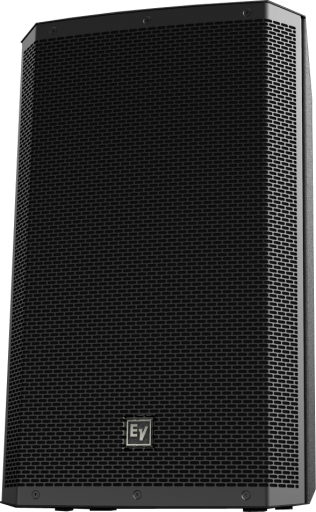

ZLX-15 Front

15-and-12-comparative

Detail-4-Amplified

Monitor-front-bottom-12-active

ZLX Powered 1800 300dpi

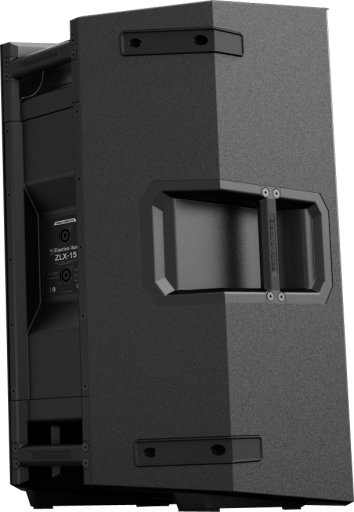

ZLX-15 Back

ZLX-15 Handle

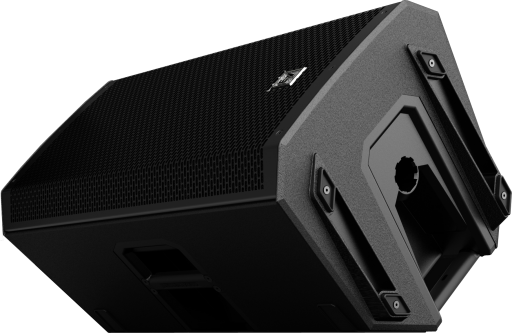

ZLX-15 Monitor
