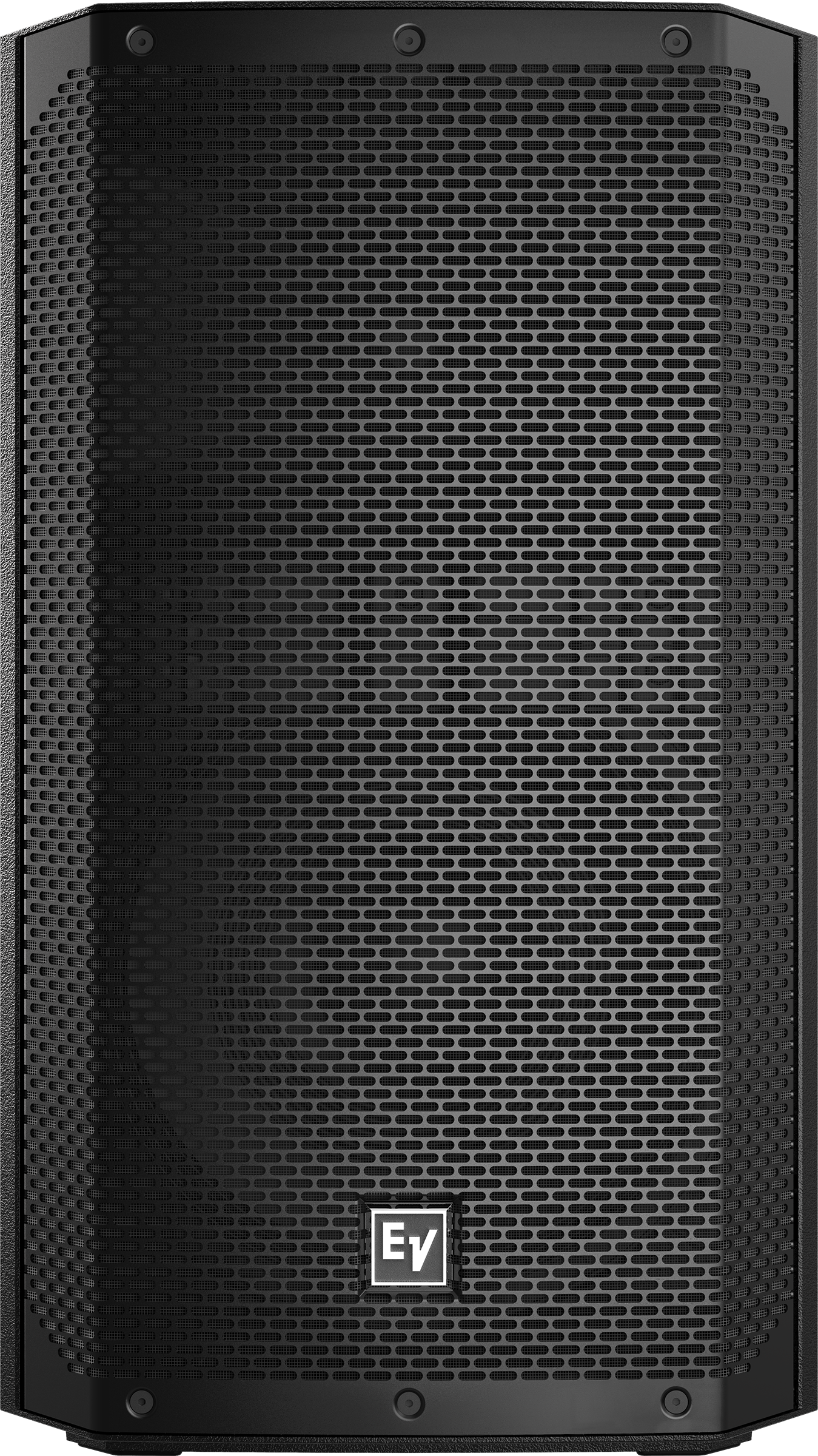

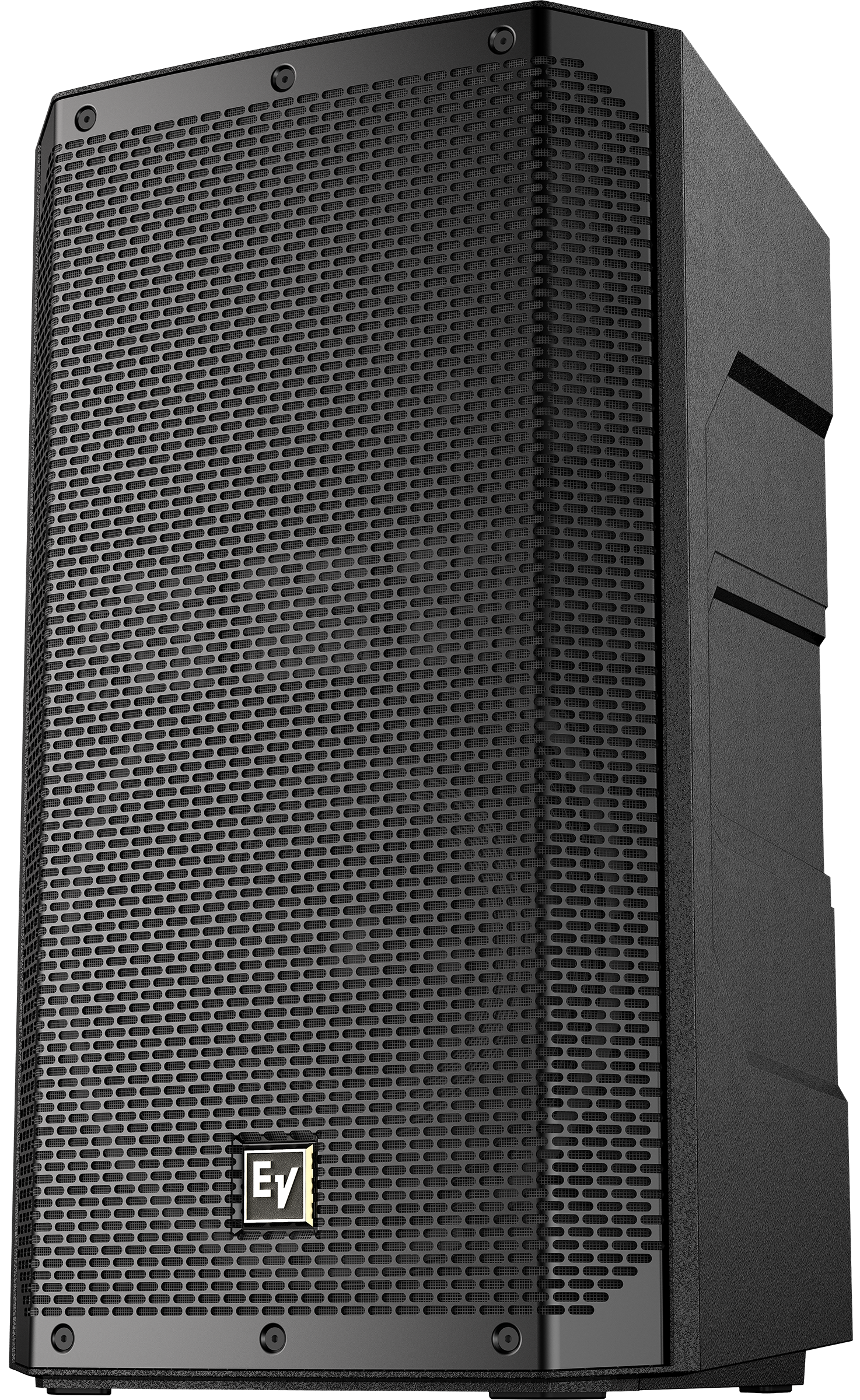

ELX200-12

12英寸无源扬声器

Summary & Images Specs Where to buy Downloads & Support
  • 1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
  • 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
  • High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.

Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.

EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.

Specifications

Suspension (3) M10 suspension points
Minimum Impedance 7.5
HF Transducer DH-1L 1-inch titanium compression driver

Speaker Type Full-Range
Woofer Size 12
Powered or Passive Passive
Frequency Response (-3 dB)¹ 77 Hz - 17 k
Frequency Range (-10 dB)¹ 51 Hz - 20 kHz
Max. SPL/1m (calc)² 128
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 60
LF Transducer EVS-12M 300 (12 in)
Power Rating 1200
Crossover Frequency 1.7 k
Connector Type Dual NL4
Enclosure Material Polypropylene composite
Grille 18 AWG steel with powdercoat
Available Color 黑色白色
Height 629
Recommended High-Pass Frequency 50
Width 363
Depth 344
Weight Net 15.2
Shipping Weight 17.1
Family ELX200
Nominal Impedance 8
Axial Sensitivity (SPL, 1 W @ 1 m) 93
Power Handling (Continuous / Peak) 300W/1200
