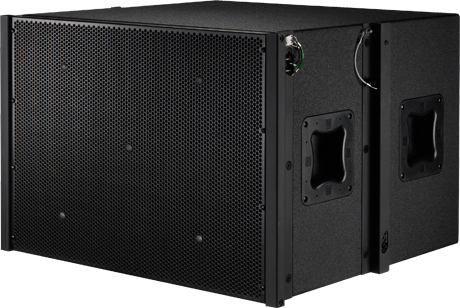

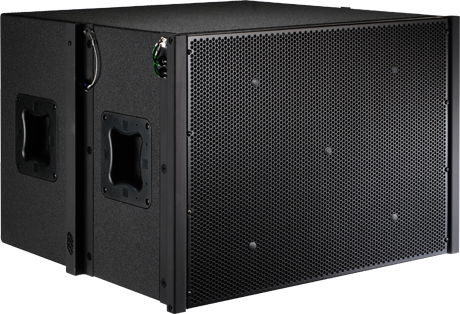

XCS312

Triple‑12" cardioid bass element

  • Versatile integration in main arrays
  • Self-contained rigging hardware
  • Supported by LAPS II aiming and flying software

Specifications

Frequency Range (-10 dB) 40 - 100kHz
Flying Included
HF Nominal Impedance

Speaker Type Line Arrays, Subs
Frequency Response (-3 dB)¹ 45 - 100Hz
LF Nominal Impedance
Max. SPL/1m (calc)² 136dB (Half Space)
Coverage (Nominal -6 dB) H 200°
LF Transducer 3 x 12-in DVX3120A
LF Power Handling 1000 W continuous, 4000 W peakWatts (60-100 Hz)
Crossover Frequency 100Hz
Enclosure Material EVCoat®-coated birch plywood
Grille Powder-coated steel
Available Color Black
Sensitivity 1 W/1 m 100dB (Half Space)
Height 508mm (20")
Width 726mm (28.58")
Recommended High-Pass Frequency 40Hz
Depth 677mm (26.65")
Weight Net 67.13kg (148 lbs)
Chassis Size 304.8 mm
Peak SPL @ 10m 121dB (4 Box Array @ 10 Meters)
LF2 Power Handling 500 W continuous, 2000 W peak (60-100 Hz)
Passive Power Handling 6000W peak

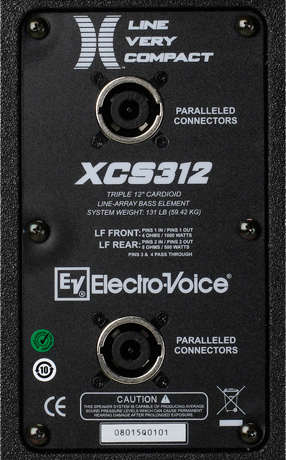

Input Connections 2 Neutrik® NL8
