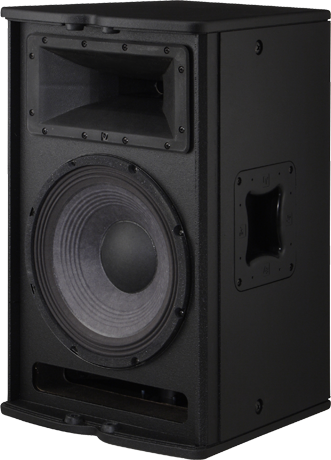

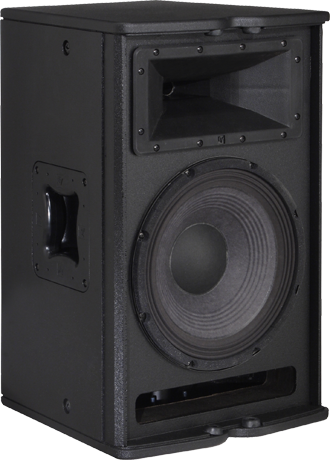

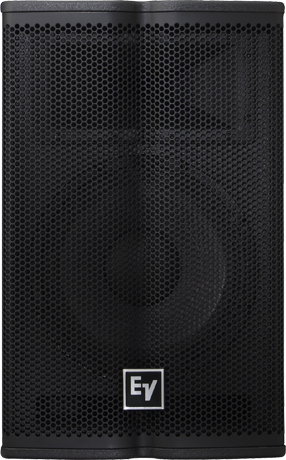

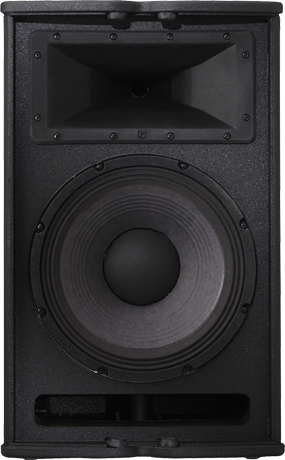

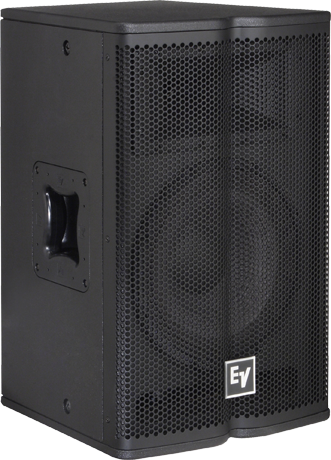

TX1122
12" passive loudspeaker
- High-quality sound at high levels
- Excellent pattern control for short-to-medium throw
- Low-distortion SMX2120 woofer with fully symmetric drive
- 1.25-inch DH3/2010A titanium HF compression driver
- Constant-directivity 90º H x 50º V horn
- Advanced 4th-order crossover with HF protection
- 97 dB sensitivity, 130 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- Lightweight trapezoidal plywood/MDF enclosure
- Pole mount for use with subwoofer or stand
- Six 3/8-inch threaded suspension points
- Black EVCoat finish
Specifications
| Frequency Range (-10 dB) | 45 - 20000kHz |
| Suspension | (6) 3/8-inch threaded inserts |
| Flying | Yes |
Specifications |
|
| Minimum Impedance | 6.4Ω |
| Nominal Impedance (Passive) | 8Ω |
| HF Transducer | 1.25-inch DH3/2010A |
| Speaker Type | Full-Range |
| Woofer Size | 12inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ | 70 - 20000Hz |
| Max. SPL/1m (calc)² | 132dB |
| Coverage (Nominal -6 dB) H | 90° |
| Coverage (Nominal -6 dB) V | 50° |
| LF Transducer | 12-inch SMX2121 |
| Power Rating | 2000W |
| System Power Handling (Continuous/Program/Peak) | 500//2000Watts |
| Rotatable Horn | No |
| Crossover Frequency | 1600Hz |
| Enclosure Material | Ply Wood and MDF with EVCOAT |
| Available Color | Black |
| Sensitivity 1 W/1 m | 97dB (1w/1m) |
| Height | 17.32" (440mm) |
| Width | 14.33" (364mm) |
| Recommended High-Pass Frequency | 45Hz |
| Depth | 22.56" (573mm) |
| Internal Crossover | Yes |
| Weight Net | 43.65lbs (19.8kg) |
| Family | Tour X |
| Input Connections | Parallel Neutrik® NL4 |
