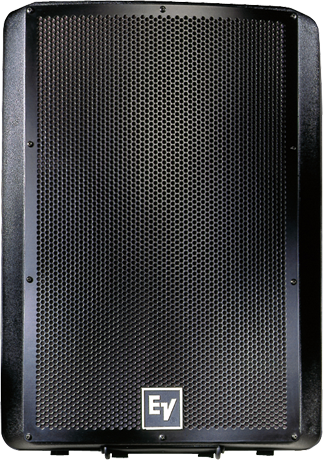

Sx300PIX

Weather‑resistant 12" 2‑way passive full‑range loudspeaker

  • Sx300 performance with enhanced weather-resistance
  • PIX version has multi-tap transformer for 70 or 100 V use
  • Ideal for installation, alone or in arrays
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65º x 65º Constant-directivity Varipath horn
  • Ring-Mode Decoupling (RMD) for increased intelligibility
  • Power handling: 300 W continuous, 1200 W peak
  • Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
  • Trapezoidal enclosure of high-impact polypropylene
  • Rubber feet and mating sockets for stacking
  • Integral handles, pole socket, suspension points
  • Available in black or white

Specifications

Frequency Range (-10 dB) 50 - 20000kHz
Weight Net 39.02lbs (17.7kg)
Depth 12.28" (312mm)

Width 16.89" (429mm)
Height 23.07" (586mm)
Weatherized Yes
Flying Yes
Enclosure Material Polypropylene Composite
Minimum Impedance
Nominal Impedance (Passive)
Crossover Frequency 1500Hz
HF Transducer 1.25-inch DH3/2010A
LF Transducer 12-inch DL12BFH
System Power Handling (Continuous/Program/Peak) 300//1200Watts (Long-Term/Short-Term)
Coverage (Nominal -6 dB) V 65° (Const.-dir. horn)
Coverage (Nominal -6 dB) H 65° (Const.-dir. horn)
Max. SPL/1m (calc) 131/123dB (Low Z/100V)
Sensitivity 1 W/1 m 99dB
Internal Crossover Yes
Input Connections 2 four-pin Speakon
Directivity Index 11.1dB (+2.4/-4.1 dB)
Speaker Type Full-Range, Mid-High, Two-Way
Transformer Yes
Chassis Size 12" (304.8mm)
Available Color Black or white
Axial Sensitivity (SPL, 1 W @ 1 m) 99dB
Power Rating 300W
Woofer Size 12inch
Powered or Passive Passive
Family Sx
