Sx300PI
Weather‑resistant 12" 2‑way passive full‑range loudspeaker
- Sx300 performance with enhanced weather-resistance
- PIX version has multi-tap transformer for 70 or 100 V use
- Ideal for installation, alone or in arrays
- 1.25-inch DH3/2010A titanium HF compression driver
- 65º x 65º Constant-directivity Varipath horn
- Ring-Mode Decoupling (RMD) for increased intelligibility
- Power handling: 300 W continuous, 1200 W peak
- Neutrik Speakon(R) (PI) or Phoenix (PIX) connectors
- Trapezoidal enclosure of high-impact polypropylene
- Rubber feet and mating sockets for stacking
- Integral handles, pole socket, suspension points
- Available in black or white
Specifications
| Frequency Range (-10 dB) | 50 - 20000kHz |
| Weatherized | Yes |
| Flying | Yes |
Specifications |
|
| Minimum Impedance | 5Ω |
| Nominal Impedance (Passive) | 8Ω |
| HF Transducer | 1.25-inch DH3/2010A |
| Speaker Type | Full-Range, Two-Way |
| Woofer Size | 12inch |
| Powered or Passive | Passive |
| Max. SPL/1m (calc)² | 131/123dB (Low Z/100V) |
| Coverage (Nominal -6 dB) H | 65° (Const.-dir. horn) |
| Coverage (Nominal -6 dB) V | 65° (Const.-dir. horn) |
| LF Transducer | 12-inch DL12BFH |
| Power Rating | 300W |
| System Power Handling (Continuous/Program/Peak) | 300//1200Watts |
| Crossover Frequency | 1500Hz |
| Enclosure Material | Polypropylene Composite |
| Available Color | Black or white |
| Sensitivity 1 W/1 m | 99dB |
| Height | 23.07" (586mm) |
| Width | 16.89" (429mm) |
| Internal Crossover | Yes |
| Depth | 12.28" (312mm) |
| Weight Net | 39.02lbs (17.7kg) |
| Family | Sx |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 99dB |
| Input Connections | 2 four-pin Speakon |
| Directivity Index | 11.1dB (+2.4/-4.1 dB) |
| Chassis Size | 12" (304.8mm) |
Similar Products
Compatible Products
Recommended Amplifiers
For optimal sound system performance, Electro-Voice recommends the following amplifiers for Sx300PI.
Dynacord C‑SeriesLearn More |
Dynacord L‑SeriesLearn More |
Electro-Voice CPS SeriesLearn More |
|
|---|---|---|---|
| Two-Channel | ✔ | ✔ | |
| Multi-Channel | ✔ | ||
| DSP | ✔ | ✔ | |
| Direct Drive | ✔ | ✔ | ✔ |
| OMNEO (Dante, OCA) | |||
| Installation | ✔ | ✔ | |
| Live Sound | ✔ |
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Zx5-60Piw, Sx300Piw, Xlci127Dvx, Evid 6.2T, Evf-1122Spiw, Iec 60529 Dust & Water Intrusion Certificate No. 40471-2-4 Certificate | 39KB | Dec 18, 2019 |
| Name | Size | Date | |
|---|---|---|---|
| Sx300 CAD Drawing | DWG | 18KB | Dec 26, 2007 |
| Name | Size | Date | |
|---|---|---|---|
| All Electrovoice EASE | ZIP | 598.1MB | Mar 24, 2021 |
| Sx Series EASE Data | ZIP | 235KB | Jun 13, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| SB122 PI Engineering Data Sheet | EN | 524KB | Apr 9, 2020 |
| SX300PI/PIX Engineering Data Sheet | EN | 480KB | Mar 18, 2009 |
| Name | Language | Size | Date |
|---|---|---|---|
| SX, Sb-Series Rigging Manual | EN | 271KB | Mar 22, 2012 |
| Sx300 Manual | EN | 348KB | Sep 25, 2015 |
| System 2000 Accessories | EN | 194KB | Mar 22, 2012 |
| Name | Size | Date |
|---|---|---|

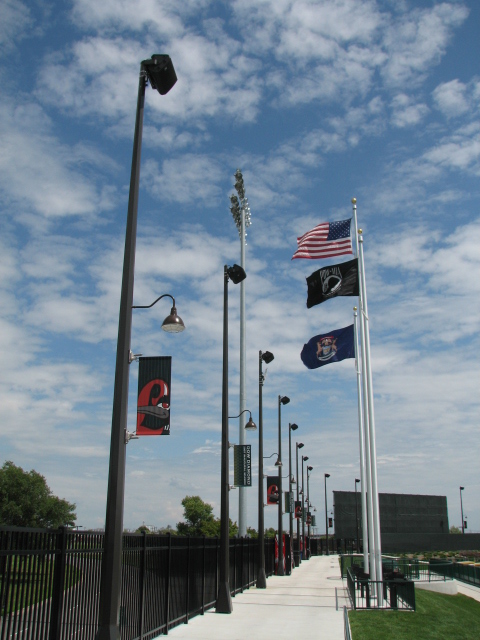

| IMG 0764 | 162KB | Nov 2, 2015 |
| IMG 0750 | 209KB | Nov 2, 2015 |
| IMG 0786 | 159KB | Nov 2, 2015 |

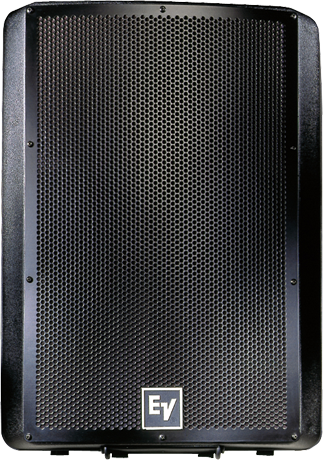

Sx300PI-trans
