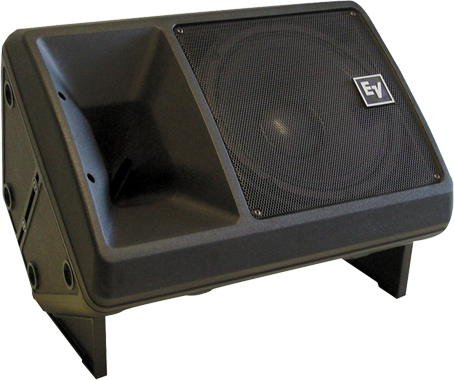

Sx300E

12" passive loudspeaker

  • Compact, portable sound reinforcement
  • Designed for use alone or in arrays
  • Cast-frame DL12BFH woofer
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65º x 65º Constant-directivity Varipath horn
  • Ring-Mode Decoupling (RMD) for increased intelligibility
  • Power handling: 300 W continuous, 1200 W peak
  • Dual Neutrik Speakon(R) high-current connectors
  • Trapezoidal black or white polypropylene enclosure
  • Rubber feet and mating sockets for stacking
  • Integral handles, pole mount

Specifications

Frequency Range (-10 dB) 50 - 20000kHz
Weight Net 39.02lbs (17.7kg)
Depth 12.28" (312mm)

Width 16.89" (429mm)
Height 23.07" (586mm)
Weatherized No
Flying Yes
Enclosure Material Copolymer Composite
Minimum Impedance
Nominal Impedance (Passive)
Crossover Frequency 1500Hz
HF Transducer 1.25-inch DH3/2010A
LF Transducer 12-inch DL12BFH
System Power Handling (Continuous/Program/Peak) 300/1200Watts (Long-Term/Short-Term)
Coverage (Nominal -6 dB) V 65° (Const.-dir. horn)
Coverage (Nominal -6 dB) H 65° (Const.-dir. horn)
Max. SPL/1m (calc) 131/123dB (Low Z/100V)
Sensitivity 1 W/1 m 99dB
Internal Crossover Yes
Axial Sensitivity (SPL, 1 W @ 1 m) 99dB
Woofer Size 12inch
Powered or Passive Passive
Family Sx
Input Connections 2 four-pin Speakon
Directivity Index 11.1dB (+2.4/-4.1 dB)
Speaker Type Full-Range, Mid-High, Two-Way
Available Color Black or white
Chassis Size 304.8 mm
