RE3-ND96
Uhf wireless set featuring nd96 dynamic supercardioid microphone

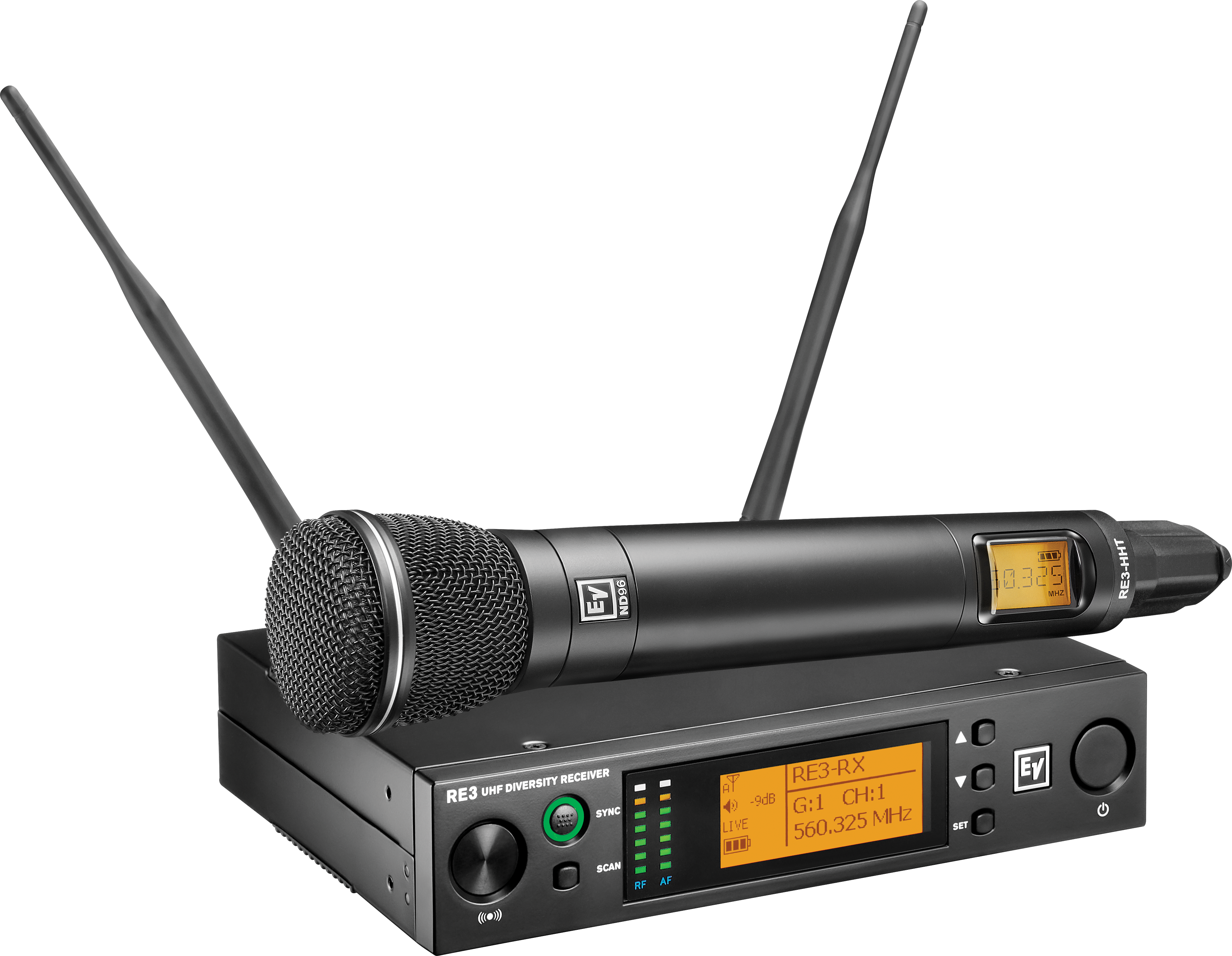

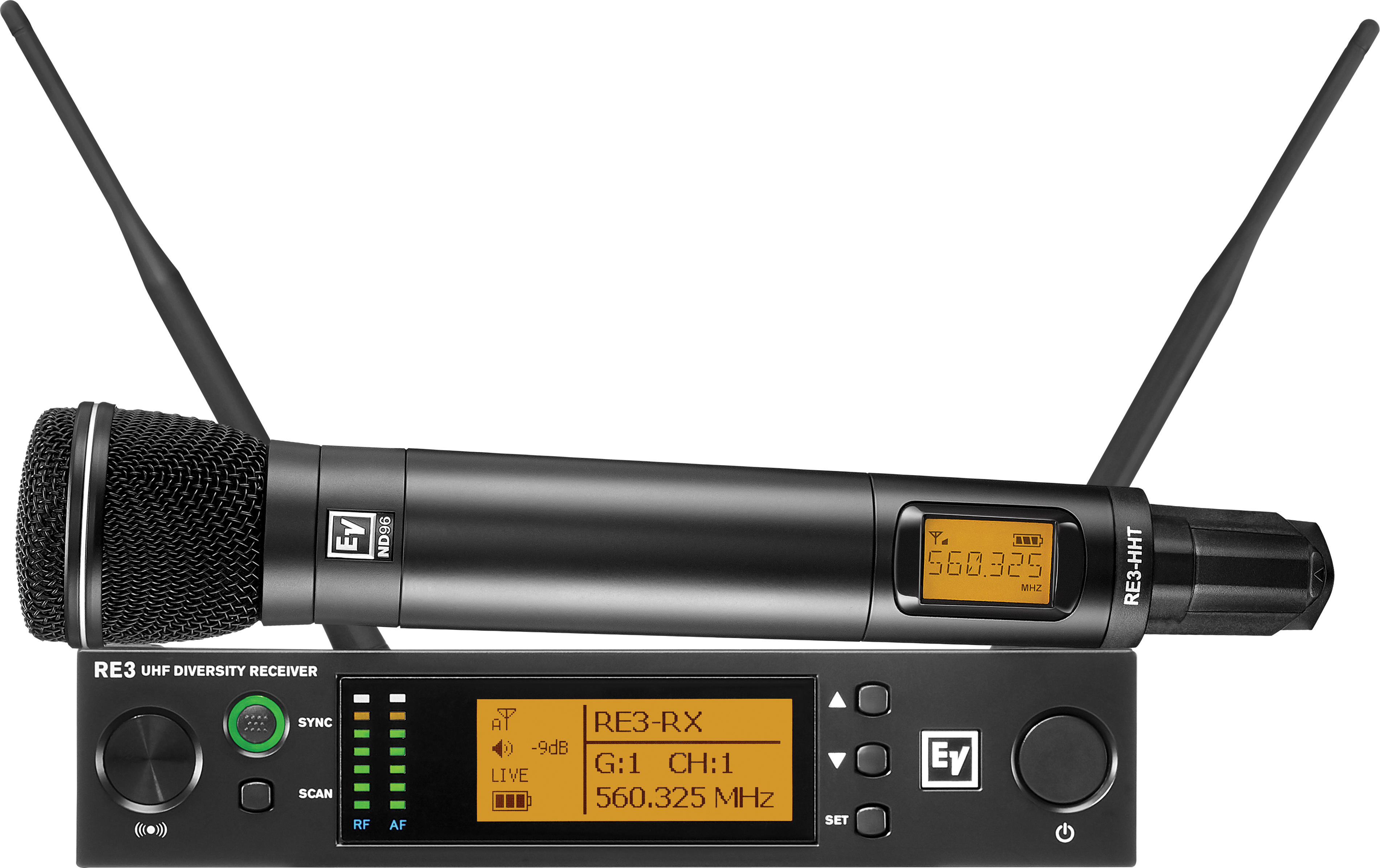

Handheld UHF wireless set featuring ND96 dynamic supercardioid microphone head for vocal performance and presentations. The ND96’s sound is powerful, rich, and detailed, and delivers exceptionally high gain before feedback for excellent acoustic control on very loud stages.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
Components of the set:
ND96-RC3 Wireless Head with ND96 Capsule
- Thread-on microphone head for Electro-Voice handheld transmitters (compatible with many other brand's handheld transmitters)
- Excellent acoustic control on very loud stages: exceptionally high gain before feedback
- Large diaphragm dynamic capsule creates a rich and detailed frequency response
- Shock-mounted capsule minimizes handling noise
- Memraflex grille resists denting
- Learn more
- Robust metal body
- Sync function for easy frequency setup
- Selectable low and high output power (band specific)
- Up to 36 MHz tuning bandwidth (band specific)
- Common threaded coupling allows microphone head interchangeable
- Learn more
- Diversity reception minimizes dropouts
- Frequency scanning for selecting open frequencies
- Sync function links transmitter to receiver for easy setup
- Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
- Easy-to-read LCD display
- Learn more
Microphone stand adapter
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
Two receiver antennas
Universal power supply
Two AA batteries
Receiver rack mounting hardware
Owner’s manual
Documentation packet
Declaration of conformity
| BAND DETAILS | |||||
| Band name | 5L | 5H | 6M | 8M | T |
| Bandwidth limits (MHz) | 488 – 524 | 560 – 596 | 653 – 663 | 823 – 832 863 – 865 | 803 - 806 |
| Tuning bandwidth | 36 MHz | 36 MHz | 10 MHz | 11 MHz | 3 MHz |
| Selectable frequencies | 1440 | 1440 | 400 | 440 | 120 |
| Transmit output power (mW) | 10 and 50 | 10 and 50 | 10 and 20 | 10 | 10 and 50 |
| Coverage | Global | Global | Global | Select Europe | Thailand only |
