RE3-ACC-BC2

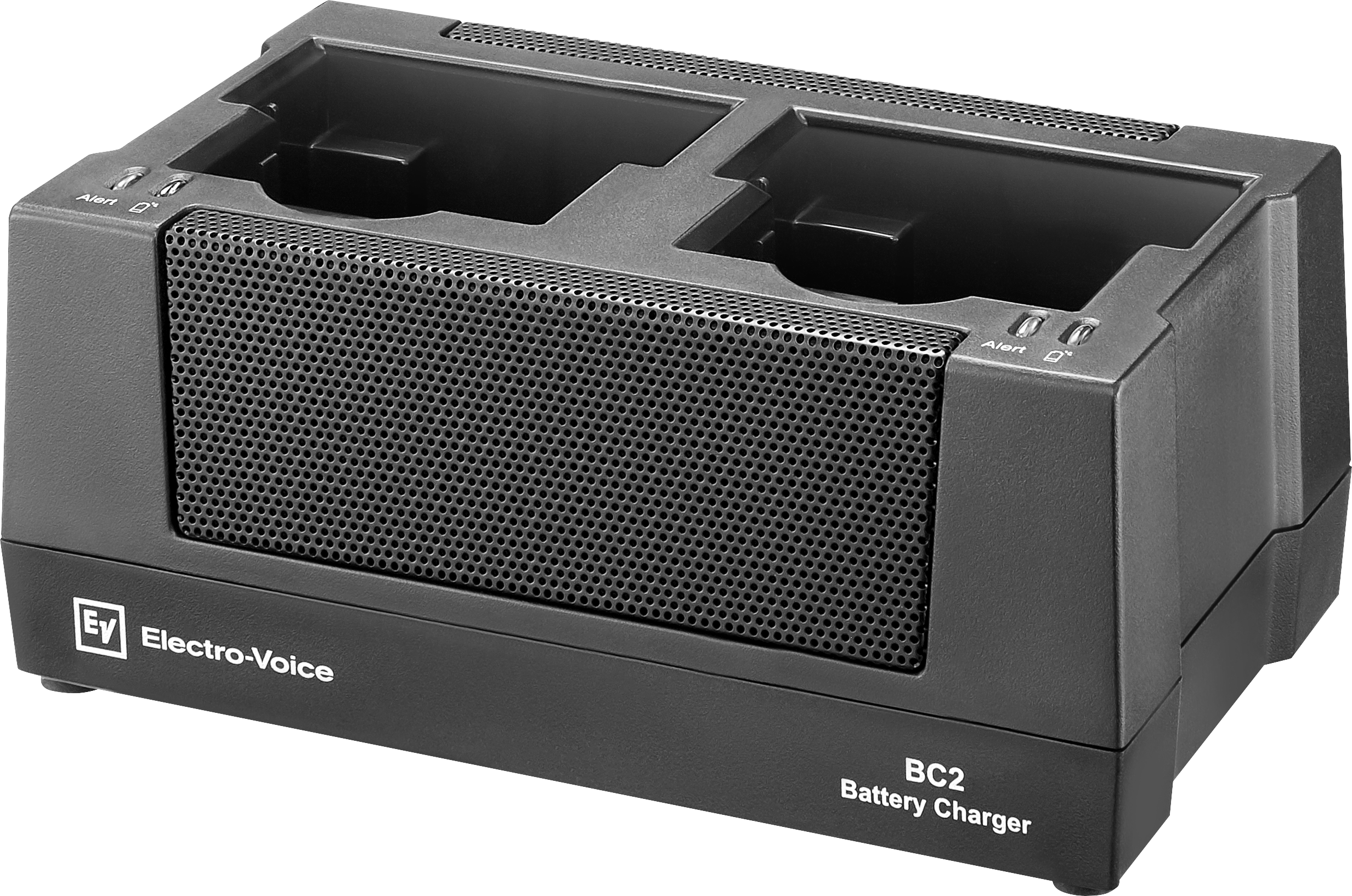

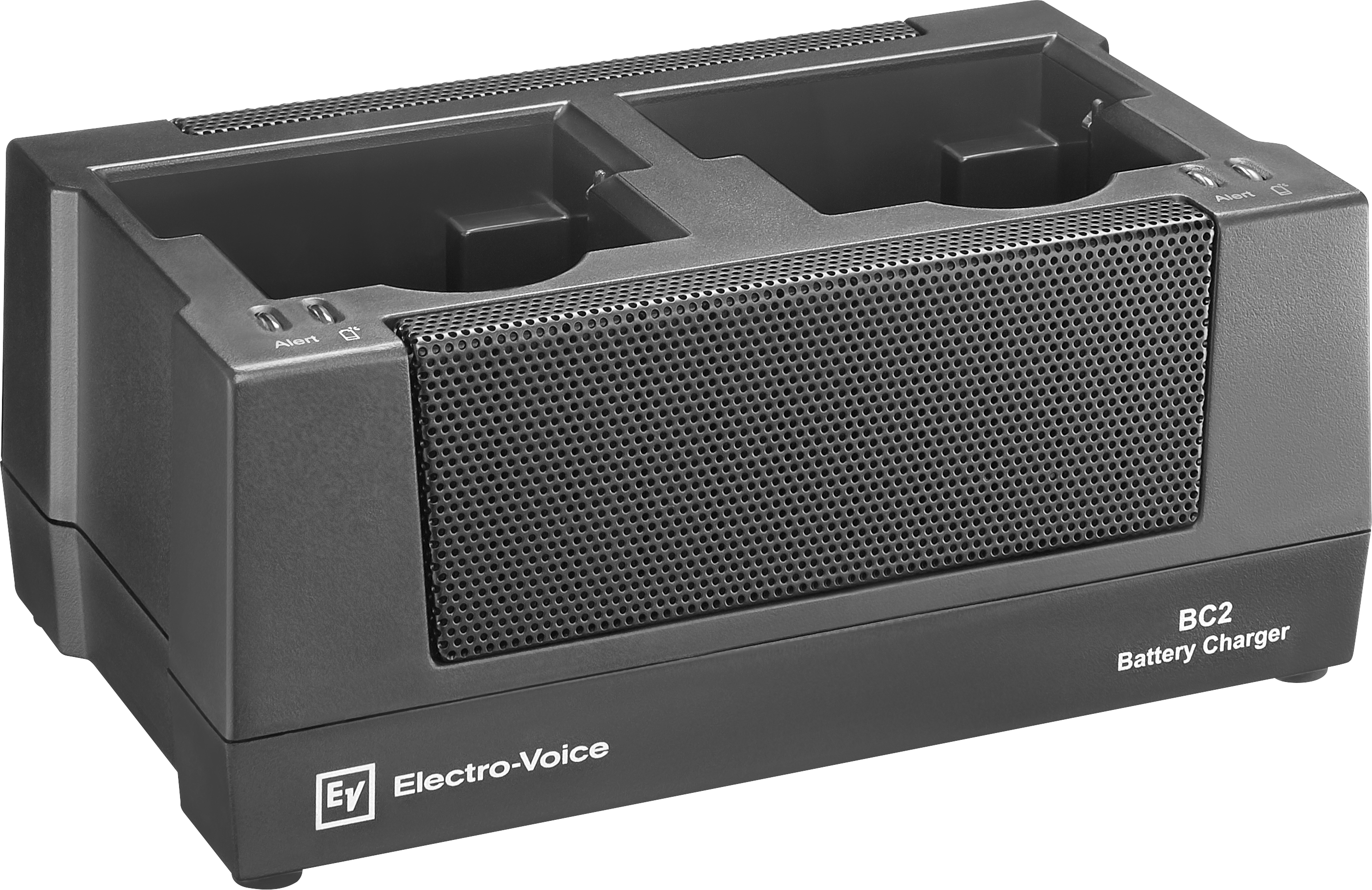

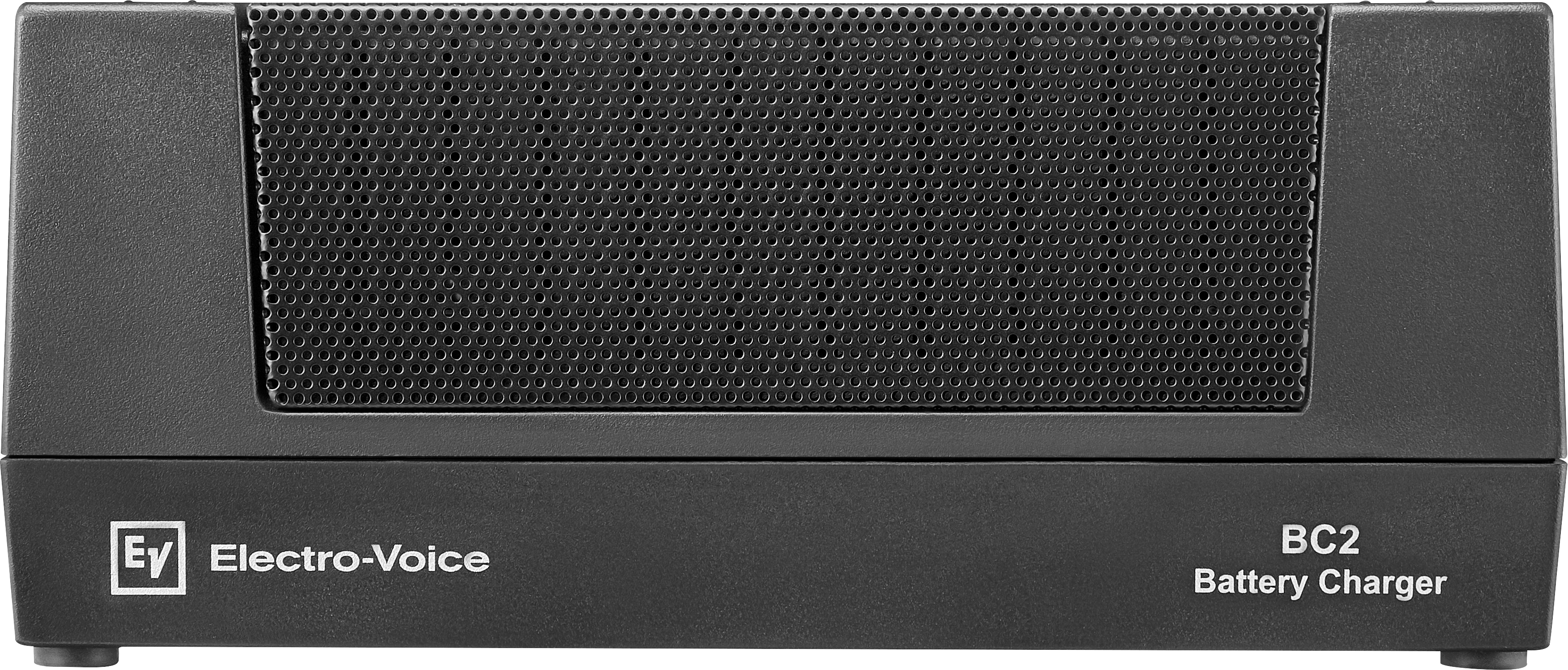

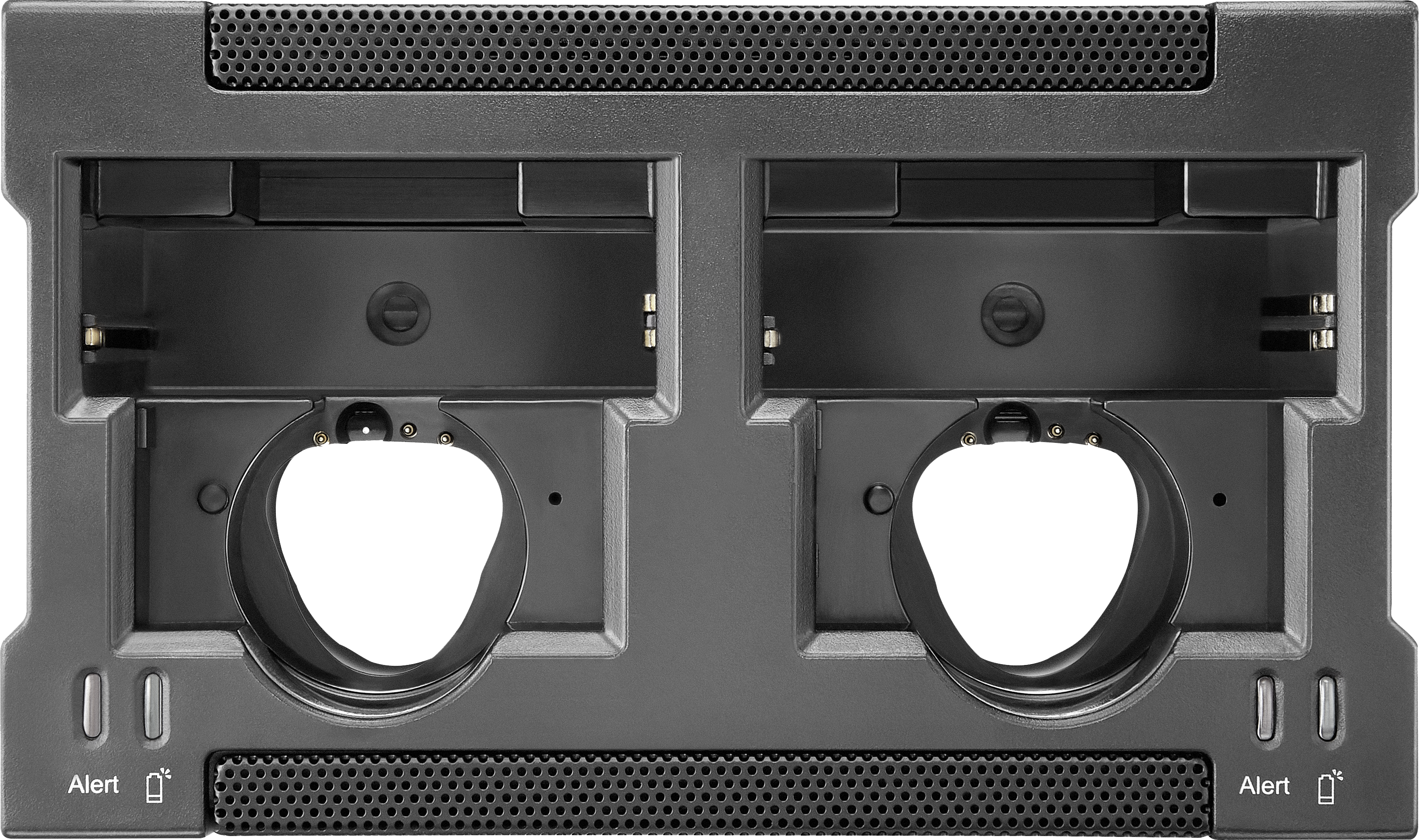

Two slot battery charger

  • 2-slot charger
  • Charges RE3-HHT and RE3-BPT containing rechargeable cells
  • 3-hour charging time

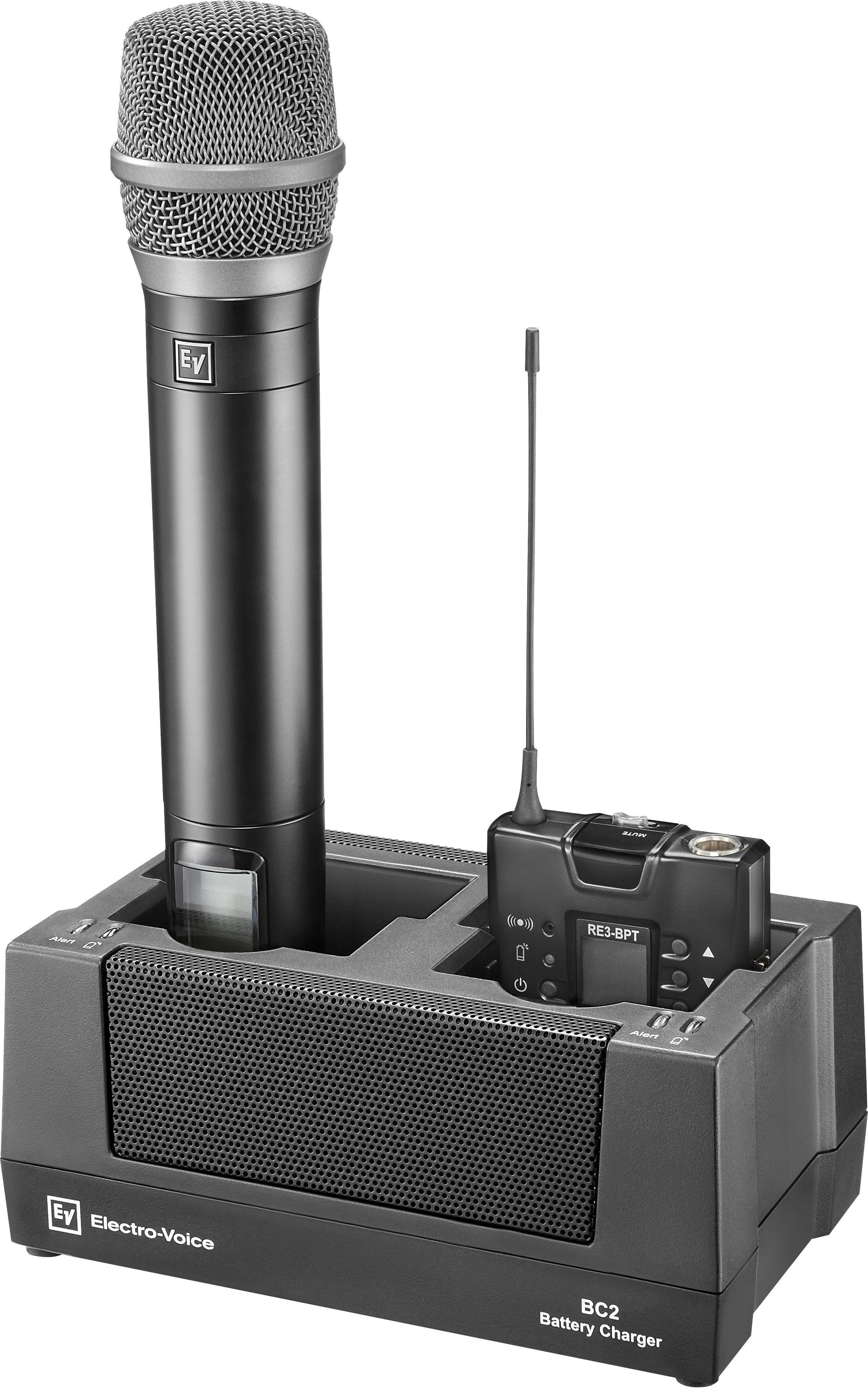

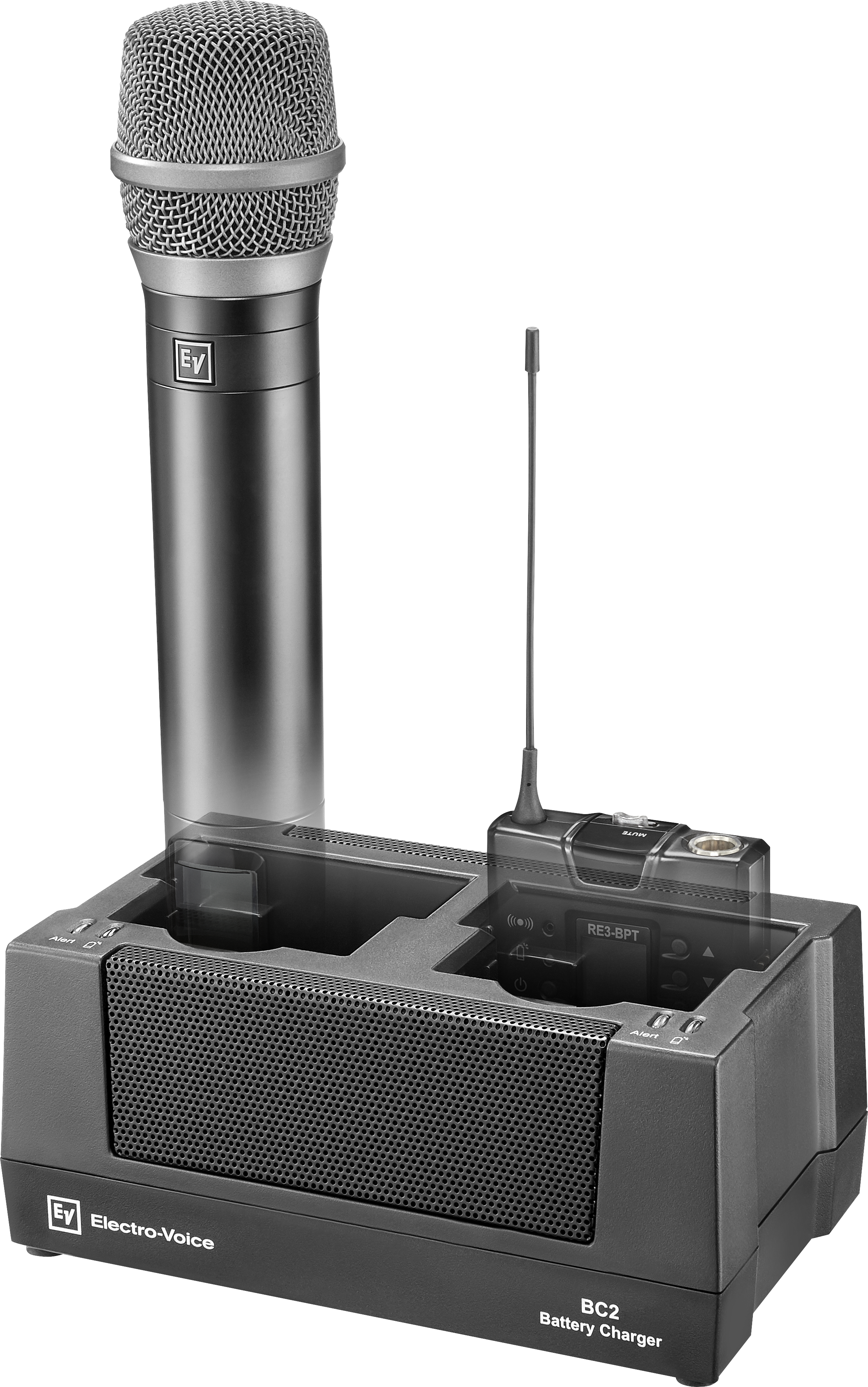

The BC2 is a 2-sided, 2-slot battery charging station for recharging optional NiMH rechargeable cells while in either the RE3-HHT or RE3-BPT transmitters.

Specifications

Input DC 12V, 1A
Slots 2 per side
LED Indicators
Fully charged/standby Solid green
Charging Flashing green
Fault Flashing red
Charging time 3 hours (four 2000mAh NiMH
rechargeable cells)

Power supply
Input AC 100-240V, 0.5A
Output DC 12V, 1A
Color Black
Dimensions (length) 6.5" (165 mm)
Dimensions (width) 3.94" (100 mm)
Dimensions (depth) 2.8" (71 mm)
Net weight 1lb 2 oz. (512 g)
Gross weight 1lb 4.6 oz. (640 g)
