ELX200-12SP
12" powered subwoofer
- EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth® is available in select countries.
- QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
- High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
- Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall
settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.
Specifications
| Frequency response (-3 dB) | 49 Hz - 135 Hz¹ |
| Frequency range (-10 dB) | 41 Hz - 165 Hz¹ |
| Maximum SPL | 129 dB² |
Specifications | |
| Power rating | 1200 W |
| LF transducer | EVS-12L 300 mm (12 in) |
| Low-Pass frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |
| Connectors | (2) XLR/TRS combo jacks and (2) XLR link outputs |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Color | Black or White |
| Dimensions (H x W x D) | 397 mm x 445 mm x 457 mm (16.7 in x 17.6 in x 18.0 in) |
| Net weight | 19.1 kg (42.2 lb) |
| Shipping weight | 22.3 kg (49.2 lb) |
| Power consumption | 100 - 240 V~, 50 - 60 Hz, 1.8 A³ |
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
Complementary
Similar
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| Portable Speaker Family Brochure | EN | 3.8MB | Jun 20, 2019 |
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Portable Speaker Feature Overview | EN | 2.43MB | Aug 28, 2018 |
| Portable speakers catalog 2020 EMEA | EN | 9.22MB | Jan 21, 2020 |
| Portable speakers catalog 2020 NA | EN | 10.63MB | May 22, 2020 |
| Portable speakers catalog 2020 EMEA | PL | 6.77MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | FR | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | ES | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | EL | 6.78MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | DE | 6.76MB | May 12, 2020 |
| Name | Size | Date |
|---|---|---|
| ELX200 Portable Powered EC Declaration of Conformity Ukraine | 346KB | Nov 13, 2019 |
| Elx200-12Sp-Eu, Bosch Security Systems, 2019_08_29 Country of Origin Certificate | 268KB | Dec 18, 2019 |
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Size | Date | |
|---|---|---|---|
| ELX200-12SP SIMPLIFIED | ZIP | 52KB | Apr 27, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| ELX200-12SP Engineering Data Sheet | EN | 1.08MB | Apr 16, 2019 |
| ELX200-12SP Engineering Data Sheet | DE | 598KB | Jul 25, 2019 |
| ELX200-12SP Engineering Data Sheet | ES | 610KB | Jul 25, 2019 |
| ELX200-12SP Engineering Data Sheet | FR | 598KB | Jul 25, 2019 |
| ELX200-12SP Engineering Data Sheet | JA | 685KB | Jul 25, 2019 |
| ELX200-12SP Engineering Data Sheet | KO | 715KB | Jul 25, 2019 |
| ELX200-12SP Engineering Data Sheet | PT | 607KB | Jul 25, 2019 |
| ELX200-12SP Engineering Data Sheet | ZH | 699KB | Jul 25, 2019 |
| Name | Size | Date | |
|---|---|---|---|
| ELX200 Project File Example for IRIS-Net | ZIP | 10.16MB | Oct 26, 2017 |
| IRIS-Net 4.0.0 | EXE | 405.22MB | Sep 3, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| ELX200 Powered Loudspeakers Installation Manual | EN | 10.6MB | Apr 16, 2019 |
| ELX200 Powered Loudspeakers Benutzerhandbuch | DE | 10.61MB | Jul 23, 2019 |
| ELX200 Powered Loudspeakers Guide | FR | 10.61MB | Jul 23, 2019 |
| ELX200 Powered Loudspeakers Manual | ES | 10.61MB | Jul 23, 2019 |
| ELX200 Powered Loudspeakers Manual | PT | 10.61MB | Jul 23, 2019 |
| ELX200 Powered Loudspeakers マニュアル | JA | 10.77MB | Jul 23, 2019 |
| ELX200 Powered Loudspeakers 说明书 | ZH | 10.88MB | Jul 23, 2019 |
| ELX200 Powered Loudspeakers 설치 매뉴얼 | KO | 10.72MB | Jul 23, 2019 |
| Name | Size | Date |
|---|---|---|
| ev elx200 quicksmartmobile04 aug17 4c fullrights | 15.53MB | Oct 11, 2017 |

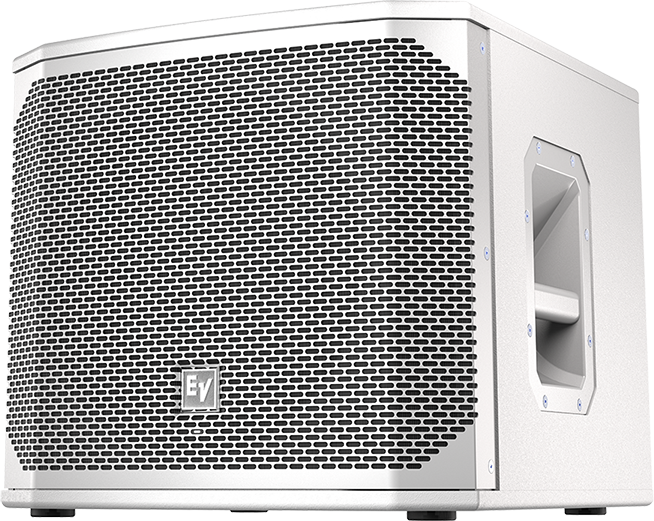

ELX200-12SP White Front

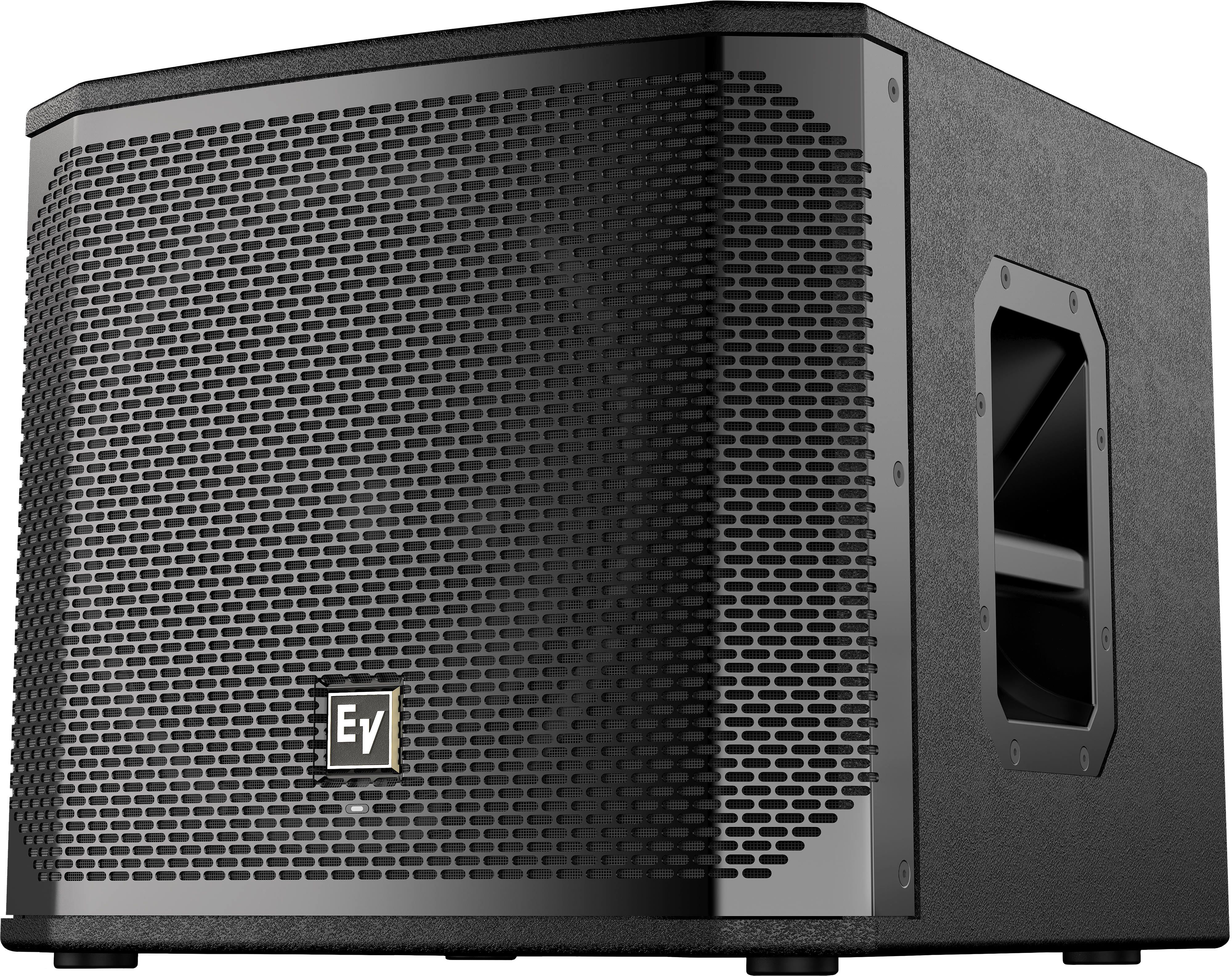

ELX200 12SP

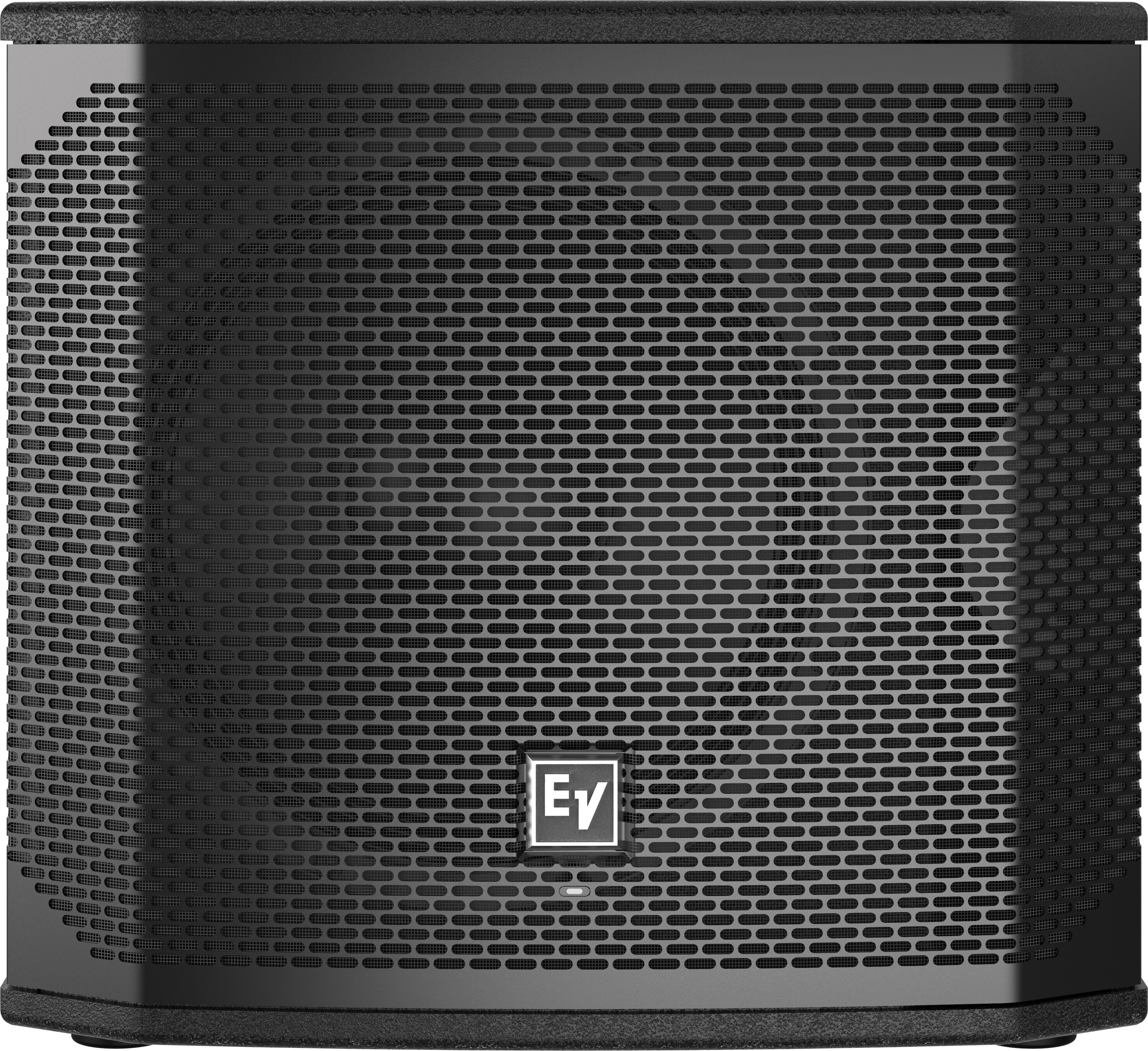

ELX200 12SP Front

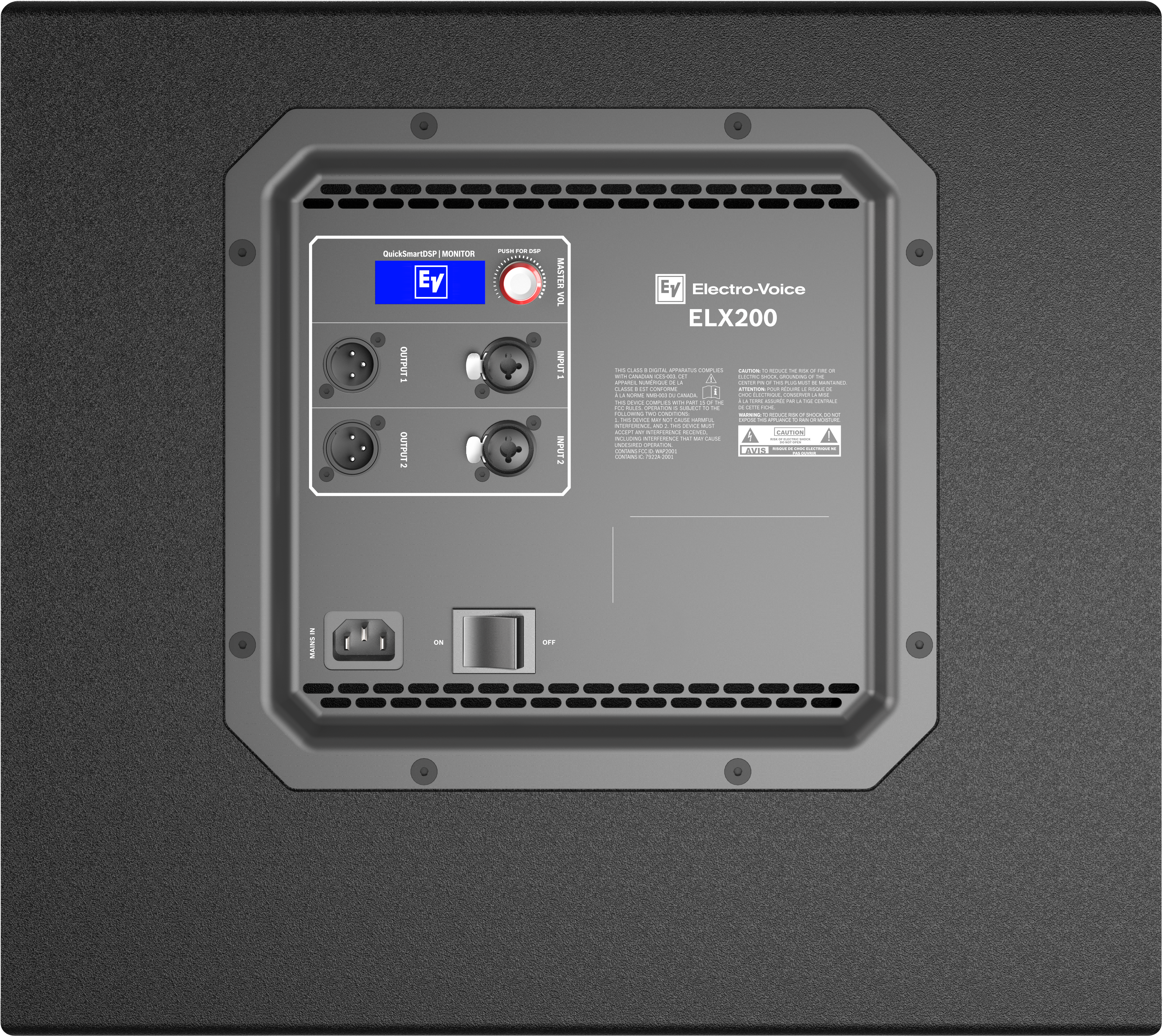

ELX200 12SP Rear

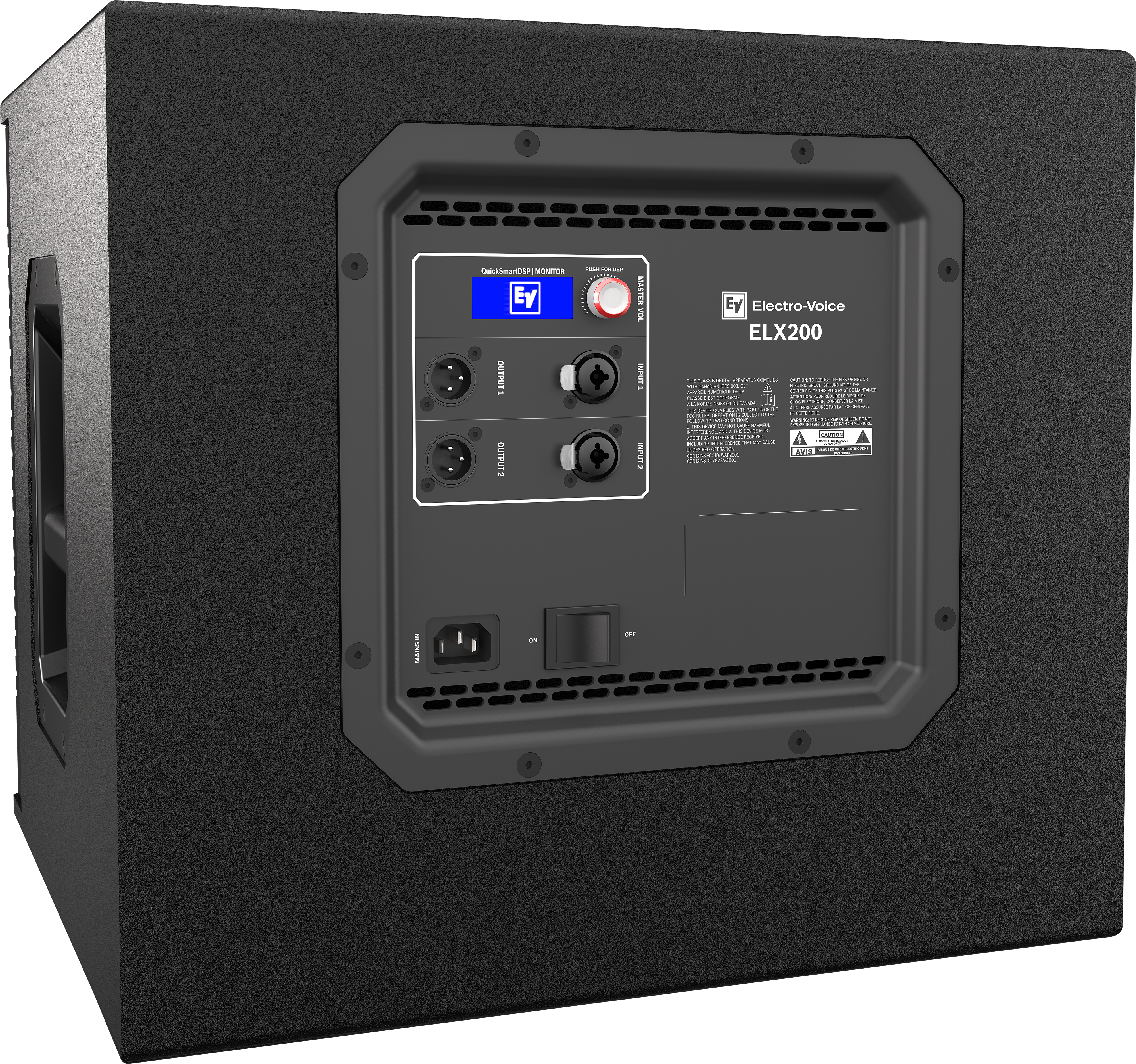

ELX200 12SP Rear Powered
ELX200 PoleMounted 10p12sp
ELX200 Rotation Animation

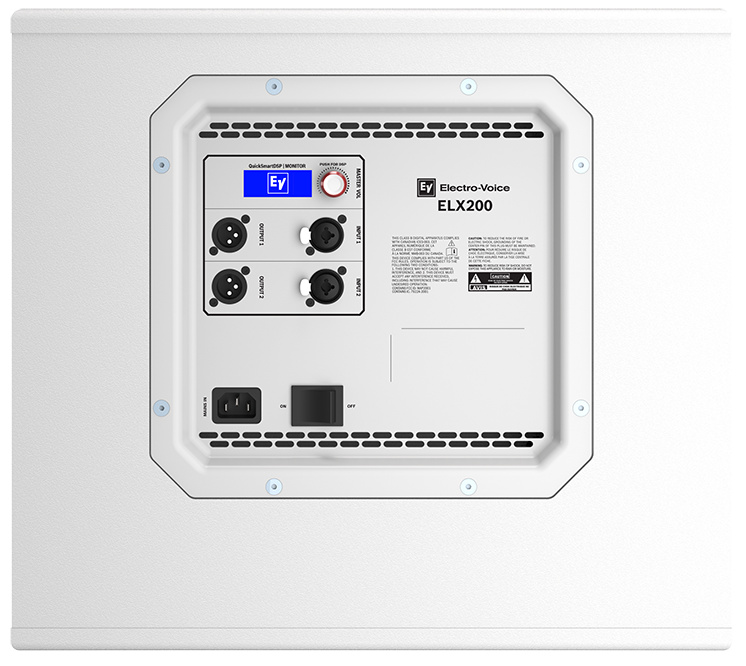

ELX200-12SP White Rear
