ZLX-12BT
12" powered loudspeaker with bluetooth® audio*
- High‑quality Bluetooth® audio streaming for background music or musical accompaniment.
- QuickSmartDSP features best‑in‑class processing. Easy setup via four presets, sub/top system‑match, two‑band EQ, five user‑programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
- High‑efficiency 1000 W Class‑D power amplifier delivers up to 126 dB peak SPL utilizing transducers designed and engineered by EV.
- EV‑patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
- Three optimally located handles combined with a rugged composite structure provides the most portable professional sound speaker on the market.
NOW STREAMING: Electro-Voice ZLX best-selling speaker family adds Bluetooth audio streaming models
ZLX portable loudspeakers offer the best performance and reliability in their class — with components and engineering that work together to make it quicker and easier than ever to take control of your sound, whatever the gig. Now with Bluetooth® enabled wireless audio streaming, legendary ZLX performance becomes even more convenient with the ability to connect to any mobile device for streaming your music library.
Featuring custom drivers housed in an innovative cabinet design, the two new wireless, compact, and versatile ZLX models make EV's renowned sound quality and rugged reliability more accessible than ever before.
* Bluetooth® is available in select countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bosch Security Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners. © 2018 Bosch Security Systems, Inc.
Specifications
| Frequency Response (-3 dB)1 | 65 Hz - 18 kHz |
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
| Maximum SPL2 | 126 dB |
Specifications | |
| Coverage (H x V) | 90° x 60° |
| Power Rating | 1000 W |
| LF Transducer | EVS-12K, 300 mm (12 in) woofer |
| HF Transducer | DH-1K |
| Connectors | (2) XLR/TRS Combo Jack (1) 3.5 mm Input and (1) XLR link Output |
| Enclosure | Polypropylene |
| Grille | 18 Gauge steel with black powder coat |
| Color | Black |
| Dimensions (H x W x D) | 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in) |
| Net Weight | 15.6 kg (34.3 lb) |
| Shipping Weight | 19.0 kg (41.8 lb) |
| Power Consumption3 | 100 - 240 V~, 50 - 60 Hz, 0.8 - 0.5 A |
2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3 Current rating is specified at ⅛ full output power.
Similar
Complementary
Downloads
| Name | Language | Size | Date |
|---|---|---|---|
| Portable Speaker Family Brochure | EN | 3.8MB | Jun 20, 2019 |
| ProSound Loudspeakers and Electronics Catalog | EN | 15.43MB | Apr 2, 2019 |
| Portable Speaker Feature Overview | EN | 2.43MB | Aug 28, 2018 |
| Portable speakers catalog 2020 EMEA | EN | 9.22MB | Jan 21, 2020 |
| Portable speakers catalog 2020 NA | EN | 10.63MB | May 22, 2020 |
| Portable speakers catalog 2020 EMEA | PL | 6.77MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | FR | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | ES | 6.76MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | EL | 6.78MB | May 12, 2020 |
| Portable speakers catalog 2020 EMEA | DE | 6.76MB | May 12, 2020 |
| Name | Size | Date |
|---|---|---|
| Environmental Compliance Document | 148KB | Oct 3, 2017 |
| Name | Language | Size | Date |
|---|---|---|---|
| ZLX-12BT Engineering Data Sheet | EN | 1.19MB | Apr 11, 2018 |
| ZLX-12BT Datasheet | PT | 1.19MB | Jun 4, 2018 |
| ZLX-12BT Datasheet | TH | 1.24MB | Jun 4, 2018 |
| ZLX-12BT Datenblatt | DE | 1.19MB | Jun 4, 2018 |
| ZLX-12BT Engineering Data Sheet | KO | 1.32MB | Jun 4, 2018 |
| ZLX-12BT Hoja de Datos de Ingeniería | ES | 1.19MB | Jun 4, 2018 |
| ZLX-12BT データシート | JA | 1.27MB | Jun 4, 2018 |
| ZLX-12BT 数据表 | ZH | 1.28MB | Jun 4, 2018 |
| Name | Language | Size | Date |
|---|---|---|---|
| ZLX User Manual | EN | 8.71MB | May 3, 2019 |
| ZLX Wall Mount Bracket Installation Guide | EN | 2.25MB | Mar 11, 2014 |
| ZLX-12P & ZLX-15P Quick Start Guide | EN | 1.04MB | Jan 18, 2013 |
| Série ZLX Manual | PT | 8.72MB | Jul 23, 2019 |
| ZLX Serie Benutzerhandbuch | DE | 8.72MB | Jul 23, 2019 |
| ZLX Series Manual | ES | 8.72MB | Jul 23, 2019 |
| ZLX Series Manual | FR | 8.73MB | Jul 23, 2019 |
| ZLX シリーズ マニュアル | JA | 8.87MB | Jul 23, 2019 |
| ZLX 시리즈 설치 매뉴얼 | KO | 8.81MB | Jul 23, 2019 |
| ZLX系列产品说明书 | ZH | 8.71MB | Jul 23, 2019 |
| Name | Language | Size | Date |
|---|---|---|---|
| Electro-Voice ZLX-12BT Win To Stream Competition - Terms and Conditions | EN | 90KB | Feb 28, 2020 |
| ZLX-12BT competition - Terms and Conditions | EN | 90KB | Mar 5, 2020 |

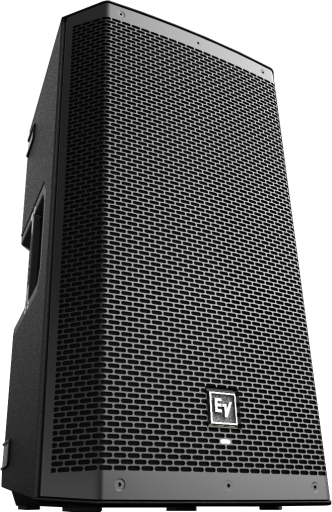

ZLX-12BT Hero Right
ZLX BT SC

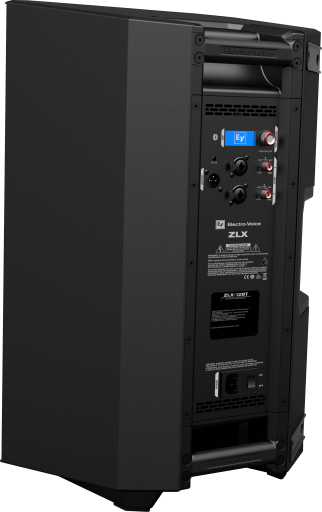

ZLX-12BT BackPanel

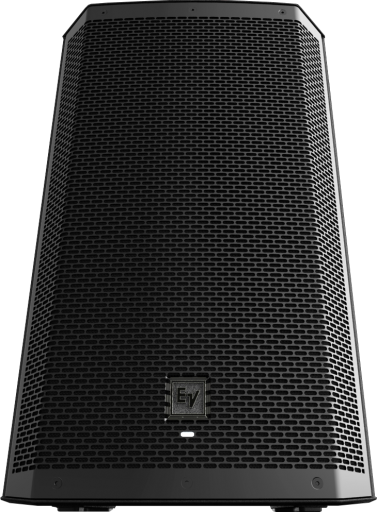

ZLX-12BT Hero Front
