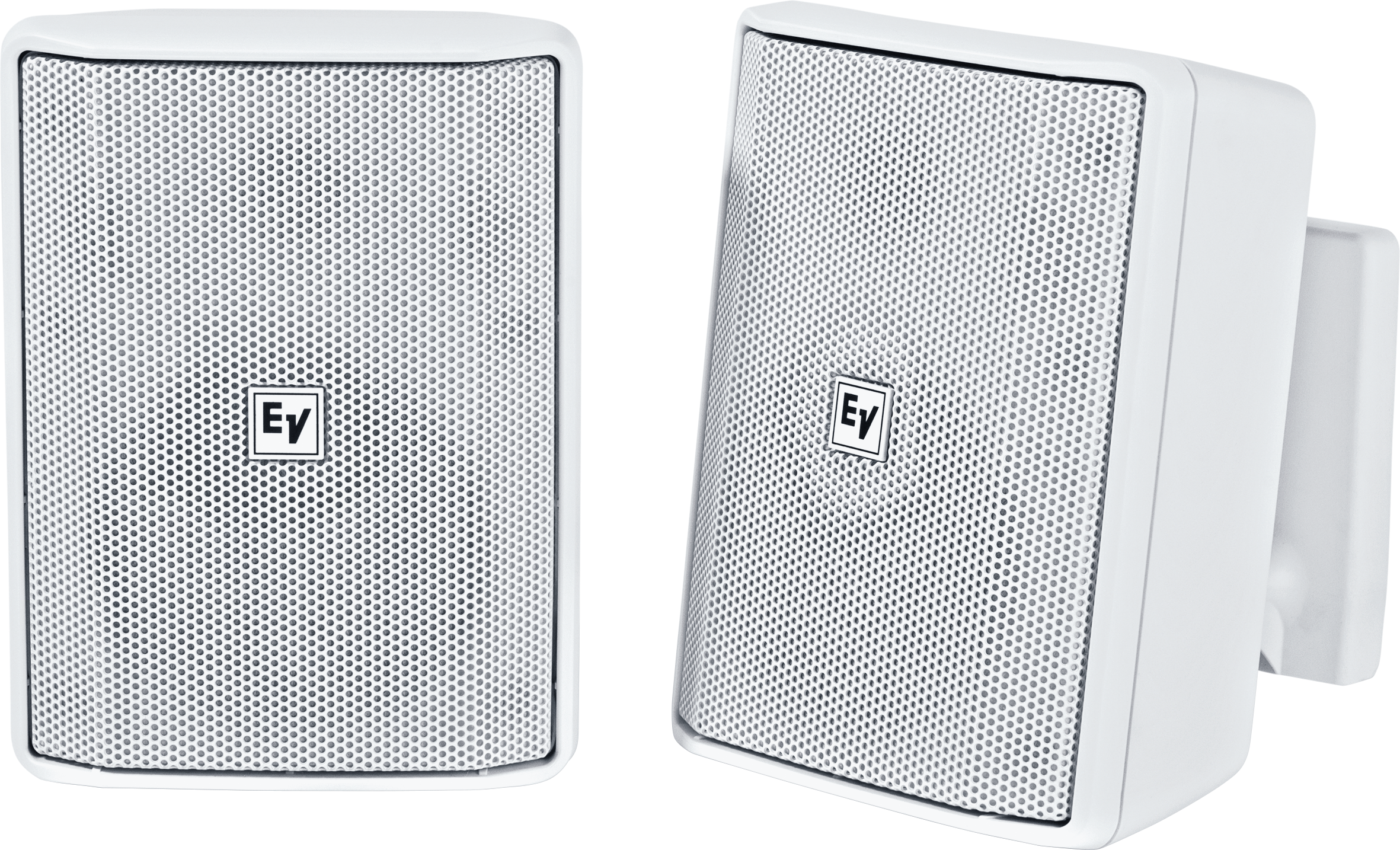

EVID-S4.2

4” cabinet 8Ω pair

  • Innovative mount system is included for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 4" (102 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 75 Hz
  • 40 W power handling provides for 103 dB maximum SPL (109 dB peak)
  • 70 V/100 V transformer version (EVID-4.2T) available for constant voltage systems

The EVID-S4.2 from Electro-Voice is a high-performance, two-way, full-range, 4 inch (102 mm) surface mount speaker with excellent wide, uniform coverage, and outstanding performance. It is designed for background and foreground music, paging, and sound reinforcement, and it's ideal for a wide variety of indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

With unparalleled ease-of-installation, sturdy weather resistance, modern and delicate look, and its flexible mounting options, the EVID-S4.2 is the perfect solution for a wide variety of surface mount applications.

The EVID-S4.2 includes the unique and innovative mount system, from Electro-Voice, making every installation quick, simple, and reliable. The mounting system allows for 90 degrees of rotation horizontally, and 45 degrees of rotation vertically, and it can be easily installed on walls and ceilings. The mounting system comes already assembled and ready to be used, ready to make any job easier.

The EVID-S4.2 has been carefully engineered to resist outdoor environments, without compromising on performance for indoor applications. The full-range speaker is IP54 rated, and its weather-proofing is complemented with exceptional cabinet and grille resistance against sun, salt and moisture.

All EVID-S models are available in black or white, and can be easily painted to match the décor. Transformer versions are also available for constant voltage systems.

The wide range of EVID surface mount speakers has been designed to work together as a complete system in a variety of different surface mount constructions, and to be used in combination with other EVID ceiling and in-wall speakers.

Specifications

Frequency Range (-10 dB) 75 Hz – 20 kkHz
Shipping Weight 11.02lbs (5kg)
Weight Net 52.91oz (1500g)

Depth 4.65" (118mm)
Weatherized Yes
Connector Type Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Minimum Impedance 6.4Ω
HF Transducer 0.75 inch (20 mm)
LF Transducer 4 inch (102 mm)
Coverage (Nominal -6 dB) V 110°
Coverage (Nominal -6 dB) H 110°
Max. SPL/1m (calc) 103dB
Sensitivity 1 W/1 m 87dB
Recommended High-Pass Frequency 70Hz
Frequency Response (-3 dB) 100 Hz – 20 kHz
Power Rating 160W
Power Handling (Continuous / Peak) 40 W/160W
Available Color Black or White
Environmental Specs IP54 (per IEC-60529)
Nominal Impedance

Similar Products

Downloads

Name Size Date
EVID-S4.2.rfa 1.34MB Jan 16, 2019
Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB Apr 2, 2019
EVID Family Brochure EN 1.75MB Jul 6, 2020
EVID-S Brochure EN 2.85MB Jan 15, 2018
EVID-S Brochure KO 1.3MB Jan 15, 2018
EVID-S Brochure NL 1.07MB Jan 15, 2018
EVID-S Brochure PL 1.08MB Jan 15, 2018
EVID-S Brochure RU 1.08MB Jan 15, 2018
EVID-S Brochure TH 1.09MB Jan 15, 2018
EVID-S Brochure TR 1.08MB Jan 15, 2018
EVID-S Brochure TW 1.3MB Jan 15, 2018
EVID-S Brochure FR 1.08MB Jan 15, 2018
EVID-S Brochure IT 1.08MB Jan 15, 2018
EVID-S Broschüre DE 1.08MB Jan 15, 2018
EVID-S Folleto ES 1.08MB Jan 15, 2018
EVID-S カタログ JA 1.34MB Jan 15, 2018
EVID-S 宣传册 ZH 1.3MB Jan 15, 2018
Name Size Date
Environmental Compliance Document 148KB Oct 3, 2017
Name Size Date
EVID-S4.2/T 2D CAD Drawing DWG 653KB Nov 16, 2017
EVID-S4.2/T 3D CAD Drawing DWG 54KB Nov 29, 2017
Name Size Date
EVID-S CLF v1.1 ZIP 277KB Feb 13, 2018
EVID-S GLL v1.1 ZIP 6.13MB Feb 13, 2018
Name Language Size Date
EVID-S4.2 Engineering Data Sheet EN 1.19MB Dec 21, 2017
EVID-S4.2 Datenblatt DE 1.19MB Dec 21, 2017
EVID-S4.2 Engineering Data Sheet IT 1.19MB Dec 21, 2017
EVID-S4.2 Engineering Data Sheet NL 1.19MB Dec 21, 2017
EVID-S4.2 Engineering Data Sheet PL 1.19MB Dec 21, 2017
EVID-S4.2 Engineering Data Sheet PT 1.19MB Dec 21, 2017
EVID-S4.2 Engineering Data Sheet TR 1.19MB Dec 21, 2017
EVID-S4.2 Engineering Data Sheet TW 1.33MB Dec 21, 2017
EVID-S4.2 Engineering Data Sheet KO 1.42MB Mar 9, 2018
EVID-S4.2 Engineering Data Sheet RU 1.26MB Mar 20, 2018
EVID-S4.2 Fiche Technique FR 1.19MB Dec 21, 2017
EVID-S4.2 Hoja de Datos de Ingeniería ES 1.19MB Dec 21, 2017
EVID-S4.2 データシート JA 1.28MB Mar 9, 2018
EVID-S4.2 数据表 ZH 1.28MB Dec 21, 2017
Name Language Size Date
EVID-S Surface Mount Loudspeakers Installation Manual EN 10.37MB Oct 2, 2018
EVID-S安装手册 ZH 10.75MB Dec 10, 2018
EVID-S Installationshandbuch DE 10.5MB Dec 10, 2018
EVID-S Manuale di installazione IT 10.5MB Dec 10, 2018
EVID-S Руководство по установке RU 10.75MB Dec 10, 2018
Manual de instalación de EVID-S ES 10.55MB Dec 10, 2018
Manuel d'installation EVID-S FR 10.55MB Dec 10, 2018

EVID S 4 2TB

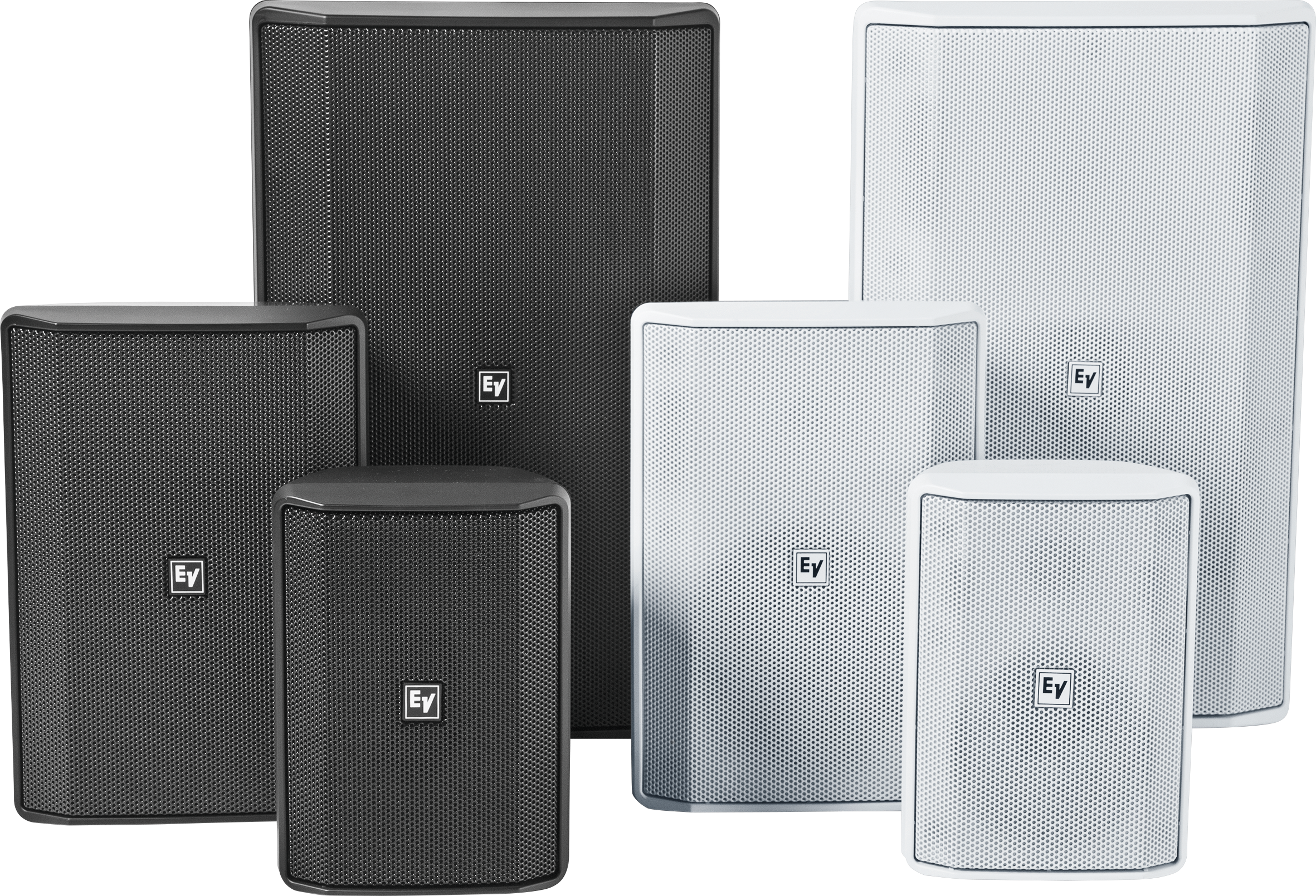

EVID Family With sub

EVID S 4 2TW

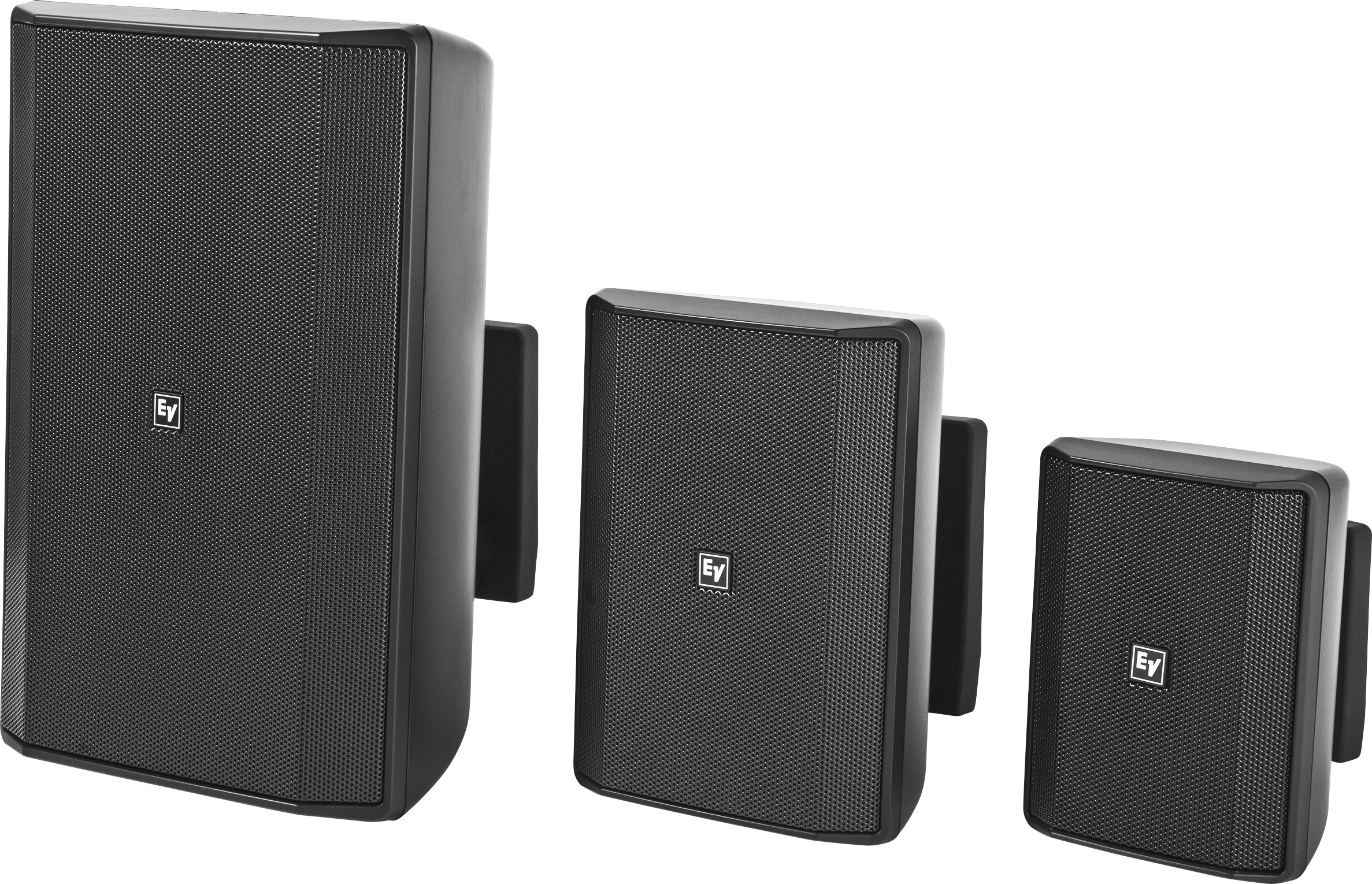

EVID S 4 5 8 Fam Blk

EVID S 4 5 8 Fam Blk Whit

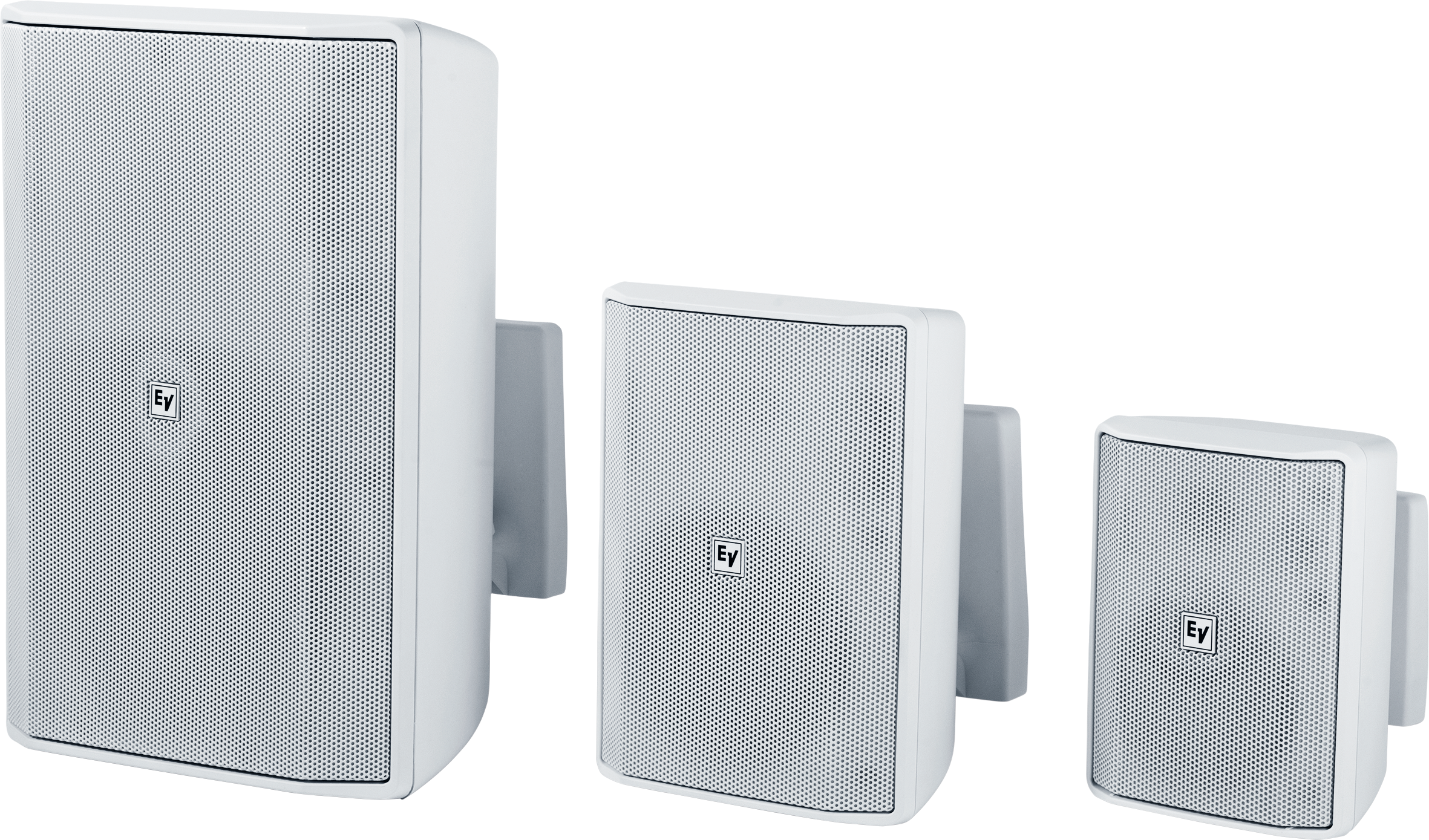

EVID S 4 5 8 Fam Whit
