RE3-BPT

Bodypack transmitter

  • Robust metal body
  • Sync function for easy frequency setup
  • Selectable low and high output power (band specific)
  • Up to 36 MHz tuning bandwidth (band specific)
  • Unique magnetic latch and lock for easy access to batteries

The RE3-BPT is a small, lightweight yet robust UHF bodypack transmitter. It is easily worn and concealed, making it an ideal form factor for a wide variety of professional presentation and performance applications. From stand-up presentations, to theatrical and musical performances, to high-energy fitness and athletic situations, this sleek and rugged transmitter fits comfortably and accepts a wide variety of input devices.

The all-metal body is robust and durable, and operates on 2 AA alkaline or rechargeable NiMH cells.

The ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver frequency tuning and other functional data.

The selectable output power (band specific) assists in overcoming the challenges of both long, or short, transmission ranges.

The tuning bandwidth affords generous frequency tuning options helping to avoid various sources of possible interference.

The unique magnetic sliding latch and lock mechanism keeps the battery door closed securely and makes opening to access the batteries effortless.

Recharging contacts provide for functional use with the optional BC2 charging station allowing the NiMH rechargeable cells within two bodypack transmitters to be charged without removal.

Specifications

Frequency oscillation mode Phase-locked loop (PLL)
Available band names, tuning
bandwidths, and carrier
frequency ranges
5L: 36 MHz (488-524 MHz)
5H: 36 MHz (560-596 MHz)
6M: 10 MHz (653-663 MHz)
8M: (823-865 MHz)*
T: 3 MHz (803-806 MHz)
*8M is split into two segments:
823-832MHz: 9MHz
863-865MHz: 2MHz
Sync frequency Ultrasonic

RF power output Frequency band specific:
5L (488-524MHz): Low 10mW / High
50mW
5H (560-596MHz): Low 10mW / High
50mW
6M (653-663MHz): Low 10mW /
High 20mW
8M (823-865MHz) 10mW
T (803-806MHz): Low 10mW / High
50mW
Display by LCD + LED
Function controls Power, mute, group, channel,
frequency, sensitivity adjustment,
input level attenuation, RF power,
auto off, key lock.
RF stability <±10kHz@Fc
Modulation frequency shift Wideband FM ±48kHz deviation
Harmonic radiation <−50dBc
Input jack 4-pin mini jack
Battery 2 x AA alkaline battery or NiMH
rechargeable battery
Charging contacts Yes
Finish Black polyurethane paint
Dimensions (without
antenna)
Height: 3.2 in. (81.5mm)
Width: 2.54 in. (64.5mm)
Depth: 0.98 in. (25mm)
Net weight 6.14 oz. (0.174 kg)
Gross weight 8.29 oz. (0.235 kg)

Compatible Products

Videos

Downloads

Name Language Size Date
ProSound Loudspeakers and Electronics Catalog EN 15.43MB 04.02.2019
Name Size Date
Environmental Compliance Document 148KB 10.03.2017
Nbtc, Re3-Rx_Re3-Hht-T_Re3-Bpt-T, A55029-19 Certificate 3.05MB 12.18.2019
Nbtc, Re3-Rx, Re3-Hht-T, Re3-Bpt-T, Stc-2504-10883 Certificate 981KB 12.18.2019
Nbtc, Re3-Rx, Re3-Hht-T, Re3-Bpt-T, Stc-2504-10883, English Certificate 133KB 12.18.2019
RE3 Family EC Declaration of Conformity 589KB 04.19.2019
RE3-BPT_B0386010319AF01A2 VIETNAM-MIC 1.02MB 12.18.2019
RE3-BPT-5H_1321A-RE3BPT560 Technical Acceptance Certificate 101KB 12.18.2019
RE3-BPT-5H_18-09-RBF-012-08 TAIWAN-ETC 64KB 12.18.2019
RE3-BPT-5H_18-09-RBF-012-17 TAIWAN-ETC 88KB 12.18.2019
RE3-BPT-5L_1321A-RE3BPT488 Technical Acceptance Certificate 106KB 12.18.2019
RE3-BPT-5L_18-09-RBF-012-07 TAIWAN-ETC 64KB 12.18.2019
RE3-BPT-5L_N1167-19 SINGAPORE-IMDA 14KB 12.18.2019
RE3-BPT-6M_1321A-RE3BPT653 Technical Acceptance Certificate 101KB 12.18.2019
RE3-BPT-6M_18-09-RBF-012-0 TAIWAN-ETC 64KB 12.18.2019
RE3-BPT-6M_18-09-RBF-012-11 TAIWAN-ETC 68KB 12.18.2019
RE3-BPT-6M_18-09-RBF-012-18 TAIWAN-ETC 88KB 12.18.2019
RE3-HHT_RE3-BPT_18-09-RBF-012-20 TAIWAN-ETC 83KB 12.18.2019
RE3-RX_RE3-HHT_RE3-BPT_18-09-RBF-012-21 TAIWAN-ETC 84KB 12.18.2019
RE3-RX_RE3-HHT-8M_RE3-BPT-8M_18-09-RBF-012-03 TAIWAN-ETC 86KB 12.18.2019
Name Language Size Date
RE3-BPT Engineering Data Sheet EN 1.28MB 02.06.2019
RE3-BPT Engineering Data Sheet DE 646KB 08.01.2019
RE3-BPT Engineering Data Sheet ES 625KB 08.01.2019
RE3-BPT Engineering Data Sheet FR 626KB 08.01.2019
RE3-BPT Engineering Data Sheet TH 651KB 08.01.2019
RE3-BPT Engineering Data Sheet ZH 871KB 08.01.2019
RE3-BPT-5H Engineering Data Sheet EN 1.26MB 02.06.2019
RE3-BPT-5L Engineering Data Sheet EN 1.26MB 02.06.2019
RE3-BPT-6M Engineering Data Sheet EN 1.27MB 02.06.2019
RE3-BPT-8M Engineering Data Sheet EN 1.26MB 02.06.2019
RE3-BPT-T Engineering Data Sheet EN 1.22MB 02.06.2019
Name Language Size Date
RE3 Flyer EN 1.68MB 02.07.2019
Name Language Size Date
RE3 UHF Wireless Installation manual EN 3.25MB 12.20.2018
RE3 UHF Wireless Installation manual DE 4MB 06.16.2020

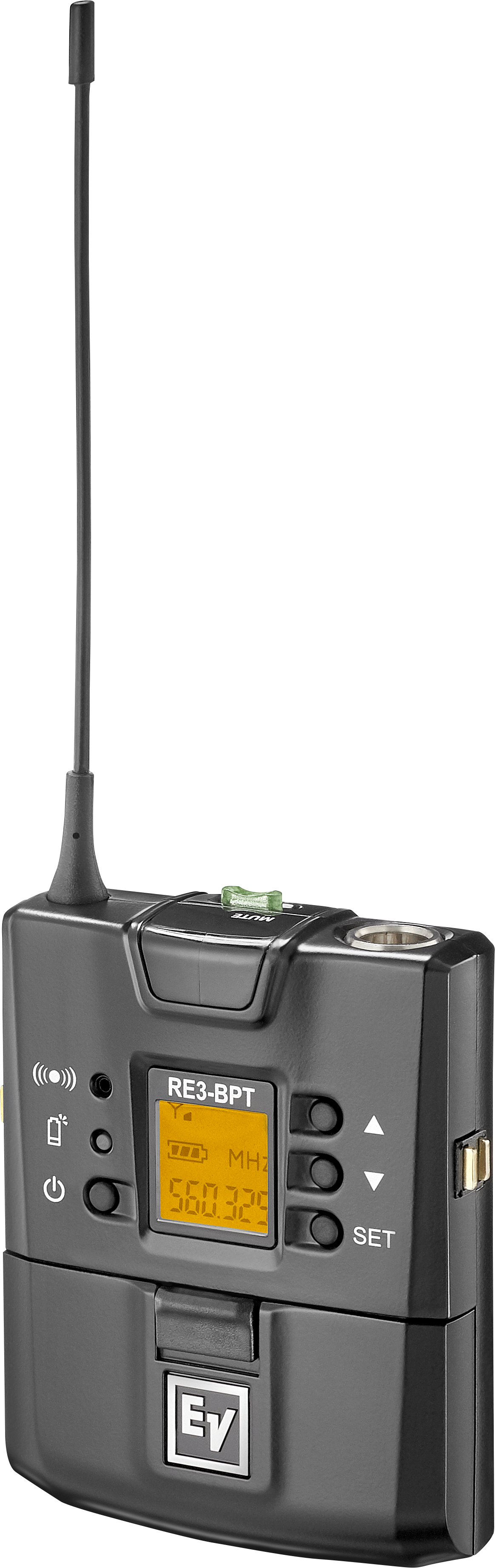

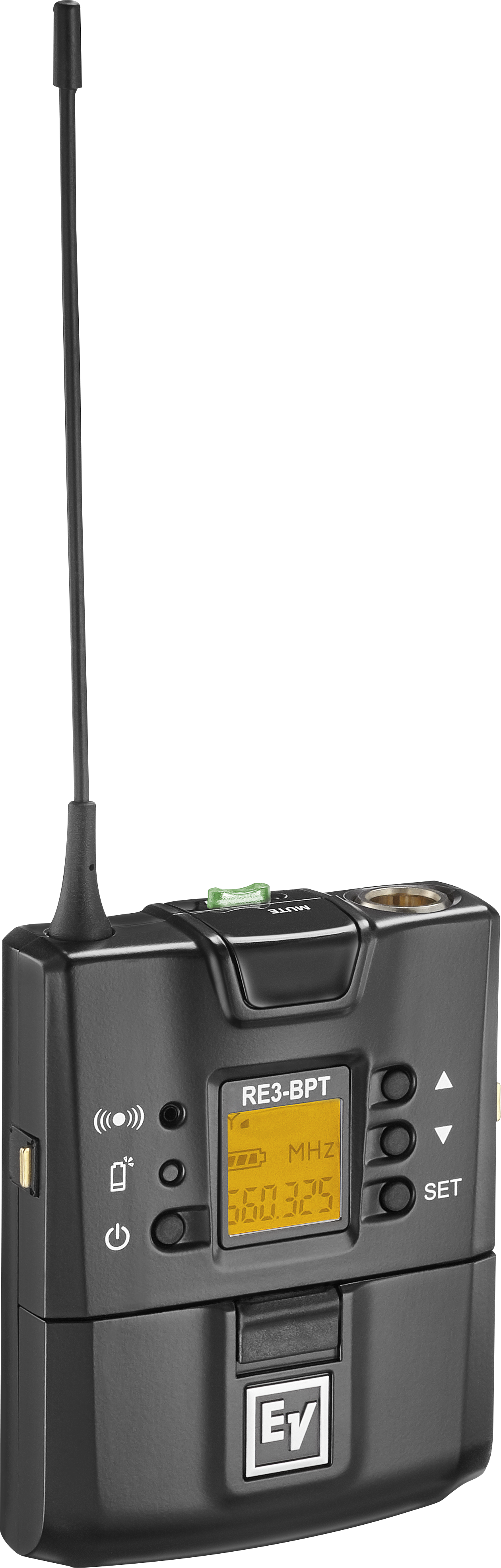

EV RE3-BPT an Trim

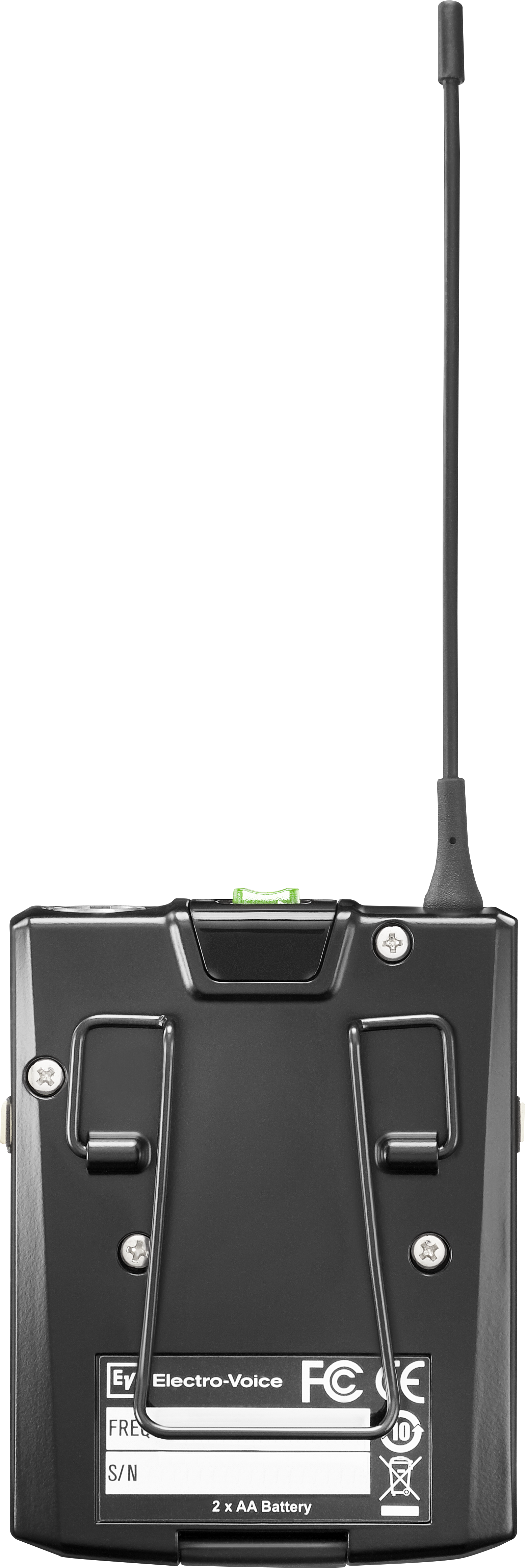

EV RE3-BPT ba Trim

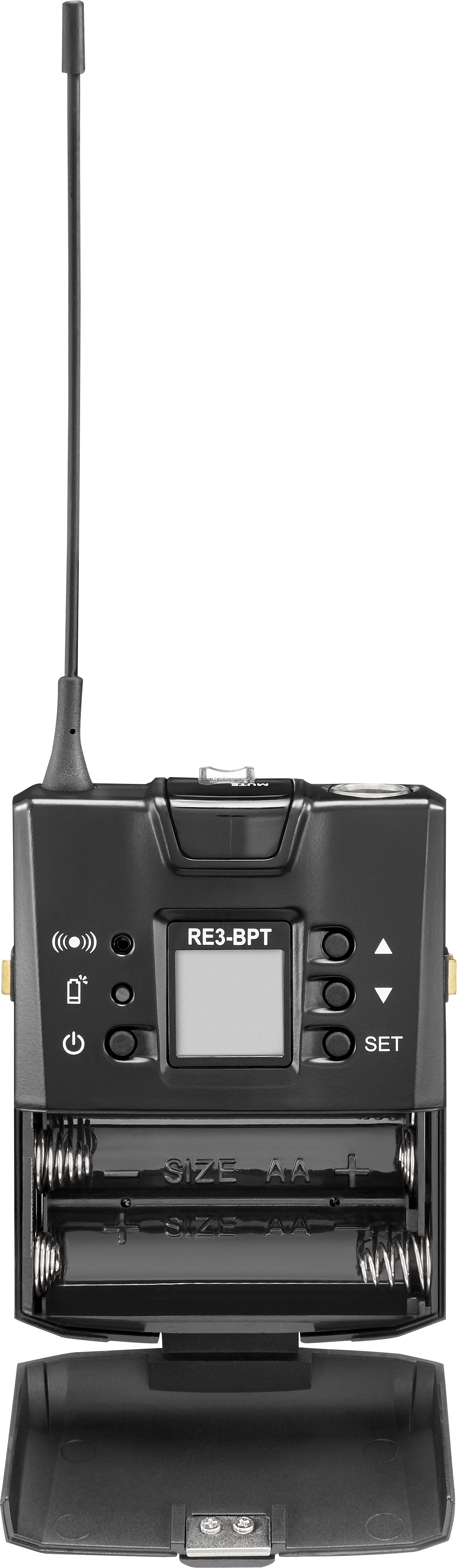

EV RE3-BPT fr BatteryOpen Trim
