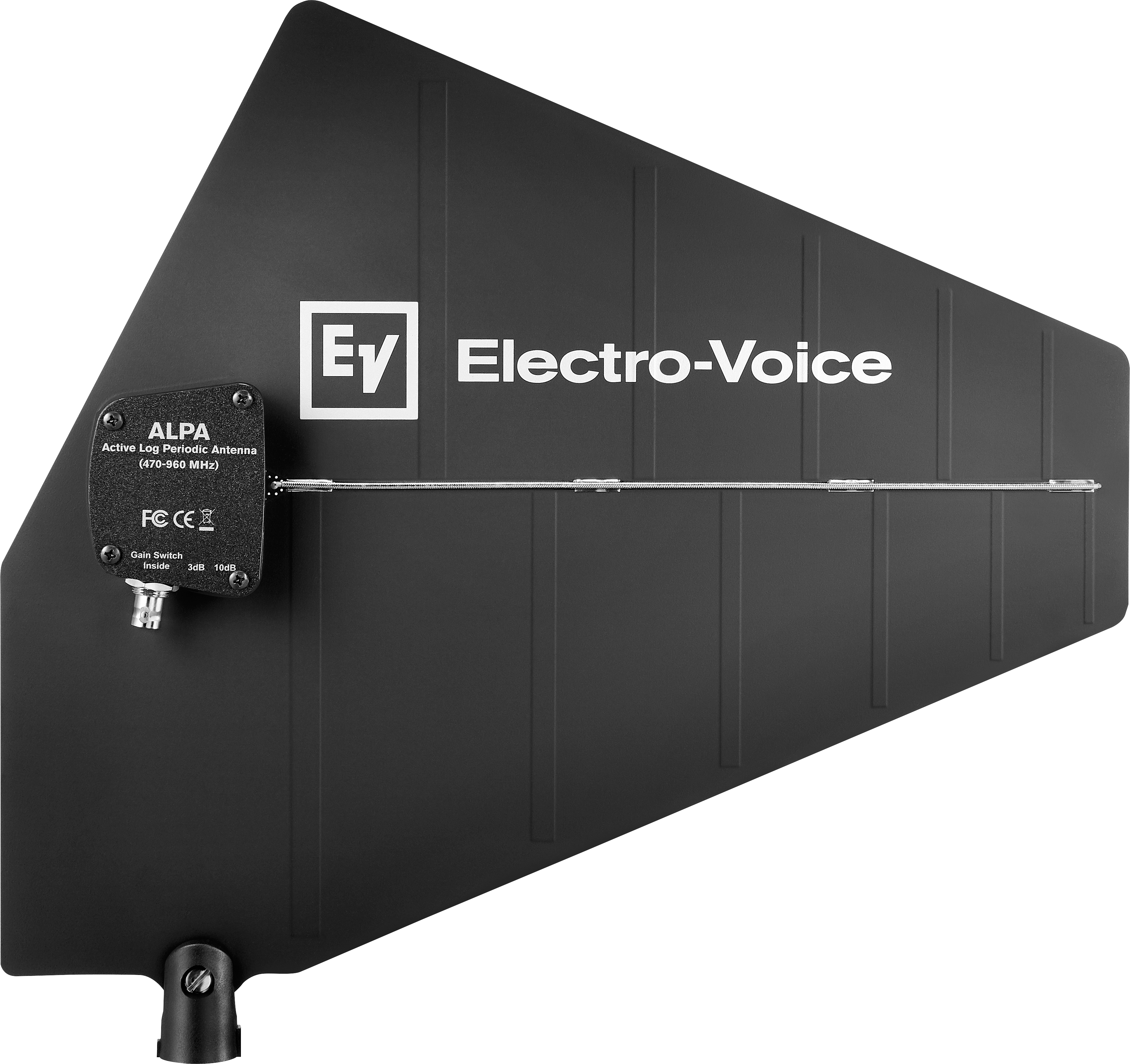

RE3-ACC-ALPA Active log periodic antenna, 470 960MHz by Electro-Voice


Active log periodic antenna, 470-960MHz

  • Extends system range
  • Switchable 3 dB and 10 dB of active gain
  • Mounts on standard threaded microphone stand

The ALPA is an active directional antenna with switchable 3 dB and 10 dB of amplified gain, which increases the desired RF signal while rejecting unwanted RF signals. ALPA mounts on a standard threaded microphone stand for easy placement. Intended to extend system range, ALPA should be used in conjunction with high-quality, low-loss coax cables such as items from the Electro-Voice CXU grade cables, which are available in various lengths. RF gain at the antenna can be increased by placing an RE3- ACC-RFAMP RF booster in line using short coax.


Antenna type Active UHF directional antenna
Frequency band 470 to 960 MHz
Effective working angle 100 degrees
Antenna gain Selectable 3 dB and 10 dB

RF connector BNC
Color Black
Net weight 11.6 oz. (328 g)
Gross weight 1 lb 11.5 oz. (780 g)
