ELX200 portable loudspeakers
Does more. weighs less.
Wireless control and monitoring via the new Bluetooth® QuickSmartMobile app*
Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.
* Bluetooth® is available in select countries.Perfect for both portable and installed applications
Available in black or white finishes, ELX200 enclosures offer a step up in both styling and build quality. Full range models feature lightweight, compact composite enclosures with internal reinforcement, designed to minimize resonance and increase rigidity and strength. With the lightest 18 inch wood powered sub on the market, and a stunning 10 inch top / 12 inch sub compact combo available to serve smaller venues, there are options available for every application. Professional grade hardware includes three M10 threaded suspension points for forged eyebolts, integrated pole mounts, and our proven three handle design for easy lifting.Heavyweight performance in a lightweight package

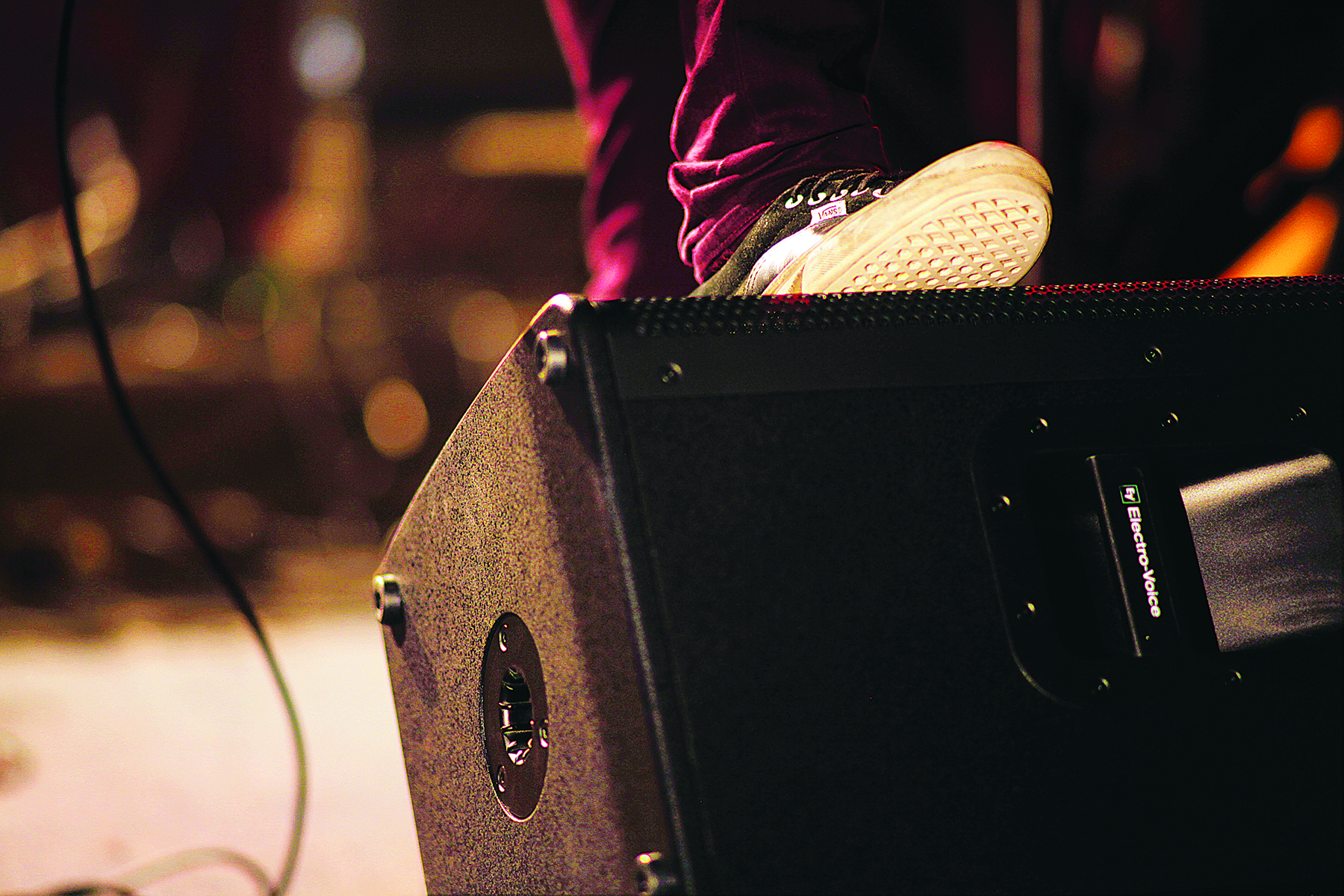

Though ELX200 is easy to carry, its tough construction and components ensure legendary EV durability and sound quality, night after night. System reliability is verified with over 500 hours of abuse and endurance testing — far above and beyond industry norms. Super‑efficient Class‑D power amplifiers deliver distortion‑free maximum SPLs utilizing high‑sensitivity transducers — all designed and engineered by Electro‑Voice.QuickSmartDSP provides best‑in‑class processing via EV's signature single‑knob user interface with LCD
Easy setup via four presets (Music, Live, Speech, Club), three‑band EQ, five user‑programmable presets, sub/top system‑match crossovers, input level control and metering, and master volume control to optimize gain structure.Electro‑Voice‑patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance
The design allows for a larger waveguide, which is placed forward in the enclosure to time‑align the woofer and the tweeter, providing exceptionally precise and consistent coverage — all with deeper, tighter bass response.
The ELX200 series offers professional Electro‑Voice audio quality, precision control, and robust, EV‑engineered components in an ultra‑lightweight package — a truly potent blend of performance and portability.
Get the smooth clarity of the EV sound in the right size to suit your needs: with 10‑inch, 12‑inch, and 15‑inch two‑way models, and 12‑inch and 18‑inch subwoofers* available, ELX200 is a flexible, feature‑rich choice for DJs, mobile entertainers, bands, and musicians.
*All are available in powered and passive versions.
Models
 |
 |
 |
 |
 |
 |
 |
 |
 |
 | |
ELX200-10P |
ELX200-12P |
ELX200-15P |
ELX200-10 |
ELX200-12 |
ELX200-15 |
ELX200-12SP |
ELX200-18SP |
ELX200-12S 12" passive subwoofer |
ELX200-18S | |
| Suspension | (3) M10 suspension points | (3) M10 suspension points | (3) M10 suspension points | (3) M10 suspension points | (3) M10 suspension points | (3) M10 suspension points | ||||
| Minimum Impedance | 7.2Ω | 7.5Ω | 7.0Ω | 6.9Ω | 7.2 ΩΩ | |||||
| HF Transducer | DH-1L 1-inch titanium compression driver | DH-1L 1-inch titanium compression driver | DH-1L 1-inch titanium compression driver | DH-1L 1-inch titanium compression driver | DH-1L 1-inch titanium compression driver | DH-1L 1-inch titanium compression driver | ||||
| Speaker Type | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range | Full-Range | Subwoofer | Subwoofer | Subwoofer | Subwoofer |
| Woofer Size | 10inch | 12inch | 15inch | 10inch | 12inch | 15inch | 12inch | 18inch | 12inch | 18inch |
| Powered or Passive | Powered | Powered | Powered | Passive | Passive | Passive | Powered | Powered | Passive | Passive |
| Frequency Response (-3 dB)¹ | 59 Hz -18 kHz | 57 Hz – 16 kHz | 55 Hz – 16 kHz | 65 Hz - 20 kHz | 77 Hz - 17 kHz | 77 Hz - 16 kHz | 49 Hz – 135Hz | 47 Hz – 105Hz | 42 Hz - 220 Hz | 45 Hz - 200Hz |
| Frequency Range (-10 dB)¹ | 53 Hz - 20 kHz | 51 Hz – 20 kHz | 48 Hz – 19 kHz | 49 Hz - 22 kHz | 51 Hz - 20 kHz | 52 Hz - 19 kHz | 41 Hz – 165 Hz | 40 Hz – 145 Hz | 33 Hz - 300 Hz | 28 Hz - 300 Hz |
| Max. SPL/1m (calc)² | 130dB | 130dB | 132dB | 127dB | 128dB | 130dB | 129dB | 132dB | 129dB | 133 HzdB |
| Coverage (Nominal -6 dB) H | 90° | 90° | 90° | 90° | 90° | 90° | ||||
| Coverage (Nominal -6 dB) V | 60° | 60° | 60° | 60° | 60° | 60° | ||||
| LF Transducer | EVS-10M 254 mm (10 in) | EVS-12M 300 mm (12 in) | EVS-15M 381 mm (15 in) | EVS-10M 254 mm (10 in) | EVS-12M 300 (12 in) | EVS-15M 381 mm (15 in) | EVS-12L 300 mm (12 in) | EVS-18L 457 mm (18 in) | EVS-12L 300 mm (12 in) | EVS-18L 457 mm (18 in) |
| Power Rating | 1200W | 1200W | 1200W | 1200W | 1200W | 1200W | 1200W | 1200W | 1600W | 1600W |
| Crossover Frequency | 1800Hz | 1700Hz | 1600Hz | 2 kHz | 1.7 kHz | 1.6 kHz | ||||
| Connector Type | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR | (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR | Dual NL4 | Dual NL4 | Dual NL4 | (2) XLR/TRS combo jacks and (2) XLR link outputs | (2) XLR/TRS combo jacks and (2) XLR link outputs | Dual NL4 | Dual NL4 |
| Enclosure Material | Polypropylene Composite | Polypropylene Composite | Polypropylene Composite | Polypropylene Composite | Polypropylene composite | Polypropylene composite | 15 mm plywood with EVCoat | 15 mm plywood with EVCoat | 15 mm plywood with durable polyurea top-coat finish | 15 mm plywood with durable polyurea top-coat finish |
| Grille | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat | 18 AWG steel with powdercoat |
| Available Color | Black or White | Black or White | Black or White | Black or White | Black or White | Black or White | Black or White | Black or White | Black or White | Black or White |
| Height | 20.91" (531mm) | 24.76" (629mm) | 27.95" (710mm) | 20.91" (531mm) | 24.76" (629mm) | 27.95" (710mm) | 15.63" (397mm) | 23.62" (600mm) | 15.63" (397mm) | 23.62" (600mm) |
| Width | 12.99" (330mm) | 14.29" (363mm) | 16.65" (423mm) | 12.99" (330mm) | 14.29" (363mm) | 16.65" (423mm) | 17.52" (445mm) | 19.96" (507mm) | 17.52" (445mm) | 19.96" (507mm) |
| Recommended High-Pass Frequency | 55Hz | 50 Hz | 42Hz | 42Hz | 35 HzHz | |||||
| Depth | 12.56" (319mm) | 13.54" (344mm) | 15.12" (384mm) | 12.56" (319mm) | 13.54" (344mm) | 15.12" (384mm) | 17.99" (457mm) | 22.6" (574mm) | 17.99" (457mm) | 22.6" (574mm) |
| Weight Net | 29.76lbs (13.5kg) | 34.39lbs (15.6kg) | 41.67lbs (18.9kg) | 29.54lbs (13.4kg) | 33.51lbs (15.2kg) | 41.23lbs (18.7kg) | 42.11lbs (19.1kg) | 63.93lbs (29kg) | 44.53lbs (20.2kg) | 58.64lbs (26.6kg) |
| Shipping Weight | 34.39lbs (15.6kg) | 39.02lbs (17.7kg) | 48.06lbs (21.8kg) | 33.73lbs (15.3kg) | 37.7lbs (17.1kg) | 47.18lbs (21.4kg) | 49.16lbs (22.3kg) | 72.97lbs (33.1kg) | 44.53lbs (20.2kg) | 67.24lbs (30.5kg) |
| Power Consumption³ | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A | 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A | |||||
| Family | ELX200 | ELX200 | ELX200 | ELX200 | ELX200 | ELX200 | ELX200 | ELX200 | ELX200 | ELX200 |
| Low Pass Frequency | Adjustable: 80 Hz, 100 Hz, 120Hz, 150 Hz | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz | ||||||||
| Nominal Impedance | 8Ω | 8Ω | 8Ω | 8 ΩΩ | 8Ω | |||||
| Axial Sensitivity (SPL, 1 W @ 1 m) | 90dB | 93dB | 95dB | 93dB | 94dB | |||||
| Power Handling (Continuous / Peak) | 300 W/1200W | 300W/1200W | 300W/1200W | 400 W/1600W | 400W/1600W | |||||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
Show more specs
