EVID ceiling mount speakers
Premium in‑ceiling speakers
Designed with both the contractor and listener in mind, EVID ceiling speakers are high-performance problemsolvers that deliver exceptional sound in even the most challenging situations. From the compact power of the C4.2 to the exclusive waveguide‑coupled design of the C8.2HC, each great-sounding EVID solution is uniquely suited to handle installer needs across a specific range of intended applications. Sonically superior and aesthetically pleasing, every EVID ceiling model installs with ease and provides lasting value. For commercial sound across all venue types, EVID has the ceiling covered.
Models
 |
 |
 |
 |
 |
 |
 |
 |
 |
 | |
EVID C4.2 |
EVID-C4.2LP |
EVID-C6.2 |
EVID-PC6.2 |
EVID C8.2 |
EVID-PC8.2 |

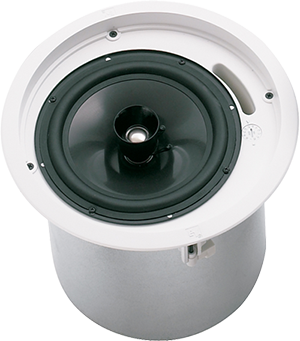

EVID C8.2HC |
EVID C8.2LP |
EVID C12.2 |
EVID C10.1 | |
| Max Calculated SPL | 60 watt Transformer coupled @ 4 meters: 92 dB 100 watt Direct coupled @ 4 meters: 95 dBdB | |||||||||
| Frequency Range (-10 dB) | 65 - 20000kHz | 50 - 20kHz | 50 - 20000kHz | 50 - 20000kHz | 45 - 180kHz | |||||
| Weatherized | No | No | No | No | No | |||||
| Flying | No | |||||||||
| HF Transducer | 0.75-inch (19 mm) Ti Mylar Laminate Dome | 35 mm compression driver | 1-inch (25 mm) Ti Mylar Laminate Dome | 35 mm compression driver | 1-inch (25 mm) Ti Mylar Laminate Dome | 1 in (25 mm) Ti Mylar laminate | 1-inch (25 mm) () | |||
| Speaker Type | Ported cabinet, internally damped, two-way () | Ported cabinet, internally damped, two-way (passive crossover included) | Ported cabinet, internally damped, two-way (passive crossover included) | Ported cabinet, internally damped two-way () | Dual ported cabinet, internally damped | |||||
| Frequency Response (-3 dB)¹ | 65 - 20,000Hz | |||||||||
| Frequency Range (-10 dB)¹ | 40 - 20kHz | |||||||||
| Max. SPL/1m (calc)² | 108 db avg, 114 pkdB | 126dB () | 122dB | |||||||
| LF Transducer | 4-inch polypropylene cone | 165 mm (6.5 in) | 8-inch polypropylene cone | 200 mm (8 in) | 8-inch polypropylene cone plus waveguide | 8 in. (200 mm) Polypropylene cone | 12-inch EVID 920-8B () | 10-inch polypropylene cone | ||
| System Power Handling (Continuous/Program/Peak) | 50Watts () | 100Watts () | 100Watts () | 100Watts | 150Watts | |||||
| Power Rating | 200W | 200W | 300W | 200W | 300W | 64W | 600W | |||
| HF Power Handling | 200 W program, 100 W pink noiseWatts | 200W program, 100W pink noiseWatts | ||||||||
| Crossover Frequency | 2000Hz | |||||||||
| Connector Type | Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size | Removable locking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size | ||||||||
| Enclosure Material | Steel enclosure and UL94V-0 rated baffle and bezel | ABS plastic (UL94V-0) baffle, steel back can | Steel enclosure and UL94V-0 rated baffle and bezel | ABS plastic (UL94V-0) baffle, steel back can | Steel enclosure and UL94V-0 rated baffle and bezel | Steel enclosure and UL94V-0 rated baffle and bezel | Steel enclosure and UL94V-0 rated baffle and bezel | |||
| Grille | Powder-coated steel | Color-matched steel grille with fabric | Powder-coated steel | Color-matched steel grille with fabric | Powder-coated steel | Perforated powder coated steel wit safety tether | Powder-coated steel | Powder-coated steel | ||
| Available Color | White (paintable surface) | White | White (paintable surface) | White | White (paintable surface) | White (paintable surface) () | White (paintable surface) | |||
| Sensitivity 1 W/1 m | 86dB | 87dB | 91dB | 88dB | 93dB | 100dB | 94dB | |||
| Height | 176mm (6.93") | 260mm (10.24") | 178mm (7.01") | 324mm (12.76") | 303mm (11.93") | 333mm (13.11") | 303mm (11.93") | |||
| Weight Net | 2.7kg (5.95 lbs) | 7kg (15.43 lbs) | 5kg (11.02 lbs) | 8kg (17.64 lbs) | 6kg (13.23 lbs) | 12.3kg (27.12 lbs) | 7kg (15.43 lbs) | |||
| Shipping Weight | 16.83kg (37.1 lbs) | 20.23kg (44.6 lbs) | ||||||||
| Regulatory Approvals | UL1480; UL2043 | UL1480; UL2043 | UL1480; EN54-24; UL2043 | UL1480; UL2043 | UL1480; UL2043 | |||||
| Diameter (Max) | 181mm (7.13") | 280mm (11.02") | 270mm (10.63") | 327mm (12.87") | 320mm (12.6") | 414mm (16.3") | 320mm (12.6") | |||
| Network | Network and transducers protected 12 dB/oct 2.6 kHz | |||||||||
| Transformer | Yes | Yes | Yes | Yes | ||||||
| Transformer Taps (Transformer Version Only) | (1.88 - 70 V only), 3.75, 7.5, 15, 30 | 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω | (1.88 - 70 V only), 3.75, 7.5, 15, 30 | 70V: 60W, 30W, 15W, 7.5W, 8Ω, 100V: 60W, 30W, 15W, 8Ω | (7.5 - 70 V only), 15, 30, 60 | 4 (70 V only), 8, 16, 32, 64 W ASC protected | (7.5 - 70 V only), 15, 30, 60 | |||
| Chassis Size | 101.6mm (4") | 203.2 mm | 203.2 mm | 254mm (10") | ||||||
| Input Formats | 8ω, 70 V, 100 V | 8ω, 70 V, 100 V | 8ω, 70 V, 100 V | 8ω / 70V / 100V | 8ω, 70 V, 100 V | |||||
| Coverage (Nominal -6 dB) | 130 () | 120° | 110 () | 100° | 75 () | 90 () | 180 | |||
| Mounting Systems | Integrated 3-point toggle anchors | C ring, tile bridge | Integrated 3-point toggle anchors | C ring, tile bridge | Integrated 3-point toggle anchors | Integrated 3-point toggle anchors | Integrated 3-point toggle anchors | |||
| Impedance | 8Ω | 8Ω | 8 Ohms nominal (transformer bypass) | |||||||
| Maximum SPL | 107 dB avg, 113 pkdB | |||||||||
| Cutout Size | 248mm (9.76") | 294.3mm (11.59") | 10.75" (272mm) | |||||||
| Transformer Taps | 70V: 1.88, 3.75, 7.5, 15 or 30 100V: 3.75, 7.5, 15 or 30W Bypass: 8 Ohms | |||||||||
| Connectors | Phoenix type removable, with scre terminals and "loop-thru", accepts 12 ga wire | |||||||||
| Enclosure | Baffle- UL 94V-O rated AB Backcan-Zinc plated steel | |||||||||
| Safety Agency Ratings | UL 1480 Safe for use in air handling spaces per UL 2043 | |||||||||
| Dimensions (H x Dia) | 7.0" x 10.6 (178mm x 270mm) | |||||||||
| Net Weight | 11.0 lbs (5.0 kg) | |||||||||
| Shipping Weight:(pair) | 24.0 lbs (11.0 kg) | |||||||||
| Support Hardware | Tile bridge, backing plate support cutout template, paint shield | |||||||||
| LP Height | 255mm (10.04") | |||||||||
| Freq. Response (-10 dB) | 50 Hz - 20 kHzdb | |||||||||
| Coverage (Conical) | 110° | |||||||||
| Power Handling | 75 W Cont. / 300 W Peak | |||||||||
| Sensitivity (SPL 1W/1m) | 91 dB | |||||||||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More |
Show more specs
Recommended Amplifiers
As part of The Bosch Group, Electro-Voice is dedicated to loudspeakers and microphones and Dynacord is dedicated to amplifiers, DSP and software. The depth of our shared R&D resources are geared towards bringing customers the best of both worlds: state-of-the-art loudspeaker and microphone technology from Electro-Voice, and world-class electronics engineering and software design from Dynacord.
For optimal sound system performance, Electro-Voice recommends the following amplifiers.
|
Two-channel power amplifiers for fixed install |
Multi-channel power amplifier for commercial installations |
CPS contractor precision series amplifiers |
PA series multi-channel power for fixed install applications |
|
|---|---|---|---|---|
| Two-Channel | ✓ | |||
| Multi-Channel | ✓ | ✓ | ✓ | |
| powerTANK | ✓ | |||
| DSP | ✓ | |||
| Direct Drive | ✓ | ✓ | ✓ | |
| OMNEO (Dante, OCA) | ||||
| Installation | ✓ | ✓ | ✓ | ✓ |
