EVOLVE Portable Powered Column Speaker Systems
The award-winning EVOLVE series is globally recognized as the benchmark for performance in column loudspeaker systems.
Available in black or white finishes, each model in the EVOLVE lineup combines state-of-the-art industrial design, superior Electro-Voice-engineered components and premium materials to deliver best-in-class sound quality, power and reliability – true professional performance in a super-compact and portable package.

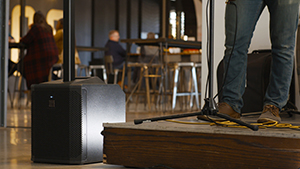

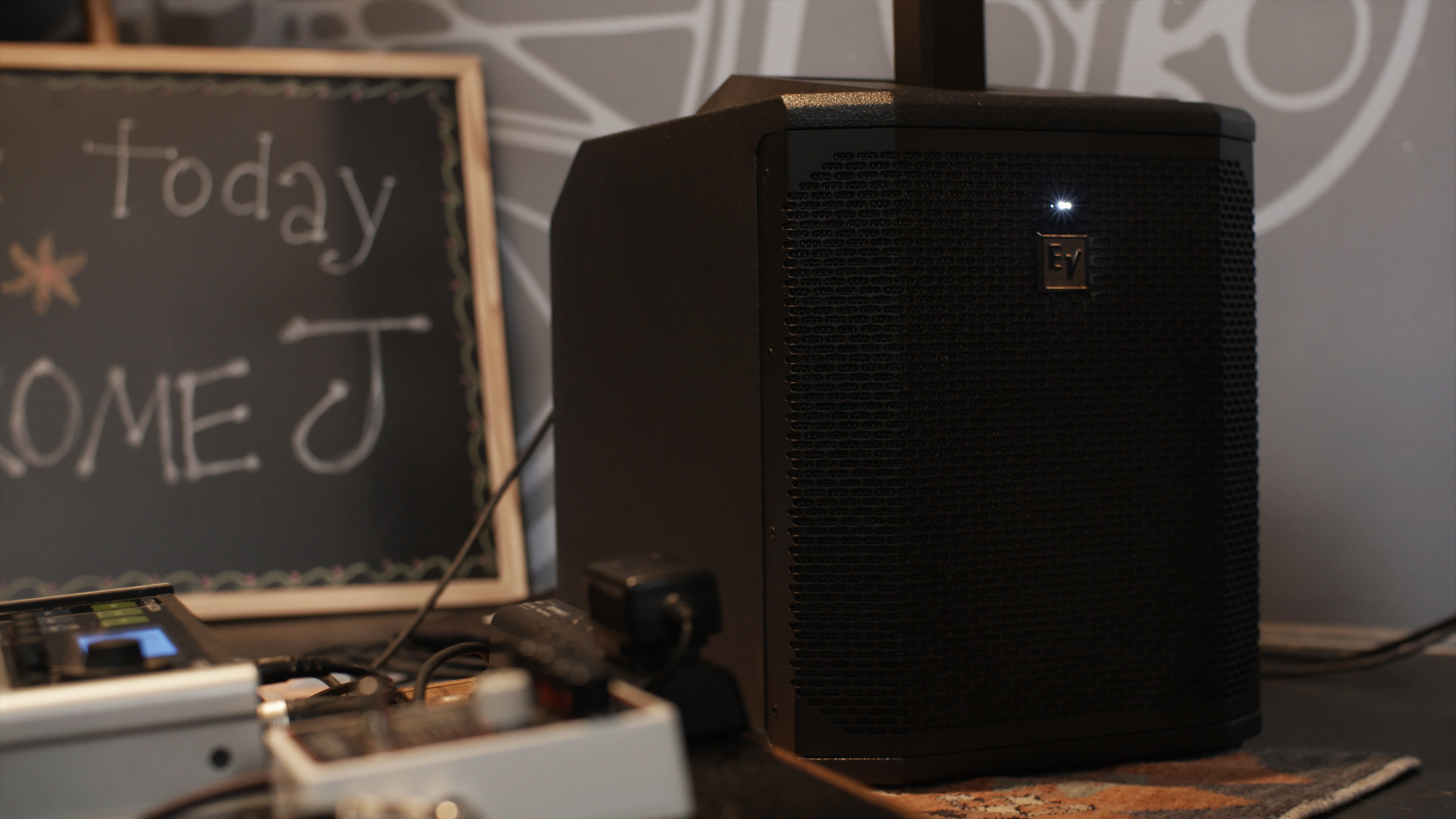

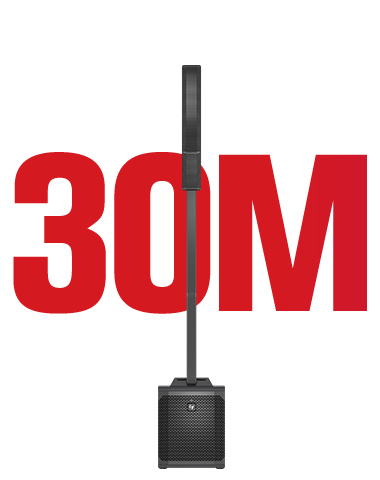

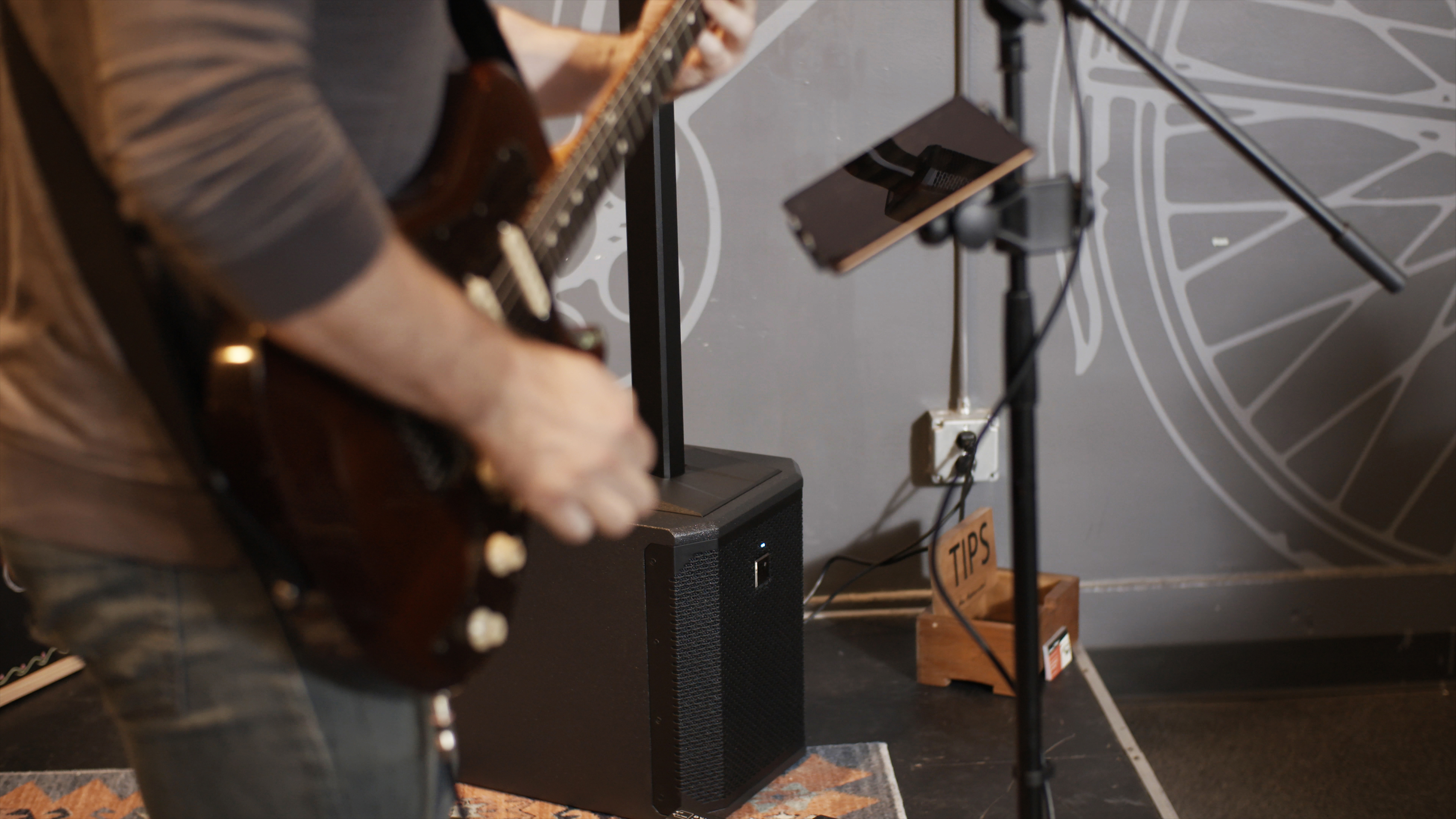

EVOLVE 30M
AVAILABLE NOW
Column array
6x 2.8” neodymium drivers
Subwoofer
10”
Frequency response
51 Hz to 20 KHz
Frequency range
45 Hz to 20 KHz
Maximum SPL
123 dB
Coverage120° x 40°
Amplifier rating
1000W
Connectors
- 4x XLR/TRS combo jack line / mic inputs
- 2x XLR/TRS combo jack for stereo line inputs
- 1x wireless stereo Bluetooth® audio input
- 1x stereo RCA input
- 1x 3.5 mm stereo input
- 1x ¼” TRS HI-Z input
- 1x ¼” footswitch input
- 1x XLR mix out output
- 1x XLR aux out output
- 1x IEC power connector

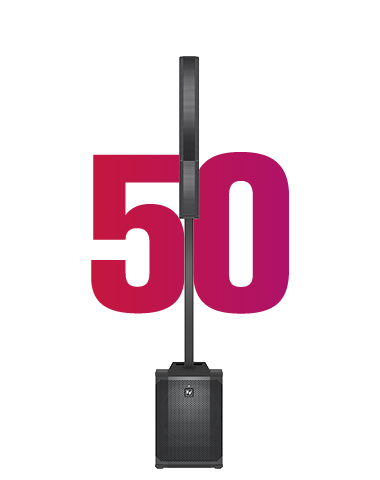

EVOLVE 50
AVAILABLE NOW
Column array
8x 3.5” neodymium drivers
Subwoofer
12”
Frequency response
43 Hz-20 KHz
Frequency range
37 Hz - 20 KHz
Maximum SPL
127 dB
Coverage120° x 40°
Amplifier rating
1000W
Connectors
- 2x XLR/TRS combo jack line / mic inputs
- 1x wireless stereo Bluetooth® audio input
- 1x stereo RCA input
- 1x 3.5 mm input
- 1x XLR mix out output
- 1x XLR thru output
- 1x IEC power connector
EVOLVE 50M
AVAILABLE NOW
Column array
8x 3.5” neodymium drivers
Subwoofer
12”
Frequency response
43 Hz to 20 KHz
Frequency range
37 Hz - 20 KHz
Maximum SPL
127 dB
Coverage120° x 40°
Amplifier rating
1000W
Connectors
- 4x XLR/TRS combo jack line / mic inputs
- 2x XLR/TRS combo jack for stereo line inputs
- 1x wireless stereo Bluetooth® audio input
- 1x stereo RCA input
- 1x 3.5 mm stereo input
- 1x ¼” TRS HI-Z input
- 1x ¼” footswitch input
- 1x RJ45 QuickSmart Link connector
- 1x XLR mix out output
- 1x XLR aux out output
- 1x IEC power connector
EVOLVE 50M
AVAILABLE NOW
Column array
8x 3.5” neodymium drivers
Subwoofer
12”
Frequency response
43 Hz to 20 KHz
Frequency range
37 Hz - 20 KHz
Maximum SPL
127 dB
Coverage120° x 40°
Amplifier rating
1000W
Connectors
- 4x XLR/TRS combo jack line / mic inputs
- 2x XLR/TRS combo jack for stereo line inputs
- 1x wireless stereo Bluetooth® audio input
- 1x stereo RCA input
- 1x 3.5 mm stereo input
- 1x ¼” TRS HI-Z input
- 1x ¼” footswitch input
- 1x RJ45 QuickSmart Link connector
- 1x XLR mix out output
- 1x XLR aux out output
- 1x IEC power connector

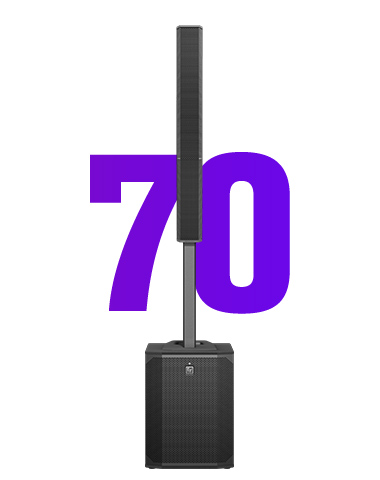

EVOLVE 70
AVAILABLE NOW
Column array
8x 4.7” neodymium drivers
Subwoofer
15”
Frequency response
40 Hz – 18 kHz
Frequency range
35 Hz – 20 kHz
Maximum SPL
133 dB
Coverage120° x 25°
Amplifier rating
2000W
Connectors
- 2x XLR/TRS combo jack line / mic inputs
- 2x XLR/TRS combo jack for stereo line inputs
- 1x wireless stereo Bluetooth® audio input
- 1x stereo RCA input
- 1x AES/EBU digital I/O input
- 1x XLR thru output
- 1x RJ45 QuickSmart Link connector
- 1x XLR mix out output
- 1x XLR sub out output
- 1x PowerCON® connector

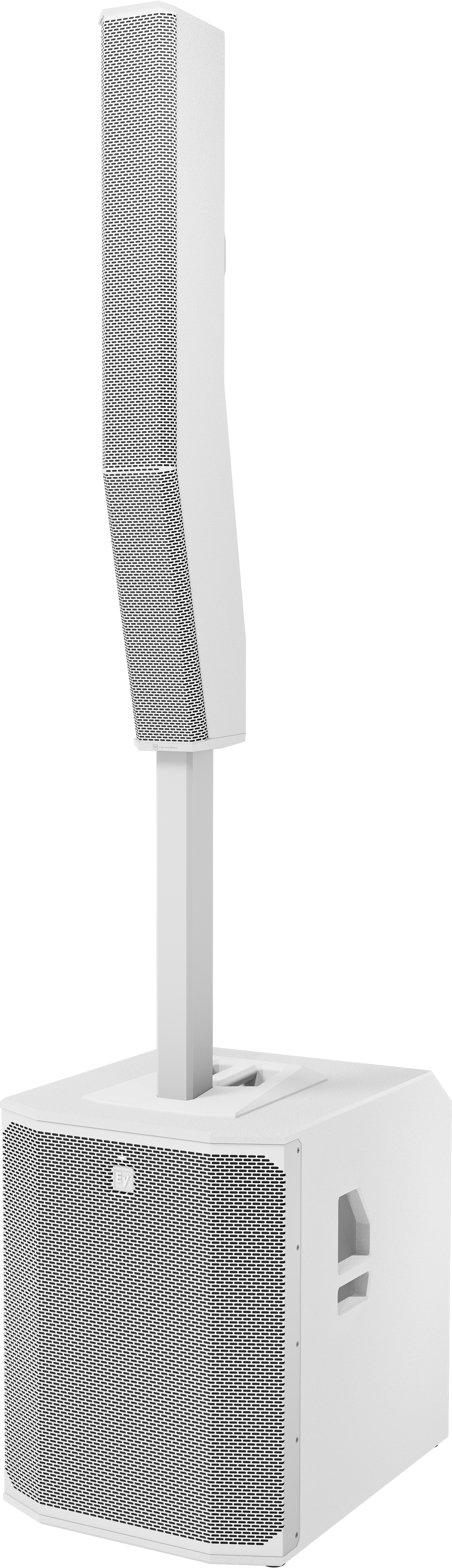

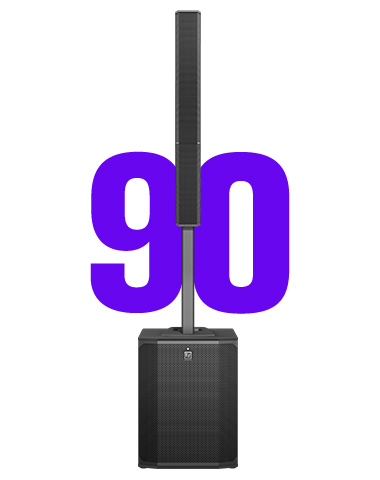

EVOLVE 90
AVAILABLE NOW
Column array
8x 4.7” neodymium drivers
Subwoofer
18”
Frequency response
35 Hz – 18 kHz
Frequency range
28 Hz – 20 kHz
Maximum SPL
134 dB
Coverage120° x 25°
Amplifier rating
2000W
Connectors
- 2x XLR/TRS combo jack line / mic inputs
- 2x XLR/TRS combo jack for stereo line inputs
- 1x wireless stereo Bluetooth® audio input
- 1x stereo RCA input
- 1x AES/EBU digital I/O input
- 1x XLR thru output
- 1x RJ45 QuickSmart Link connector
- 1x XLR mix out output
- 1x XLR sub out output
- 1x PowerCON® connector
Downloads
Technical Documentations
| Name | Language & Download |
|---|---|
| Bt-Sig, Evolve-50, 99455 Certificate | en |
| Eac, Evolve50, Elx200, Certificate No. 12837, 2017-10-13 Certificate | en |
| EVOLVE 30M EC-Declaration of Conformity | en |
| EVOLVE 50 Certificate of Compliance | en |
| EVOLVE 50M EC-Declaration of Conformity | en |
| EVOLVE50 EC-Declaration of Conformity | en |
| Nom, Evolve50, Safety, Certificate No. 1802Ce13753 Certificate | en |
| Name | Language & Download |
|---|---|
| EVOLVE 50 Engineering Data Sheet | en de es fr pt |
| EVOLVE 50M Engineering Data Sheet | en de es fr ja ko pt zh |
| EVOLVE 70 Engineering Data Sheet | en de es fr ja ko pt zh |
| EVOLVE 90 Engineering Data Sheet | en de es fr ja ko pt th |
| EVOLVE-30M Engineering Data Sheet | en de es fr ja ko pt zh |
| Name | Language & Download |
|---|---|
| EVOLVE 50 User Manual | en de es fr ja ko pt zh |
| EVOLVE 50M User Manual | en de es fr ja ko pt zh |
| EVOLVE 70 & EVOLVE 90 Quick Installation Manual | en |
| EVOLVE 70 & EVOLVE 90 Safety and Security Information | en |
| EVOLVE 70 & EVOLVE 90 User Manual | en de es fr ja ko pt zh |
| EVOLVE-30M User Manual | en de es fr ja pt zh |
Software, Firmware & Design Tools
Marketing Materials
| Name | Language & Download |
|---|---|
| EVOLVE 30M Soundcheck Review DE (02-20) | Download |
